1594 Sq. Ft. - The Wave

To learn more about what's included with our plans- Click here

Would you like to modify this plan? Submit a request form here

Plan Description

Sq Ft. - 1594 | Bed - 3 | Bath - 2.5 | Stories - 1

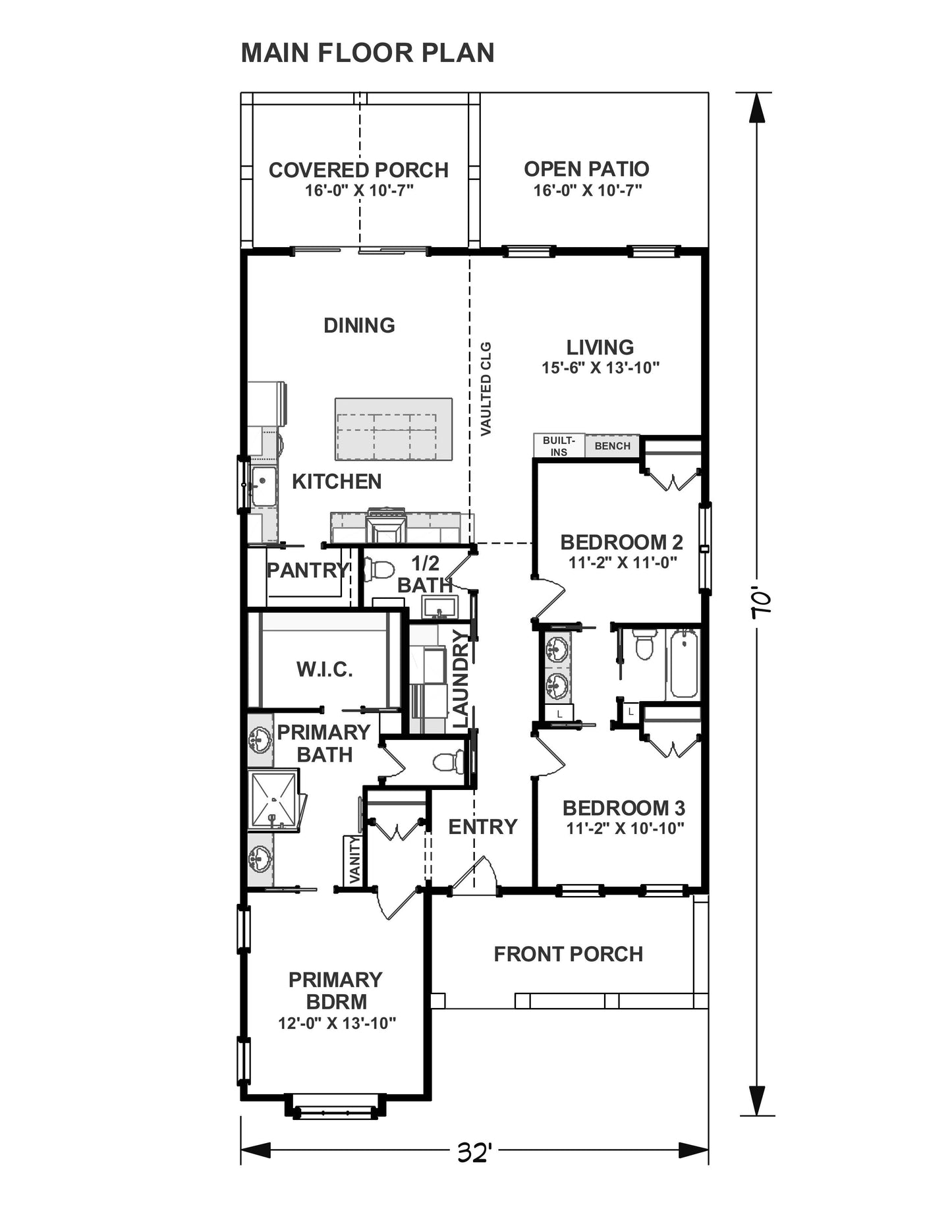

The Wave showcases a beautiful gable overhang and circular window for exceptional curb appeal. Sliding doors off the dining area lead to a spacious deck with a covered portion for outdoor enjoyment. The master bedroom, with a 4-fixture bath and walk-in closet, provides privacy. Bedrooms 2 and 3 share a Jack-and-Jill bath with pocket doors.

Dimensions: Width: 32' 0" | Depth: 69'0" | Max Ridge Height: 26' 0"

Exterior Walls: 2x6

Ceiling Height: First Floor - 9'

Foundation Type: Crawl

Roof Details: Primary Pitch: 9 on 12 | Framing Type: Truss
