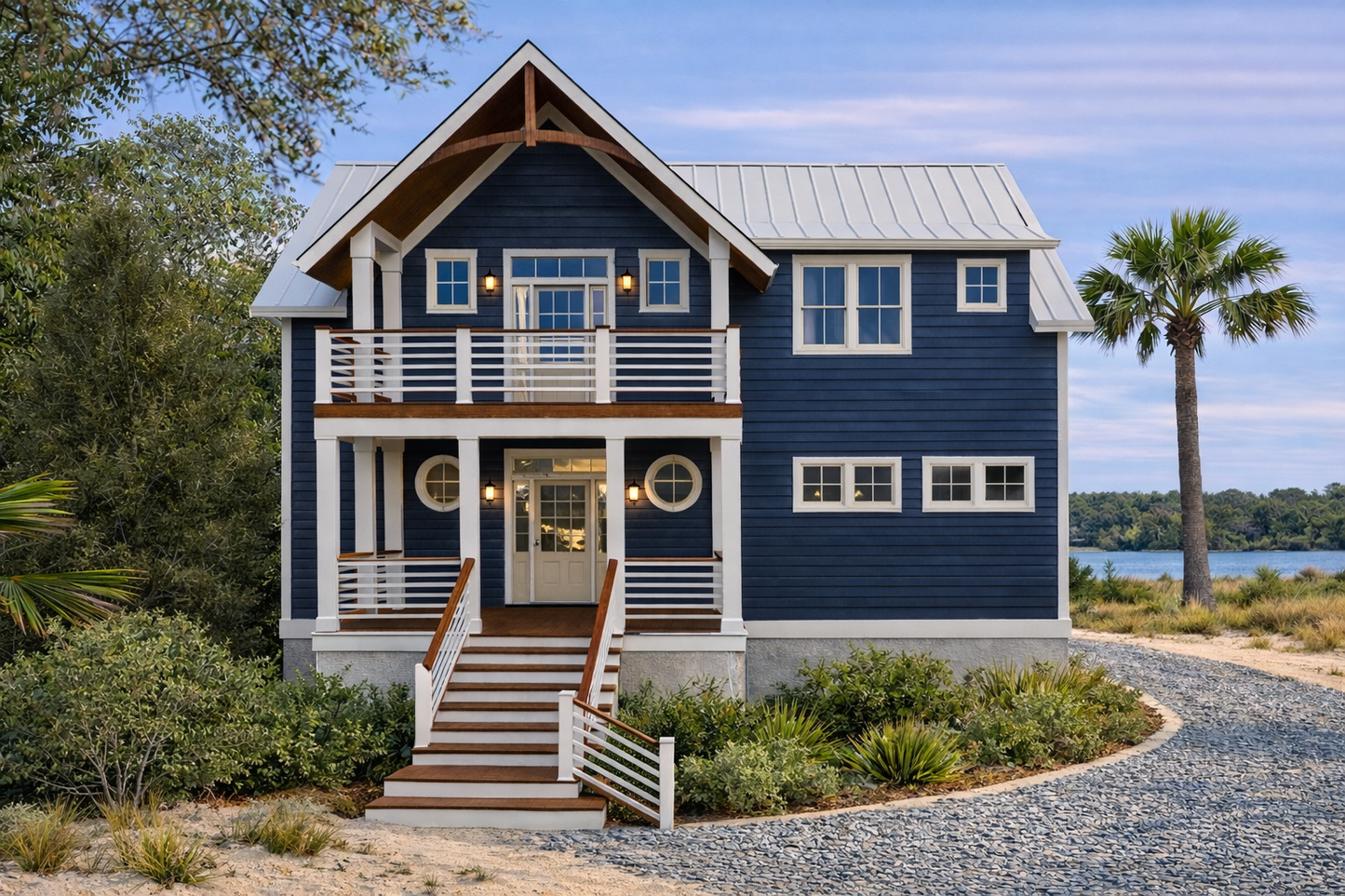

Casa Azul
3-4 Bedroom Reverse-Living Coastal Plan
3,058 SQ. FT. | 3-4 BED | 4 BATH | 2-STORY

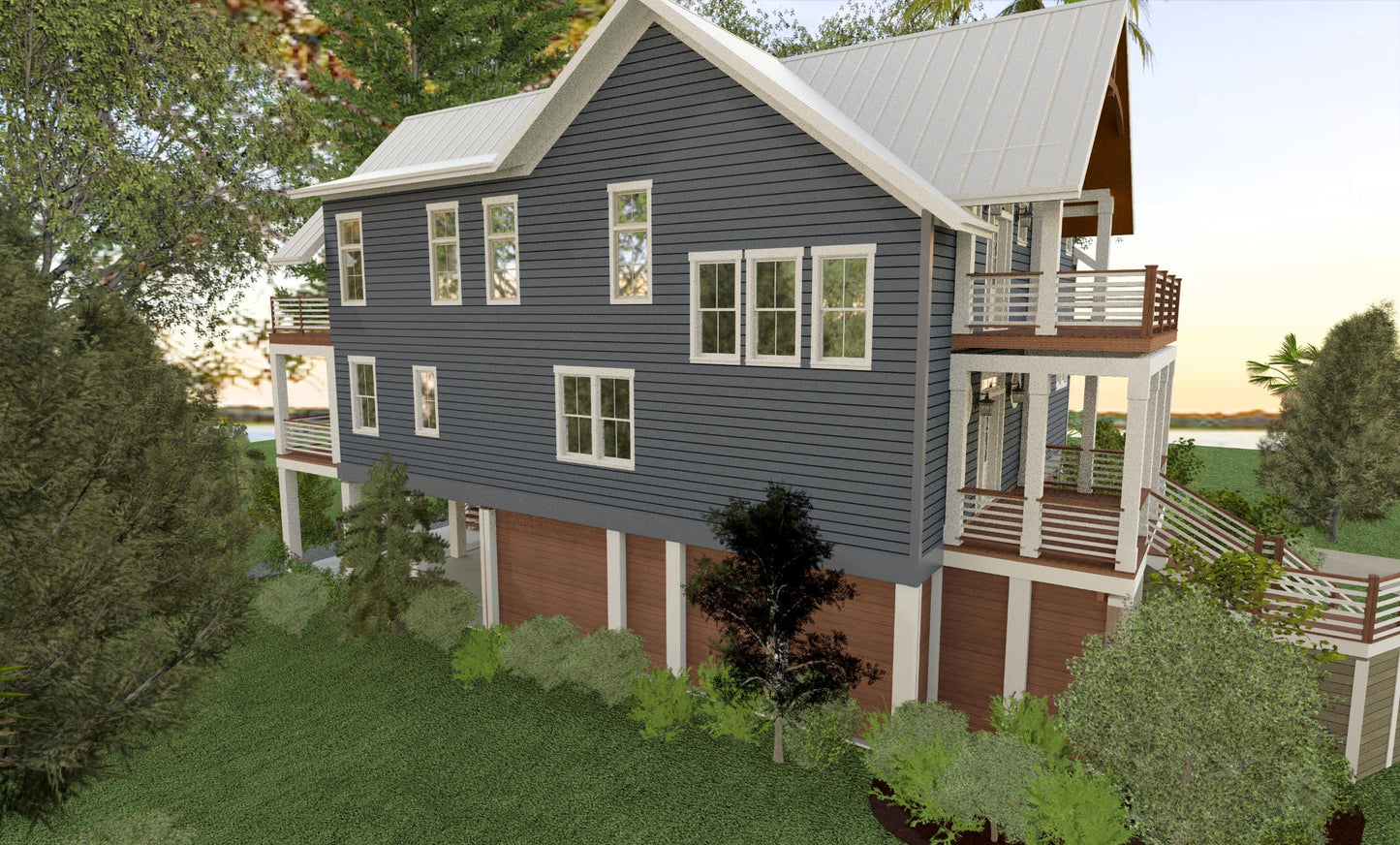

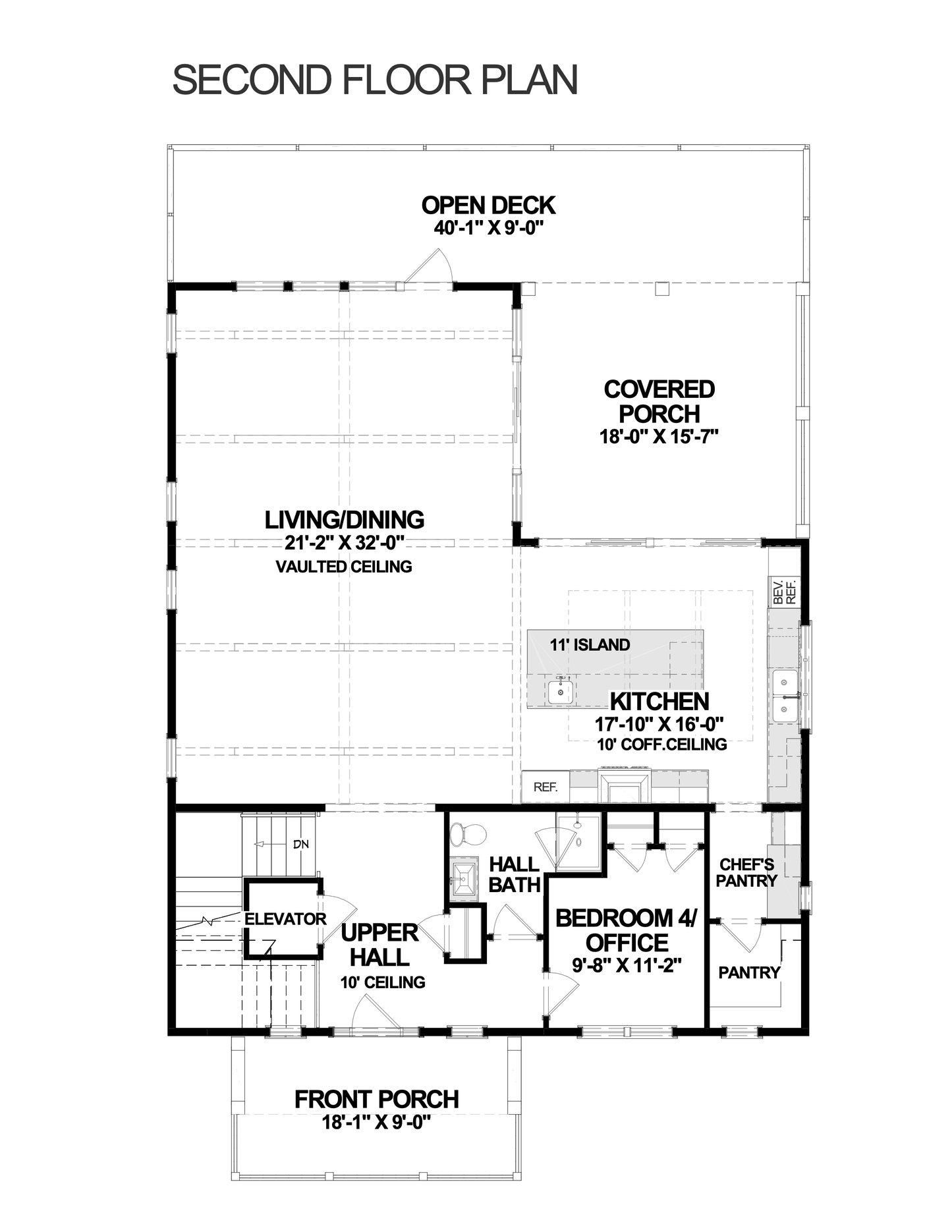

Climb the stairs of Casa Azul and arrive somewhere extraordinary. This 3,058 sq. ft. coastal blueprint utilizes an inverted, reverse-living layout that places the main living spaces and kitchen on the top floor—where soaring vaulted ceilings, exposed truss beams, and sweeping panoramic views take center stage.

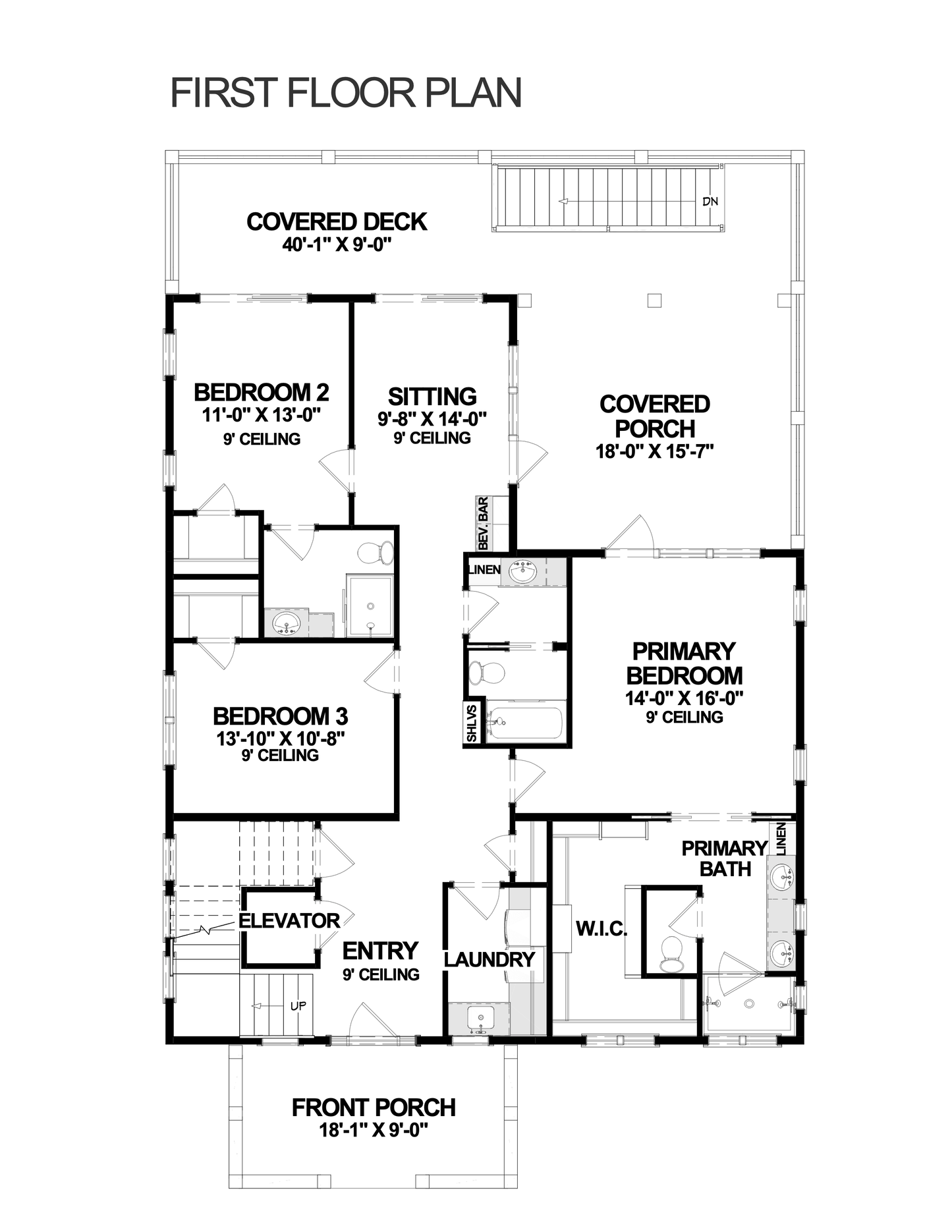

By tucking the private bedrooms on the level below, this home creates a natural, luxurious separation between rest and entertainment. Featuring an optional elevator and a massive 1,359 sq. ft. drive-under garage, it is the ultimate design for premier waterfront lots.
Key Design Features
Inverted Reverse-Living Layout: Main living and kitchen areas sit on the top level to maximize natural light, structural drama, and surrounding views.

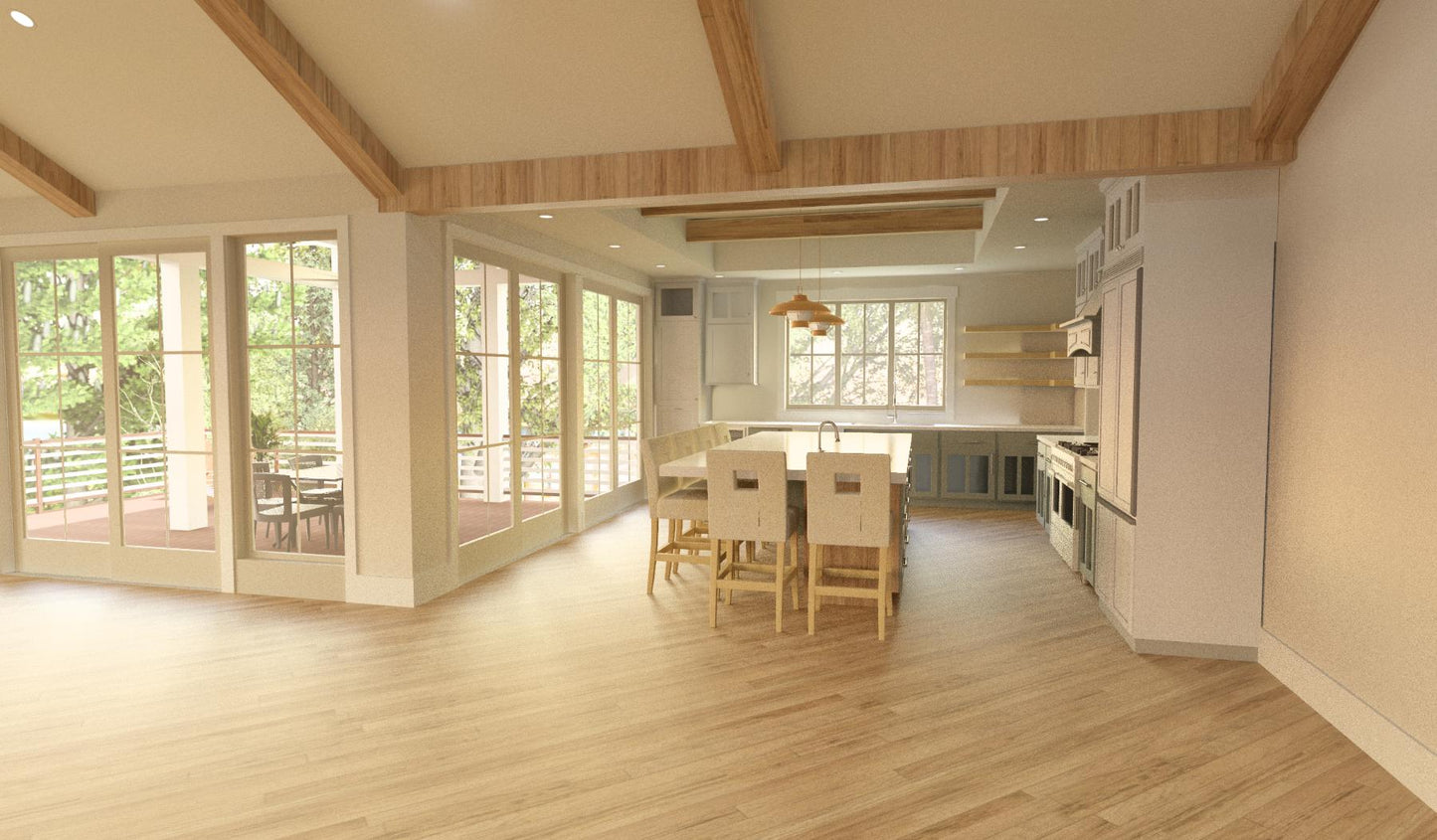

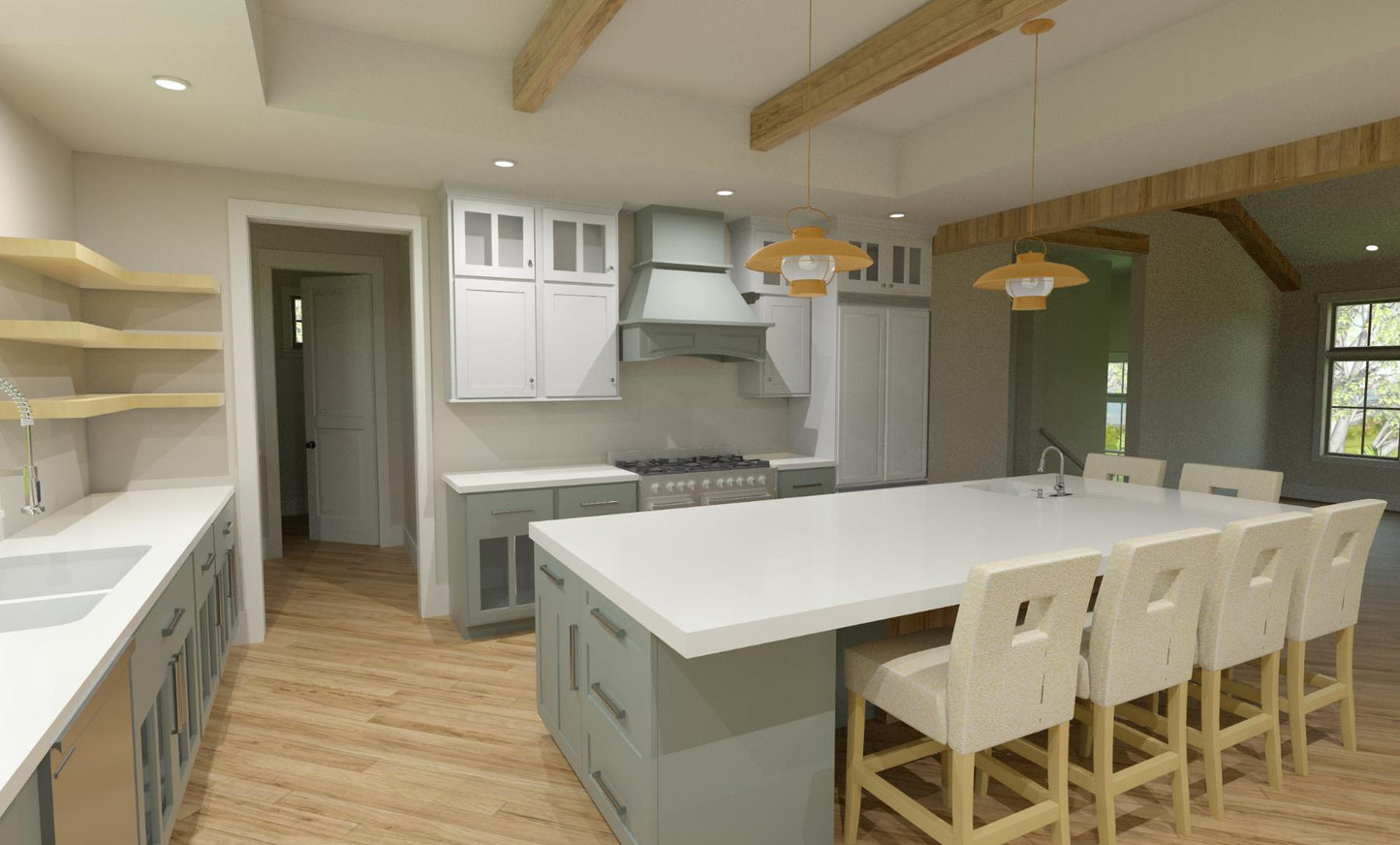

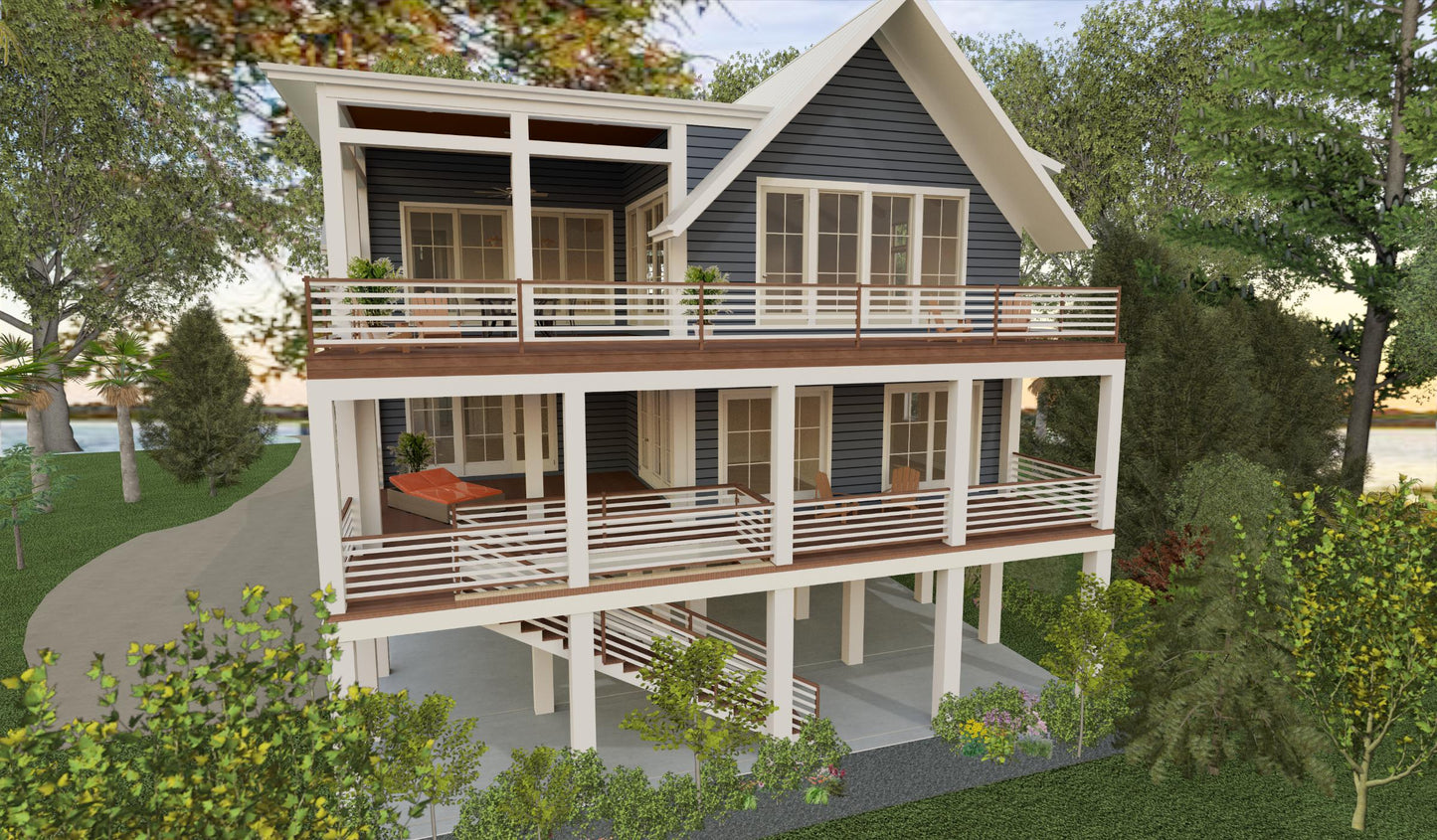

Top-Floor Chef’s Kitchen: Features a large central island, separate chef’s pantry, and sliding glass doors that open directly to a covered porch.

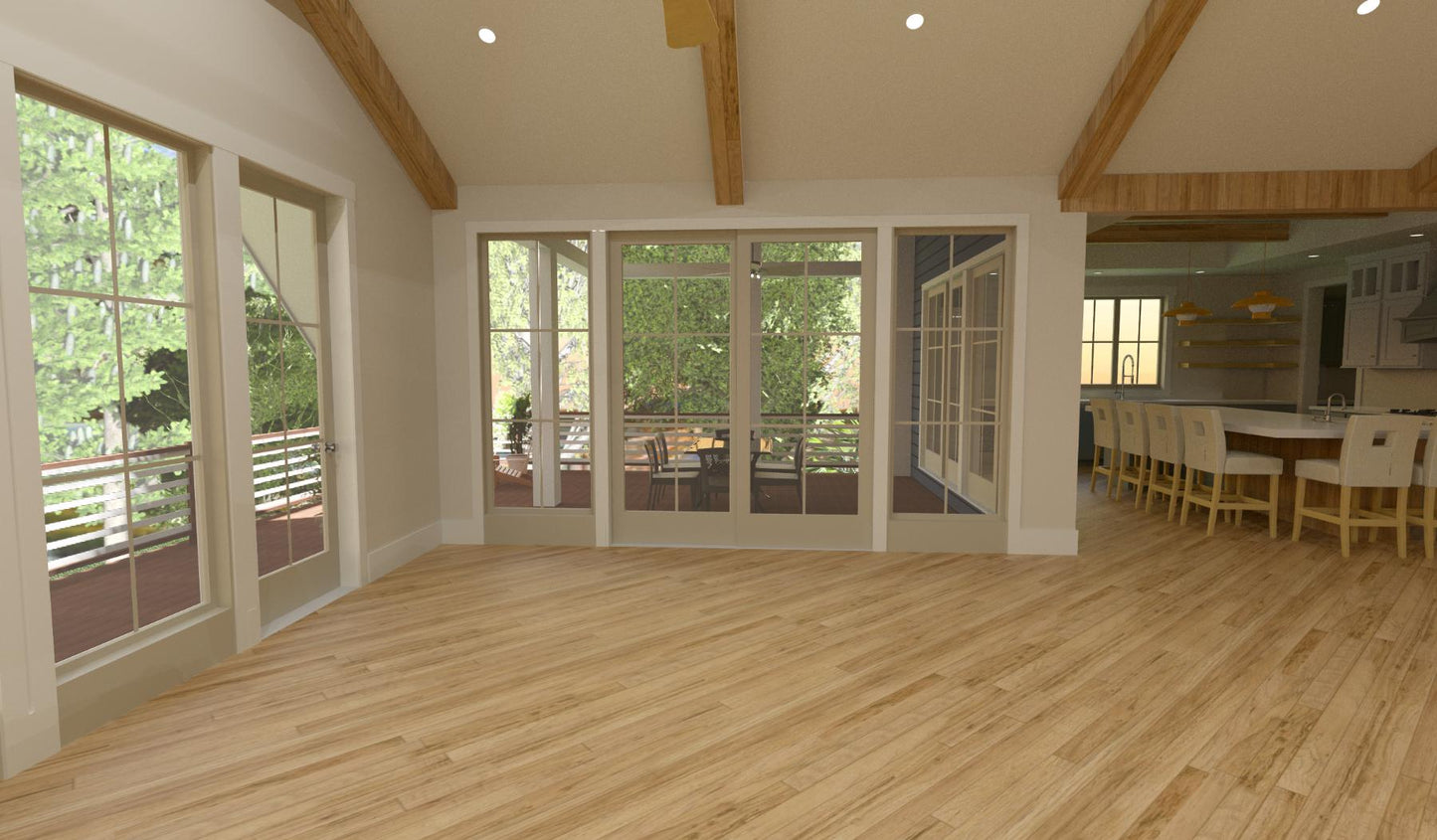

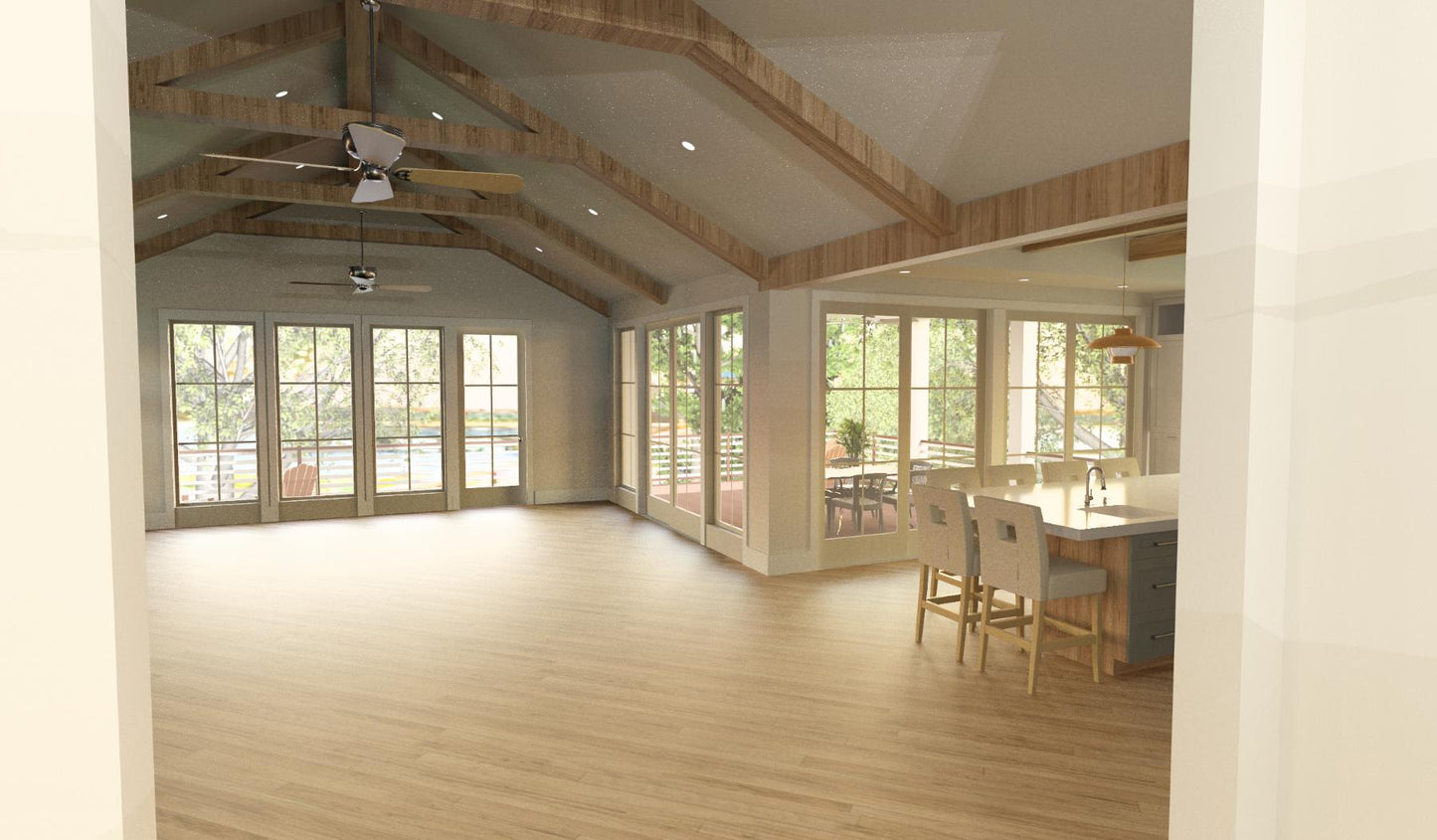

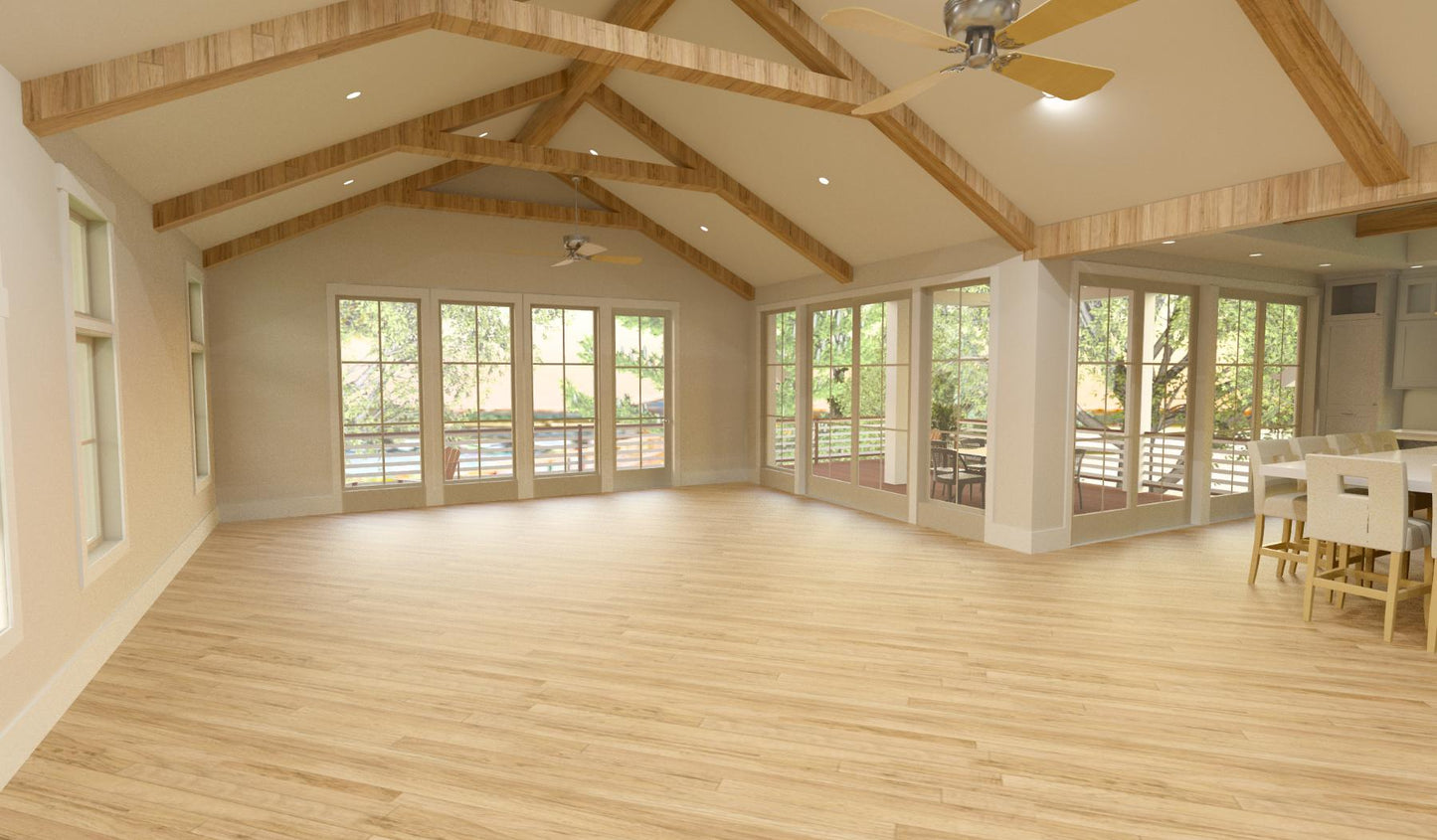

Architectural Ceiling Detailing: The upper-level great room features stunning vaulted ceilings anchored by exposed structural truss beams.
Flexible 3-4 Bed Multi-Flex Space: A top-floor bedroom with a full adjacent bath easily functions as a private guest suite or an executive home office.
Multi-Floor Elevator Option: The elevated architectural design includes framing for an optional elevator to ensure effortless access to all levels.
Plan Specifications
-
Footprint: 40’ 0” Width x 65’ 0” Depth (Excellent for standard coastal lots)
-
Max Ridge Height: 39’ 8”
-

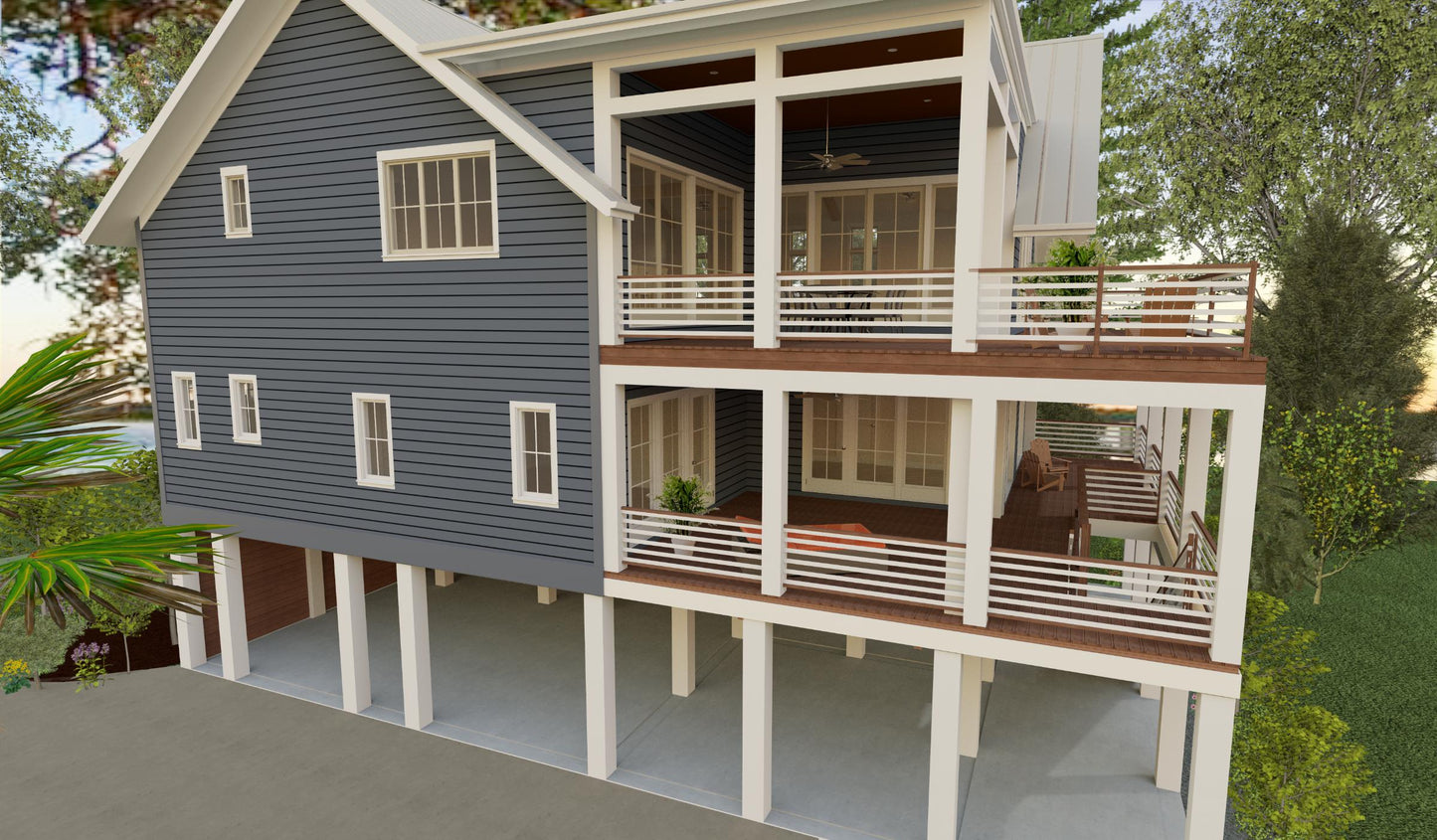

Foundation: Elevated Piling / Pier
-
Framing: 2x6 Exterior Walls | Truss Roof Framing
-
Ceilings: 9’ Lower Level | 9’ First Floor | 10’ Top Floor
-

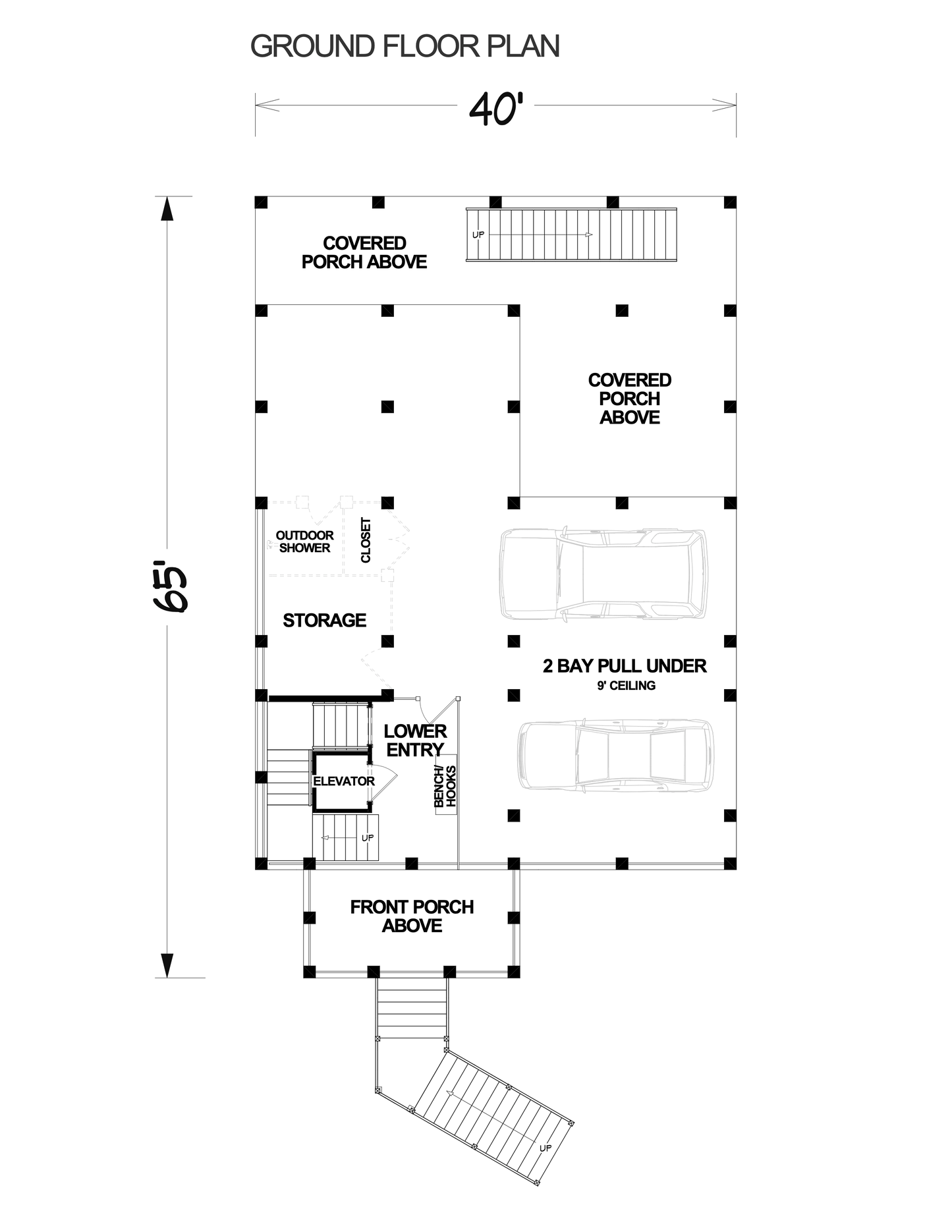

Garage: Drive-Under 2-Car Side Entry (1,359 sq. ft. total storage space)
-
Roof Details: 9 on 12 Primary / 12 on 12 Secondary Pitch | Truss Framing
The Design Philosophy
Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. Casa Azul brilliantly inverts the traditional home layout to place your primary daily living spaces at the highest point of the home—where light, views, and architectural height are at their absolute peak—while keeping private spaces calm and grounded below.
Meet the Designer
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue and studies in interior architecture.
With 16+ years of custom home design—including a decade in custom construction in Charleston, SC—Angela specializes in resilient coastal style homes engineered for flood and hurricane zones.
