4 Bed 3.5 Bath
3214 Sq. Ft. - The Heron
3214 Sq. Ft. - The Heron
To learn more about what's included with our plans Click here
Would you like to modify this plan? Submit a request form here
Plan Description
Sq Ft. - 3,214 | Bed - 4 | Bath - 3.5 | Stories - 2 | Cars - 2

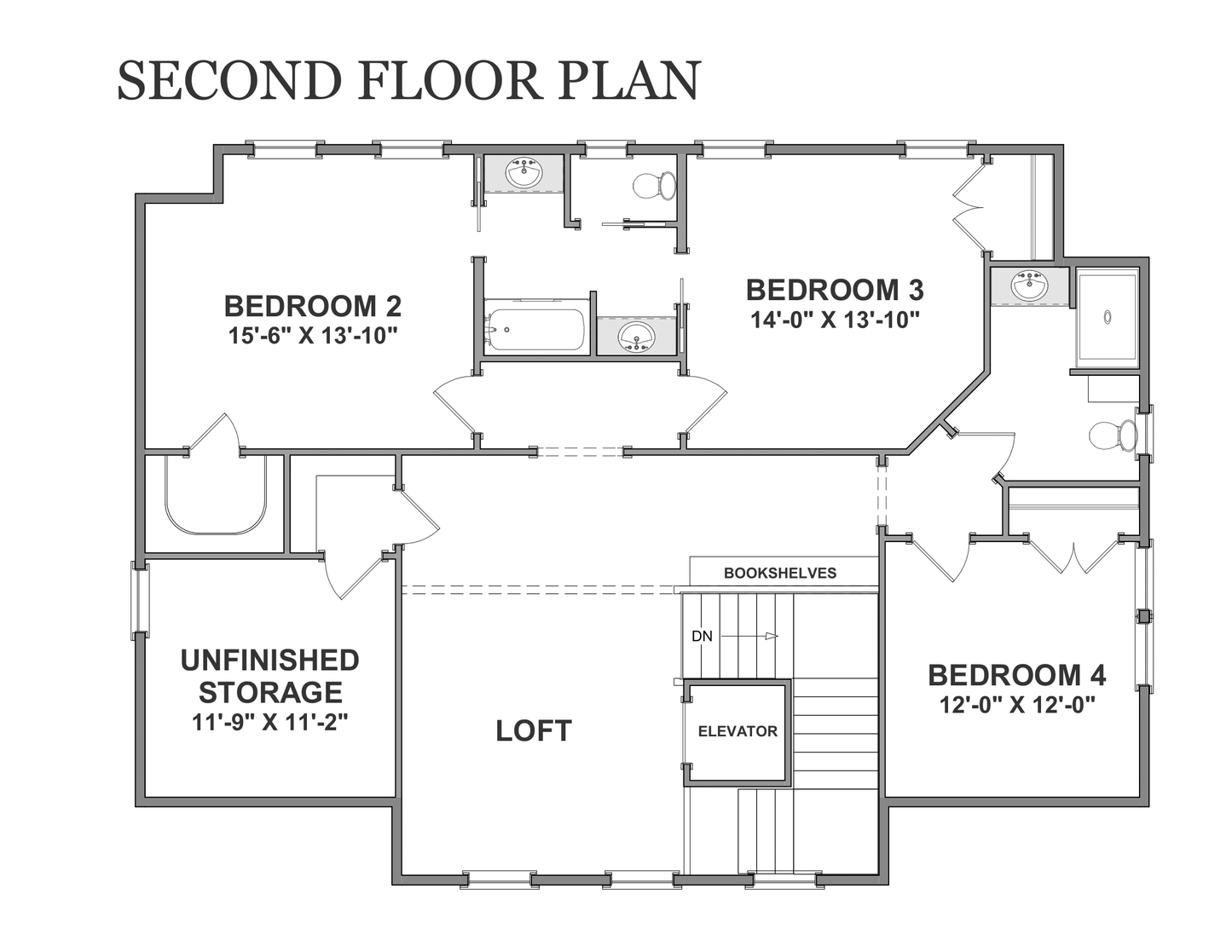

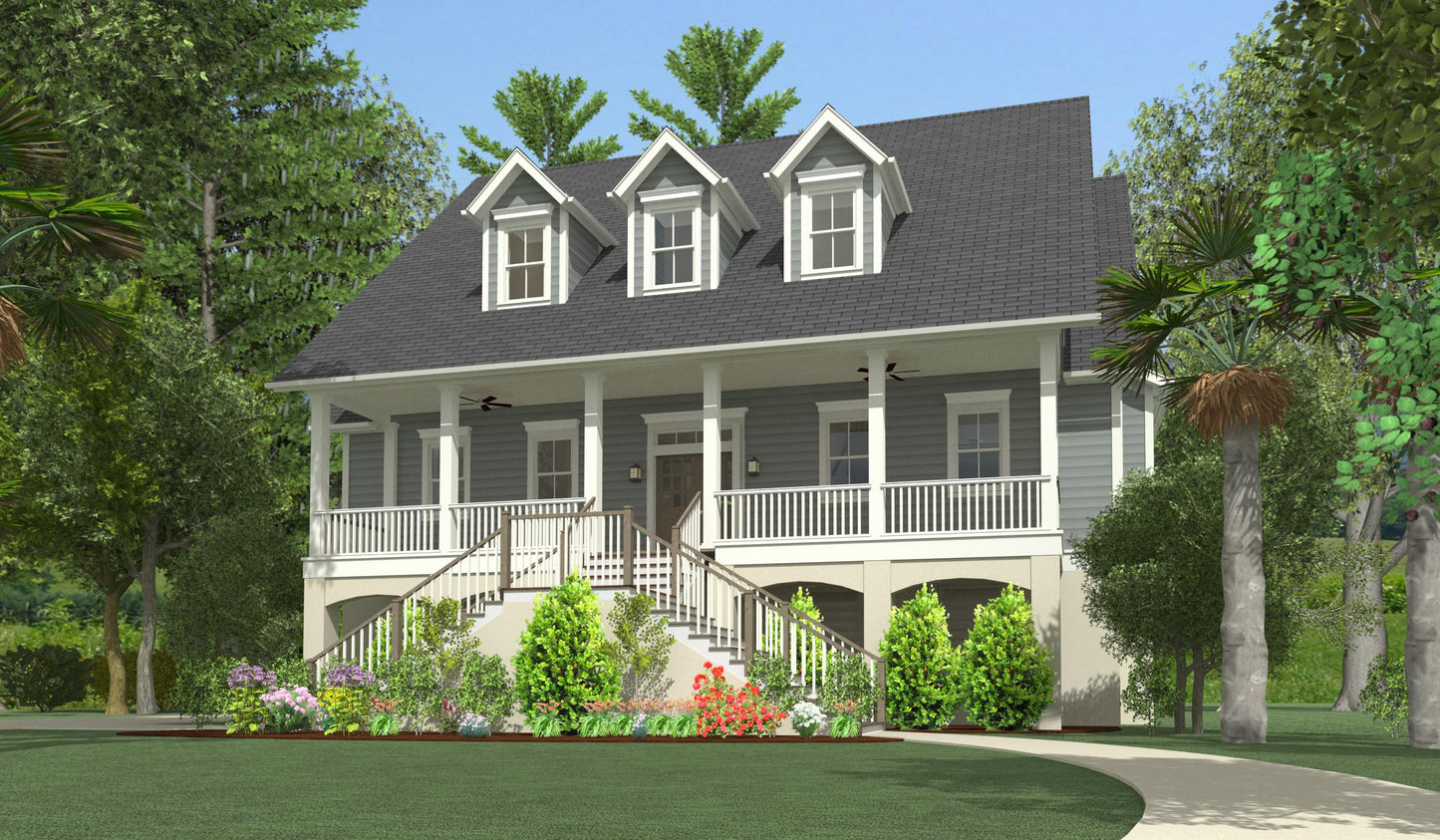

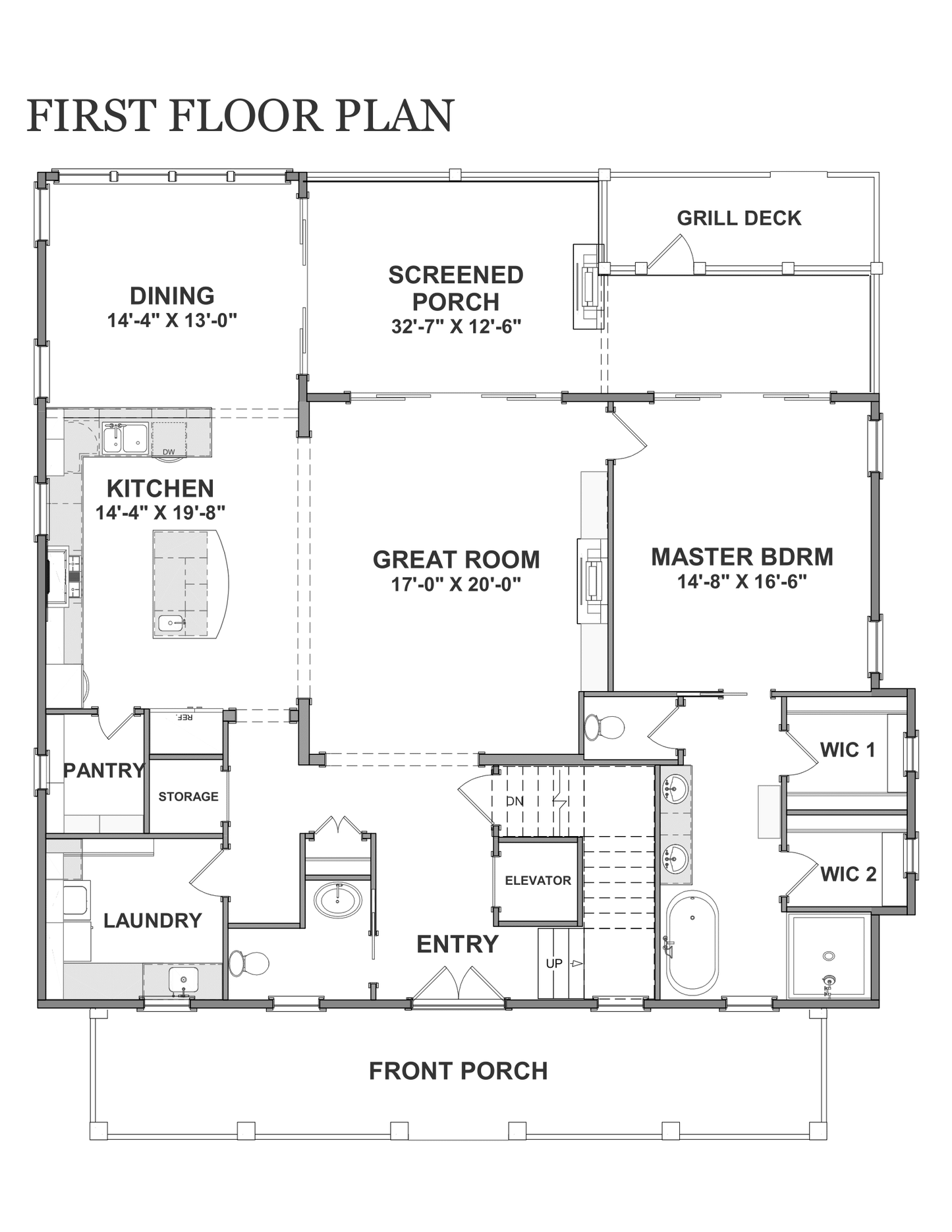

The Heron has a traditional Lowcountry exterior with a modern, open floor plan which includes a master bedroom on the main level. A U-shaped staircase and elevator invite you through the front door and into the great room ahead. The kitchen and dining room form an L shape around an optional screened-in porch, perfect for entertaining and outdoor grill access. A laundry room, walk-in pantry, and additional storage closet provide ample space for organization. The second floor provides 3 additional bedrooms with open loft space for lounging. Additional storage is provided above, which is great when working with elevated homes without large basements or attics.
Dimensions: Width: 50'0" | Depth: 55' 0" | Max Ridge Height: 41' 6"
Exterior Walls: 2x6
Ceiling Height: First Floor: 10' | Second Floor: 9'
Foundation Type: Post, Pier | Optional: Piling (inquire)
Roof Details: Primary Pitch: 12 on 12 | Framing Type: Truss

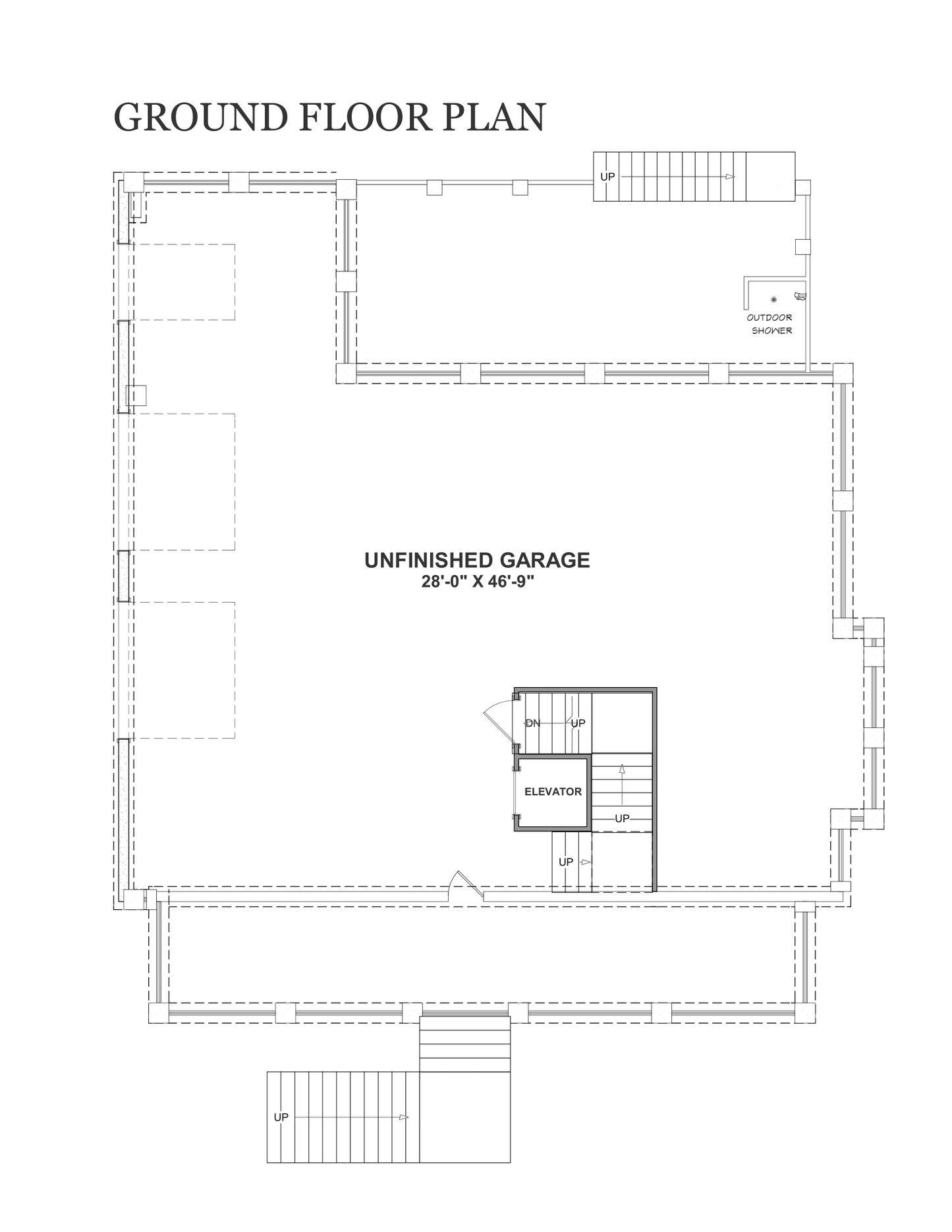

Garage: Type: Attached, Drive Under | Area: 1899 sq. ft. | 2 Cars | Side Entry
