650 Sq. Ft. - Meyer Garage/ADU

To learn more about what's included with our plans Click here

Would you like to modify this plan? Submit a request form here

Plan Description

Sq Ft. - 650 | Bed - 1 | Bath - 1 | Stories - 2 | Cars - 2

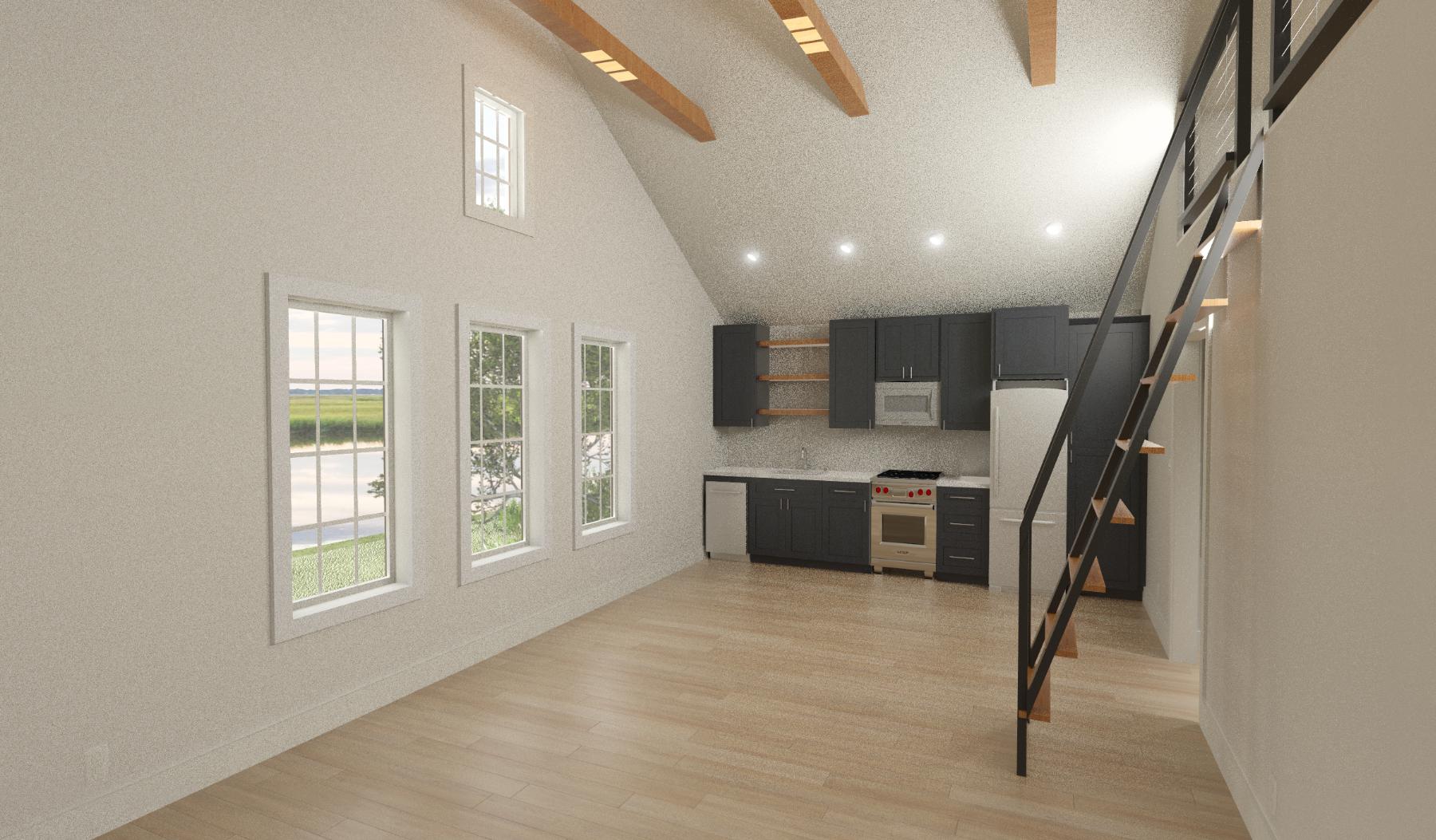

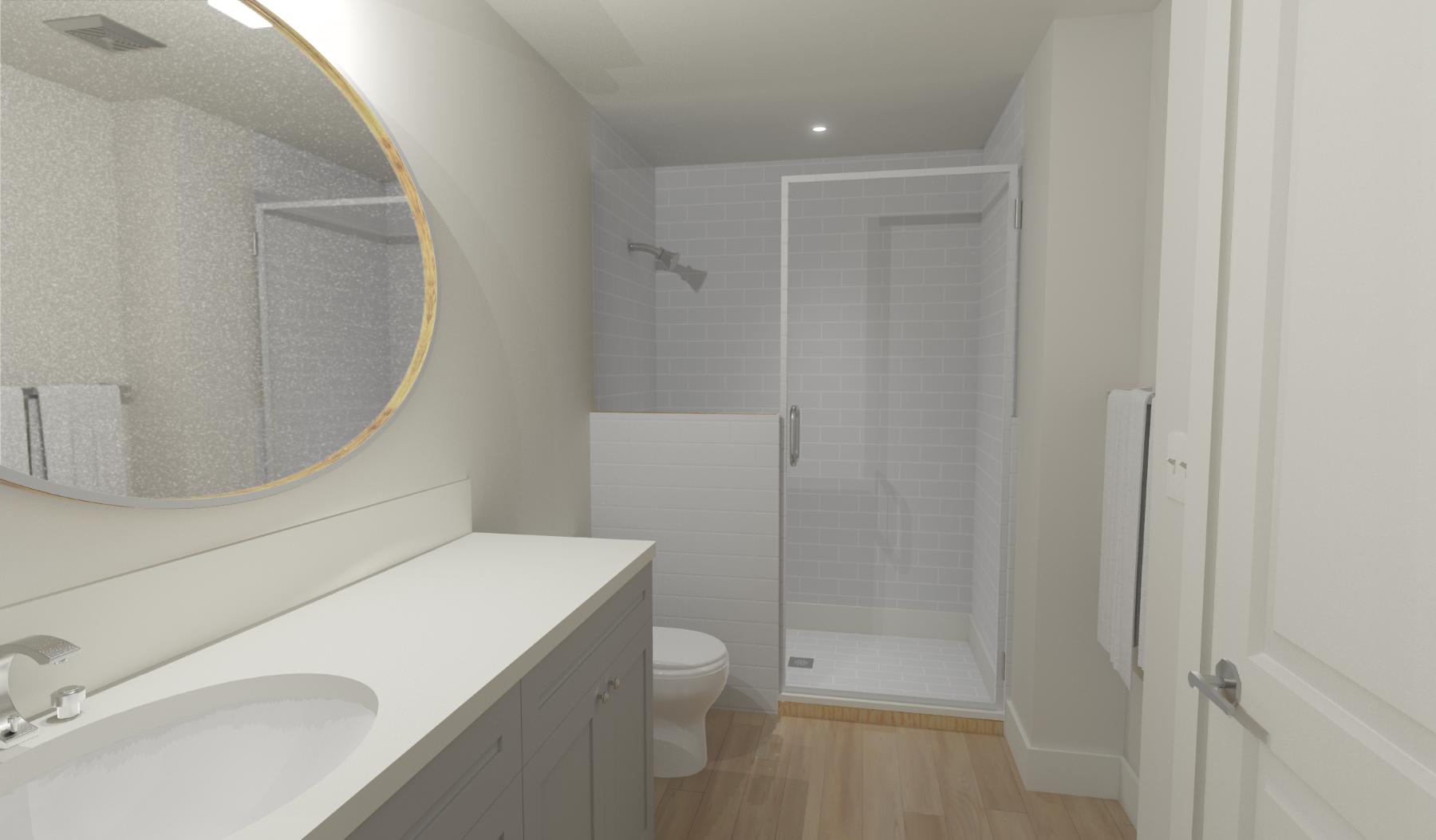

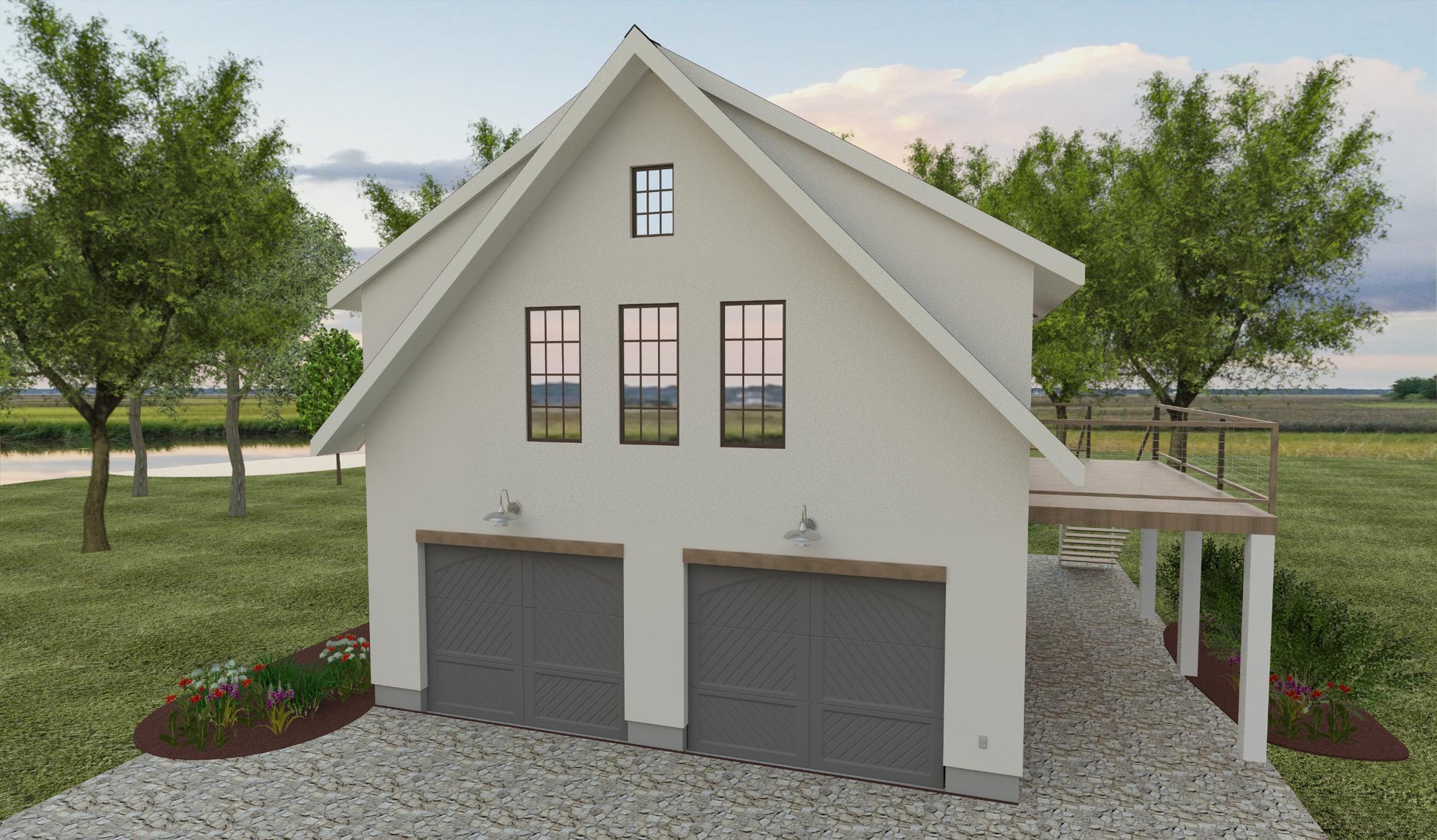

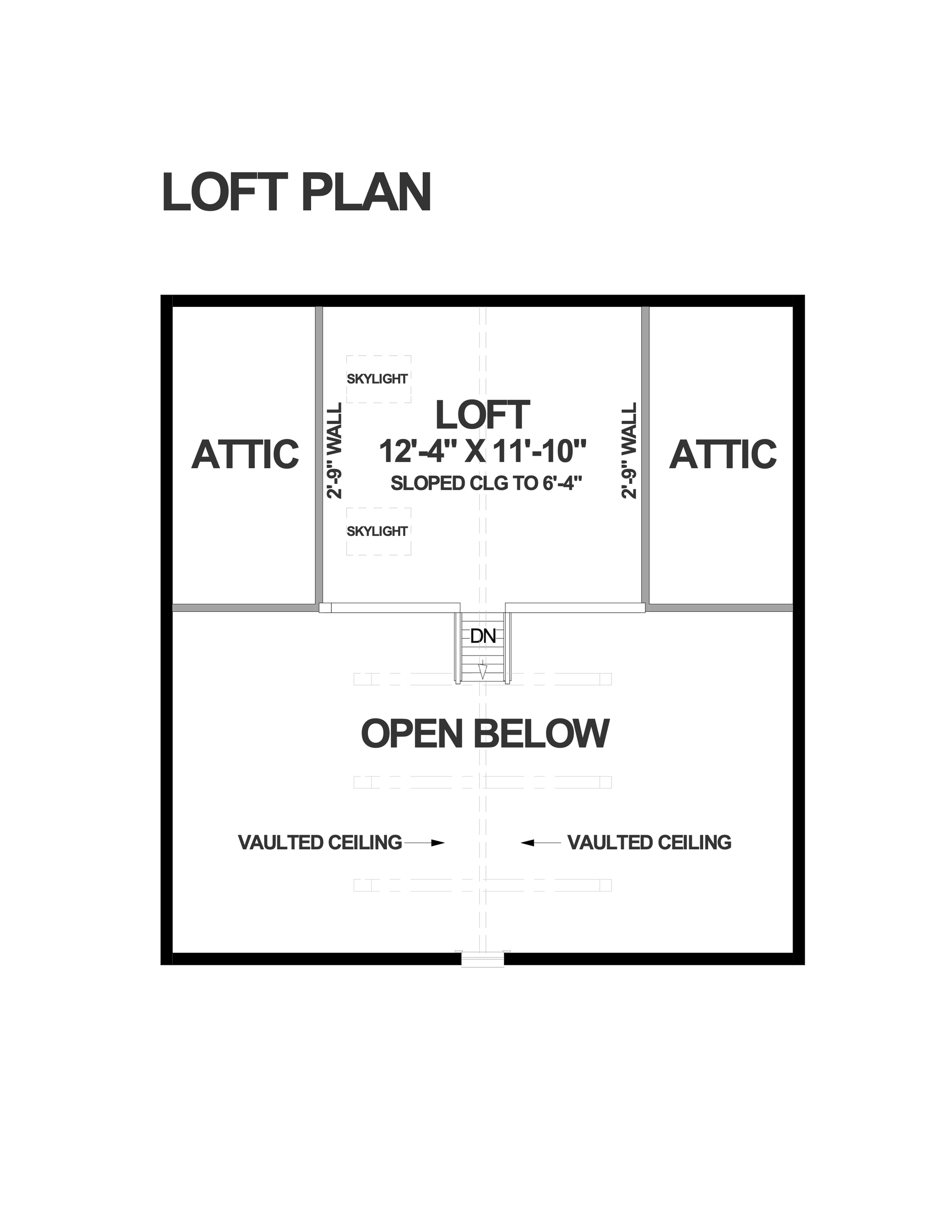

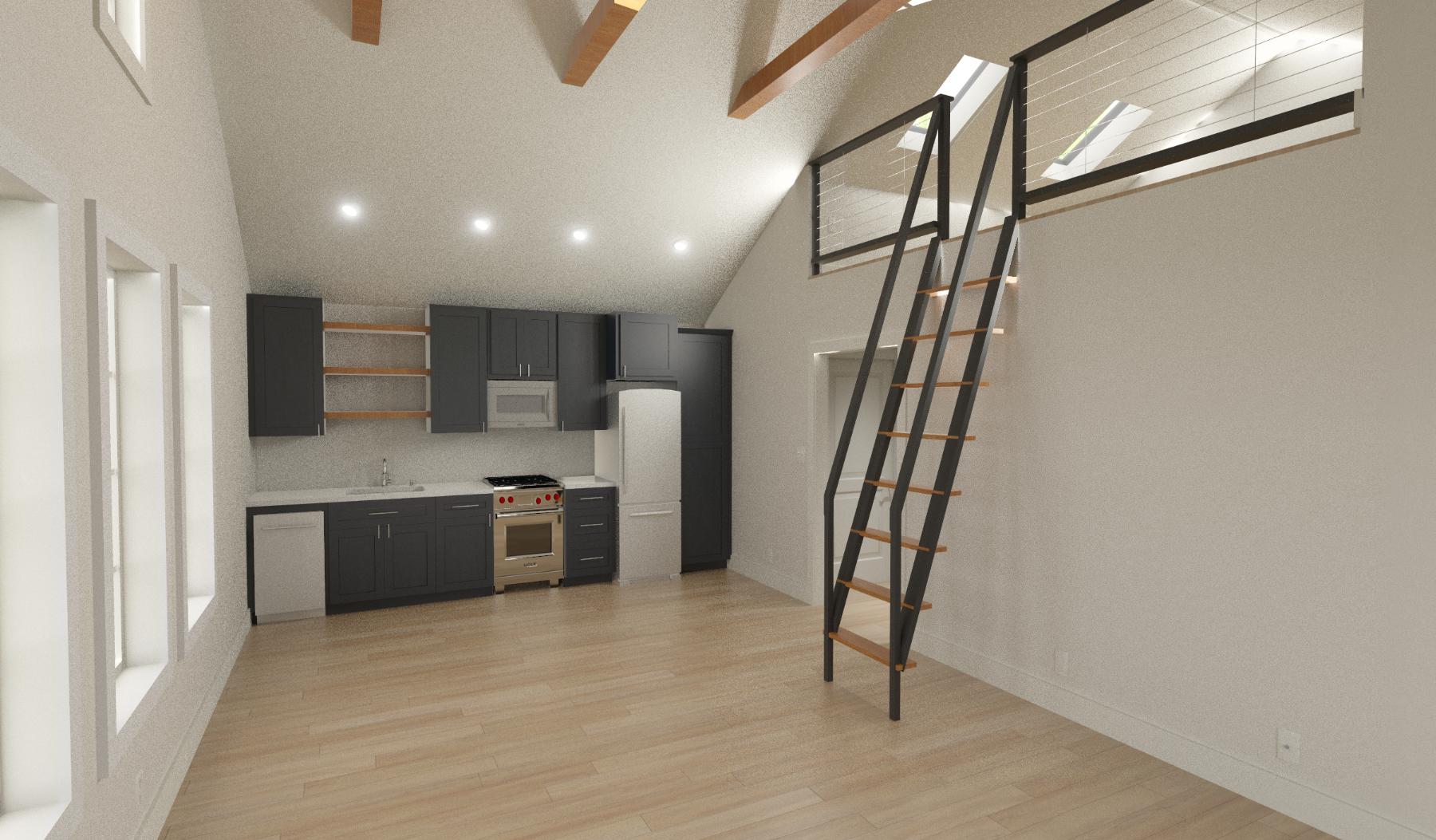

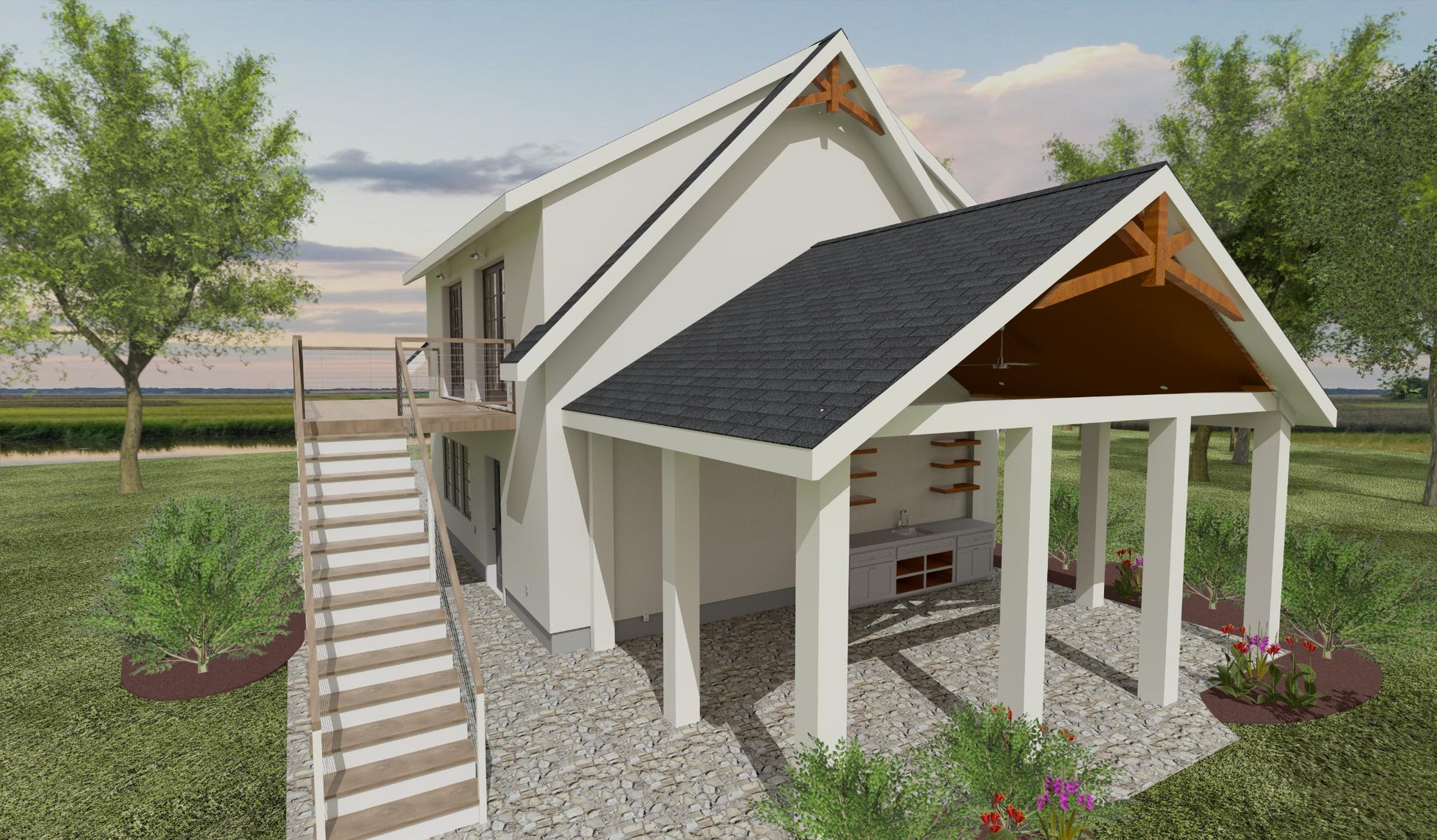

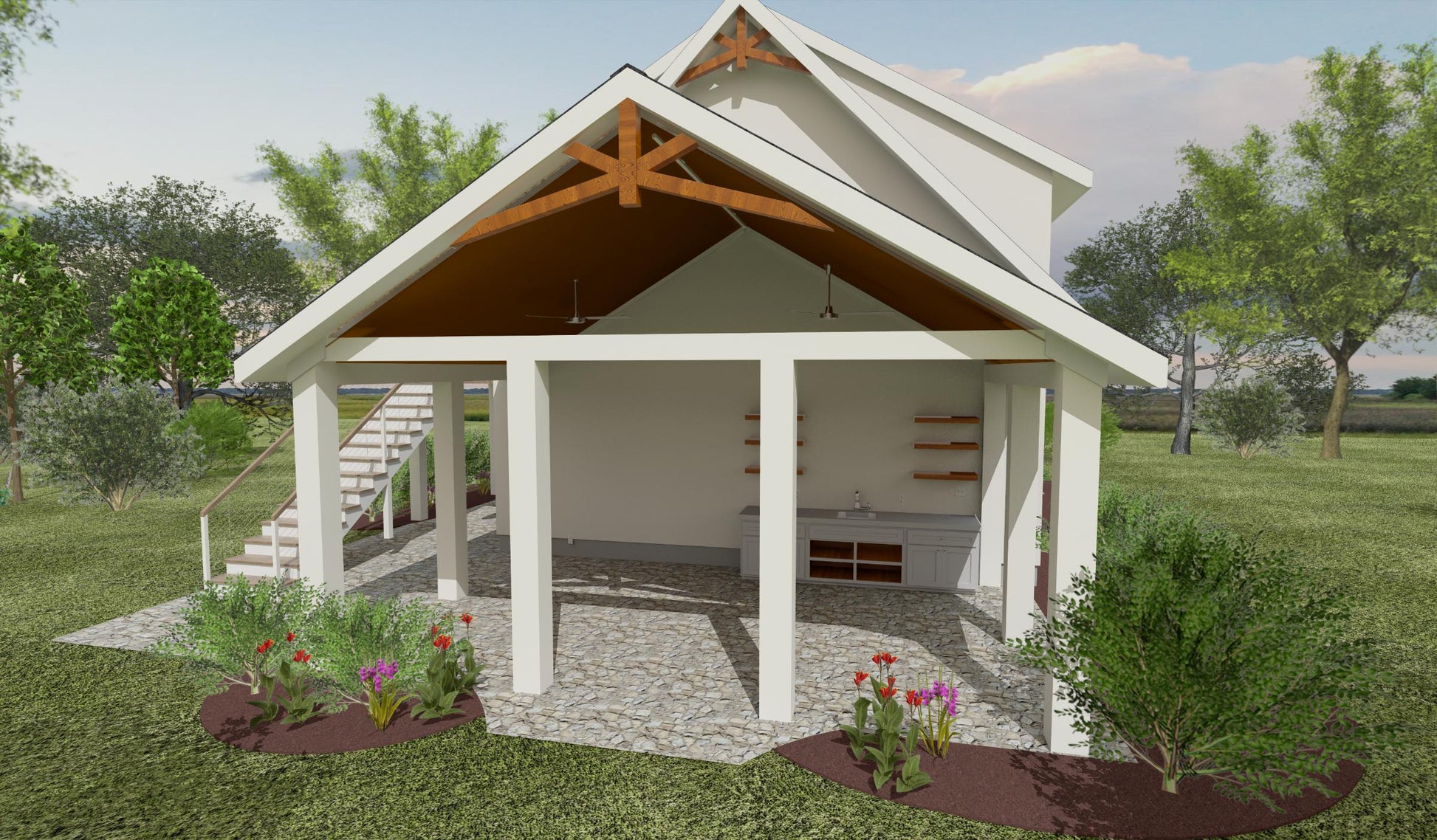

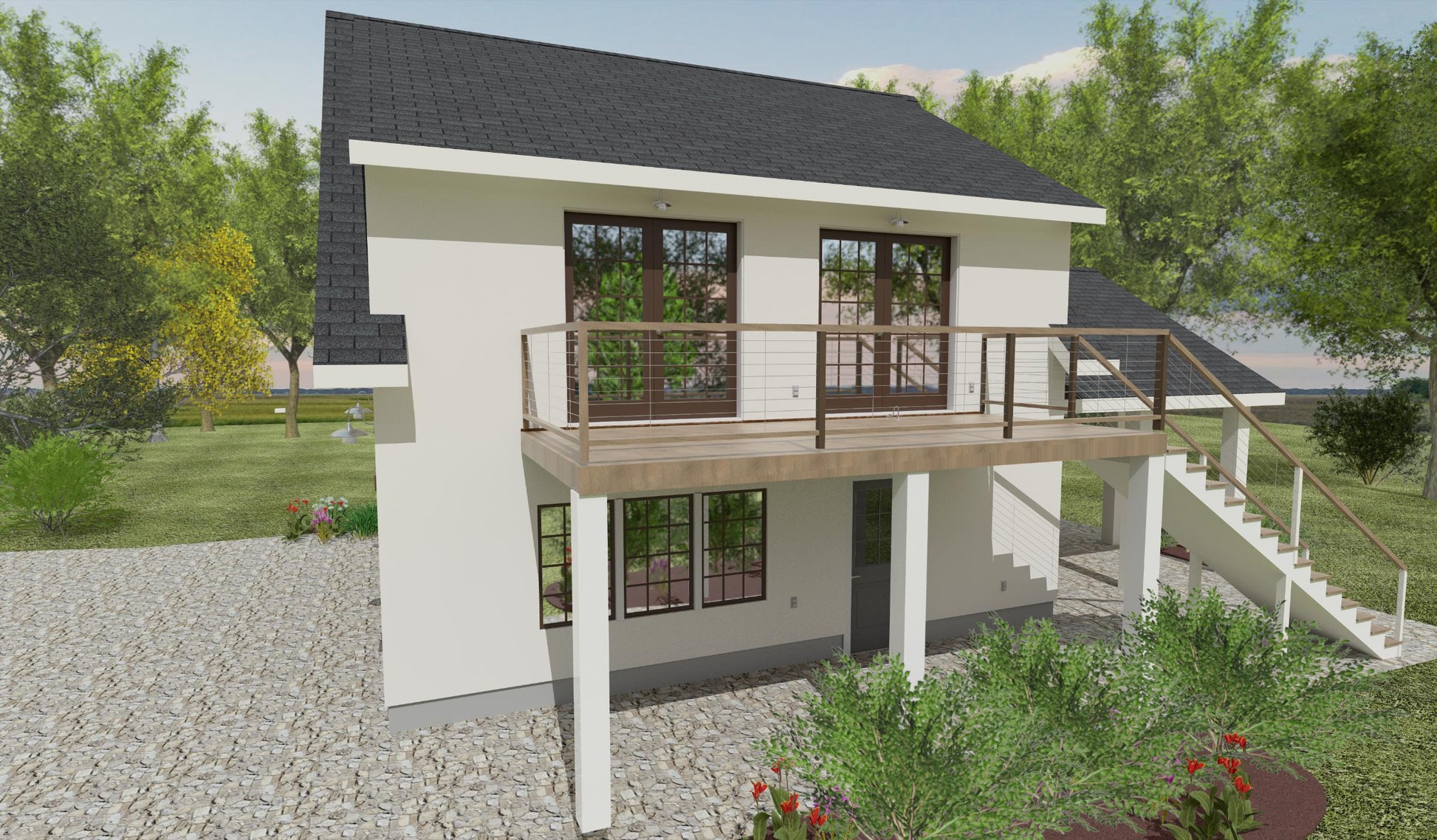

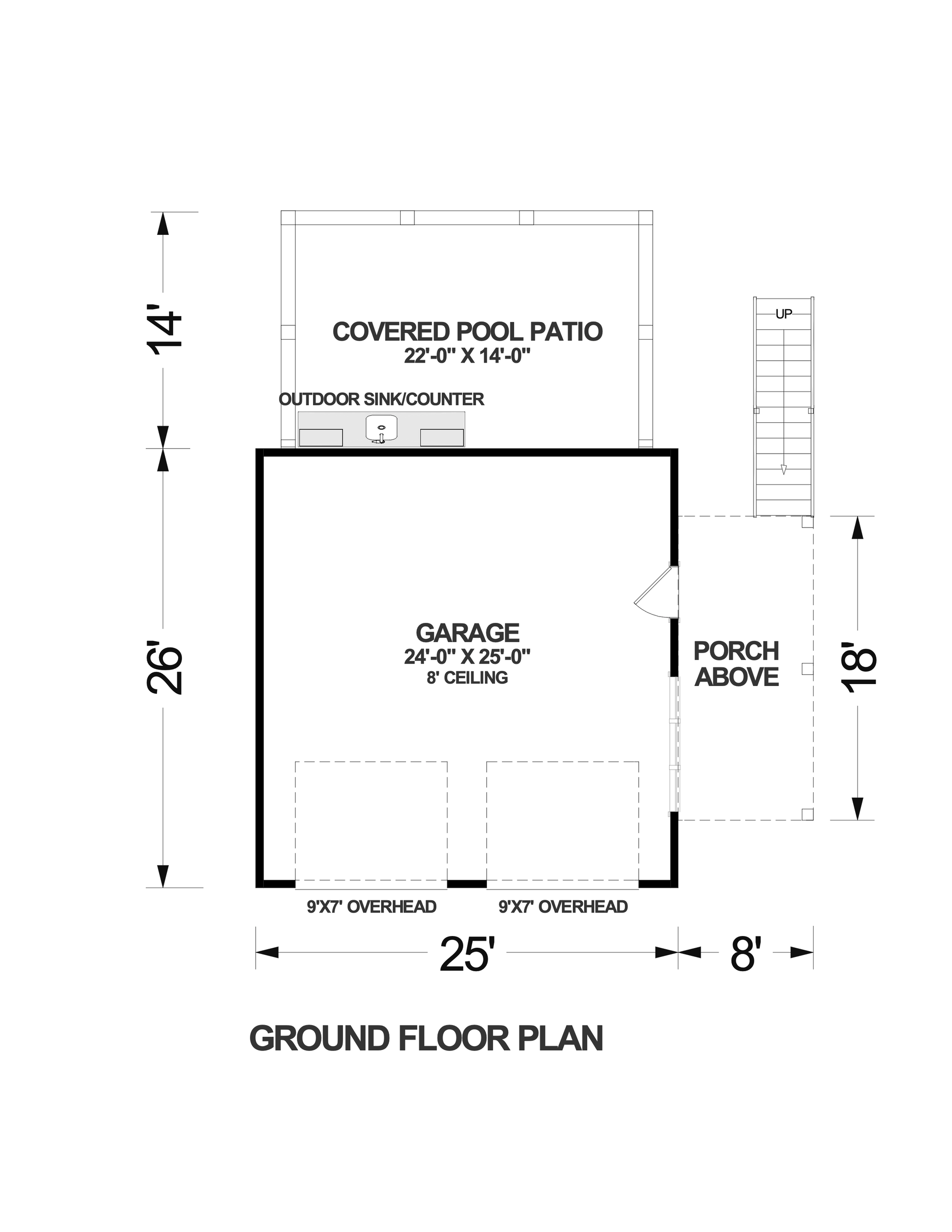

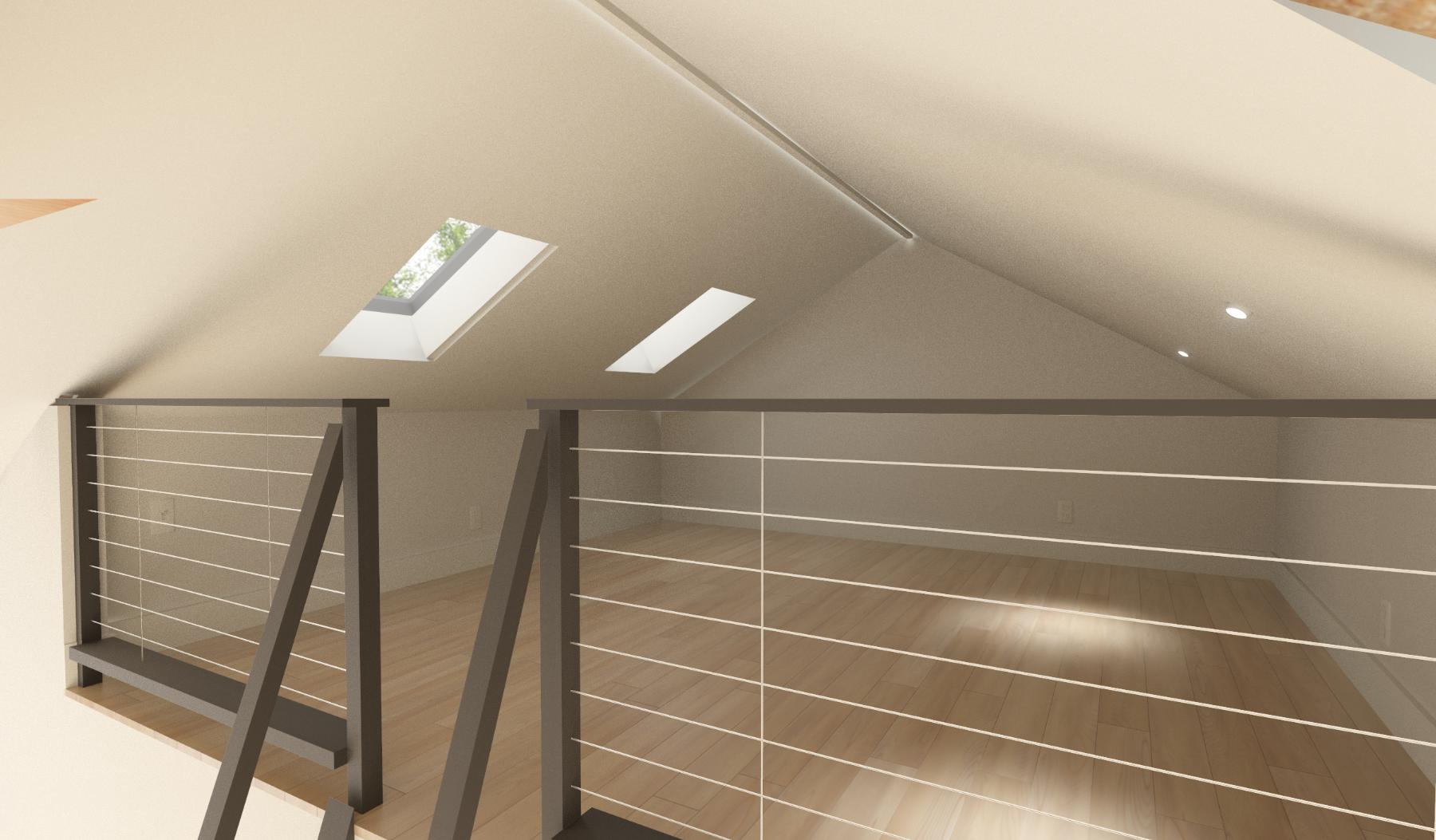

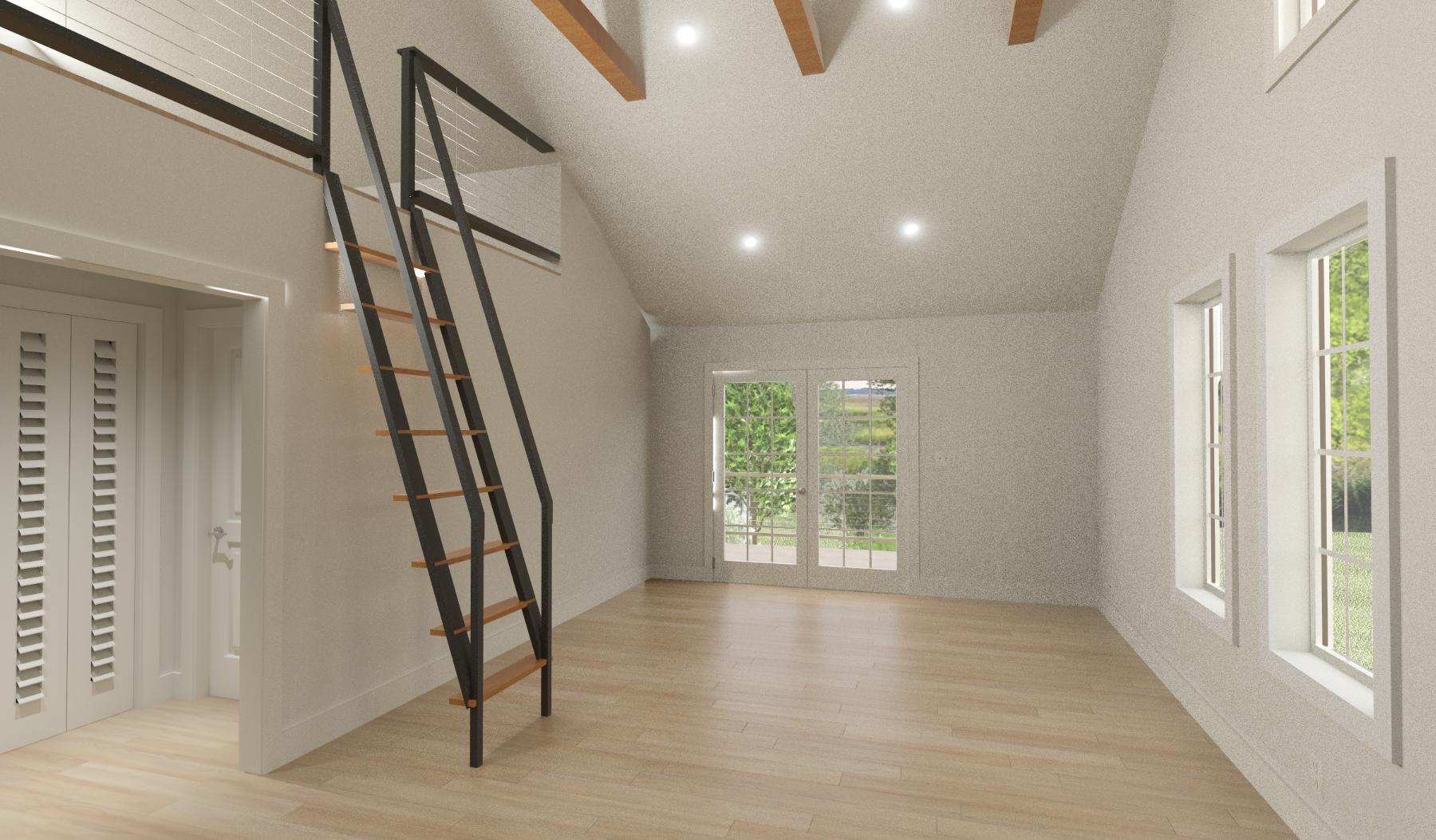

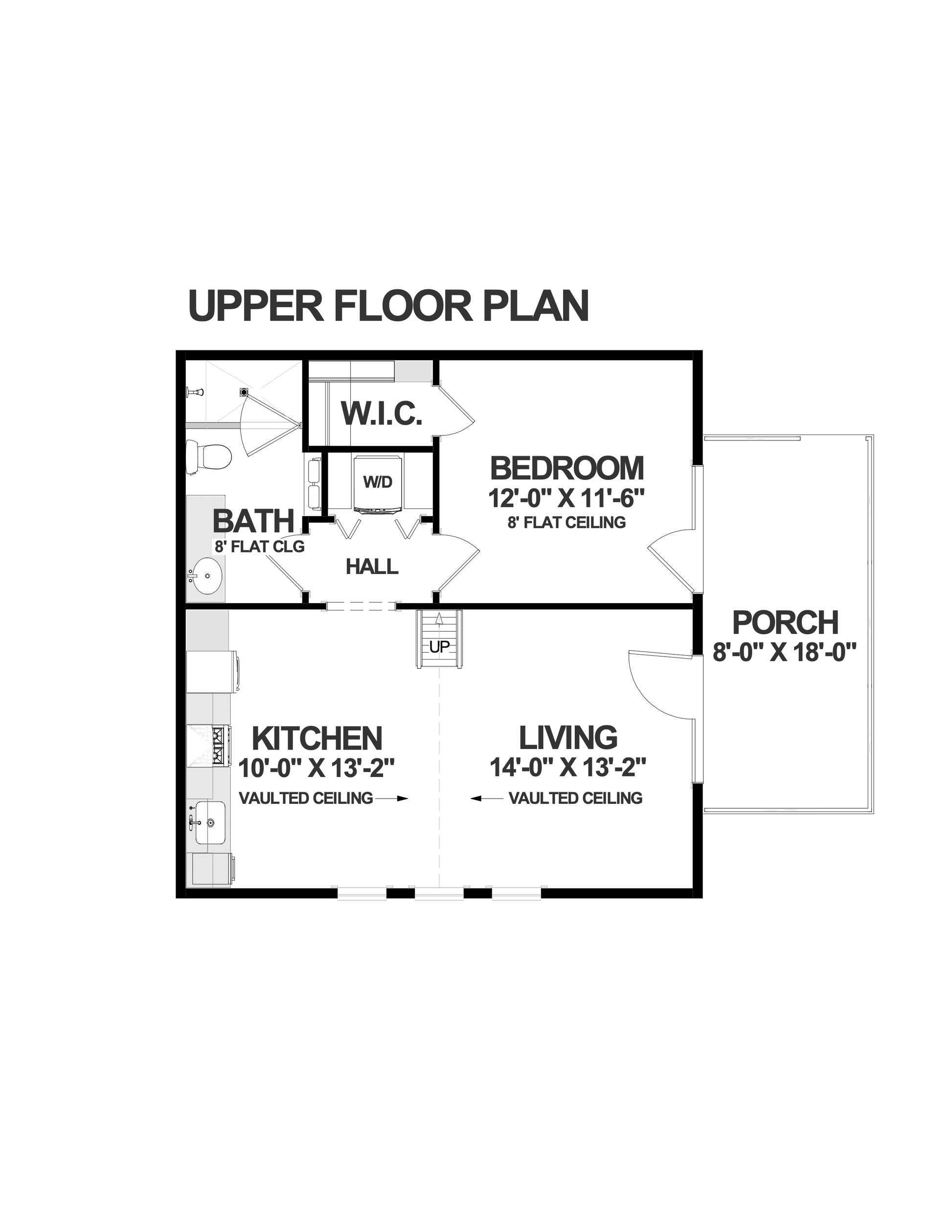

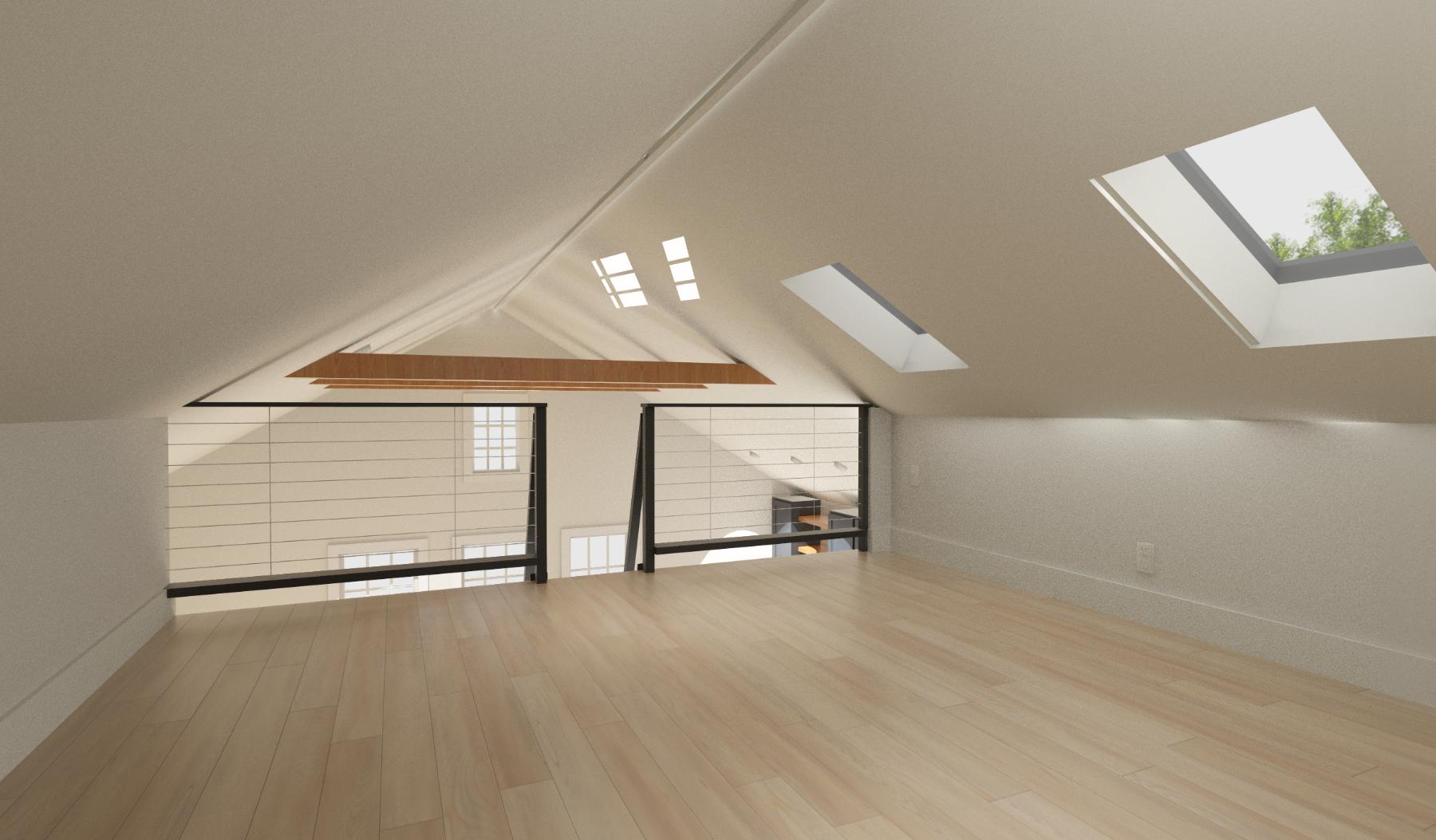

With 650 square feet, this 2-story garage apartment offers parking for two cars and a 144 square foot deck with stairs leading to a vaulted living room and kitchen. The living room has stairs that lead to a 155-square-foot loft. The bedroom suite includes a bathroom, walk-in closet, and shower. The back patio is 308 square feet and includes an outdoor sink and counter.

Dimensions: Width: 33'0" | Depth: 40' 0" | Max Ridge Height: 25' 0"

Exterior Walls: 2x6

Ceiling Height: Lower Floor: 8' | First Floor: 8' | Loft: 6' 4"

Foundation Type: Slab

Roof Details: Primary Pitch: 7 on 12 | Secondary Pitch: 12 on 12 | Framing Type: Truss

Garage: Type: Detached | Area: 650 sq. ft. | 2 Cars | Front Entry
