Meyer
Garage Apartment ADU | Vaulted Living & Loft
650 Sq Ft | 1 Bed | 1.0 Bath | 2-Story
430+ Plans Sold · Lowest Price Guaranteed.
Plans and support, directly from the designer. Price match policy →
Licensed for one build at your build address.
Would you like to customize this plan? Request a free modification quote.
Modify This PlanMeyer Garage/ADU Plan
1-Bedroom Garage Apartment ADU Plan with a Loft
650 SQ. FT. | 1 BED | 1 BATH | 2-STORY + LOFT | 2-CAR GARAGE
The Meyer is a 650 square foot apartment over a two-car garage with a vaulted living room and kitchen, a bedroom suite with a walk-in closet, and a 155 square foot loft above for a bed, a desk or the boxes.
A 144 square foot deck with the stair up gives the apartment its own front door, and a 308 square foot patio at the back has an outdoor sink and counter, so cooking and eating outside is built in. Rent it, put a parent in it, work from it or keep it for guests; the plan is the same.
A vaulted living room and kitchen: the ceiling opens up over the main room, which makes 650 square feet feel like more.

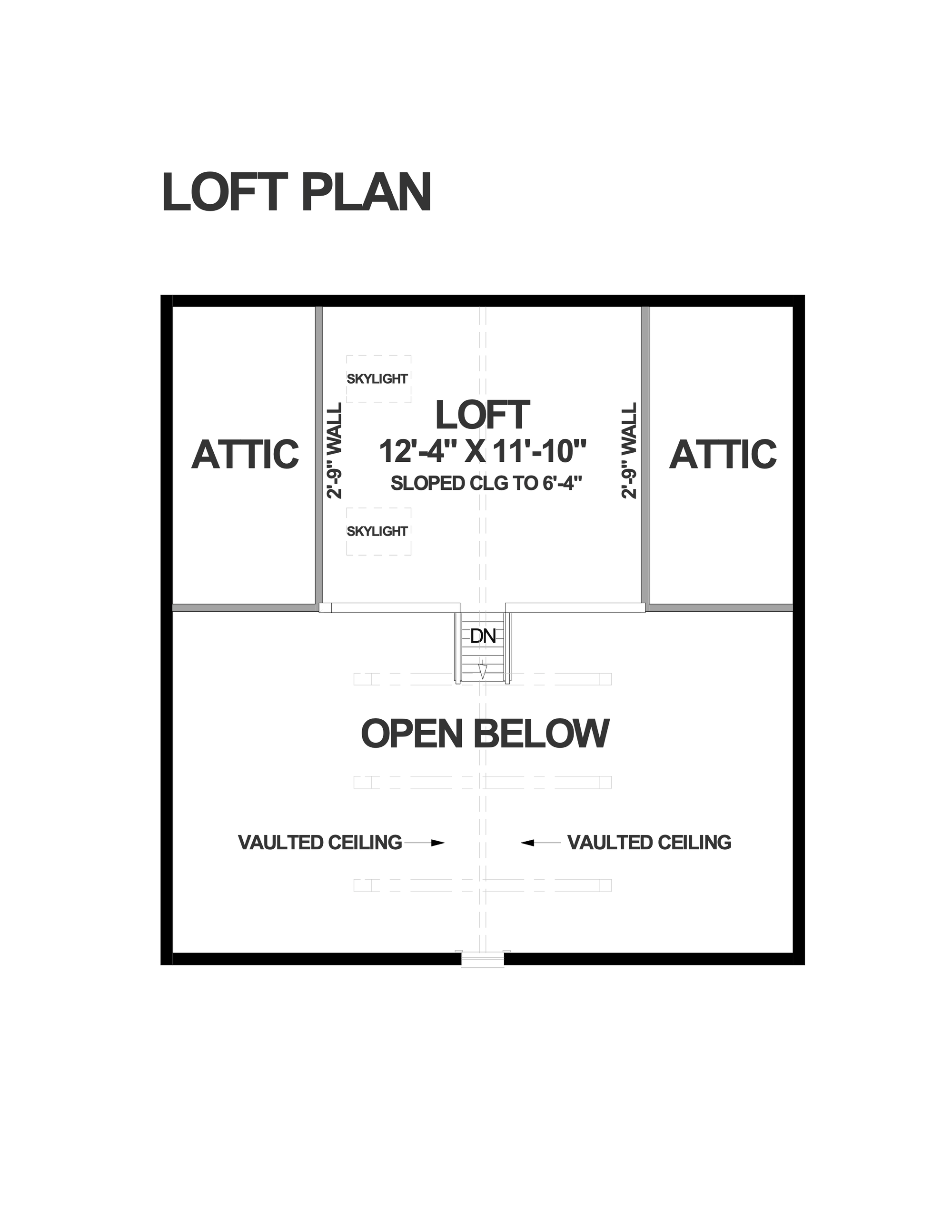

A 155 square foot loft: a stair from the living room leads to a loft for sleeping, working or storage, with a 6 foot 4 inch ceiling.
A bedroom suite: the bedroom has its own bath with a shower and a walk-in closet.
A deck at the door and a patio at the back: 144 square feet of entry deck with the stair, and a 308 square foot back patio with an outdoor sink and counter.
A two-car garage: two bays under the apartment, for the cars and whatever else needs a roof.
- Footprint: 33’ 0” Width x 40’ 0” Depth
- Max Ridge Height: 25’ 0”
- Foundation: Slab on Grade
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 8’ Lower Floor | 8’ First Floor | 6’ 4” Loft
- Garage: 650 sq. ft., 2 Cars, Front Entry
- Roof Details: 7 on 12 Primary / 12 on 12 Secondary Pitch | Truss Framing
The Meyer treats the space over a garage as a whole home, with a place to cook outside, a loft above and the cars below.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Computer Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions
- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does Meyer come with?
Meyer is drawn on a slab on grade foundation. A local engineer sizes the foundation for your soil and wind zone.
How tall is Meyer and how much ground does it cover?
The maximum ridge height is 25' 0". The footprint is 33' 0" x 40' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 650 square feet on 2 stories.
What comes in the plan set for Meyer, and what do I still need locally?
A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
