1-Bedroom Coastal Garage Apartment ADU Plan
650 SQ. FT. | 1 BED | 1 BATH | 2-CAR GARAGE
Cloudy Bay is a 650 square foot garage apartment with the same relaxed coastal look as the Cloudy Bay house, an open, airy upper floor over a full two-car garage.
Everything for living on your own is in it: a full kitchen, a living area with plenty of light, a bedroom with a walk-in closet and a washer and dryer in the unit. The living floor has nine-foot ceilings and the garage ten, tall enough for a truck or a boat, and the 32 by 25 foot footprint fits most backyards.

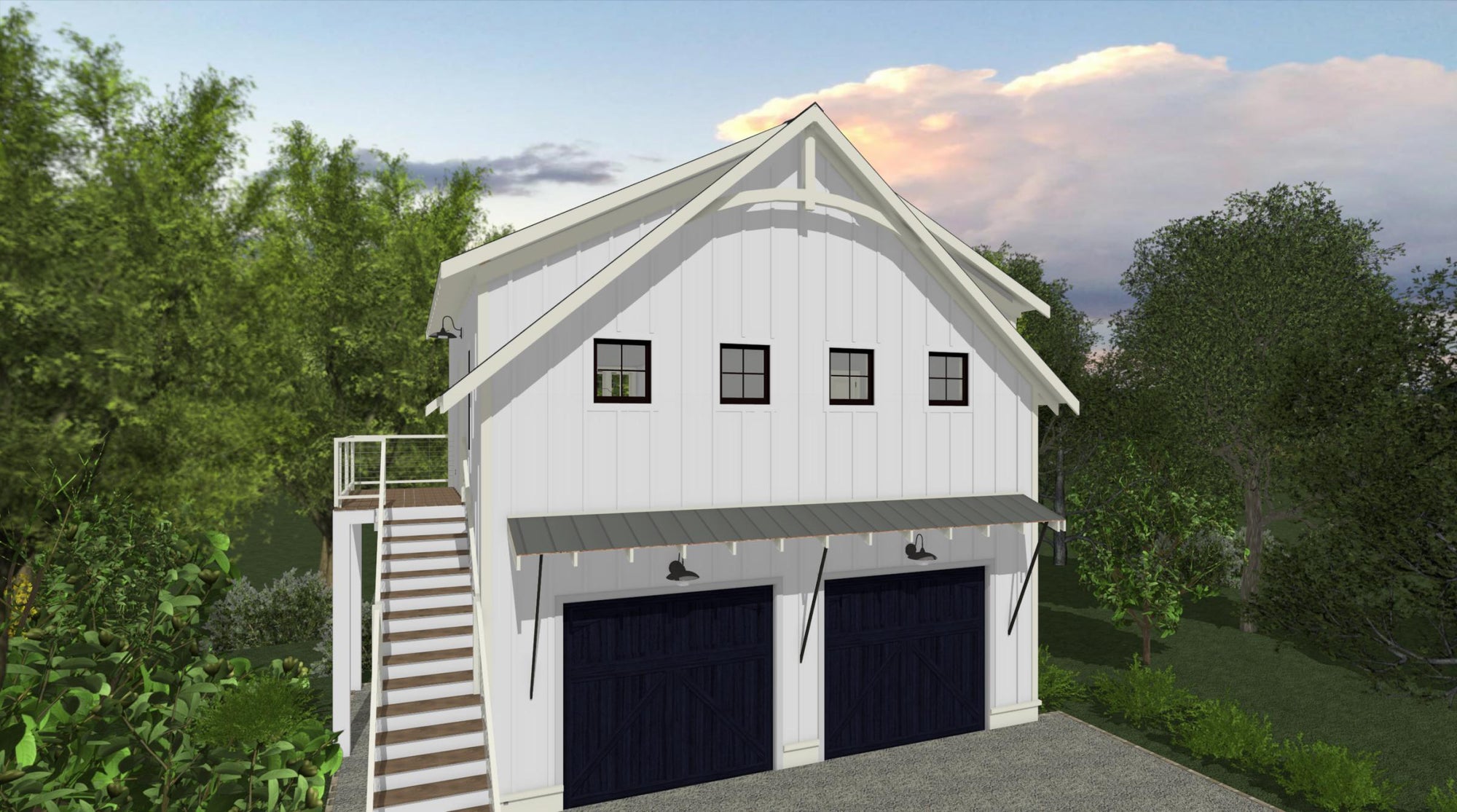

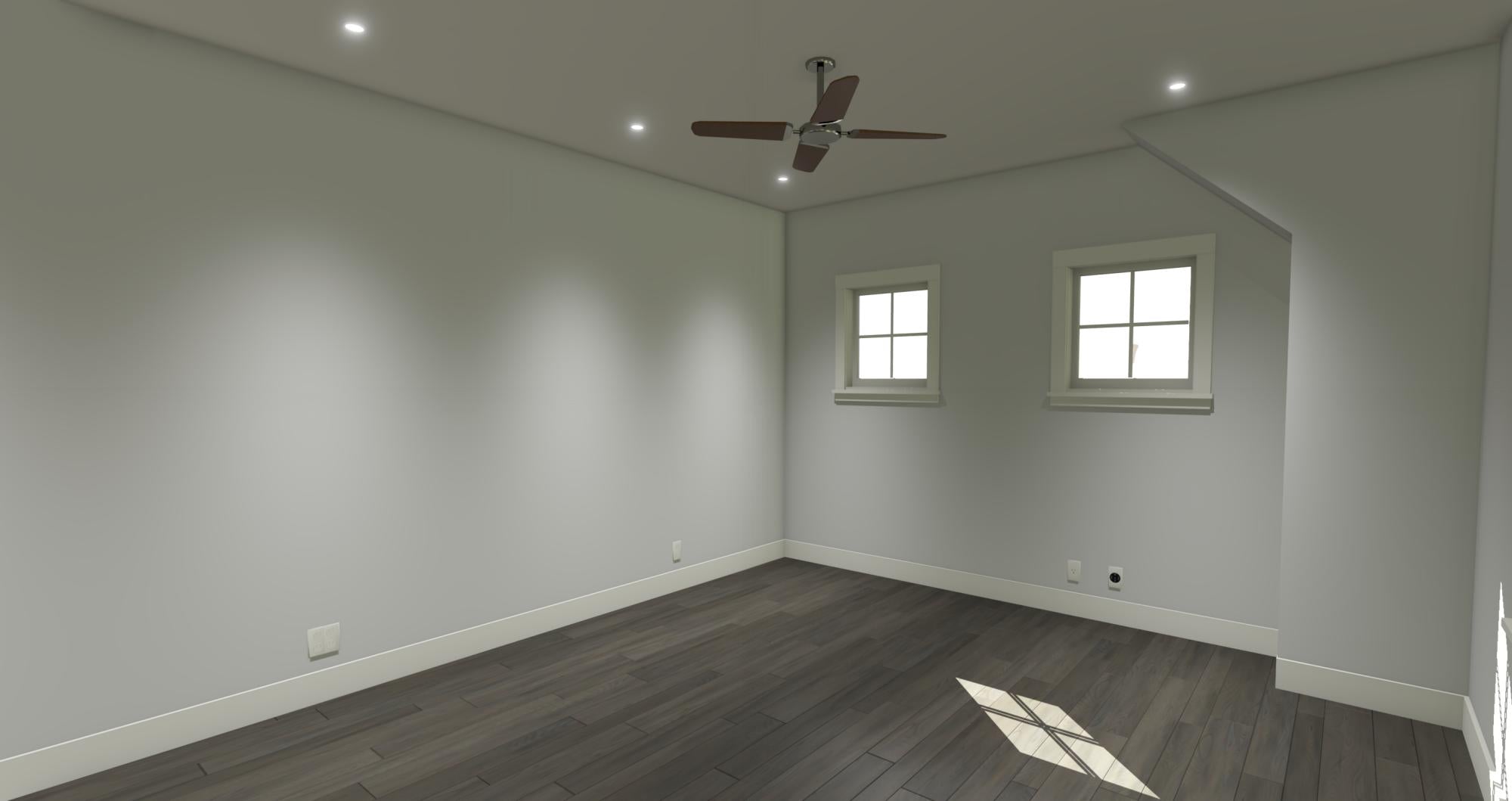

An open upper floor: kitchen and living in one bright room with a coastal feel.

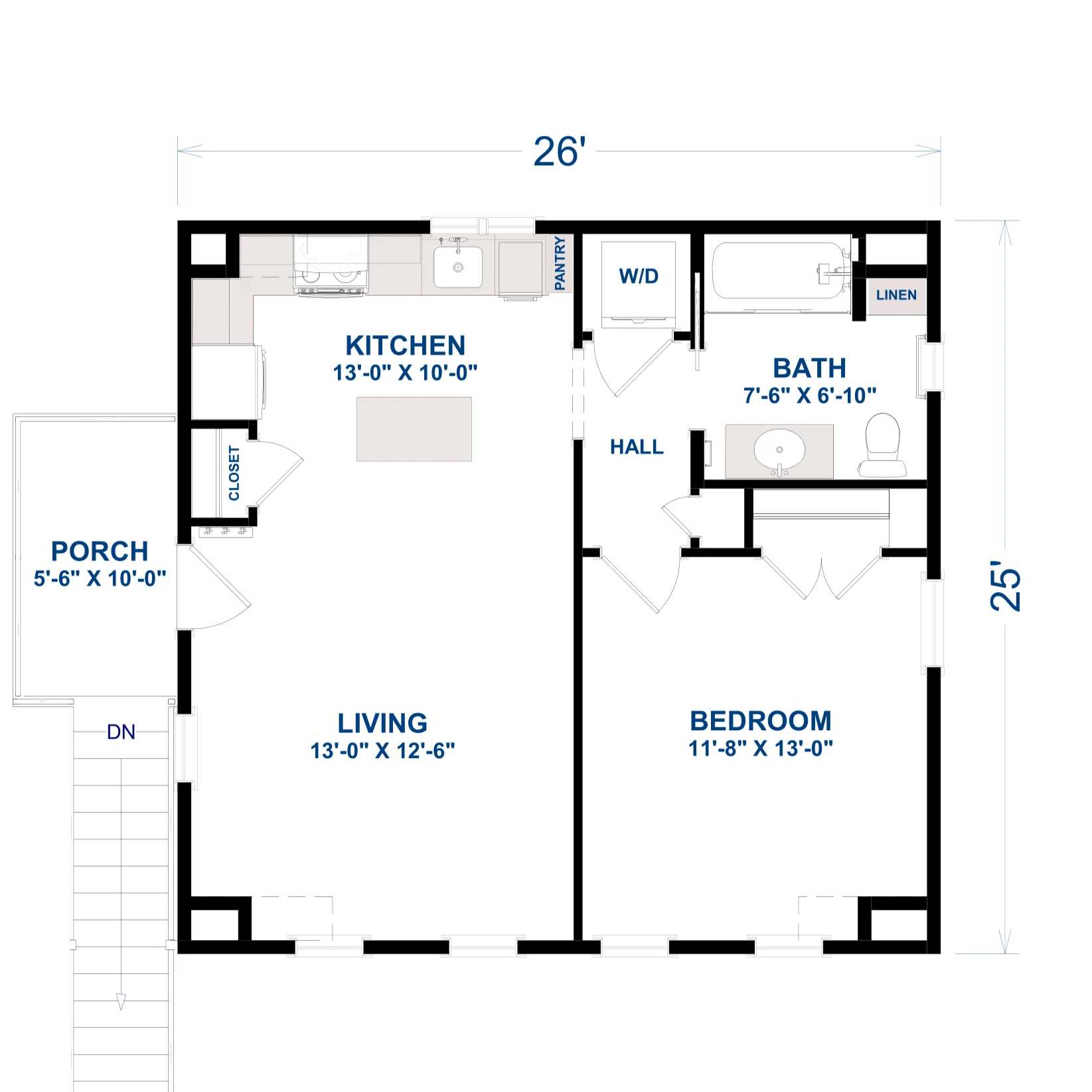

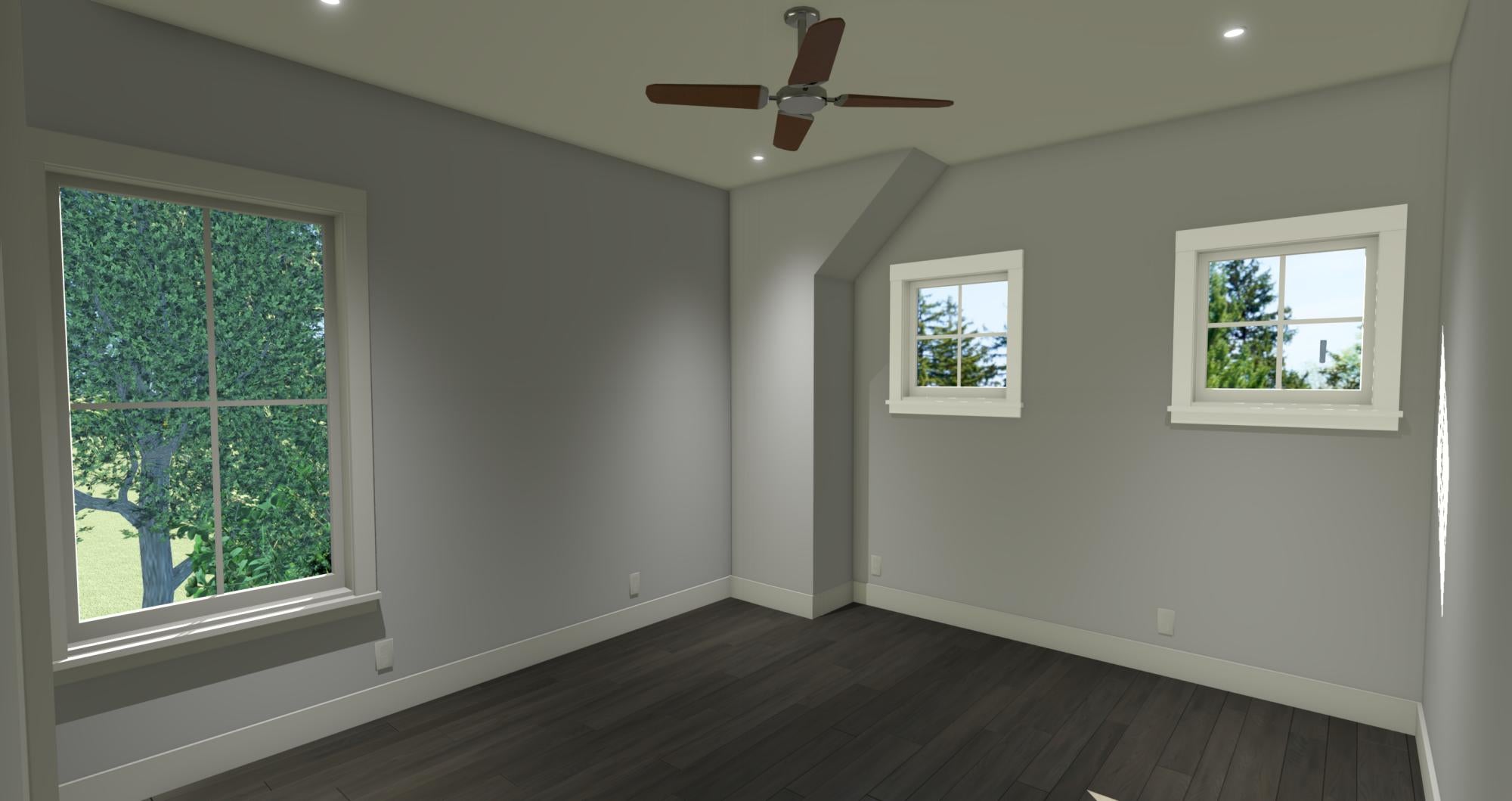

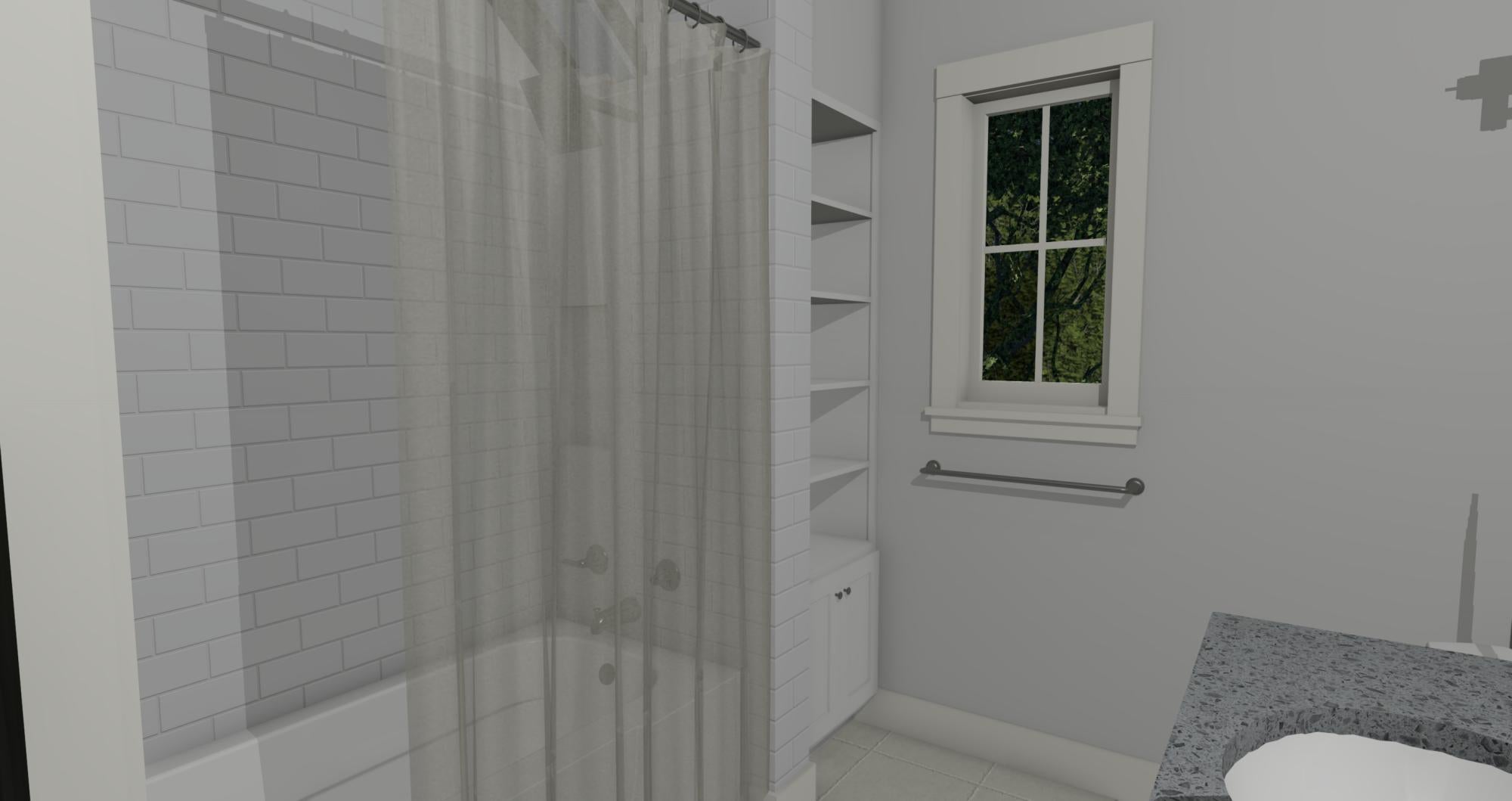

Independent living: full kitchen, living space, bedroom, full bath and laundry hookups.
Nine-foot ceilings upstairs: the extra height makes the apartment feel bigger than 650 square feet.
Ten-foot ceilings in the garage: room for a tall truck, a boat on a trailer or storage overhead.

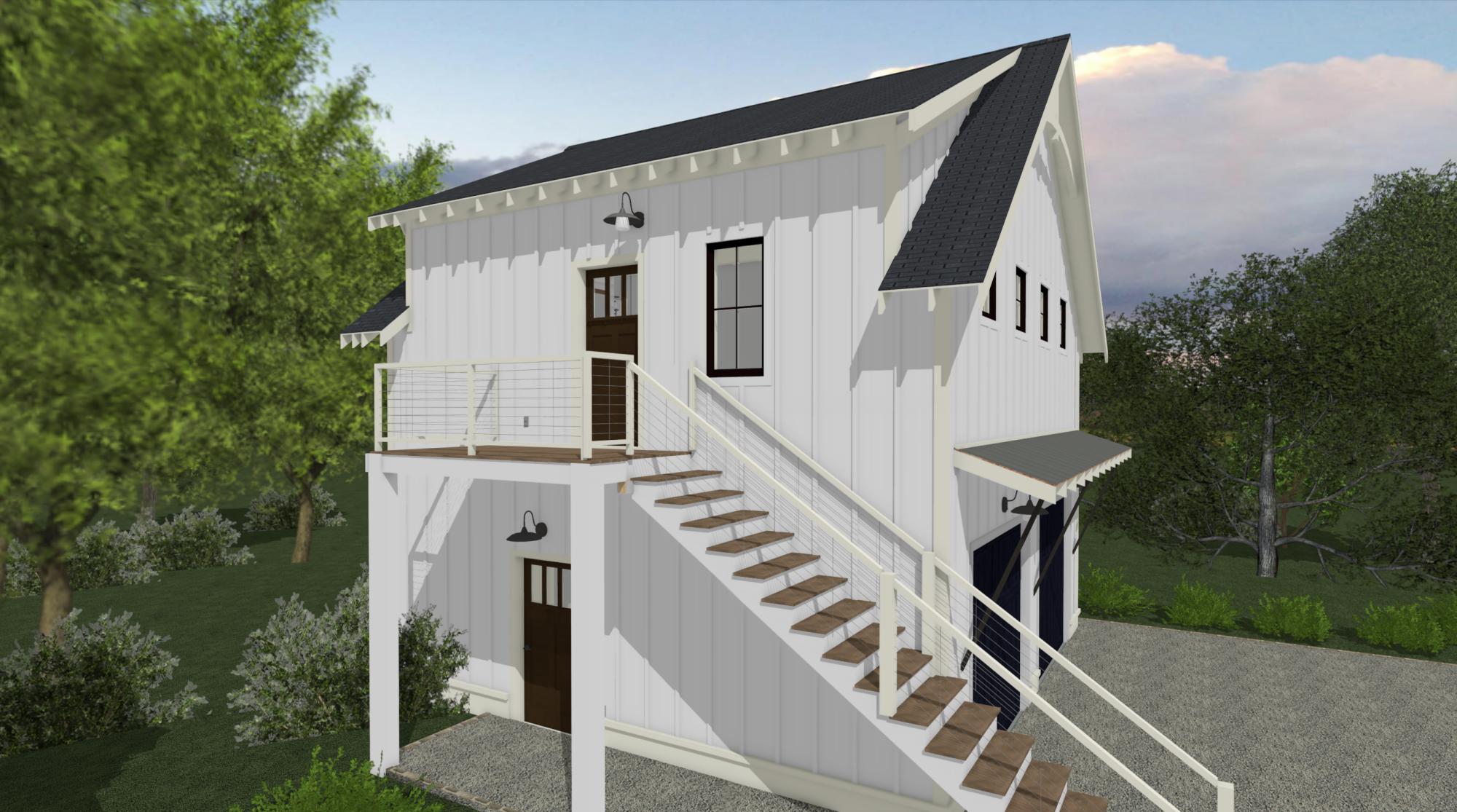

A separate building: parking for the property and a second place to live, which is value added to the lot.

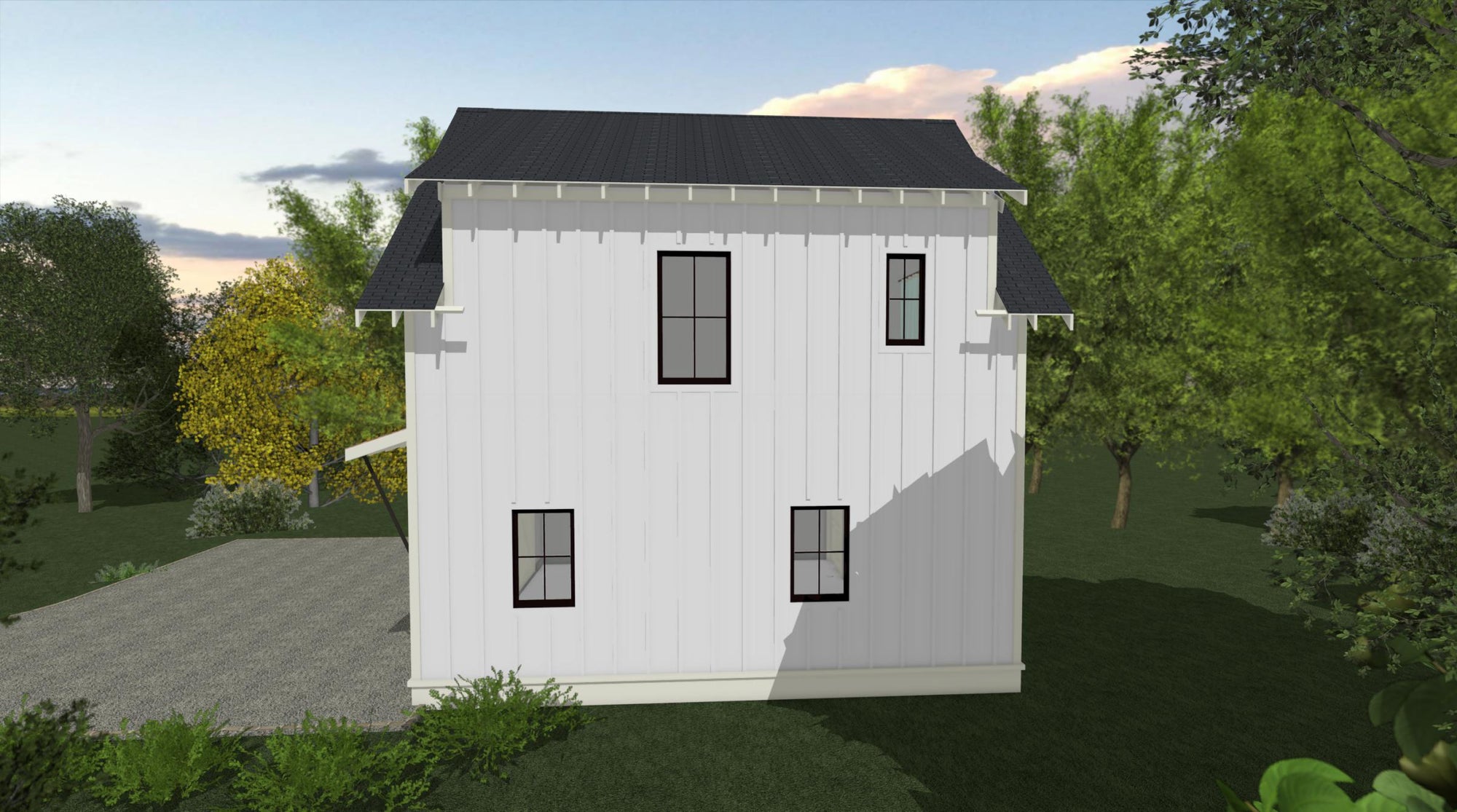

- Footprint: 32’ 0” Width x 25’ 0” Depth
- Max Ridge Height: 27’ 11”
- Foundation: Slab on Grade
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 10’ 0” Garage Level | 9’ 0” Upper Living Level

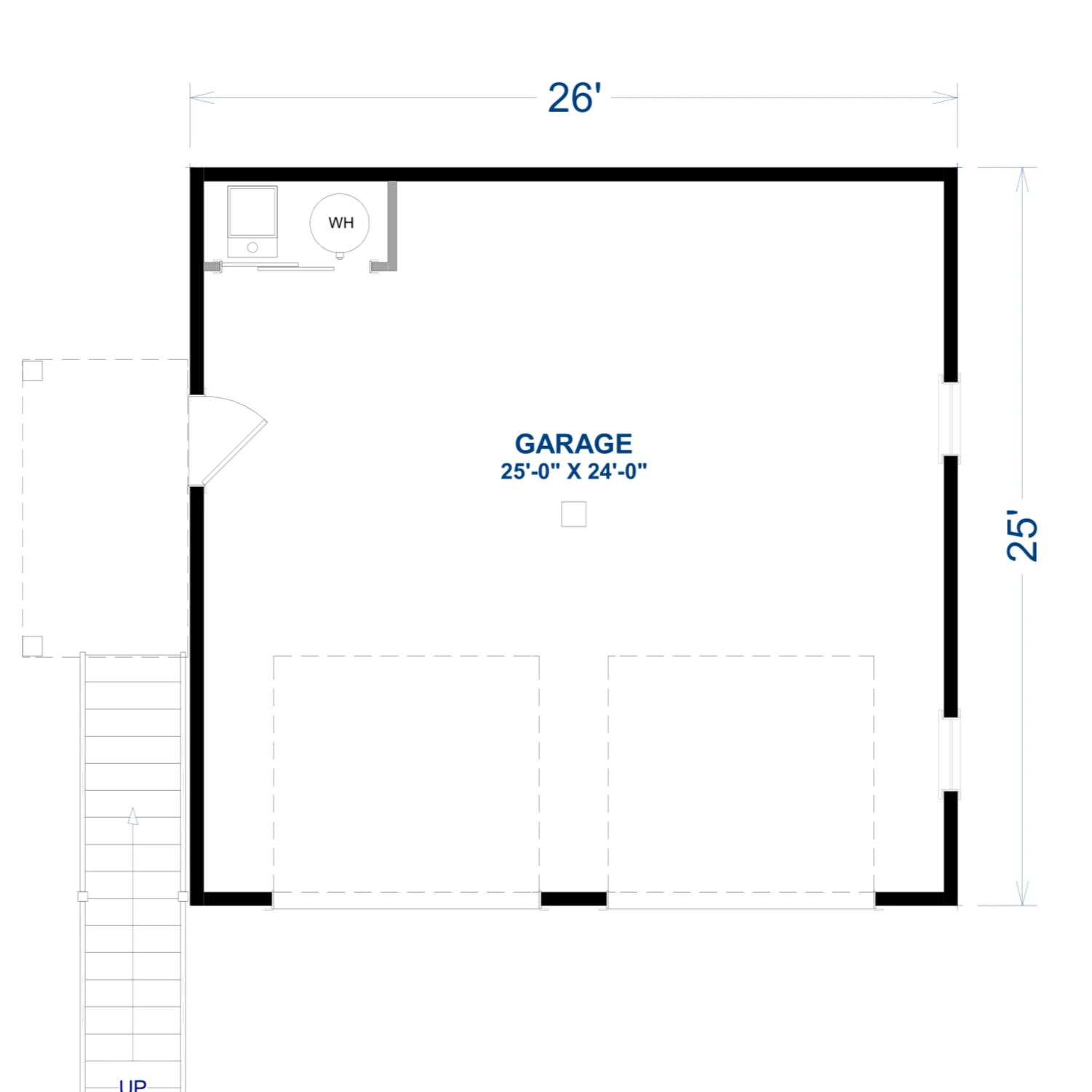

- Garage: 650 sq. ft., 2 Cars, Front Entry
- Roof Details: 10 on 12 Pitch | Truss Framing
Cloudy Bay gives a complete second home one of the most compact and builder-friendly footprints in our garage plans, using the lot well without overbuilding it.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions
- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does Cloudy Bay come with?
Cloudy Bay is drawn on a slab on grade foundation. A local engineer sizes the foundation for your soil and wind zone.
How tall is Cloudy Bay and how much ground does it cover?
The maximum ridge height is 27' 11". The footprint is 32' 0" x 25' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 650 square feet on 2 stories.
