The Cliffwood Garage/ADU Plan
1-Bedroom Garage Apartment ADU Plan
640 SQ. FT. | 1 BED | 1 BATH | 2-STORY | 2-CAR GARAGE

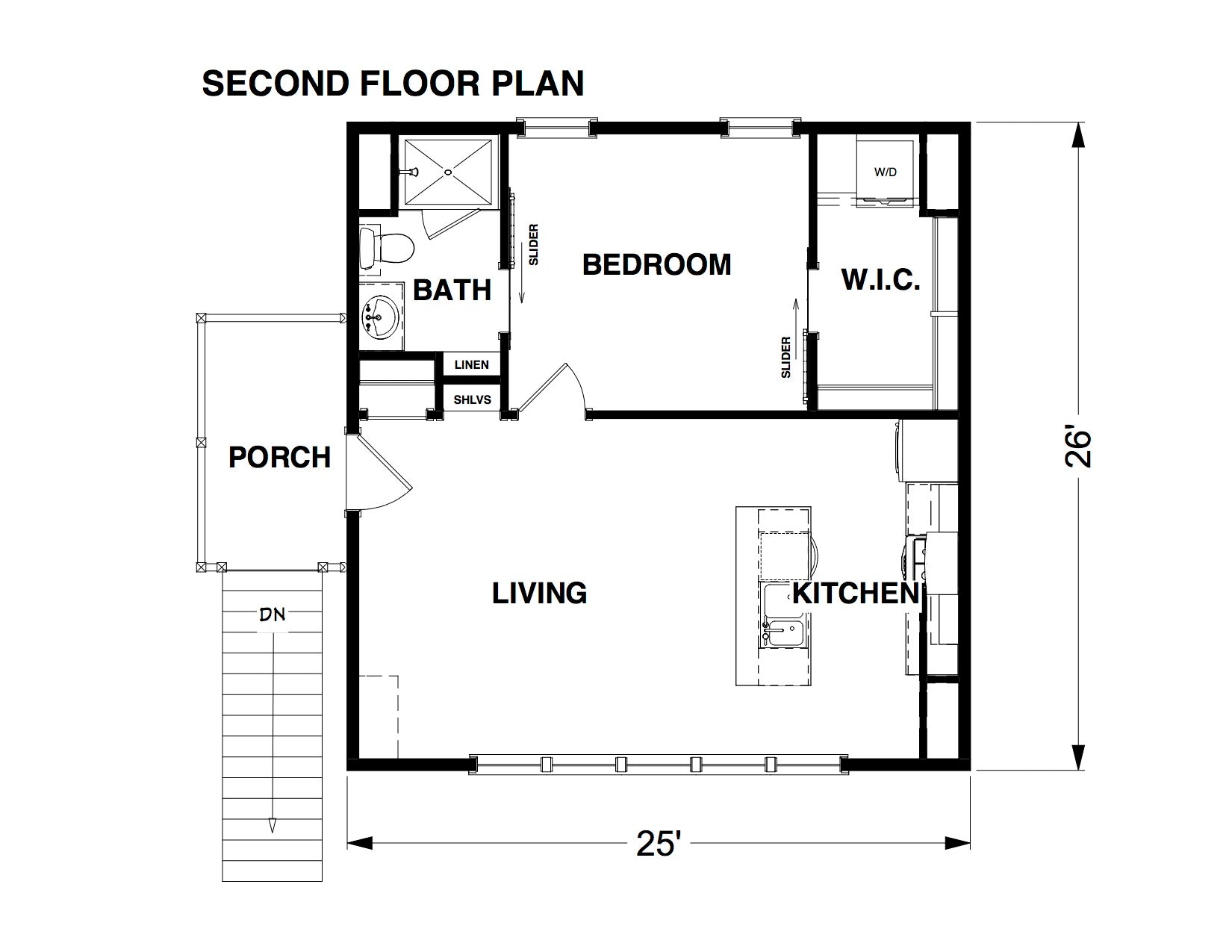

The Cliffwood is a 640 square foot apartment over a 650 square foot two-car garage, drawn as a complete home: a kitchen with an island, a living room, a bedroom with a walk-in closet, a full bath, a pantry and a laundry of its own, all on one upper floor.
An exterior stair climbs to a small covered porch at the apartment door, so whoever lives here has a front door that is not the garage. Use it for rent, for a parent or a grown child, or for guests; the garage below keeps its two bays, behind a pair of 9 by 8 foot doors, for the main house.
A complete apartment: kitchen, living room, bedroom, bath, pantry and laundry hookups, so whoever lives here does not need anything from the main house.
Its own front door: an exterior stair and a 64 square foot covered porch at the top, apart from the garage.
A bedroom with a walk-in closet: a separate bedroom with a walk-in closet and a tiled shower in the bath next to it.
Nine-foot ceilings on both levels: nine feet in the garage and nine feet upstairs, with shed dormers that bring light into the living room and the bedroom.

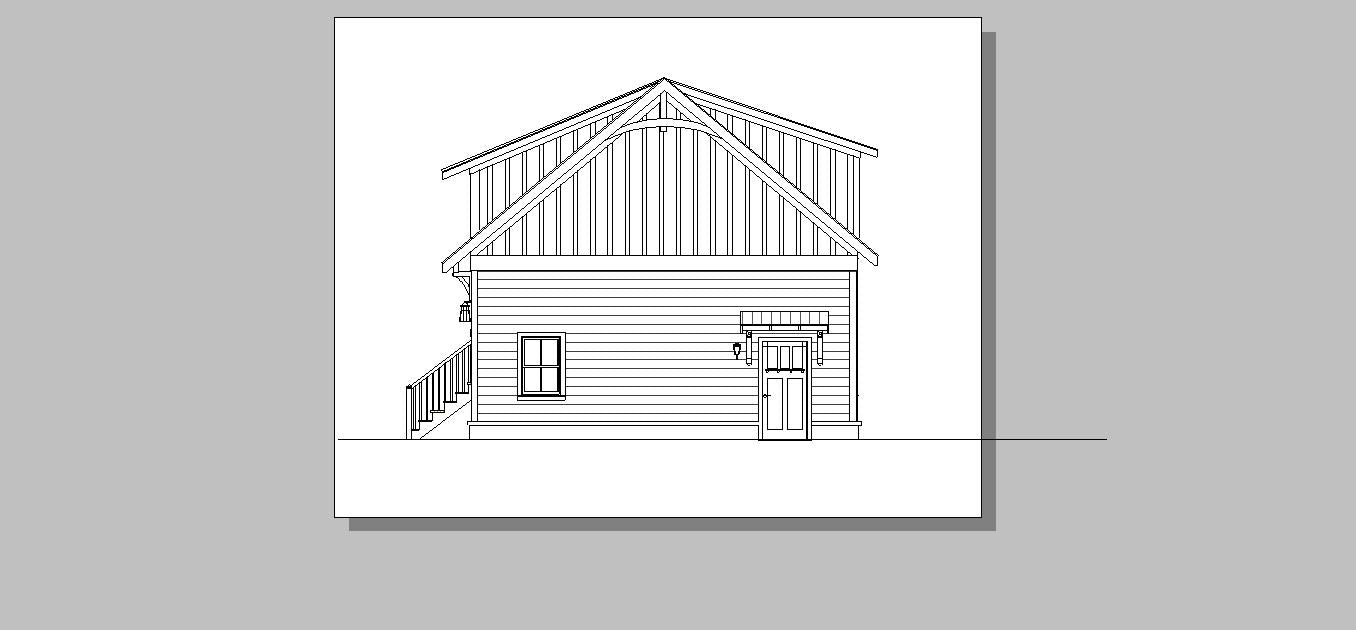

A garage with the look of a small house: two 9 by 8 foot doors, shingle siding above lap siding, board and batten in the gables, 16 by 24 inch wooden brackets and a standing seam metal roof.
- Footprint: 31’ 4” Width x 26’ 0” Depth
- Max Ridge Height: 24’ 8”
- Foundation: Slab on Grade
- Framing: 2x6 Exterior Walls | 2x4 Interior Walls | Truss Roof Framing
- Ceilings: 9’ Garage | 9’ Upper Level
- Garage: 650 sq. ft., 2 Cars, Front Entry
- Deck & Porch: 64 sq. ft.
- Roof Details: 10 on 12 Main Gable | 4 on 12 Shed Dormers | Standing Seam Metal | Truss Framing
The Cliffwood makes a small second building do a full job: a comfortable place for someone to live, parking and storage for the house, and a building that looks like it was always meant to be there.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Computer Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan

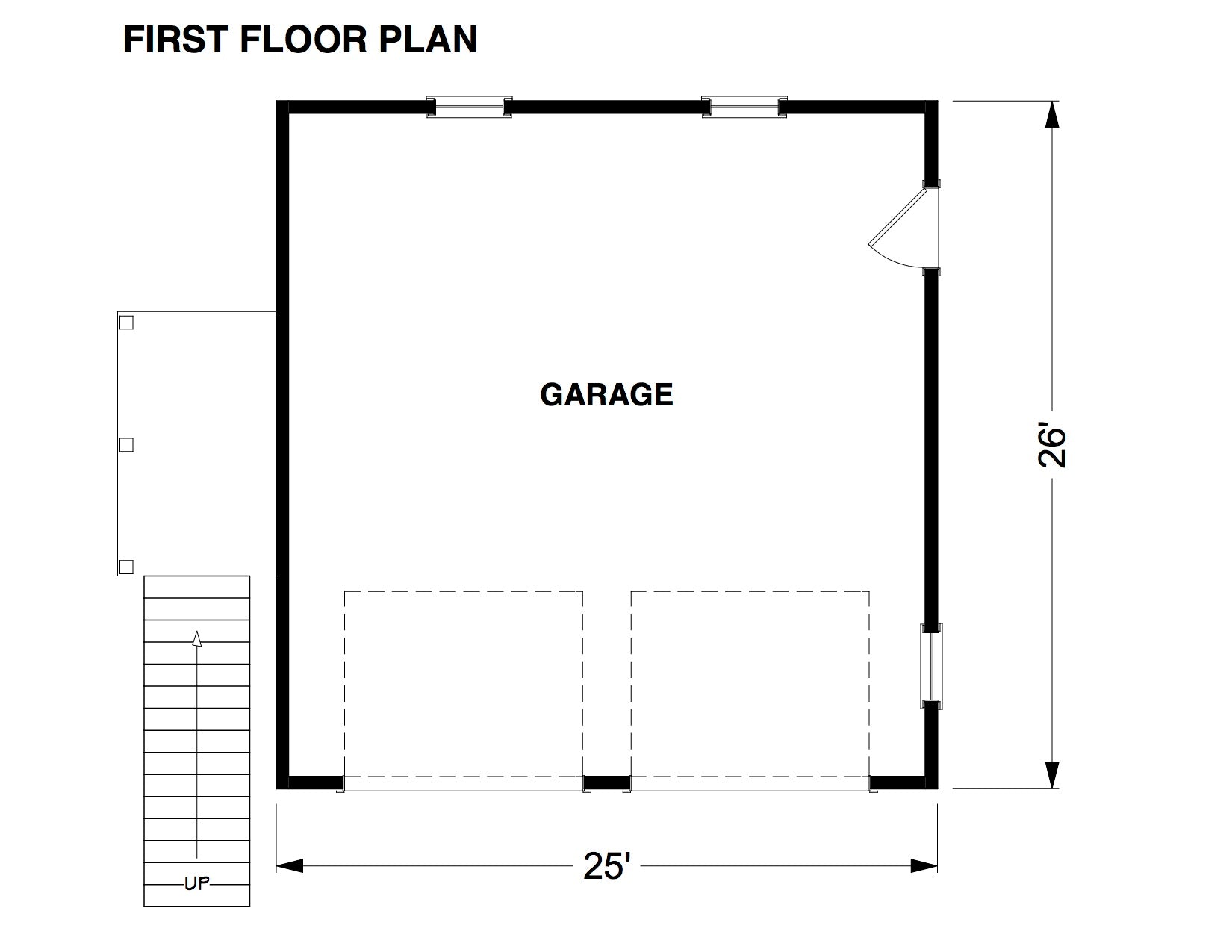

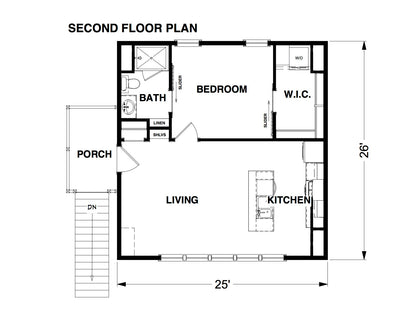

- Floor plans with dimensions

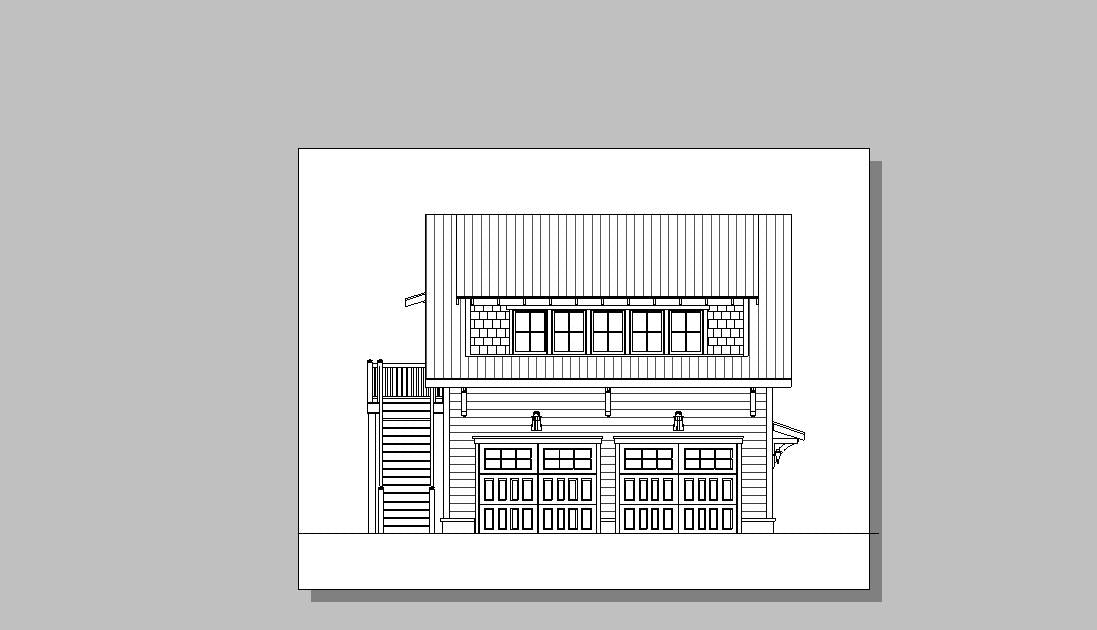

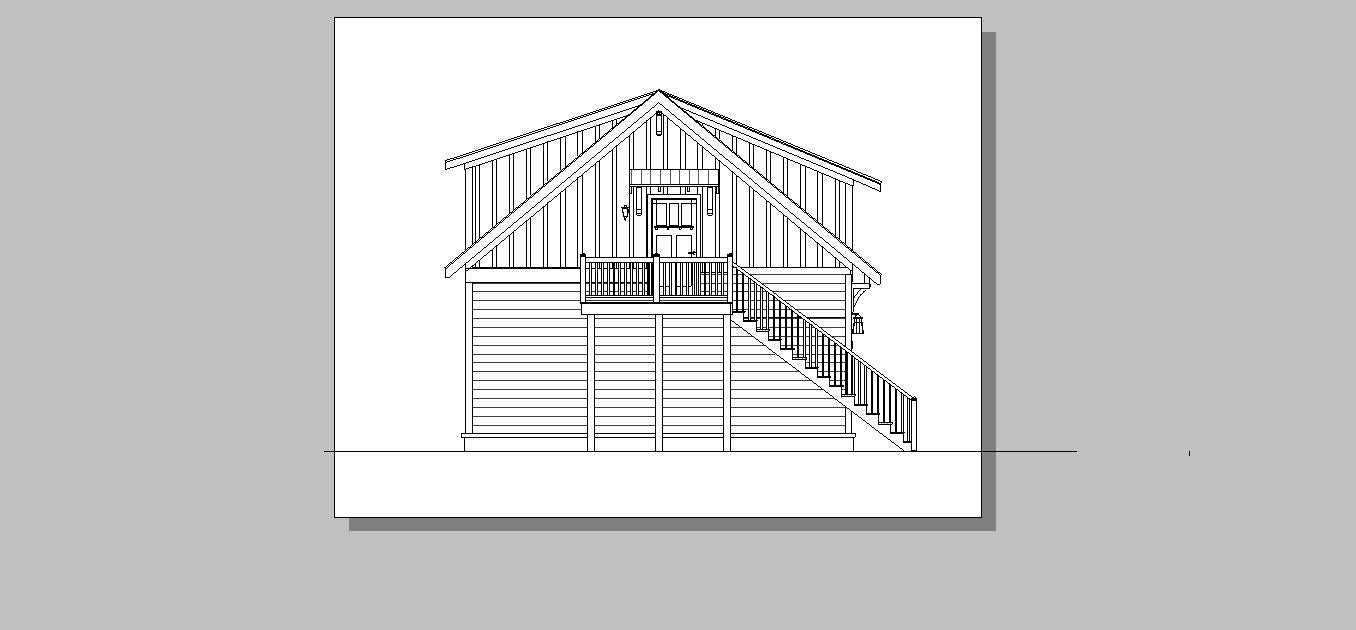

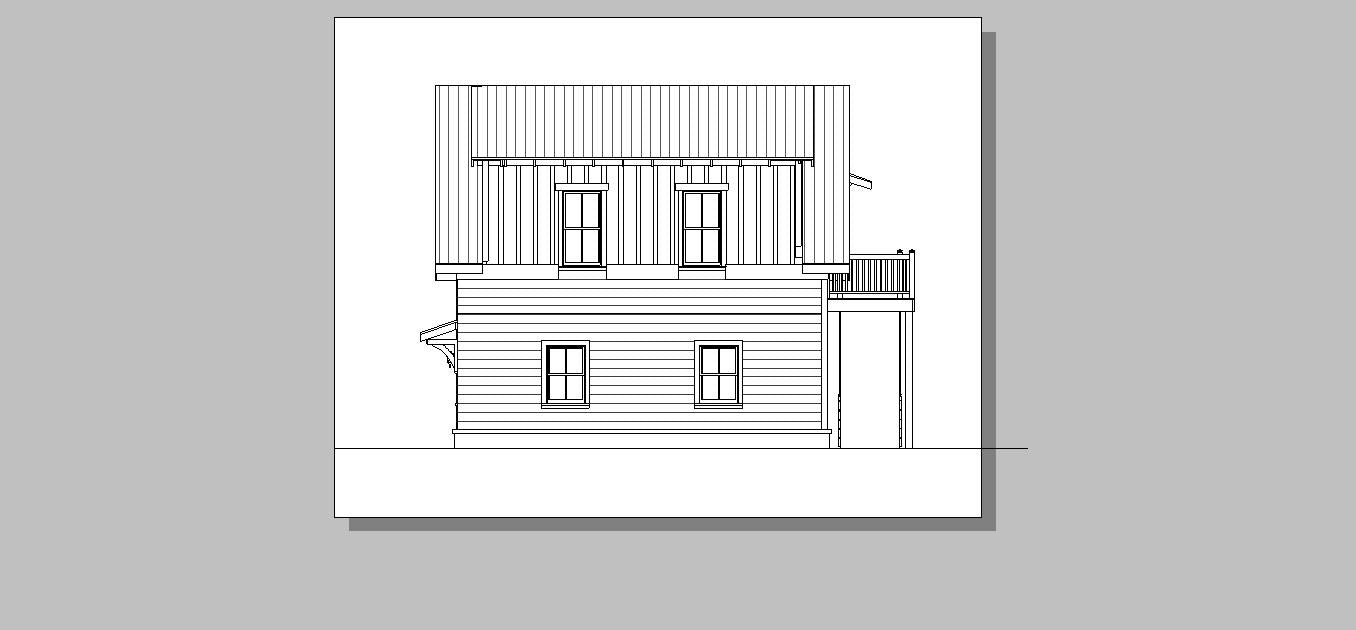

- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does Cliffwood Garage ADU come with?
Cliffwood Garage ADU is drawn on a slab on grade foundation. A local engineer sizes the foundation for your soil and wind zone.
How tall is Cliffwood Garage ADU and how much ground does it cover?
The maximum ridge height is 24' 8". The footprint is 31' 4" x 26' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 640 square feet on 2 stories.
