The Wilbury Garage/ADU Plan

Versatile Accessory Dwelling Unit

650 SQ. FT. | 1 BED | 1 BATH | 2-STORY | 2-CAR GARAGE

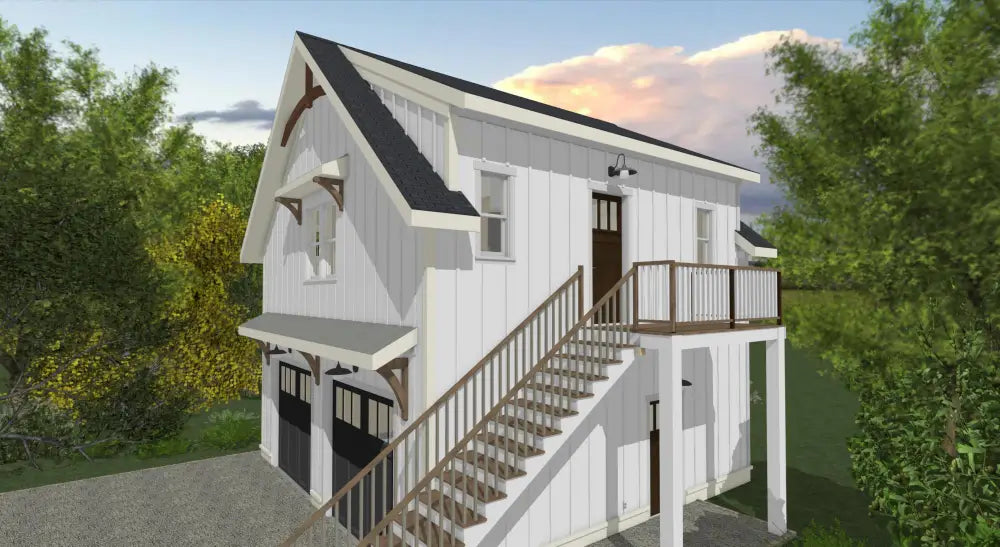

The Wilbury is a sophisticated carriage house plan that marries high-capacity utility with immense aesthetic character. The ground level serves as a functional foundation, housing a spacious double garage and a dedicated mechanical room. Upstairs, the 650 sq. ft. living area is defined by a bright, open floor plan where the eat-in kitchen flows effortlessly into the living space. Featuring designer-inspired details like timber-framed gables and awnings, this structure brings both warmth and architectural distinction to any property.

Key Design Features

Architectural Character: Defined by board and batten siding, timber-framed gables, and custom awnings that provide a high-end, timeless exterior aesthetic.

Optimized Culinary Space: A highly functional kitchen featuring U-shaped counters that maximize workspace while providing casual seating for meals.

Smart Spatial Planning: Features a convenient coat closet near the entry and space-saving sliding barn doors in the bedroom.

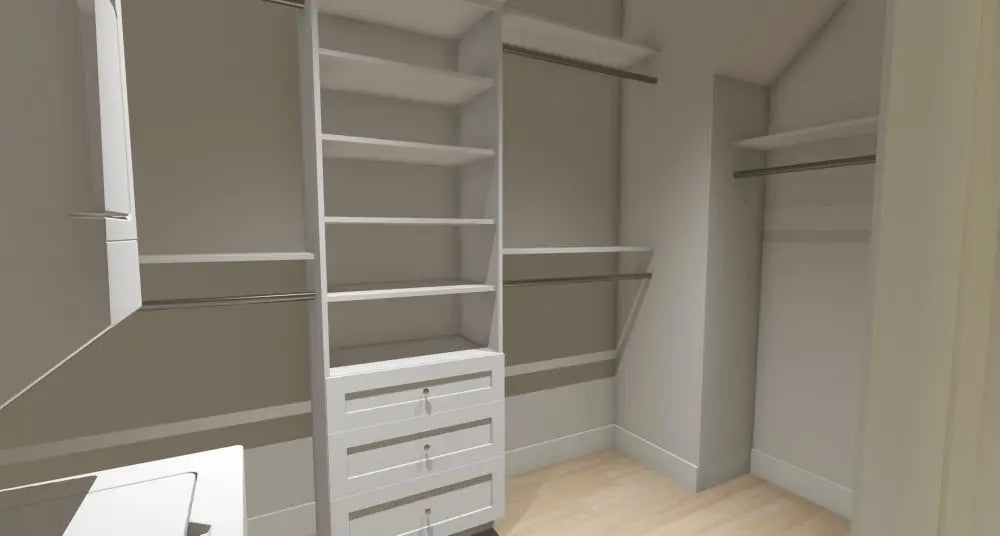

Integrated Laundry & Storage: A walk-in closet designed for dual utility, housing both a stackable laundry unit and generous storage capacity.

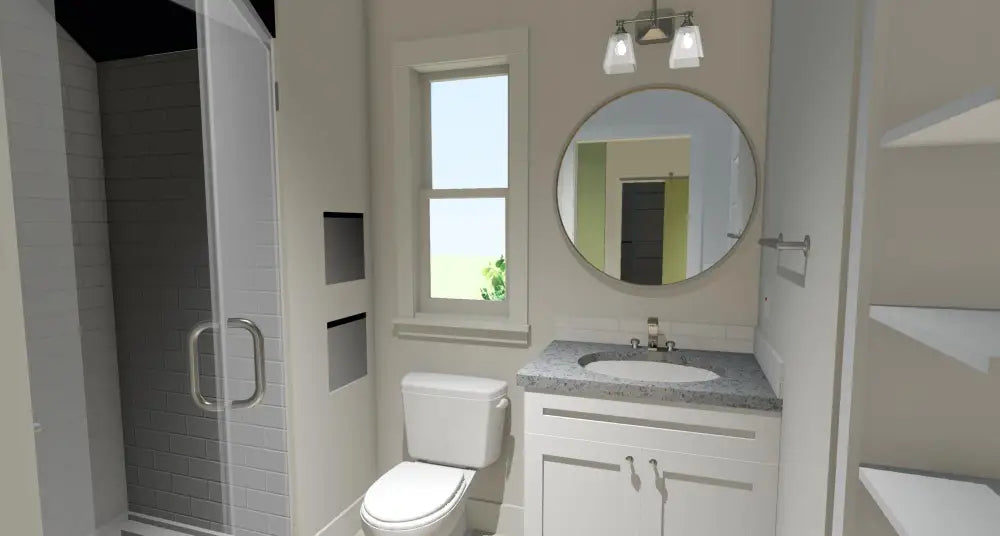

Private Bedroom Suite: A well-appointed sleeping area with direct access to a full bathroom, ensuring a private and comfortable experience for guests or long-term occupants.

Plan Specifications

Footprint: 32’ 0” Width x 25’ 0” Depth
Max Ridge Height: 27’ 11”
Foundation: Slab
Framing: 2x6 Exterior Walls | Truss Roof Framing
Ceilings: 10’ First Floor | 9’ Second Floor
Roof Details: 10 on 12 Primary Pitch

The Design Philosophy

Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Wilbury represents the modern evolution of the garage/ADU—where utility and living space are balanced to provide a high-performing property asset that is as functional as it is aesthetic.

Meet the Designer

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.

With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.

What's Included What's Included

Purchase of PDF Set includes:

Cover sheet with general notes
Foundation Plan
Floor Plans with Dimensions
Exterior Elevations
Cross Section
Door & Window Schedules
Roof plan
Electrical Plans
Cabinetry Elevations (most plans- please inquire to confirm)

What's Not Included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Purchase of Chief Architect plan:

Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
All materials and textures related to plan for 3D viewing
PDF plan set included with purchase

Readable Reverse Add-On:

A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
