The Perry Garage ADU
Versatile Garage/ADU | Extra-Deep 2-Car Garage
1085 Sq Ft | 2 Bed | 1.0 Bath | 2-Story
430+ Plans Sold · Lowest Price Guaranteed.
Buy direct & save 5% vs. marketplaces. Price match policy →
Licensed for one build at your build address.
Would you like to customize this plan? Request a free modification quote.
Modify This PlanThe Perry Garage/ADU Plan
2-Bedroom Carriage House Garage ADU Plan
1,085 SQ. FT. | 2 BED | 1–2 BATH | 2-STORY | 2-CAR GARAGE
The Perry is the biggest of our garage apartments: 1,085 square feet of living over an 896 square foot, extra-deep two-car garage, with room below for the cars and a workshop or a boat.

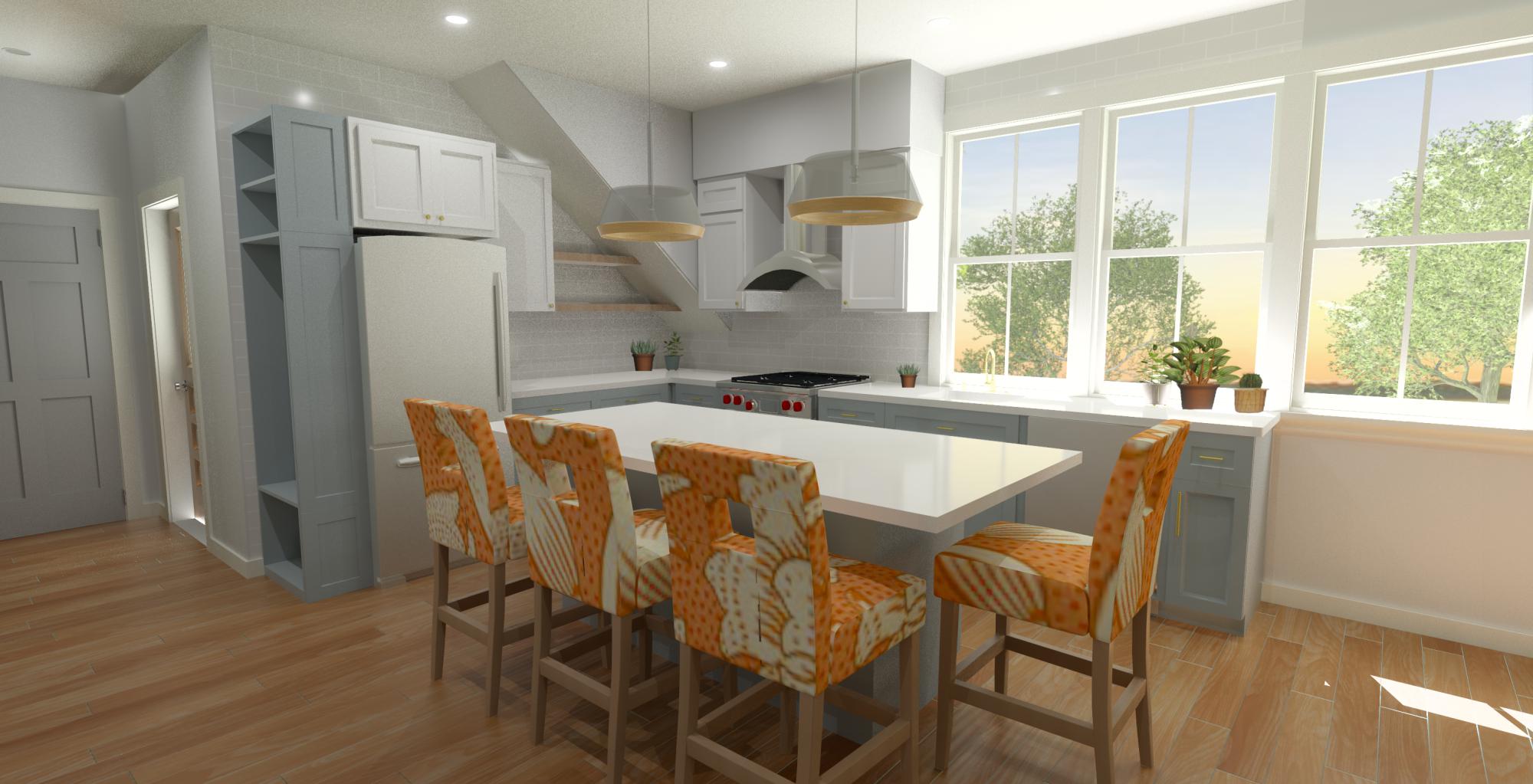

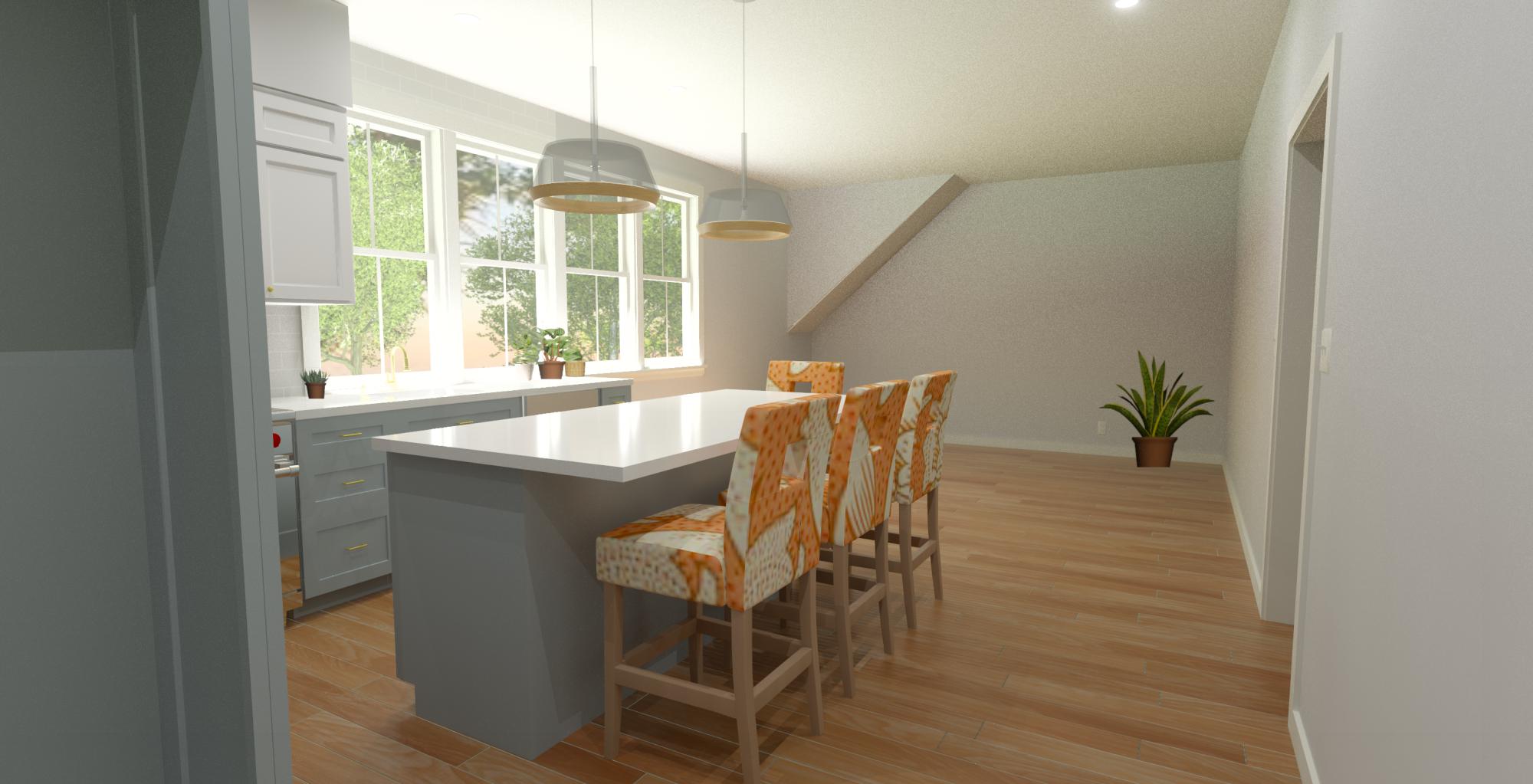

Upstairs, the living and kitchen share one open room, and the bedrooms can be arranged a few ways, with a second bath drawn as an option. That makes it an office, a guest apartment or a rental with two real bedrooms, depending on who moves in. A covered entry gives the apartment a front door of its own, away from the garage.
An extra-deep garage: 896 square feet at ground level, deep enough for a workshop or a long vehicle behind the cars.

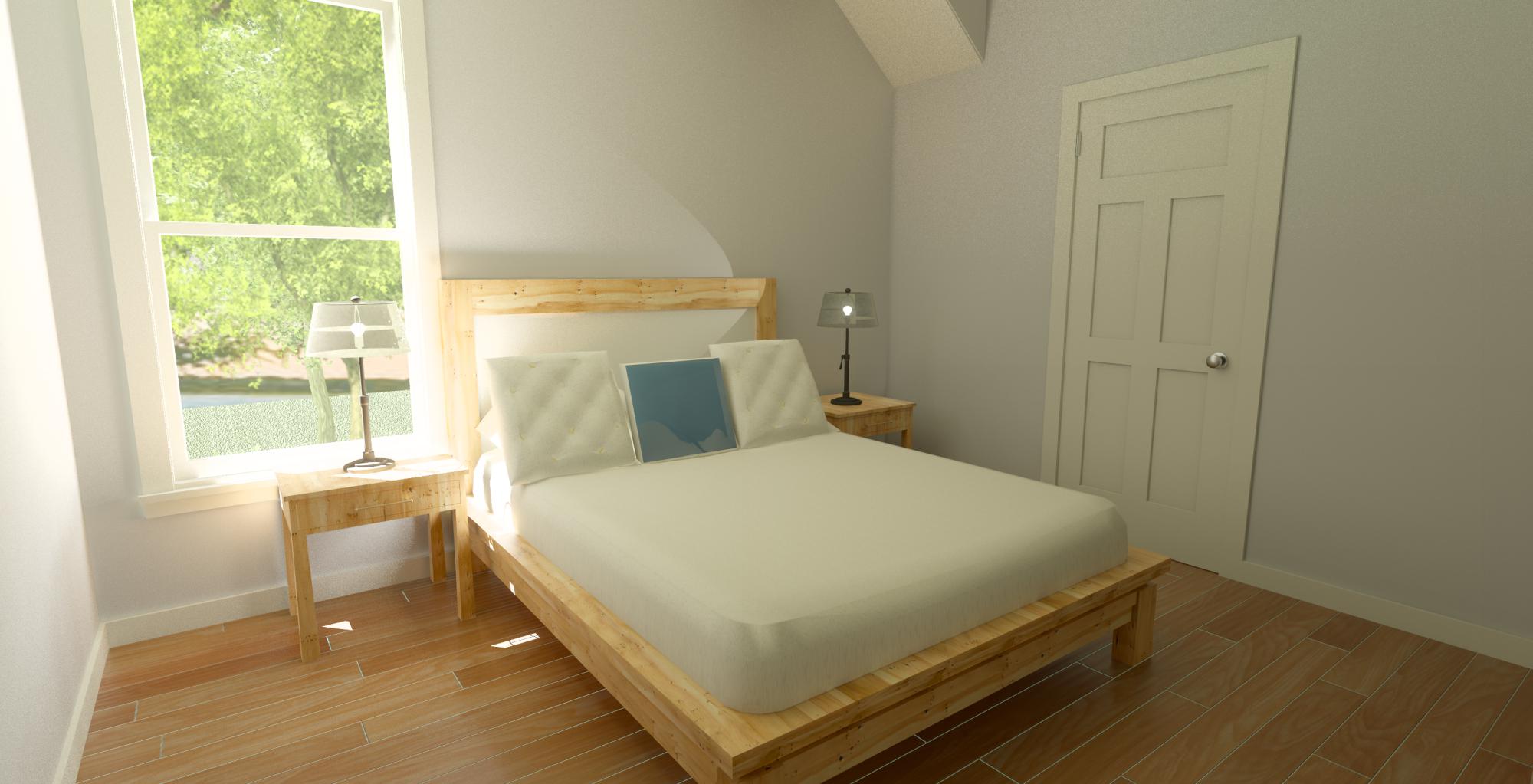

A layout you can adjust: the bedrooms and baths can be arranged more than one way within the 1,085 square feet.

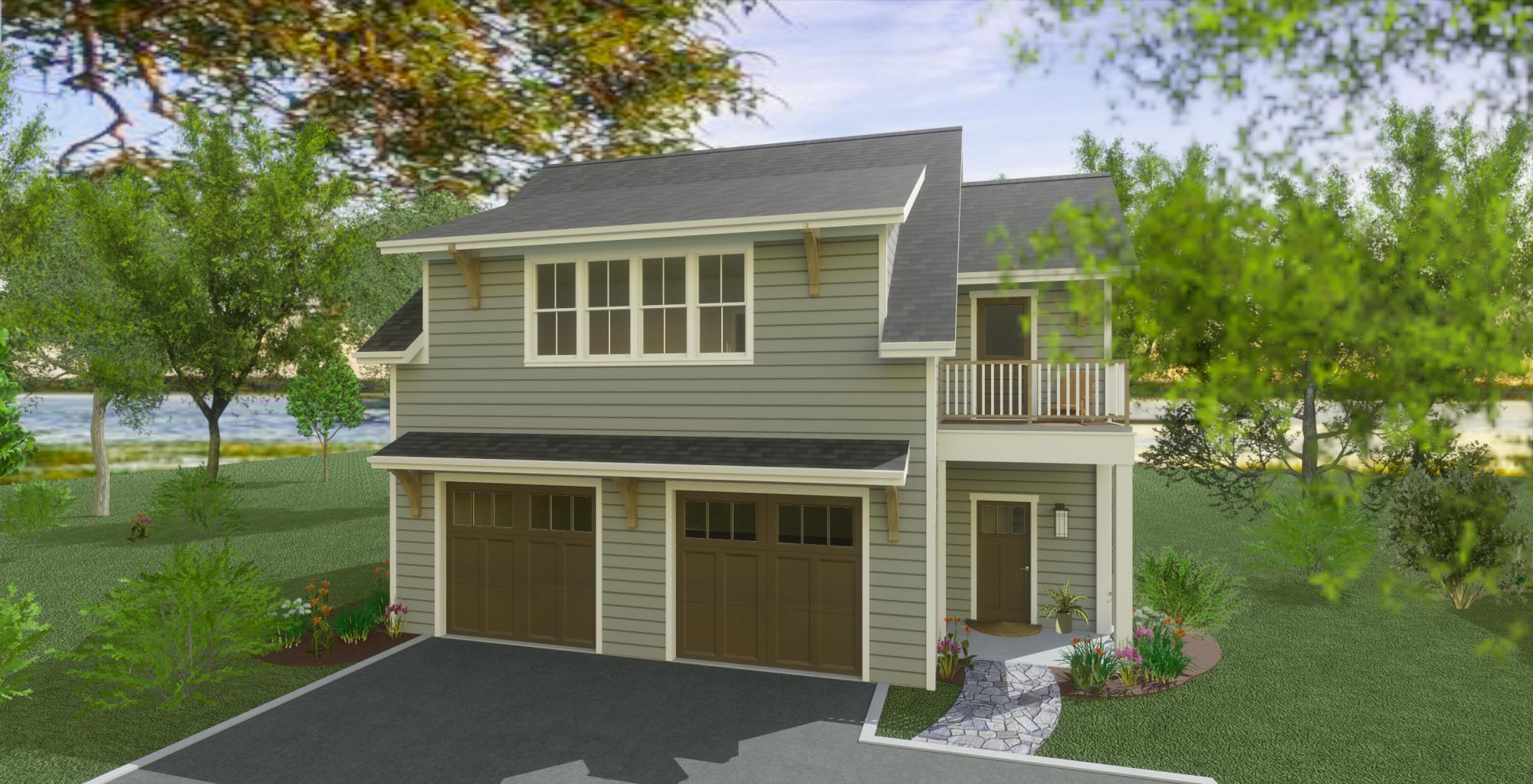

A front door of its own: a covered entry to the apartment, separate from the garage.
Exterior detail that fits: drawn so the outbuilding looks like it belongs with the main house.

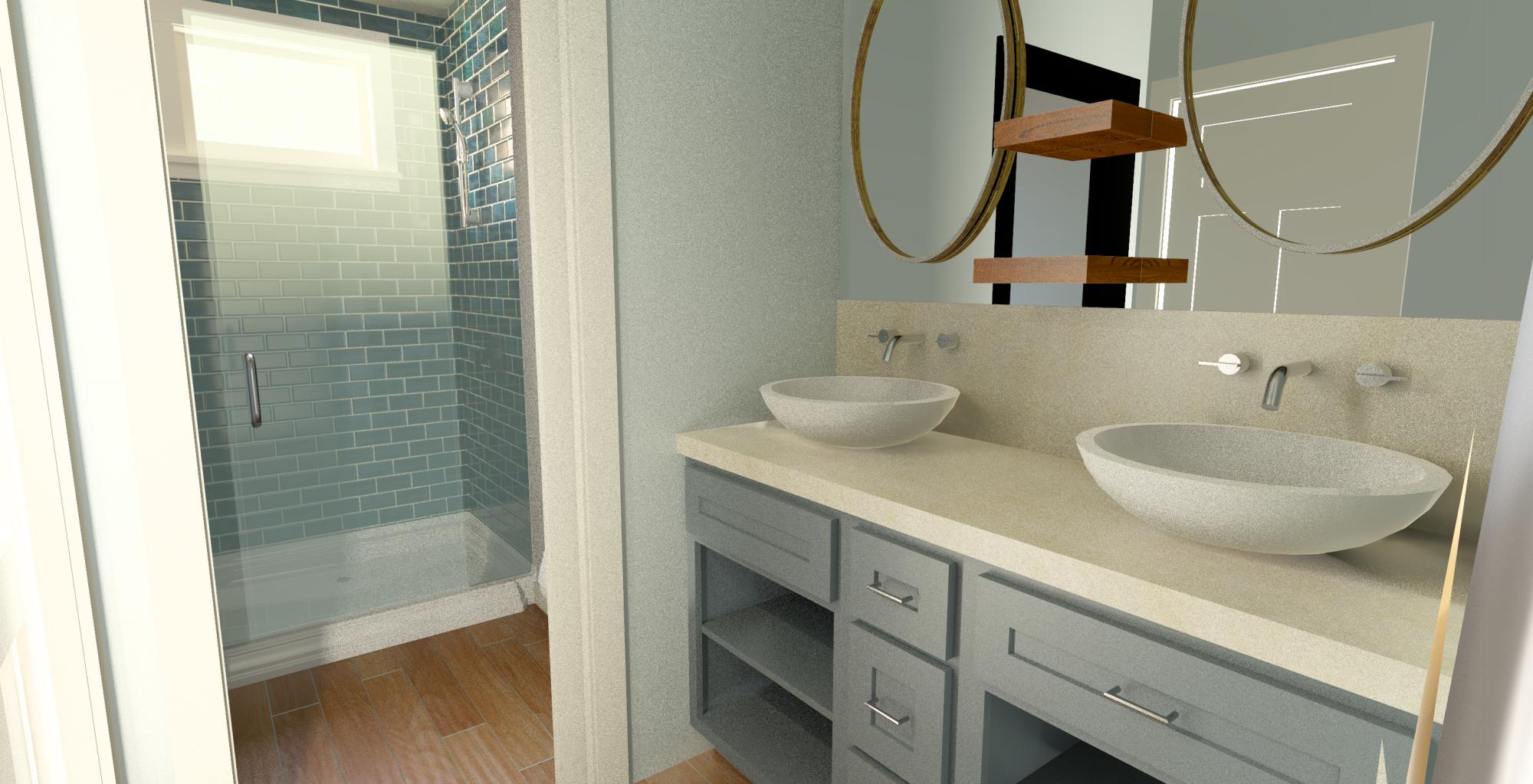

An optional second bath: built into the plan for a two-bedroom rental or long-term guests.
- Footprint: 36' 7" Width x 32' 0" Depth
- Max Ridge Height: 29' 7"
- Foundation: Slab
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 10' First Floor | 9' Second Floor
- Roof Details: 10 on 12 Primary Pitch
The Perry balances a big working garage with a real apartment above it, a building that does two jobs on the property and does both well.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions
- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does The Perry Garage ADU come with?
The Perry Garage ADU is drawn on a slab on grade foundation. A local engineer sizes the foundation for your soil and wind zone.
How tall is The Perry Garage ADU and how much ground does it cover?
The maximum ridge height is 29' 7". The footprint is 36' 7" x 32' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 1,085 square feet on 2 stories.
What comes in the plan set for The Perry Garage ADU, and what do I still need locally?
A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
