The Blue House

Compact Coastal Cottage Plan

1,074 SQ. FT. | 2 BED | 2.5 BATH | 2-STORY

Step onto the deep front porch of The Blue House and feel the coastal breeze take over. This charming 1,074 sq. ft. compact cottage blueprint proves that thoughtful design beats raw square footage every single time—delivering a complete, high-end home in a remarkably efficient footprint.

With an open main level featuring a built-in window seat and two private upstairs bedroom suites, this design is the perfect solution for a weekend coastal retreat, a smart starter home, or a high-performing short-term vacation rental on a tight lot.

Key Design Features

Classic Front Porch: A deep, welcoming covered entry designed for relaxed morning coffee and evening conversations.

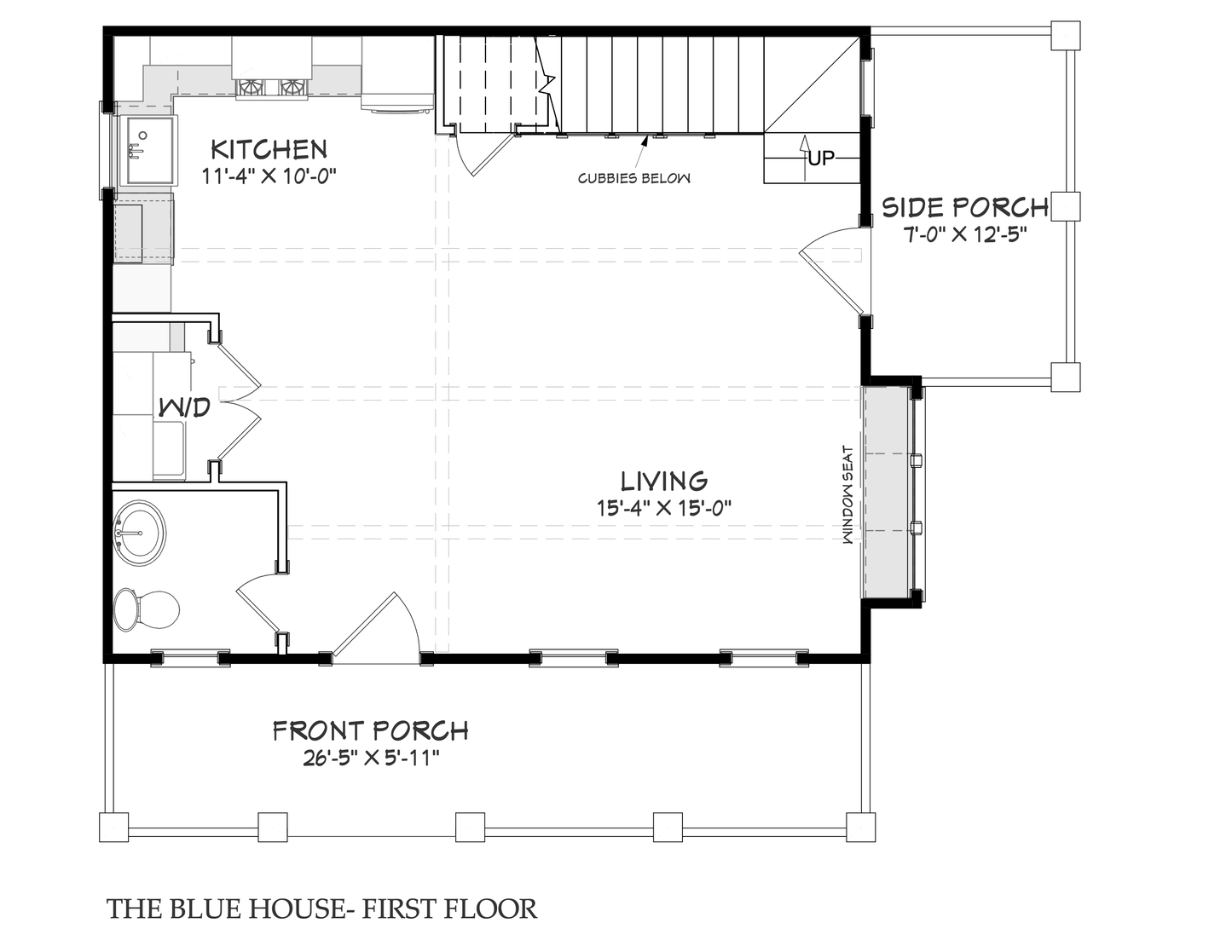

Efficient Open Main Level: L-shaped cabinetry and a centered dining layout maximize kitchen functionality with zero wasted space.

Character-Filled Living: A built-in window seat adds a cozy reading nook and timeless architectural charm to the main living area.

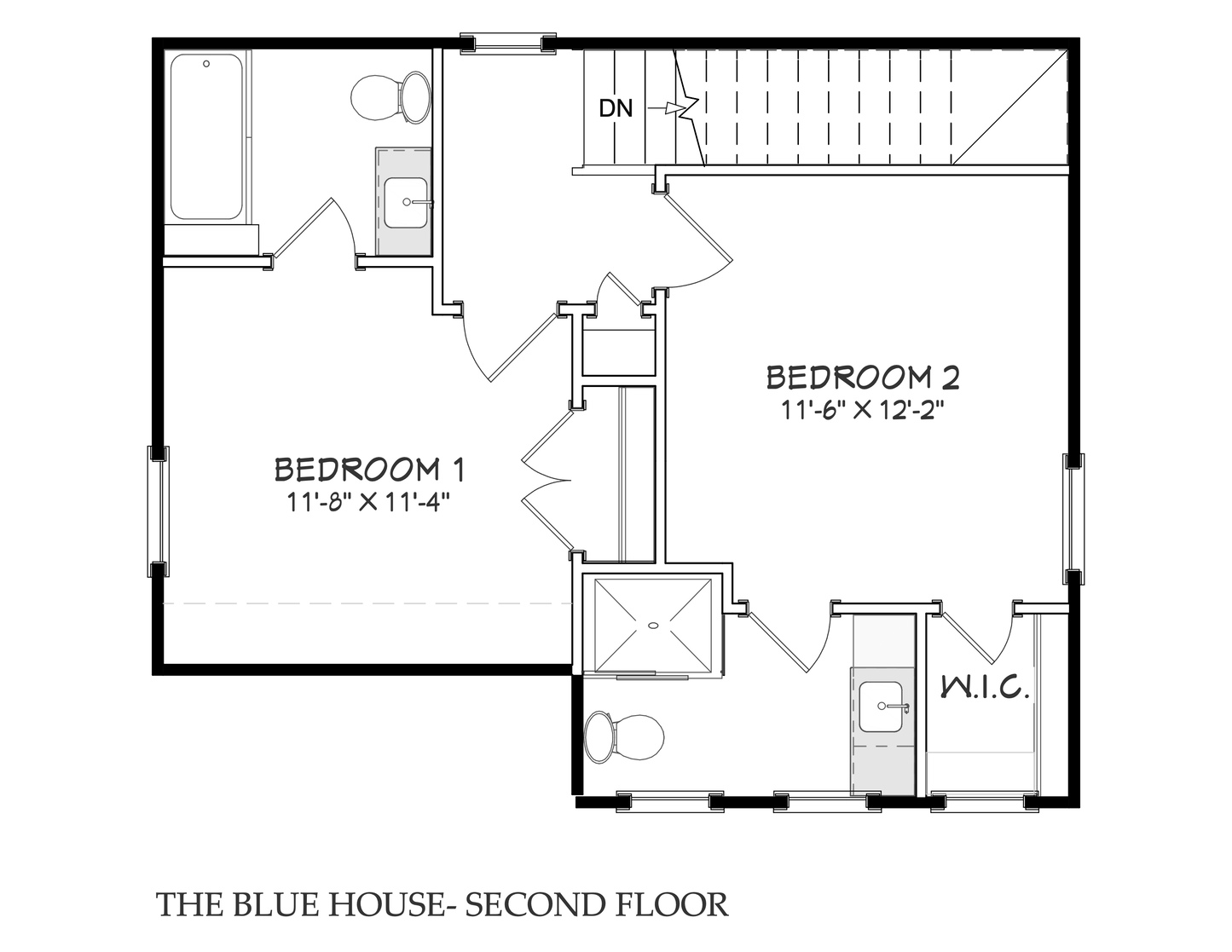

Dual Private Suites: Both second-level bedrooms feature their own dedicated full bathrooms—ideal for guests, roommates, or rental privacy.

Double Covered Porches: A second covered porch at the rear extends the living space outdoors and adds great structural depth.

Plan Specifications

• Footprint: 26’ 0” Width x 28’ 0” Depth (Excellent for ultra-narrow or infill lots)
• Max Ridge Height: 26’ 0”
• Foundation: Cost-efficient Slab on Grade
• Framing: 2x4 Exterior Walls | Truss Roof Framing
• Ceilings: 9’ First Floor | 8’ Second Floor
• Roof Details: Steep 12 on 12 Pitch | Truss Framing

The Design Philosophy

Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Blue House completely eliminates wasted hallway space, maximizing every square inch to deliver an airy, premium living experience in one of the most efficient footprints in our catalog.

Meet the Designer

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue and studies in interior architecture.

With 16+ years of custom home design—including a decade in custom construction in Charleston, SC—Angela specializes in resilient coastal style homes engineered for flood and hurricane zones.
