3060 Sq. Ft. - The Upland II

To learn more about what's included with our plans Click here

Would you like to modify this plan? Submit a request form here

The Upland 2 House Plan

Family Beach House Plan

3,060 SQ. FT. | 5 BED | 3.5 BATH | 2-STORY

The Upland II is a spacious, flexible house plan built around a main-floor primary suite and an open floor plan that adapts to the way your family actually lives. A study off the primary bedroom can open directly to the suite or remain a separate private space — your choice. A private balcony off the rear adds an outdoor retreat for the owner, while a media room with optional entry from the kitchen or entry hall gives the whole family a dedicated flex space.

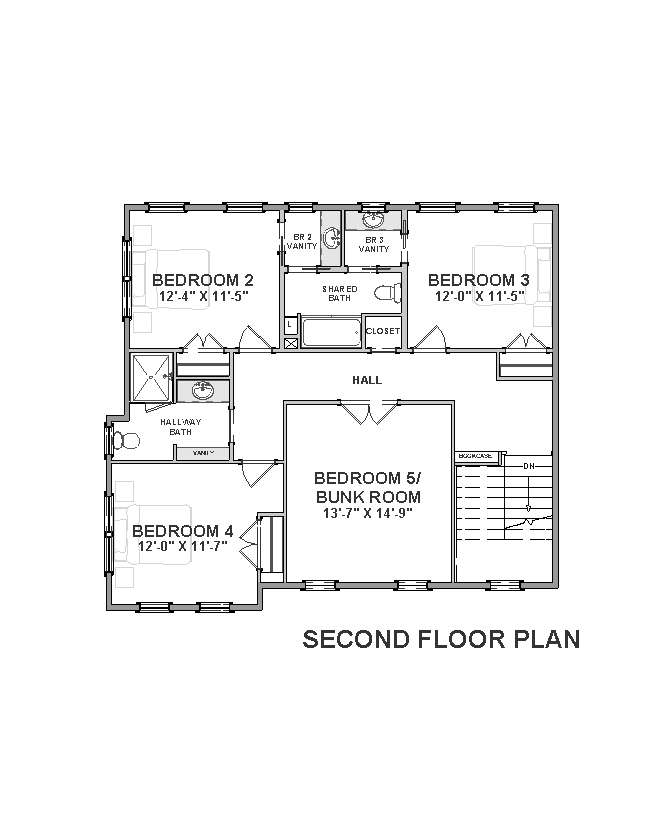

Upstairs, three additional bedrooms plus a bonus bedroom or bunk room provide ample sleeping space for large families, guests, or vacation rental guests.

Key Design Features

Main-Floor Primary Suite: The owner’s retreat is conveniently located on the main level with a private rear balcony and an adjacent study that can open to the bedroom or remain separate.

Flexible Study/Office: A study off the primary suite can function as a home office, sitting room, or be opened directly into the bedroom — fully adaptable to your needs.

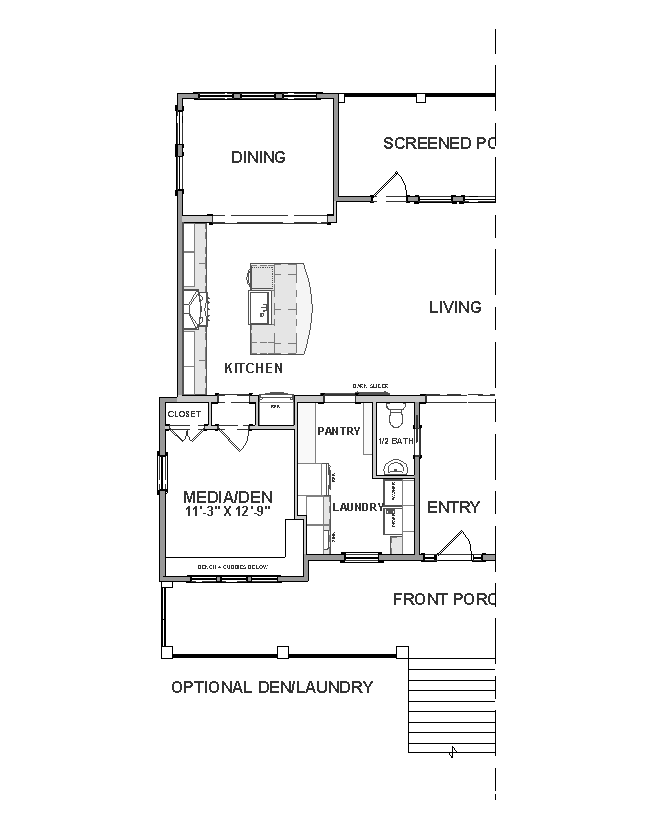

Media Room with Dual Entry Options: A dedicated media room accessible from either the kitchen or the entry hall gives families a flexible entertainment and gathering space.

Bonus Bedroom or Bunk Room Upstairs: A fourth upper-level space functions as a bonus bedroom or bunk room — ideal for large families or vacation rental sleeping capacity.

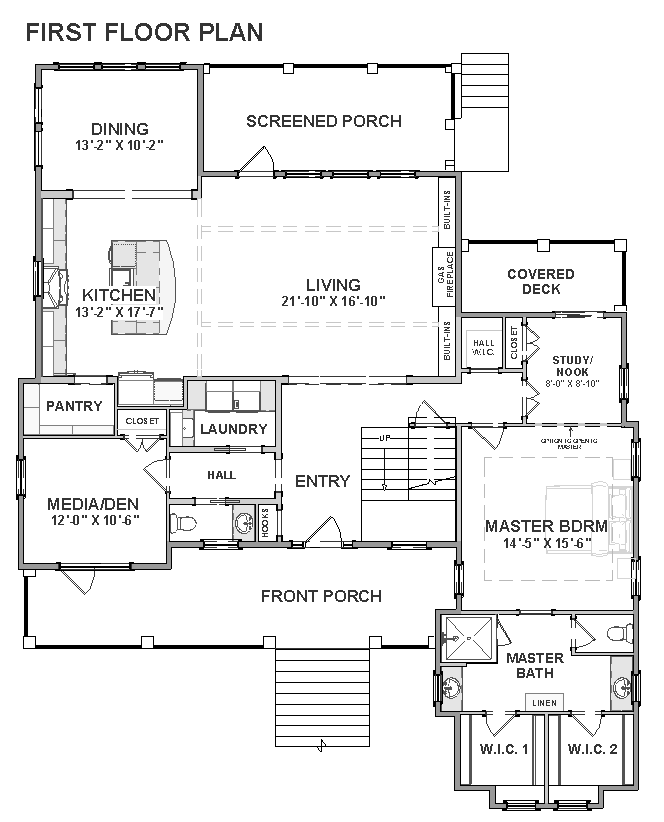

Open Main-Level Floor Plan: A spacious open layout on the main floor keeps the kitchen, dining, and living areas connected and flowing.

Plan Specifications

• Footprint: 52’ 6” Width x 63’ 0” Depth
• Max Ridge Height: 34’ 9”
• Foundation: Crawl Space
• Framing: 2x6 Exterior Walls | Truss Roof Framing
• Ceilings: 10’ First Floor | 9’ Second Floor
• Roof Details: 10 on 12 Pitch | Truss Framing

The Design Philosophy

Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Upland II is designed for families who want the convenience of main-floor primary living without giving up the space and flexibility that a growing household demands.

Meet the Designer

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue and studies in interior architecture.

With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes engineered for flood and hurricane zones.
