Magnolia Cottage House Plan
3-Bedroom Beach Cottage House Plan
1,600 SQ. FT. | 3 BED | 2.5 BATH | 2-STORY | 2–3 CAR DRIVE-UNDER GARAGE

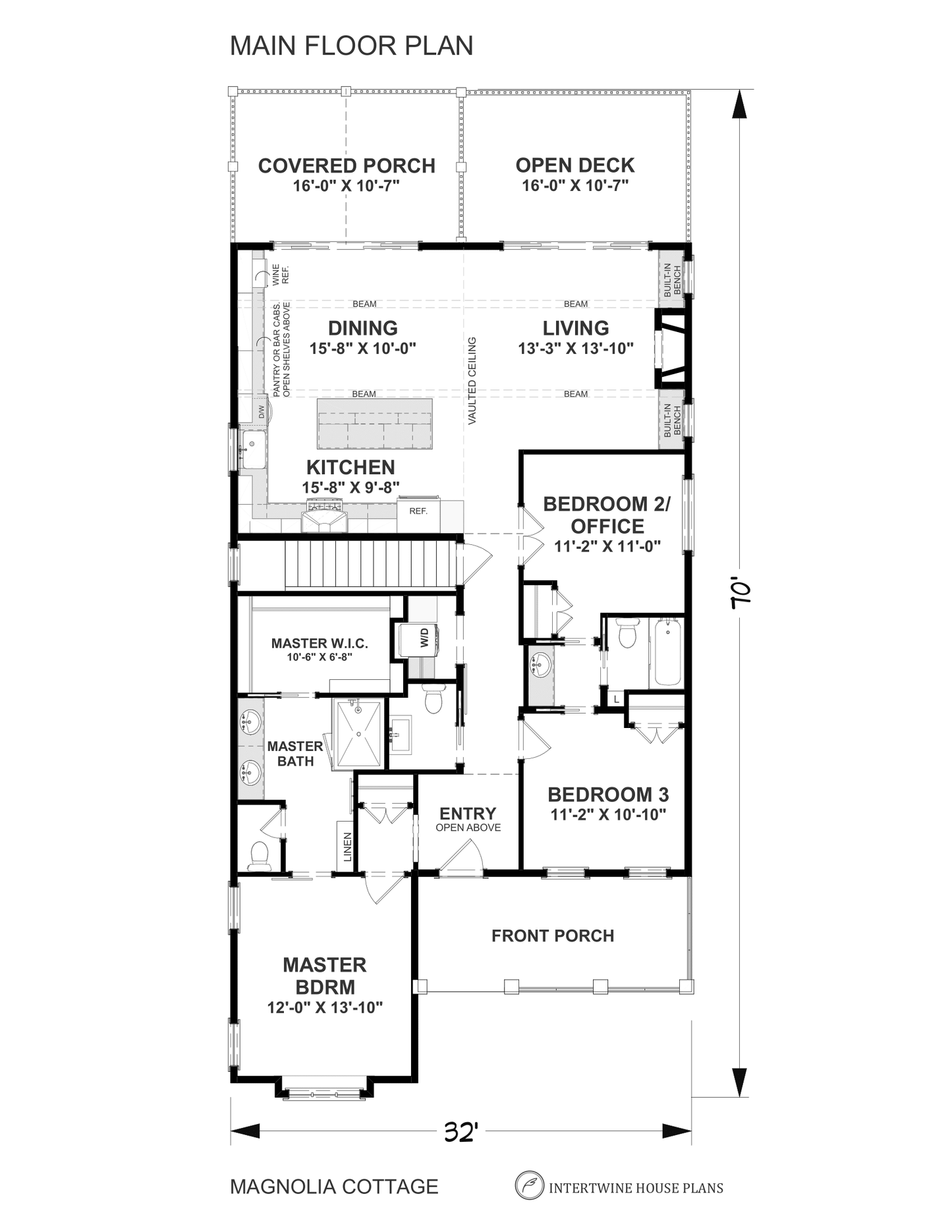

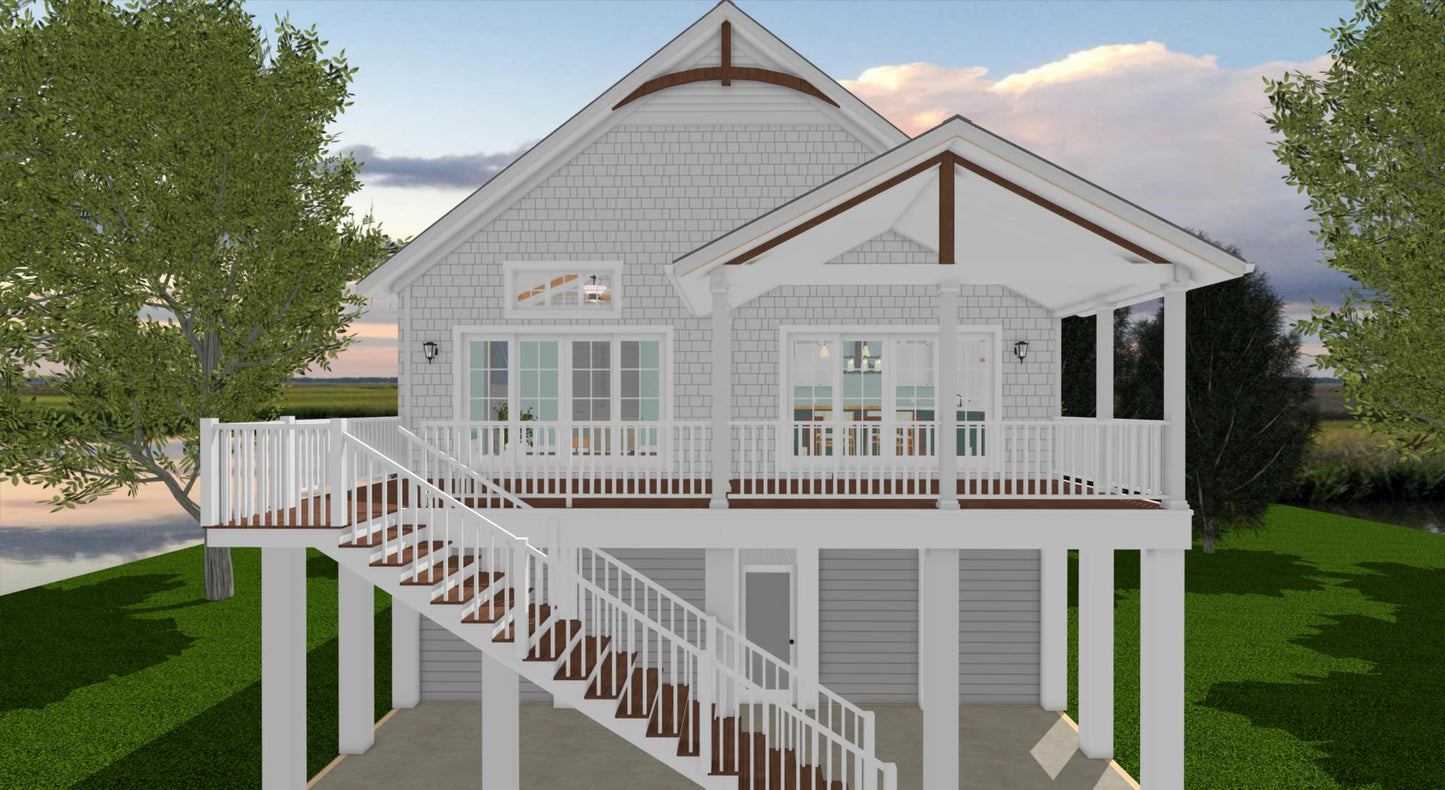

The Magnolia Cottage is a straight 32 by 70 foot rectangle, which is what makes it fit a narrow beach lot, and inside that rectangle it gives you a covered front porch, a vaulted living room with a big kitchen island, and a primary suite you would expect in a larger house.

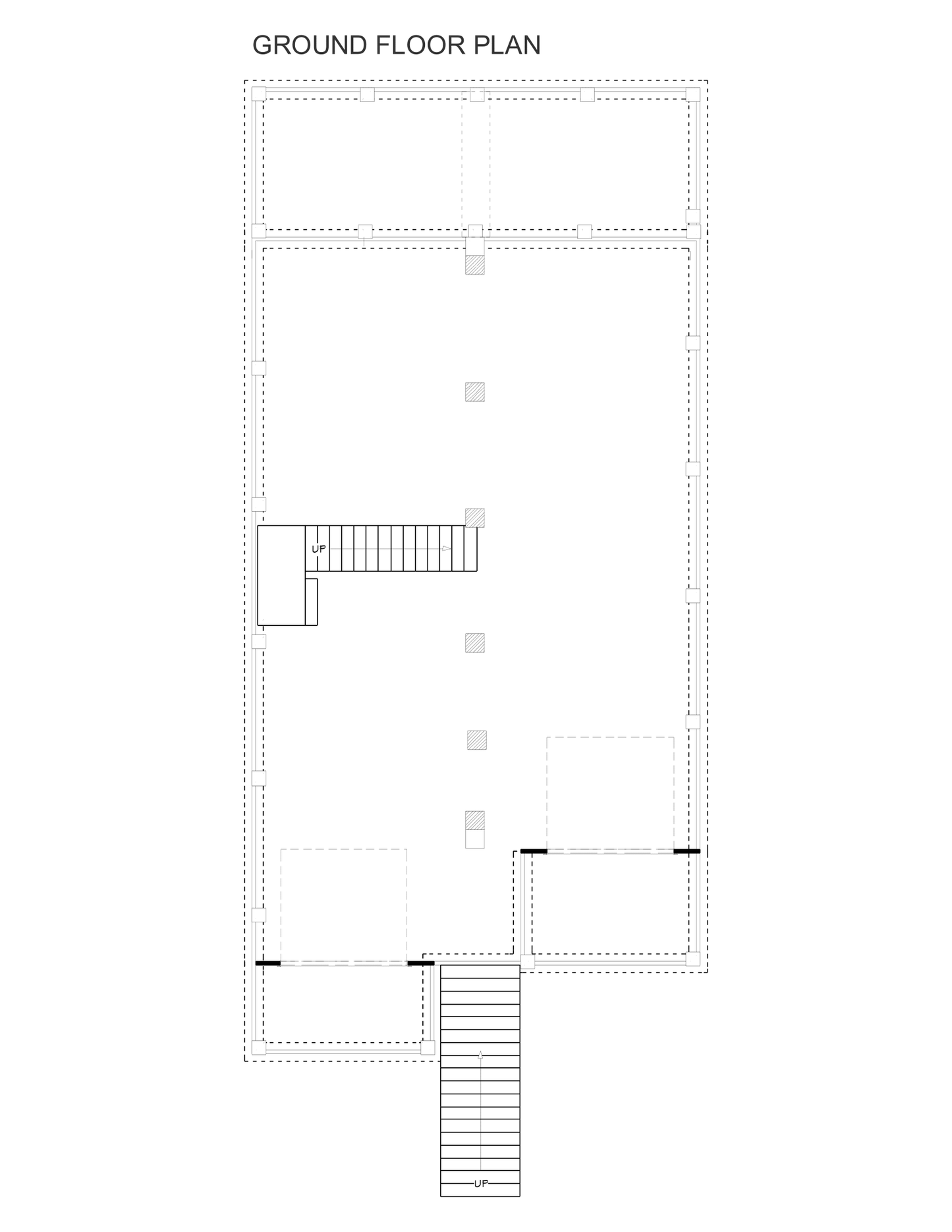

Under the living floor, a 1,515 square foot drive-under garage takes two cars, and a pull-through or rear entry takes a third, or the golf cart and the beach trailer. Two more bedrooms and a half bath fill out the plan, with the primary suite at its own end for a little separation.

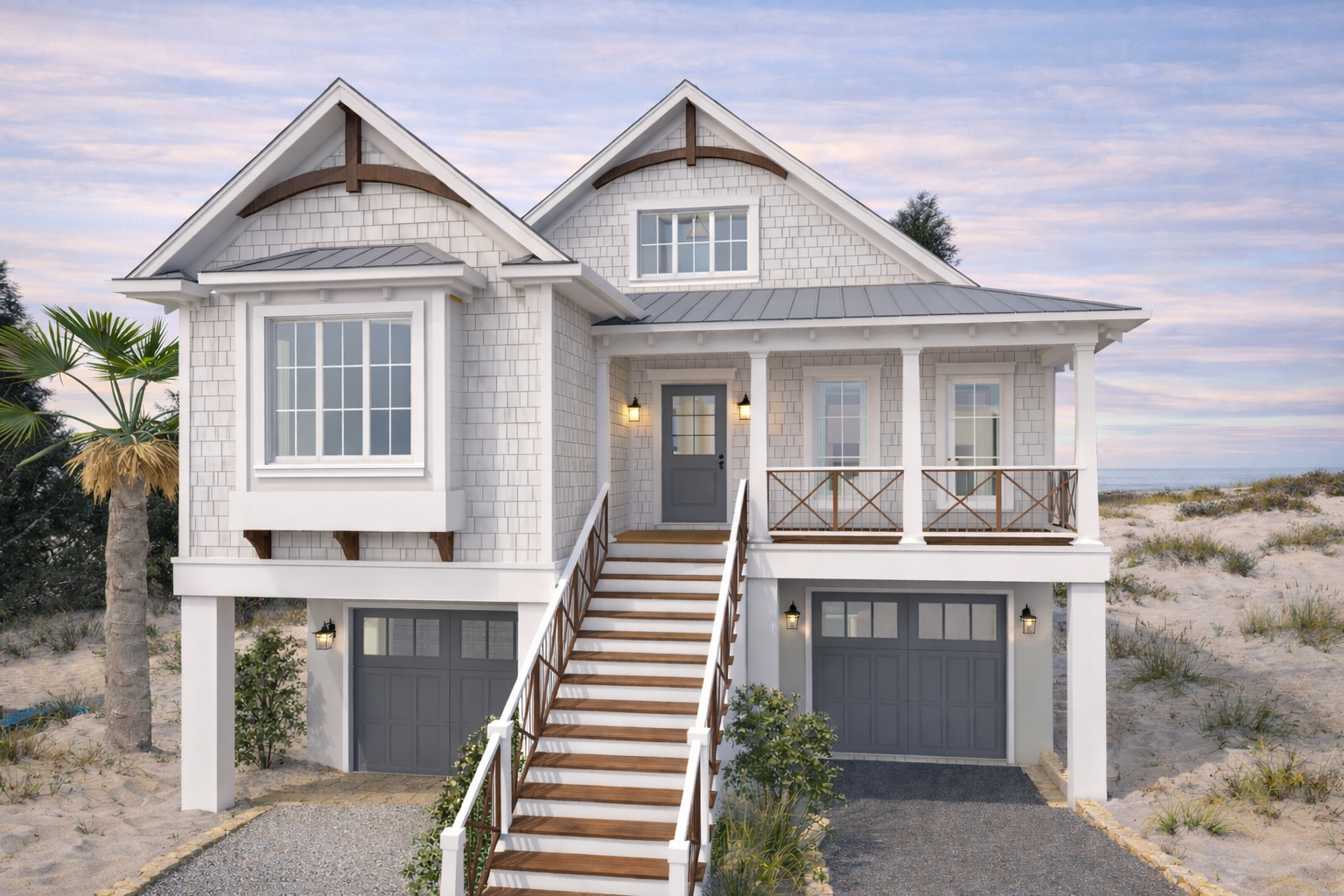

A covered front porch: the place to sit in the evening and the first thing the house shows the street.
Vaulted living: the ceiling follows the roof over the living area, so the room feels bigger than the footprint says.
A primary suite with a five-fixture bath: two sinks, a tub, a separate shower and a toilet, plus a walk-in closet.
A kitchen island at the center: prep space on one side, stools on the other, and the whole living floor in view.
A garage for two cars or three: 1,515 square feet of drive-under garage with a pull-through or rear entry for the third bay, with room for beach gear and a golf cart besides.
- Footprint: 32' 0" Width x 70' 0" Depth
- Max Ridge Height: 29' 0"
- Foundation: Piling | Pier
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 10' Lower Level | 9' First Floor
- Garage: Attached Drive-Under, 1,515 sq. ft., 2–3 Cars, Front Entry (Pull-Through/Rear Entry Available)
- Roof Details: 9 on 12 Pitch | Truss Framing
The Magnolia Cottage gets a whole beach house onto a narrow lot without shrinking the rooms that matter. The porch, the vaulted living room and the primary suite are full size; the footprint is what stays small.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Computer Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions

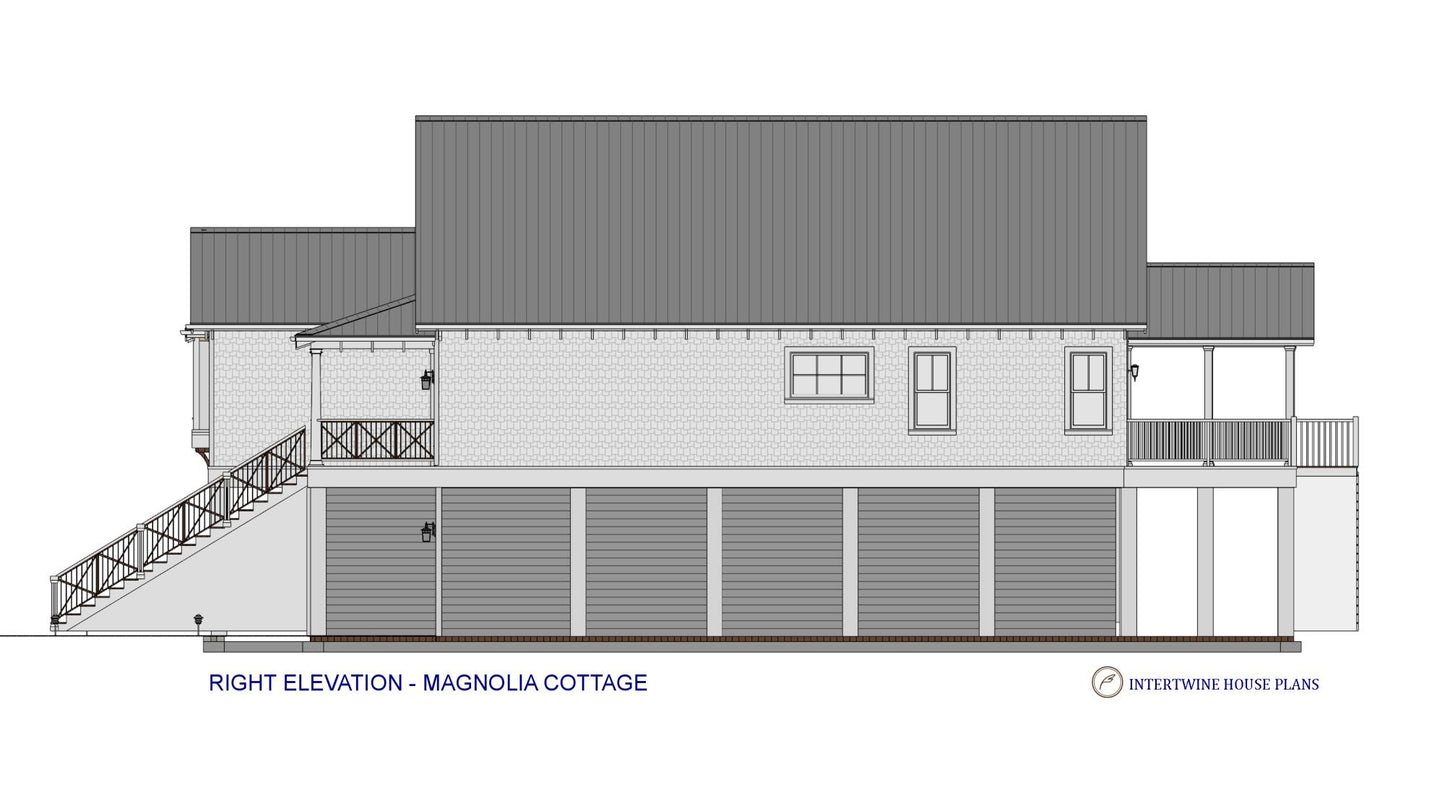

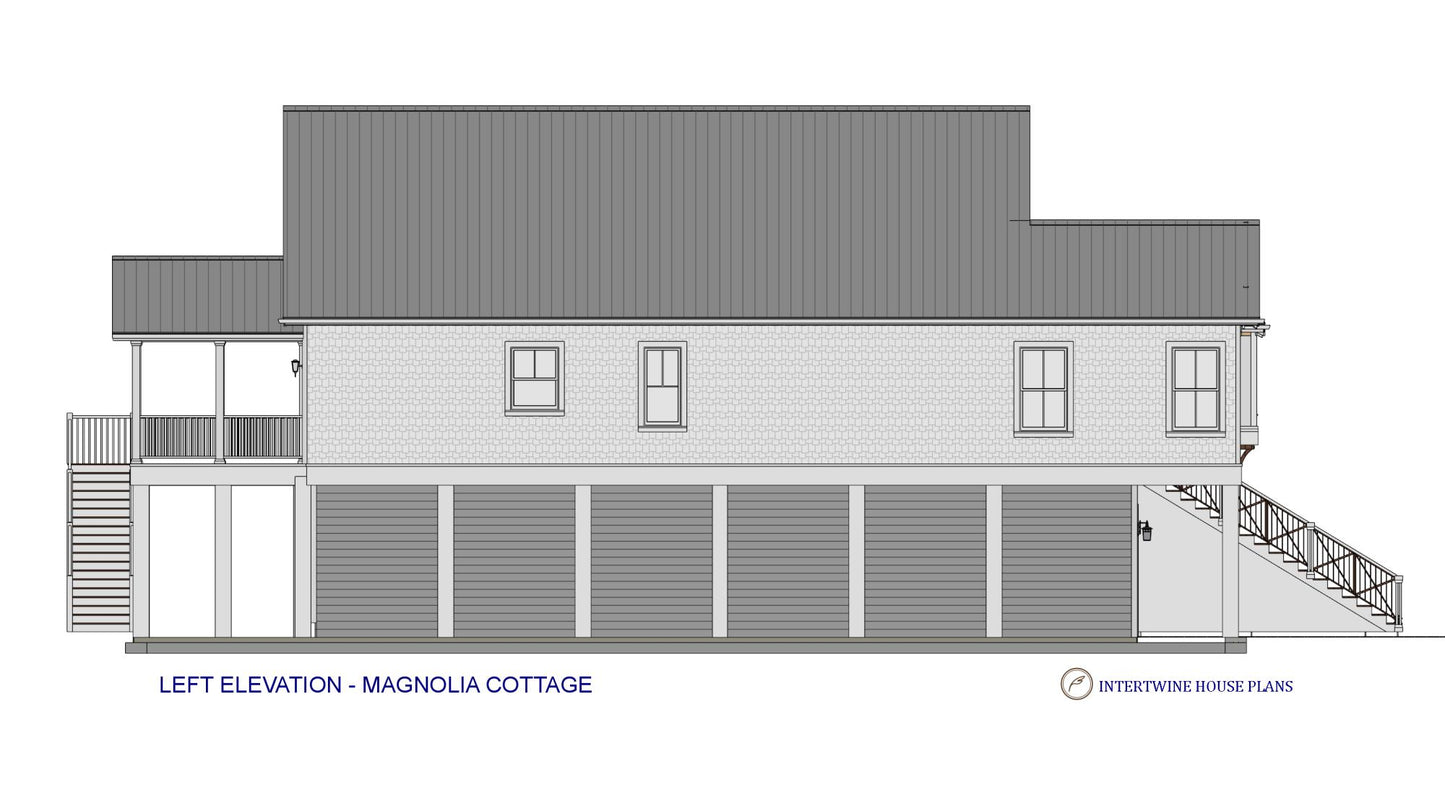

- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does Magnolia Cottage come with?
Magnolia Cottage is drawn on a pier / piling foundation. It is an elevated plan, with the living space raised above open space or parking, drawn for flood zone and coastal lots. On this page it is offered as pier or piling, chosen before you buy. A local engineer sizes the foundation for your soil and wind zone.
How tall is Magnolia Cottage and how much ground does it cover?
The maximum ridge height is 29' 0". The footprint is 32' 0" x 70' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 1,600 square feet on 2 stories.
What comes in the plan set for Magnolia Cottage, and what do I still need locally?
A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
Can I look at Magnolia Cottage in detail before buying the full set?
Yes. A $75 study set of Magnolia Cottage includes dimensioned floor plans for every level, all four elevations, door and window schedules and a specification sheet, enough to hand a builder for a budget number and to check the footprint against your lot. It is not licensed for construction. The $75 credits in full toward the Magnolia Cottage construction set for twelve months.
