672 Sq. Ft. - Wilbury 24x28 Garage/ADU
Buy it with
CAD files not modifiable and are strictly for use by licensed structural engineers. Issued in .dwg format, they are not native AutoCAD files and are not for purposes of altering the original design.
Would you like to customize this plan? Request a free modification quote.
Modify This PlanWilbury 24x28 Garage/ADU
1-Bedroom Compact Garage Apartment ADU with Full Kitchen & In-Unit Laundry
672 SQ. FT. | 1 BED | 1 BATH | 2-STORY | 2-CAR GARAGE
The Wilbury 24x28 is a compact, efficient garage apartment ADU that delivers a complete, self-contained living experience in one of the smallest footprints in our ADU catalog. With a full kitchen, dedicated living area, private bedroom, full bathroom, walk-in closet, and in-unit washer/dryer, this is a true apartment — not just a bonus room — above a 2-car garage.
Perfect for tight lots, backyard builds, or properties where space is at a premium, the Wilbury 24x28 maximizes every square foot without compromising on livability.

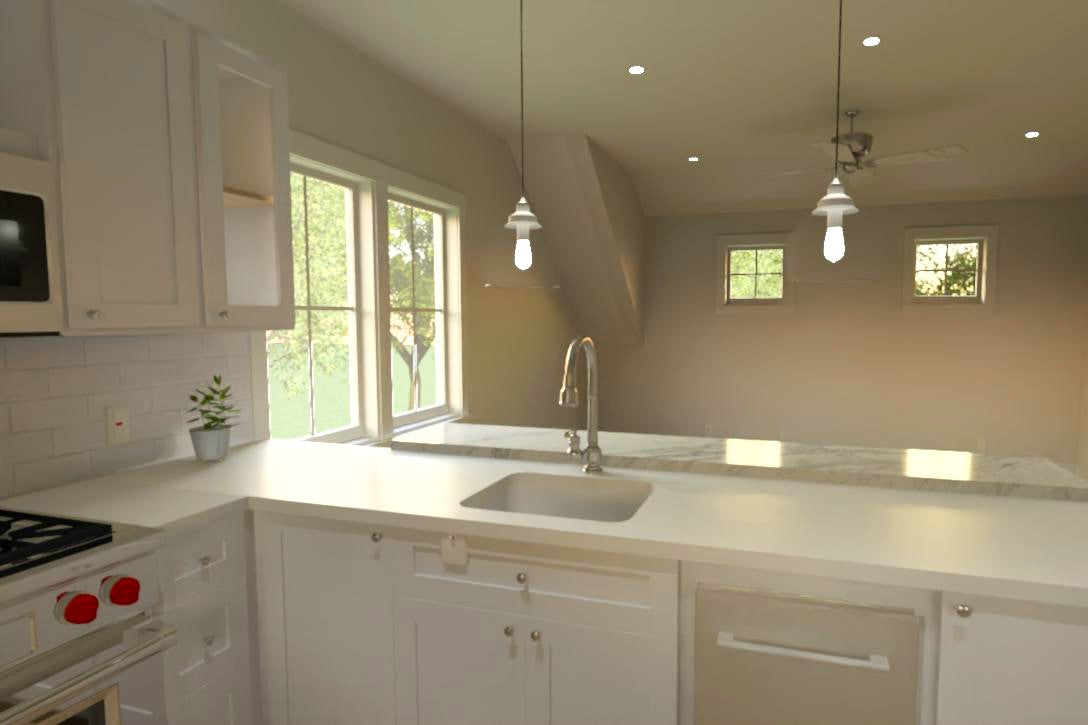

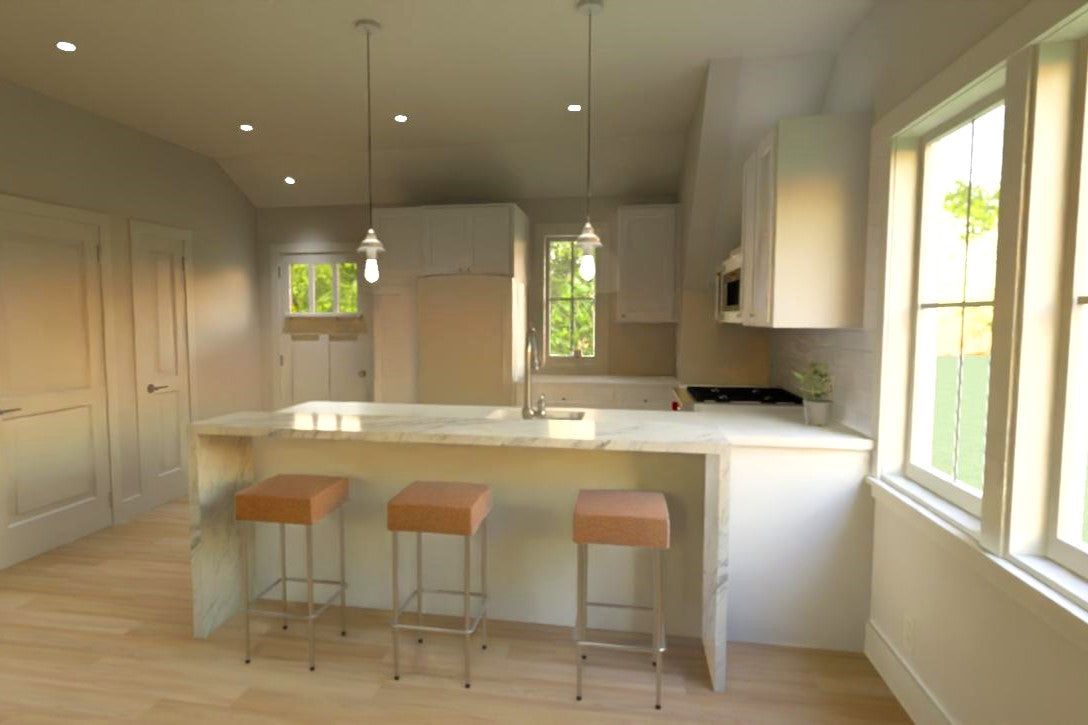

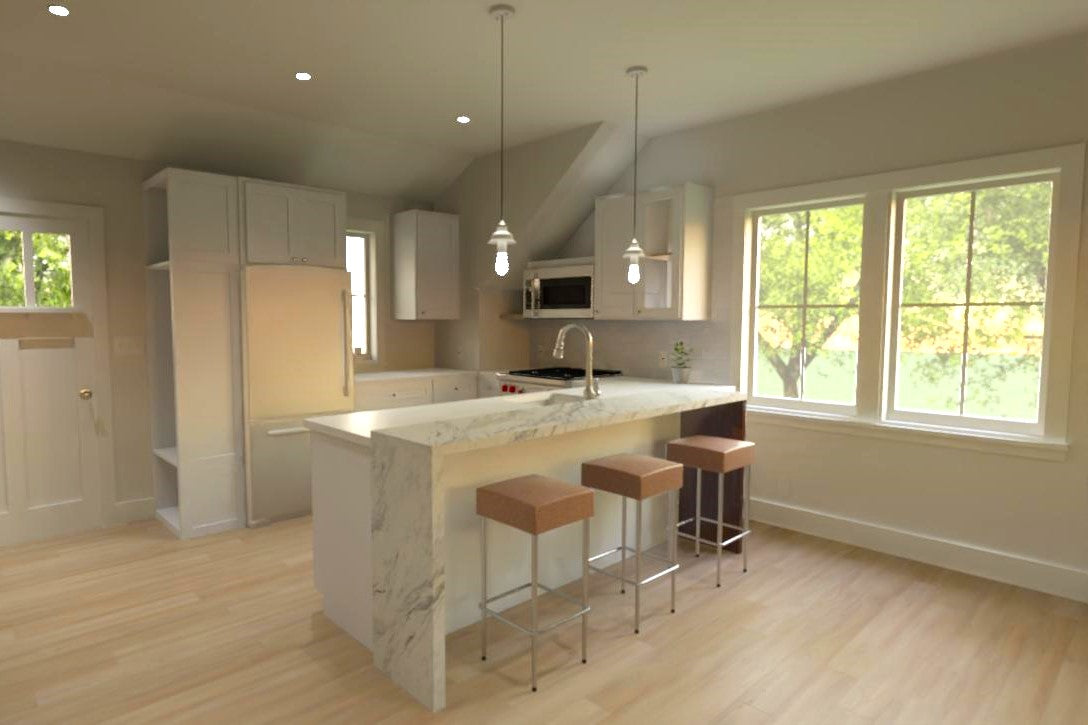

Full Kitchen: A complete kitchen makes the Wilbury 24x28 a fully self-sufficient living unit for tenants, guests, or family members.

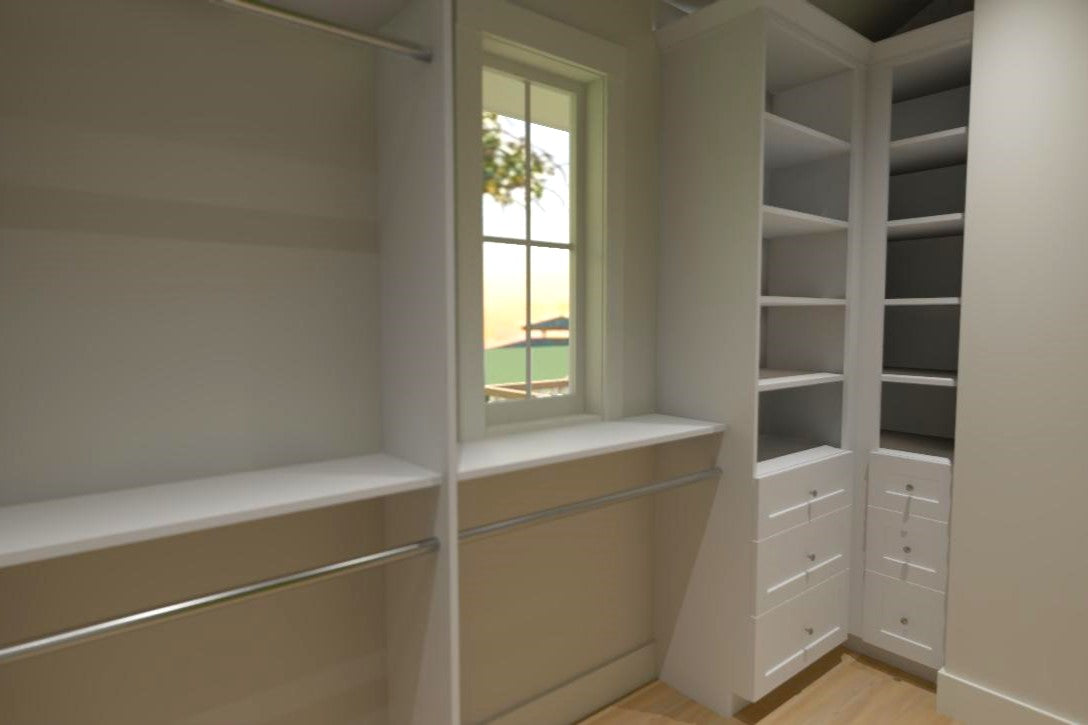

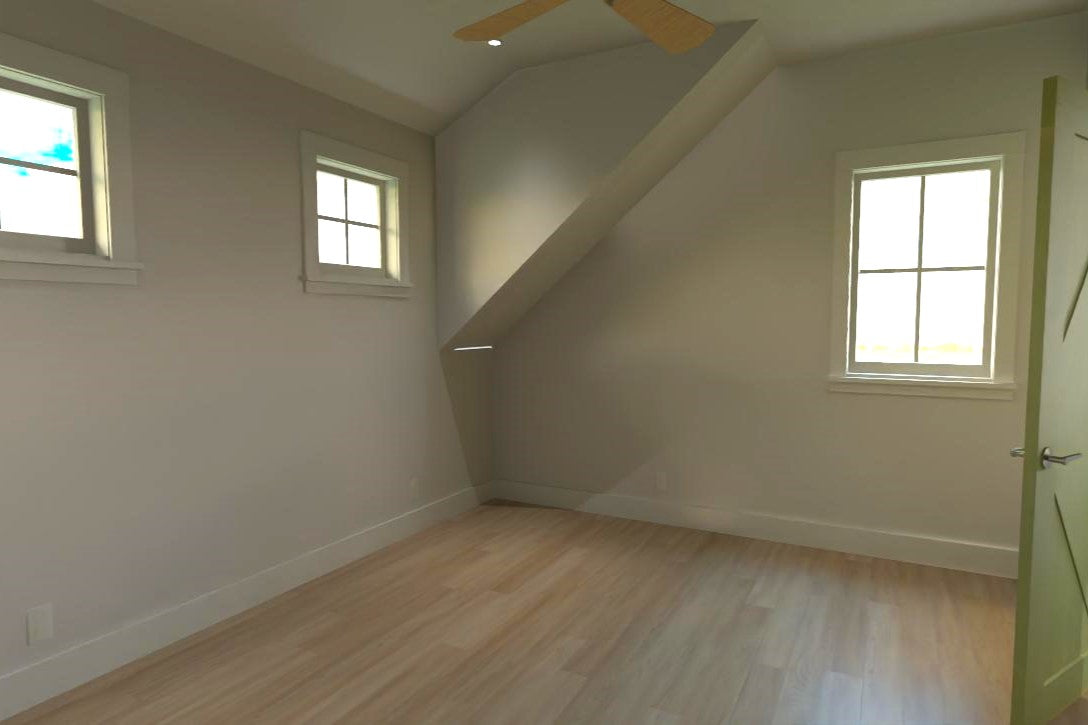

Private Bedroom with Walk-In Closet: A dedicated bedroom with a walk-in closet provides comfortable, private living above the garage.
In-Unit Washer/Dryer: Laundry hookups within the unit keep daily living completely independent and convenient.
Compact Efficient Footprint: At just 24’ x 28’, this plan is ideal for tight lots, backyard ADU builds, or properties with limited space.
2-Car Garage: A full 2-car garage at ground level provides secure parking and additional storage.
- Footprint: 24’ 0” Width x 28’ 0” Depth
- Max Ridge Height: 24’ 9”
- Foundation: Slab on Grade
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 9’ First Floor | 9’ Second Floor
- Garage: 672 sq. ft., 2 Cars, Front Entry
- Roof Details: 6 on 12 Primary / 10 on 12 Secondary Pitch | Truss Framing
Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Wilbury 24x28 proves that a complete, livable ADU doesn’t require a large footprint — just smart, purposeful design that makes every square foot count.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes:
- Cover sheet with general notes
- Foundation Plan
- Floor Plans with Dimensions

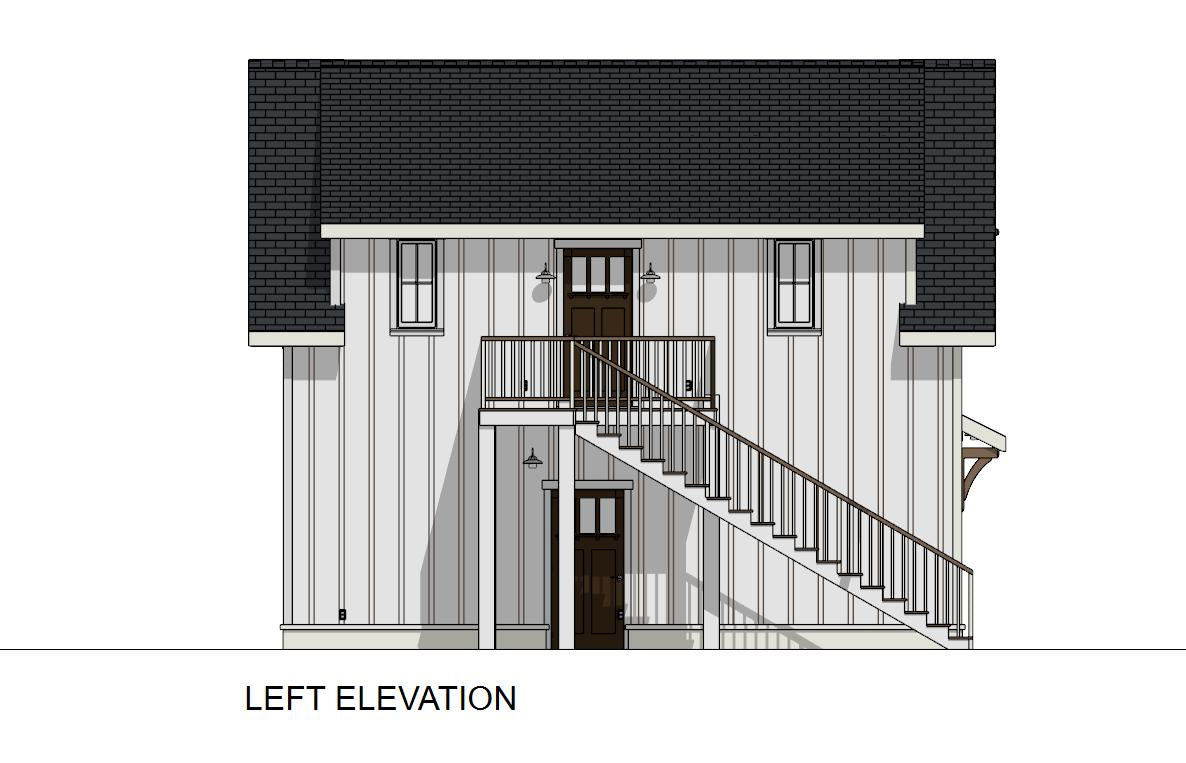

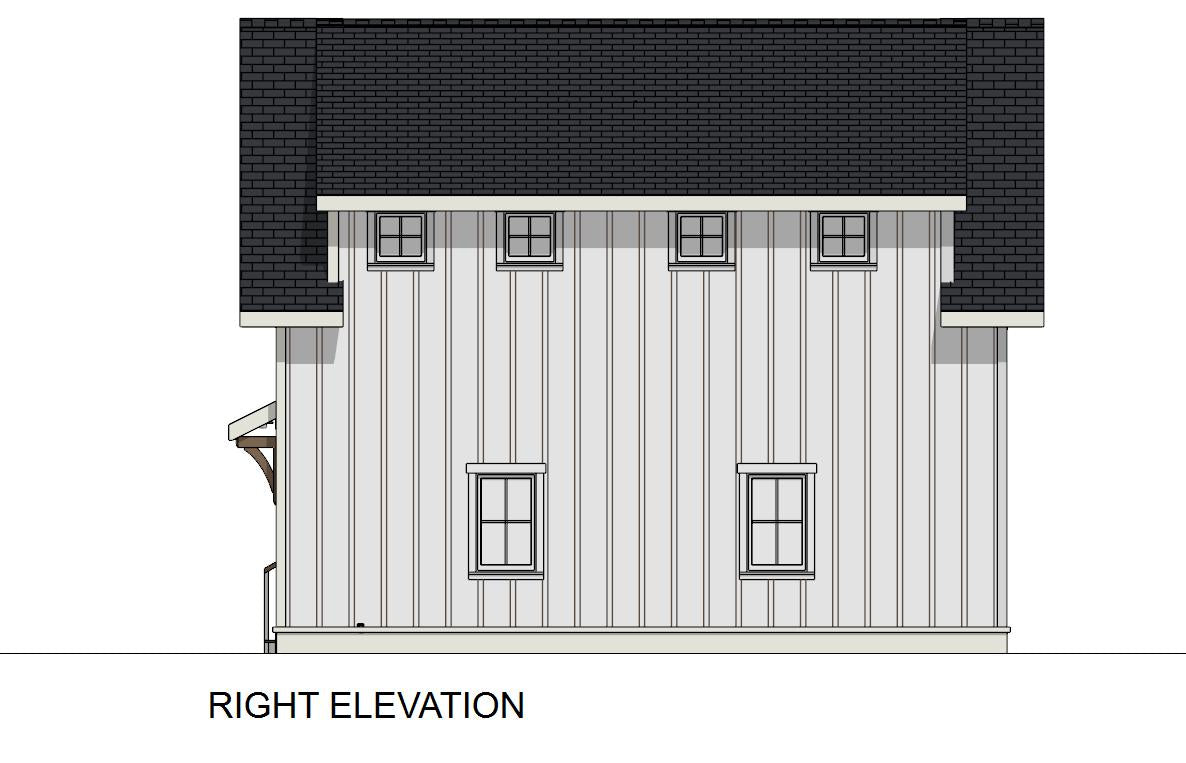

- Exterior Elevations
- Cross Section
- Door & Window Schedules
- Roof plan
- Electrical Plans
- Cabinetry Elevations (most plans- please inquire to confirm)
What's Not Included:
- Architectural or Engineering Stamp - handled locally if required
- Site Plan - handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
- Energy calculations - handled locally when required
Purchase of Chief Architect plan:
- Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
- All materials and textures related to plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse Add-On:
- A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
