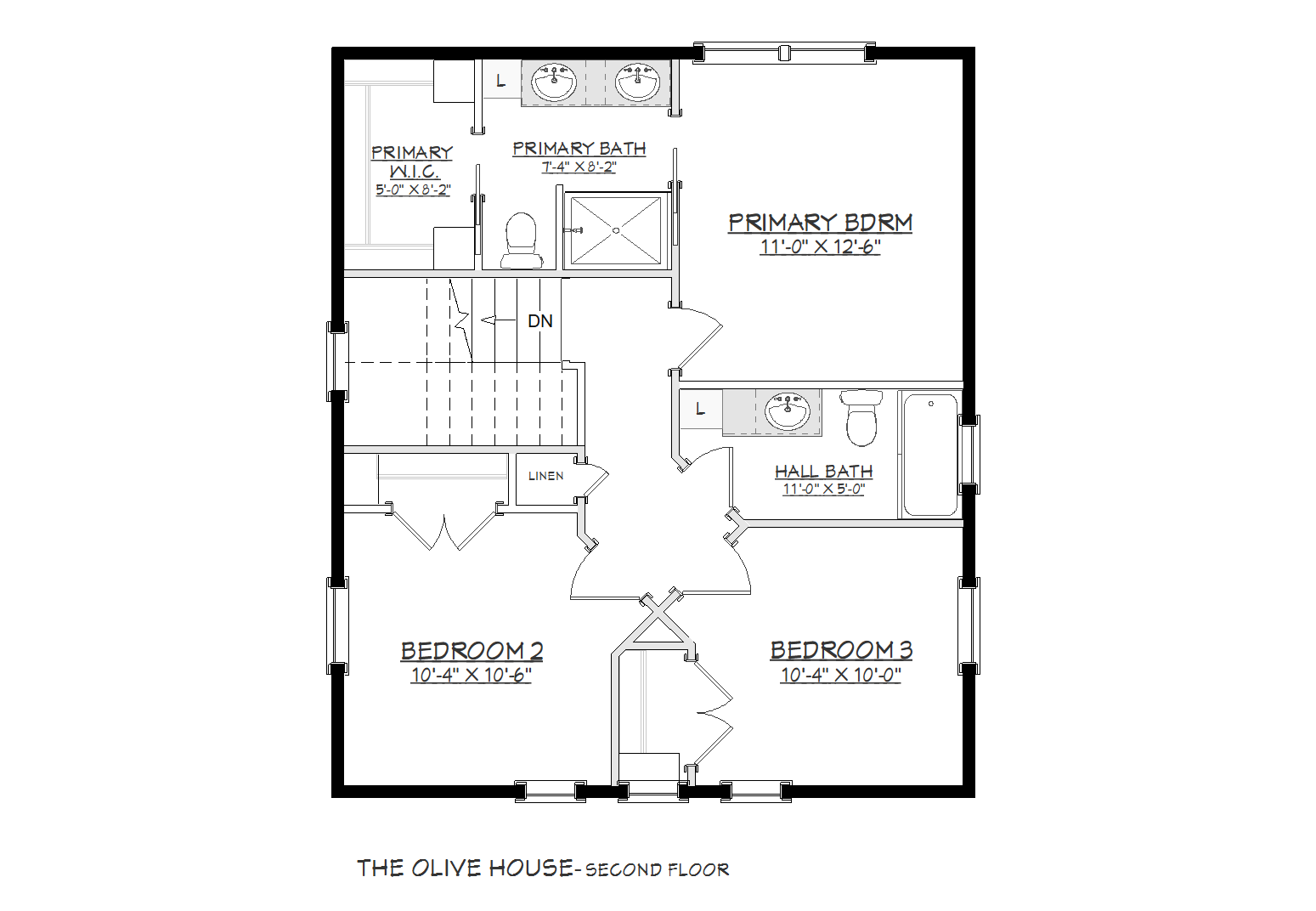

The Olive House Second Floor Plan | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Rear Exterior | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Right Exterior | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Kitchen Interior | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Dining Room Interior | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Kitchen Interior 2 | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Exterior | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House First Floor Plan | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Second Floor Plan | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Rear Exterior | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Right Exterior | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Kitchen Interior | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Dining Room Interior | 1,400 Sq Ft Modern Coastal Cottage House Plan
The Olive House Kitchen Interior 2 | 1,400 Sq Ft Modern Coastal Cottage House Plan

The Olive House

Modern Coastal Cottage | Slab on Grade

1400 Sq Ft | 3 Bed | 2.5 Bath | 2-Story

$1,372.95 Save $72.05

430+ Plans Sold · Lowest Price Guaranteed.

Buy direct & save 5% vs. marketplaces. Price match policy →

Licensed for one build at your build address.

Plan Set PDF Files ($1445)
A right-reading mirror image of this plan: the entire layout flipped, with all text and dimensions still readable. Added to your cart together with the plan set.
Adding to Cart Added to Cart
EXPLORE OUR BUILT HOUSE PLANS →
LOOKING FOR A COST-TO-BUILD CALCULATOR? →

Would you like to customize this plan? Request a free modification quote.

Modify This Plan

The Olive House Plan

Modern Coastal Cottage House Plan

1,400 SQ. FT. | 3 BED | 2.5 BATH | 2-STORY

The Olive House is a modern coastal cottage with a deep front porch and an interior with very few walls, so 1,400 square feet feels open from the front door to the back patio.

The kitchen has a big island with bar seating, and the patio at the back has a built-in pergola frame. Upstairs, the primary suite has its own bath and a walk-in closet, and two more bedrooms share a full bath. An optional one-car detached garage is included in the drawings.

An open great room: kitchen, dining and living in one room, with a big island and bar seating.

A porch and a patio: a deep covered porch at the front and a patio at the back with a pergola frame built in.

A primary suite upstairs: a quiet bedroom with its own bath and a walk-in closet.

Two more bedrooms: sharing a full bath, for family, guests or an office.

An optional garage: a detached one-car garage, 382 square feet, drawn and included.

  • Footprint: 48’ 0” Width x 47’ 0” Depth
  • Max Ridge Height: 25’ 0”
  • Foundation: Slab on Grade
  • Framing: 2x6 Exterior Walls
  • Ceilings: 9’ First Floor | 8’ Second Floor
  • Garage: Optional 1-Car Detached, 382 sq. ft. (drawings included)
  • Roof Details: 9 on 12 Pitch | Truss Framing

The Olive House skips the hallways and keeps the walls to a minimum, which gives a modest build an open, easy feel.

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.

With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.

Purchase of PDF Set includes

  • Cover sheet with general notes
  • Foundation plan
  • Floor plans with dimensions
  • Exterior elevations
  • Cross section
  • Door & window schedules
  • Roof plan
  • Electrical plans
  • Cabinetry elevations (most plans; please inquire to confirm)

What's not included

  • Architectural or engineering stamp: handled locally if required
  • Site plan: handled locally when required
  • Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
  • Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
  • Energy calculations: handled locally when required

Purchase of Chief Architect plan

  • Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
  • All materials and textures related to the plan for 3D viewing
  • PDF plan set included with purchase

Readable Reverse add-on

  • A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable

What foundation does The Olive House come with?

The Olive House is drawn on a slab on grade foundation. A local engineer sizes the foundation for your soil and wind zone.

How tall is The Olive House and how much ground does it cover?

The maximum ridge height is 25' 0". The footprint is 48' 0" x 47' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 1,400 square feet on 2 stories.

What comes in the plan set for The Olive House, and what do I still need locally?

A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
