The Wave House Plan
Single-Level Coastal Cottage House Plan
1,594 SQ. FT. | 3 BED | 2.5 BATH | 1-STORY
The Wave is a one-level coastal cottage with deep gable overhangs on Craftsman brackets and a round window in the gable. The back of the house is turned to the view: sliding doors off the dining area lead to a large rear deck, part of it covered.
An oversized island anchors the open living space, with a 7 foot 7 inch by 4 foot walk-in pantry behind it. The primary bedroom steps forward from the front of the house, which keeps it private from the rest, and the two other bedrooms share a Jack-and-Jill bath. The laundry hides behind pocket doors.

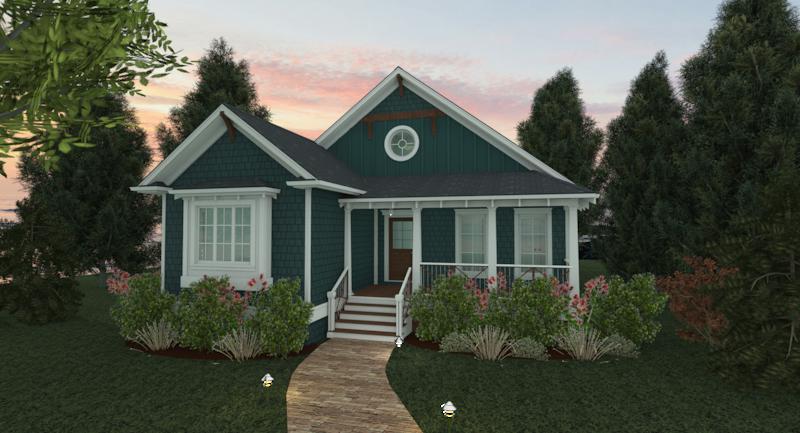

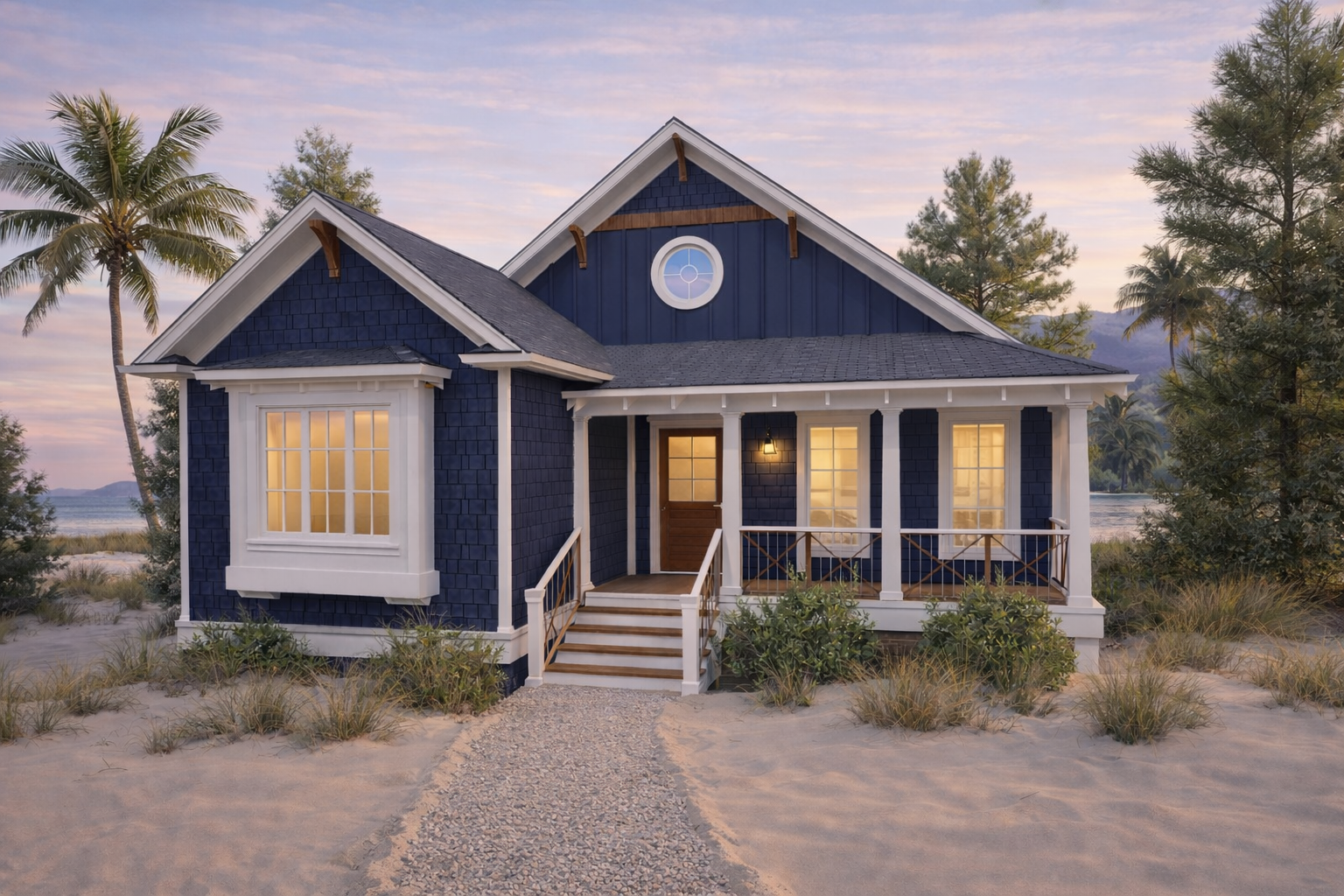

Overhangs, brackets and a round window: the deep gables on wooden brackets and the circular window make the front of the house.
A big rear deck, part covered: off the dining room through sliding doors, with a roof over one end for the rain and the midday sun.
An island and a real pantry: an oversized prep island and a walk-in pantry, 7 feet 7 inches by 4.
A primary bedroom set forward: the owner's bedroom pushes out from the front footprint, apart from the other rooms.
A Jack-and-Jill and a hidden laundry: the two secondary bedrooms share a bath, and the laundry sits behind pocket doors.
- Footprint: 32’ 0” Width x 69’ 0” Depth
- Max Ridge Height: 26’ 0”
- Foundation: Crawlspace
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 9’ First Floor
- Roof Details: 9 on 12 Primary Pitch
The Wave takes the traditional gabled cottage and gives it a coastal plan, with the primary suite set forward and the shared spaces arranged so the house lives larger than 1,594 square feet.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions
- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does The Wave come with?
The Wave is drawn on a crawlspace foundation. A local engineer sizes the foundation for your soil and wind zone.
How tall is The Wave and how much ground does it cover?
The maximum ridge height is 26' 0". The footprint is 32' 0" x 69' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 1,594 square feet on 1 story.
What comes in the plan set for The Wave, and what do I still need locally?
A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
Can I look at The Wave in detail before buying the full set?
Yes. A $75 study set of The Wave includes dimensioned floor plans for every level, all four elevations, door and window schedules and a specification sheet, enough to hand a builder for a budget number and to check the footprint against your lot. It is not licensed for construction. The $75 credits in full toward the The Wave construction set for twelve months.
