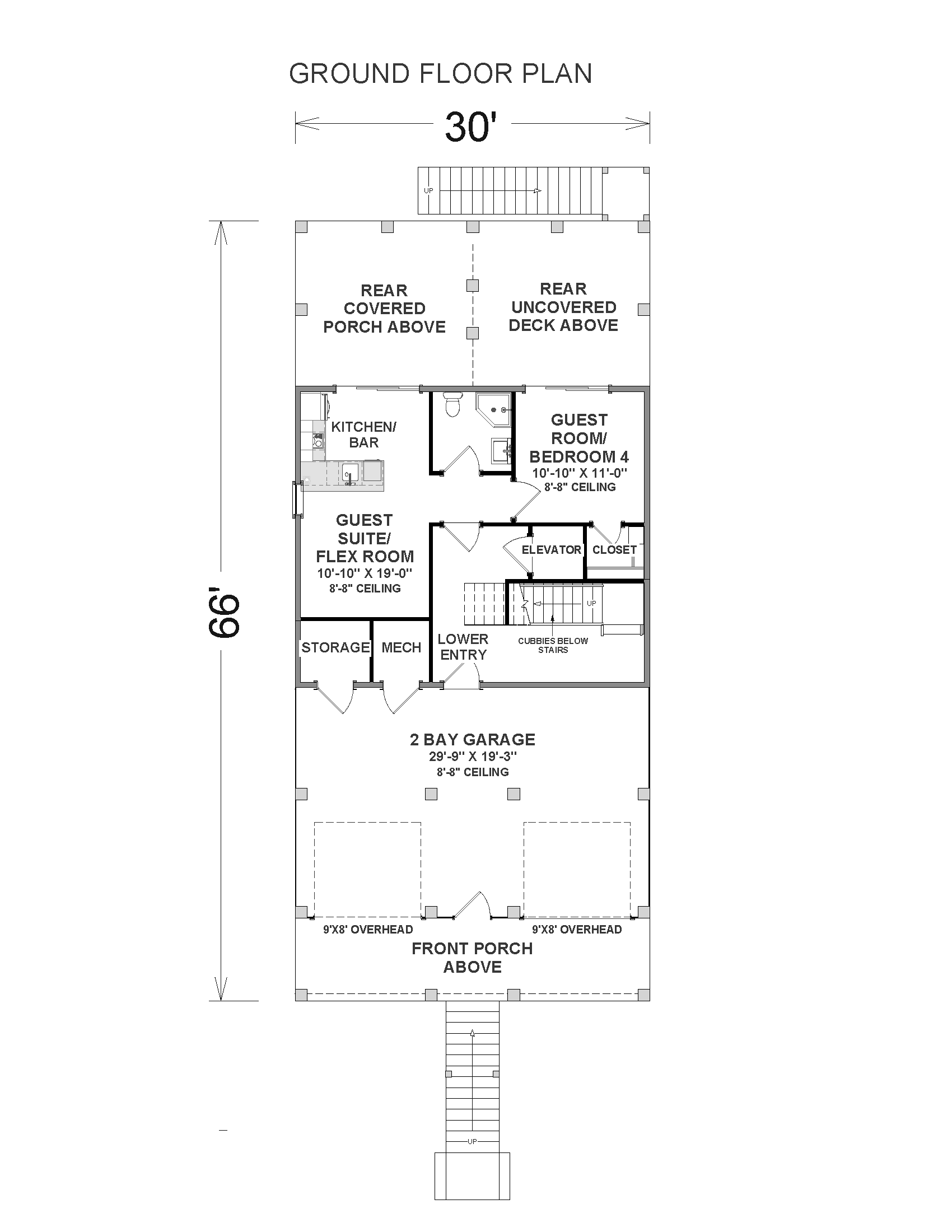

Floor plan of the Palmetto Beach Hut ground level, featuring a two-car drive-under garage, lower-level guest suite, and rear patio access.

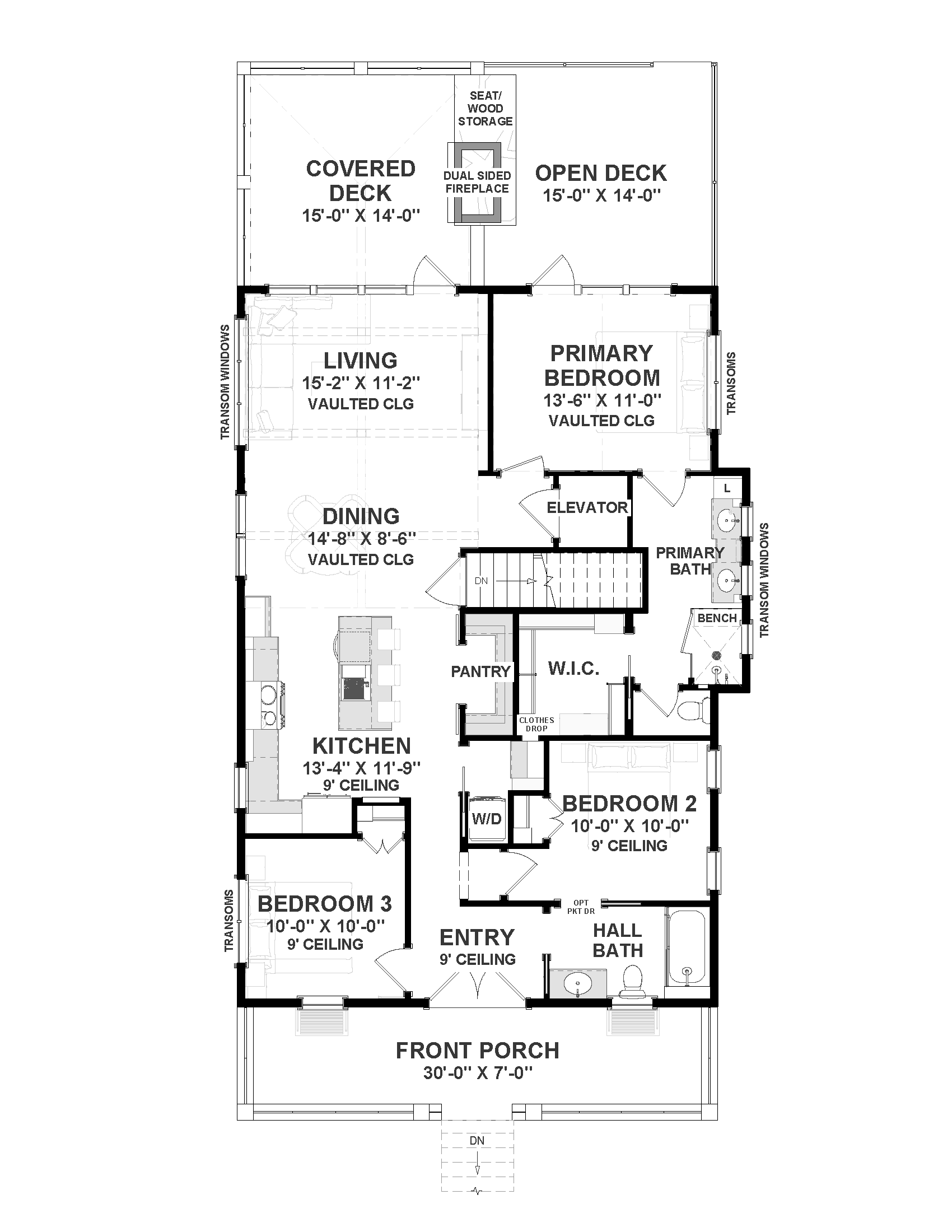

Detailed first floor plan of the Palmetto Beach Hut, showing the open-concept kitchen, dining, and living areas with vaulted ceilings, the primary bedroom suite, and a large covered rear deck.
Rear exterior view of the Palmetto Beach Hut, a modern coastal cottage featuring a multi-level deck, a dual-sided outdoor fireplace, and private patio access from the lower-level guest suite.

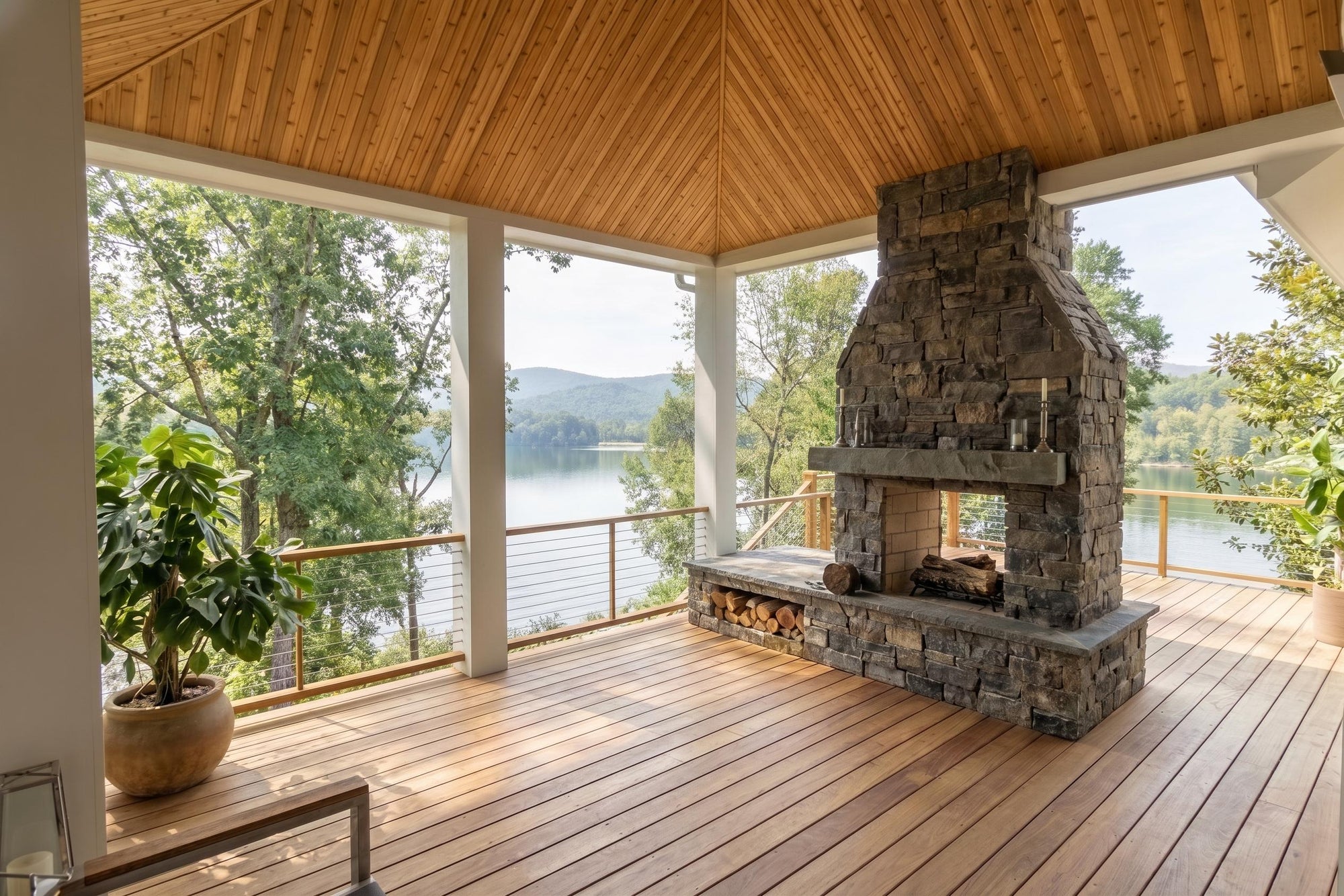

Outdoor deck with stone fireplace and lake view
Front left exterior perspective of the Palmetto Beach Hut, a two-story modern elevated coastal cottage featuring a drive-under garage, expansive wrap-around porch, and grand exterior staircase design.

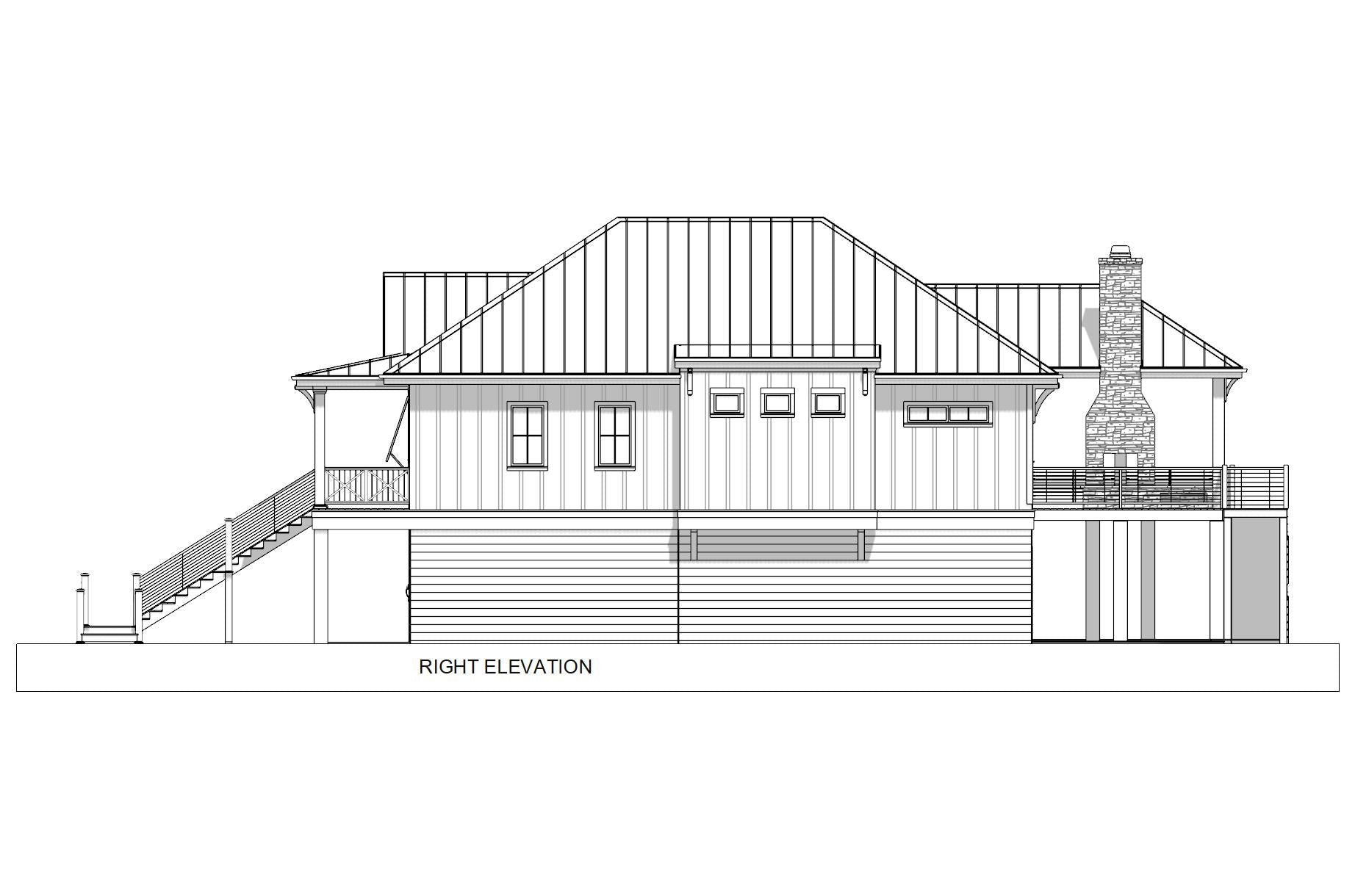

Right elevation technical drawing of the Palmetto Beach Hut, showing the architectural roof pitch, chimney placement, and exterior siding details of the elevated coastal design.
Modern gourmet kitchen in the Palmetto Beach Hut, featuring white shaker cabinetry, navy blue island with seating, stainless steel appliances, and quartz countertops in a bright, open-concept layout.
Close-up of the gourmet kitchen in the Palmetto Beach Hut, highlighting the quartz-topped island, navy blue cabinetry, and open sightlines to the vaulted living area and coastal views.
Spacious vaulted living area of the Palmetto Beach Hut, featuring an open-concept layout, modern coastal decor, and large windows with panoramic views of the outdoors.
Convenient walk-in kitchen pantry in the Palmetto Beach Hut, featuring custom shelving, ample dry-good storage, and elegant sliding barn doors that seamlessly blend with the home's coastal interior design.
Front exterior view of the Palmetto Beach Hut, a two-story modern elevated coastal cottage with a drive-under garage, covered porch, and balcony.

2018 Sq. Ft. - Palmetto Beach Hut

$1,695.00
Plan Set PDF Set ($1695)
Added Foundation Options None

Buy it with

Adding to Cart Added to Cart

CAD files not modifiable and are strictly for use by licensed structural engineers. Issued in .dwg format, they are not native AutoCAD files and are not for purposes of altering the original design.

Would you like to customize this plan? Request a free modification quote.

Modify This Plan

Palmetto Beach Hut House Plan

4-Bedroom Modern Elevated Coastal Cottage Plan

2,018 SQ. FT. | 4 BED | 3 BATH | 2-STORY | 2-CAR DRIVE-UNDER GARAGE

The Palmetto Beach Hut is the spacious successor to our top-selling Magnolia Beach Hut design. It maintains the highly efficient 30-foot footprint required for narrow coastal lots while purposefully expanding the interior volume for modern living. Structured for multi-generational families or versatile vacation hosting, the Palmetto integrates a fully independent lower-level guest suite, providing maximum flexibility without compromising the classic coastal aesthetic.

A welcoming entry leads directly into a soaring vaulted living and dining area. The indoor-outdoor flow is seamless, pushing out onto a multi-level rear deck where a striking dual-sided fireplace bridges the covered and uncovered living spaces. Below, the drive-under garage provides ample storage and leads to a private lower suite that opens directly to a ground-level patio.

Independent Lower-Level Suite: A fully functional downstairs living space featuring a bedroom, kitchen + bar, bath, and direct access to the lower patio. Perfect for guests, older children, or private rental potential.

Dual-Sided Outdoor Fireplace: A striking architectural centerpiece shared between the covered and uncovered rear decks, extending the usability of your outdoor living spaces deep into the cooler seasons.

Vaulted Shared Living Space: Soaring vaulted ceilings over the open dining and living rooms create an expansive atmosphere, flanked by a well-appointed kitchen with a large eat-in island and a walk-in pantry.

Primary Suite with Deck Access: The vaulted primary retreat features direct access to the open rear deck. The en-suite is designed for daily comfort, featuring dual sinks, a private water closet, and a large bench shower.

Direct-to-Laundry Drop: An intelligent spatial feature in the primary walk-in closet includes a direct clothes-drop into the adjacent laundry room, streamlining household logistics.

Multi-Level Rear Decking: A robust outdoor footprint featuring a covered deck for entertaining, an open deck off the primary suite for sunning, and a connecting staircase down to the ground-level patio.

  • Footprint: 30’ 0” Width x 66’ 0” Depth (Ideal for narrow beachfront or coastal lots)

  • Max Ridge Height: 30’ 10”

  • Foundation: Pier / Piling

  • Framing: 2x6 Exterior Walls | Truss Roof Framing

  • Ceilings: 8’ 8” Lower Level | 9’ First Floor

  • Garage: Attached Drive-Under, 2 Cars, Rear Storage Capacity

  • Roof Details: 8 on 12 Primary Pitch | Truss Framing

Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Palmetto Beach Hut takes the pure coastal essence of our original designs and scales it for long-term living. From the dual-sided fireplace for evening gatherings to the intelligent laundry drop in the primary suite, every square foot is purposefully crafted to solve a problem and elevate the daily experience. Everything you need, nothing you don’t.

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.

With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.

Purchase of PDF Set includes:
  • Cover sheet with general notes
  • Foundation Plan
  • Floor Plans with Dimensions
  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations (most plans- please inquire to confirm)
What's Not Included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Purchase of Chief Architect plan:
  • Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
  • All materials and textures related to plan for 3D viewing
  • PDF plan set included with purchase
Readable Reverse Add-On:
  • A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
