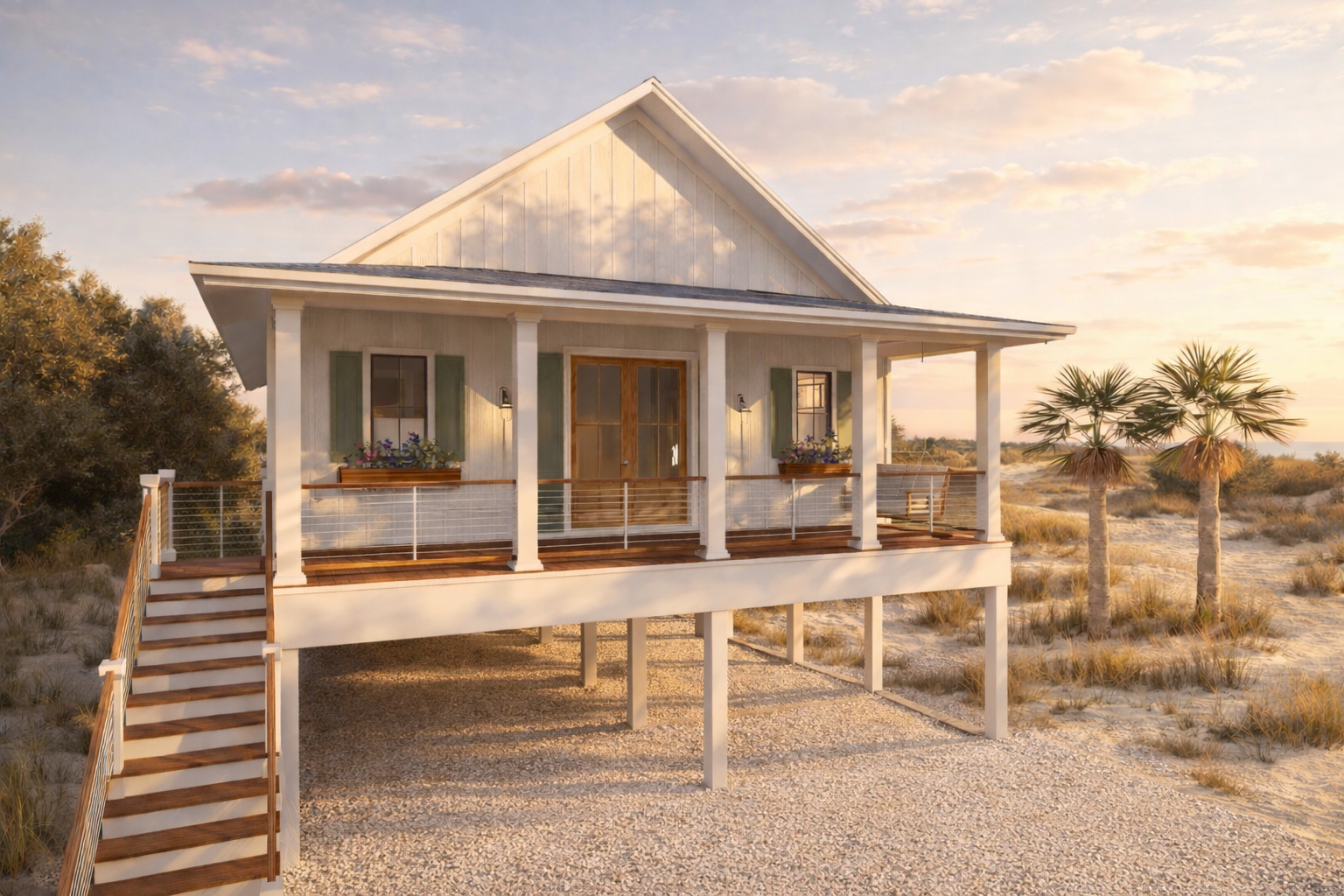

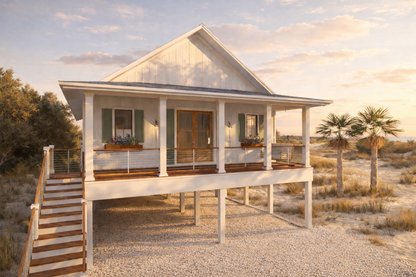

Magnolia Beach Hut
Elevated Coastal Cottage | Pier/Piling Foundation
1430 Sq Ft | 3 Bed | 2.5 Bath | 1-Story
430+ Plans Sold · Lowest Price Guaranteed.
Buy direct & save 5% vs. marketplaces. Price match policy →
Licensed for one build at your build address.
Would you like to customize this plan? Request a free modification quote.
Modify This PlanMagnolia Beach Hut House Plan
3-Bedroom Elevated Coastal Cottage Plan
1,430 SQ. FT. | 3 BED | 2.5 BATH | 1-STORY LIVING | 2-CAR DRIVE-UNDER CARPORT

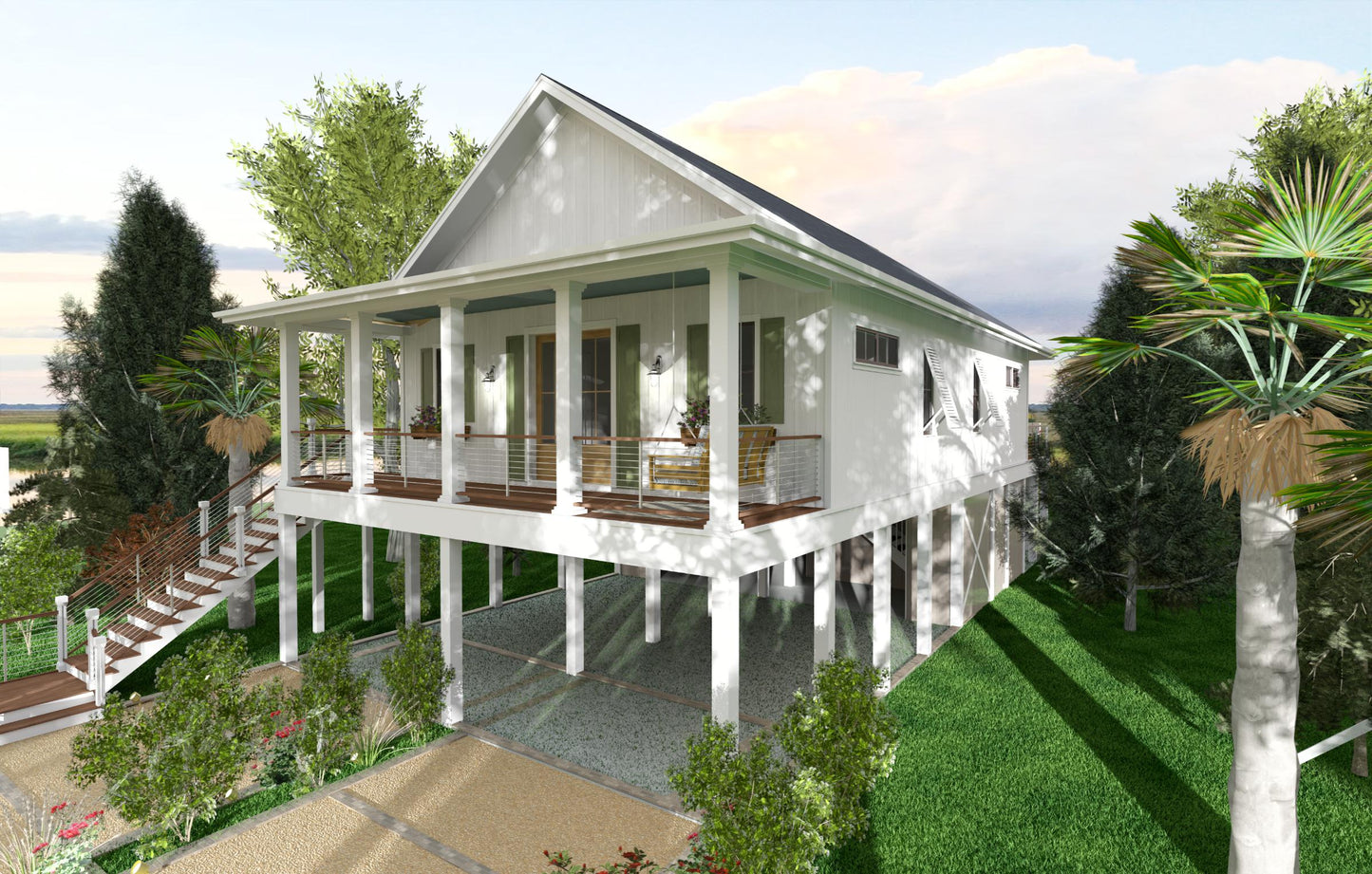

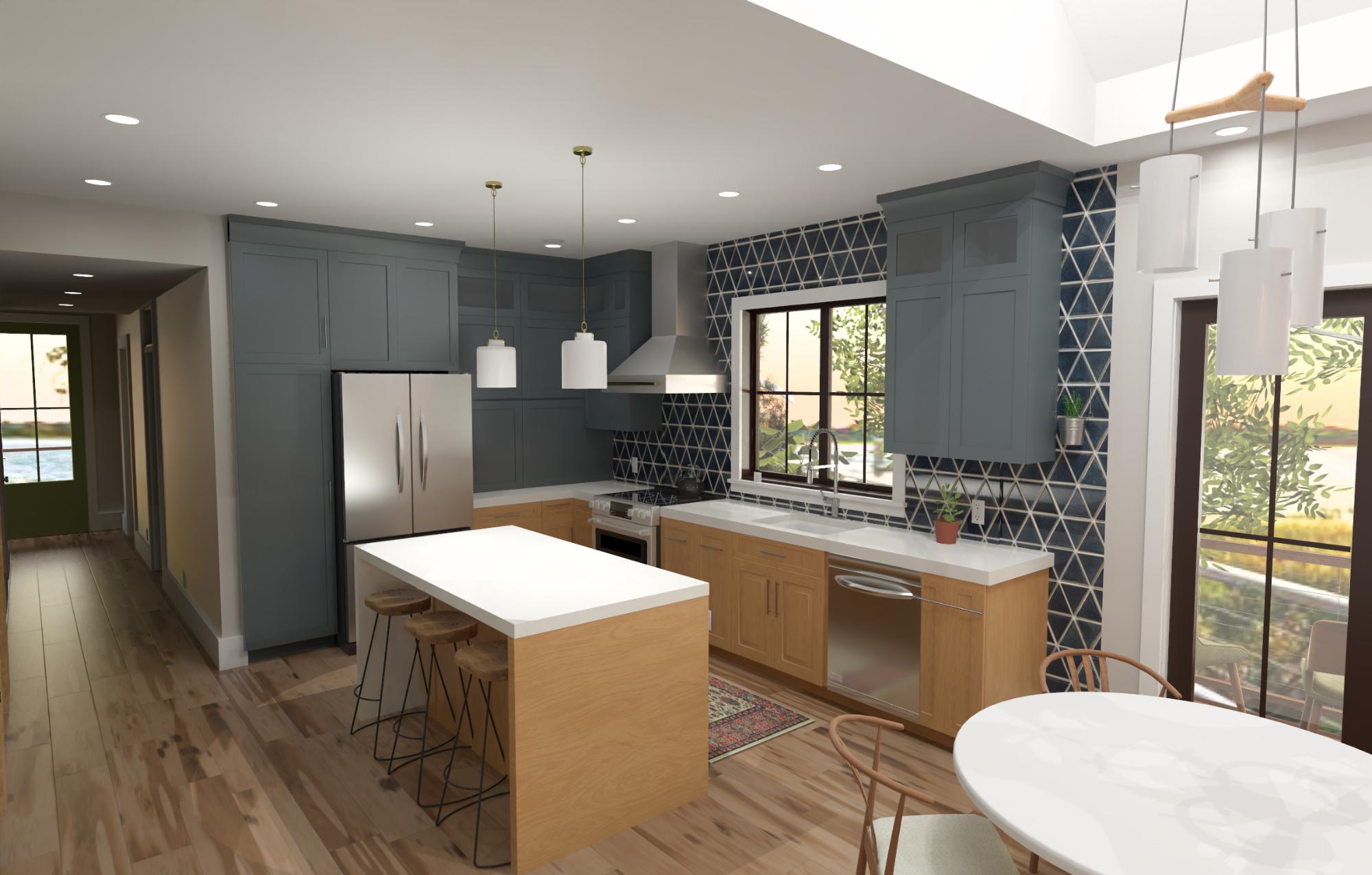

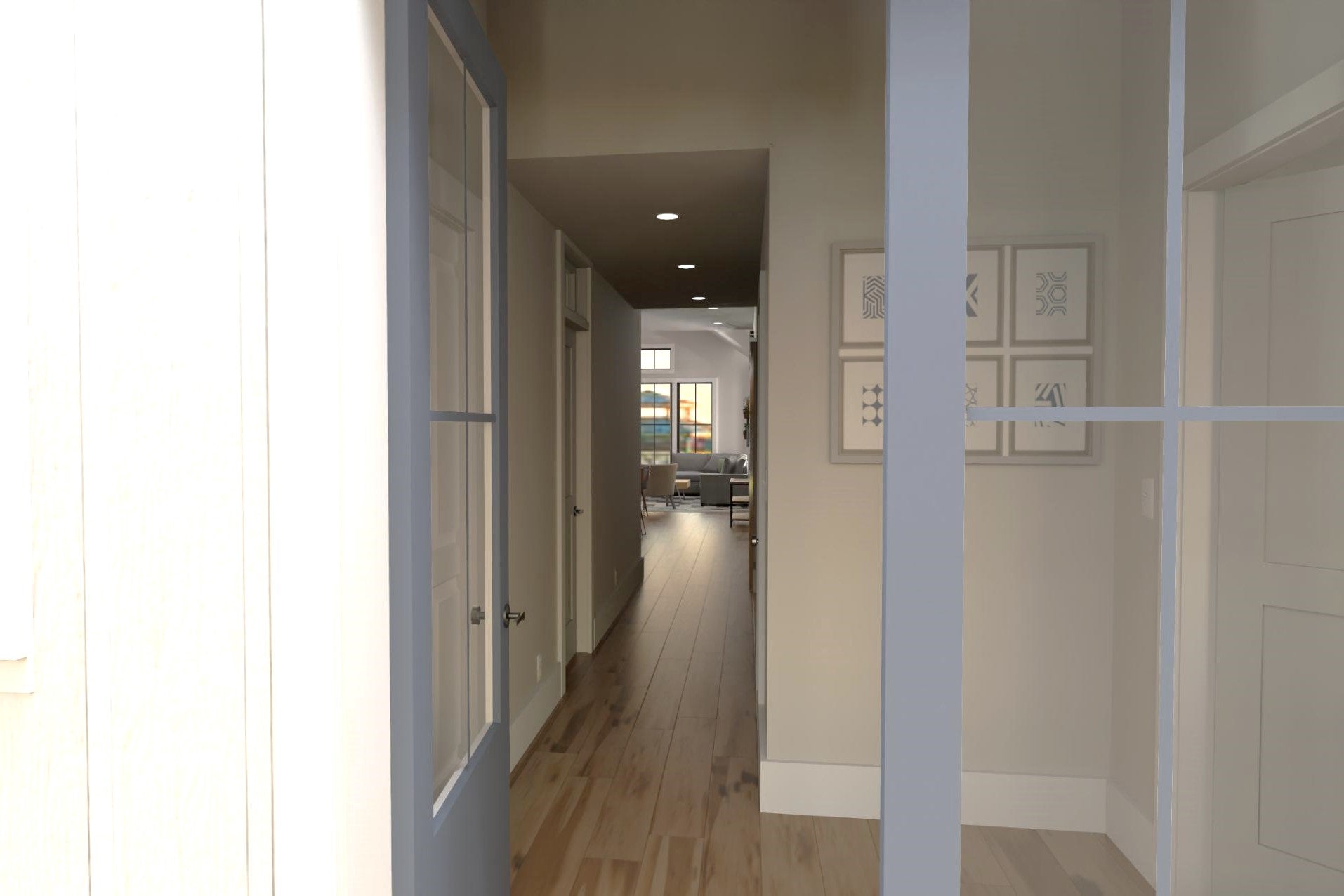

The Magnolia Beach Hut is a small beach cottage lifted over its carport, drawn for the 30 foot wide lots you find a block or two from the water. A 30 by 8 foot front porch runs the full width of the house, the living room behind it is vaulted, and a grilling deck at the back keeps the cooking outside where it belongs in summer.

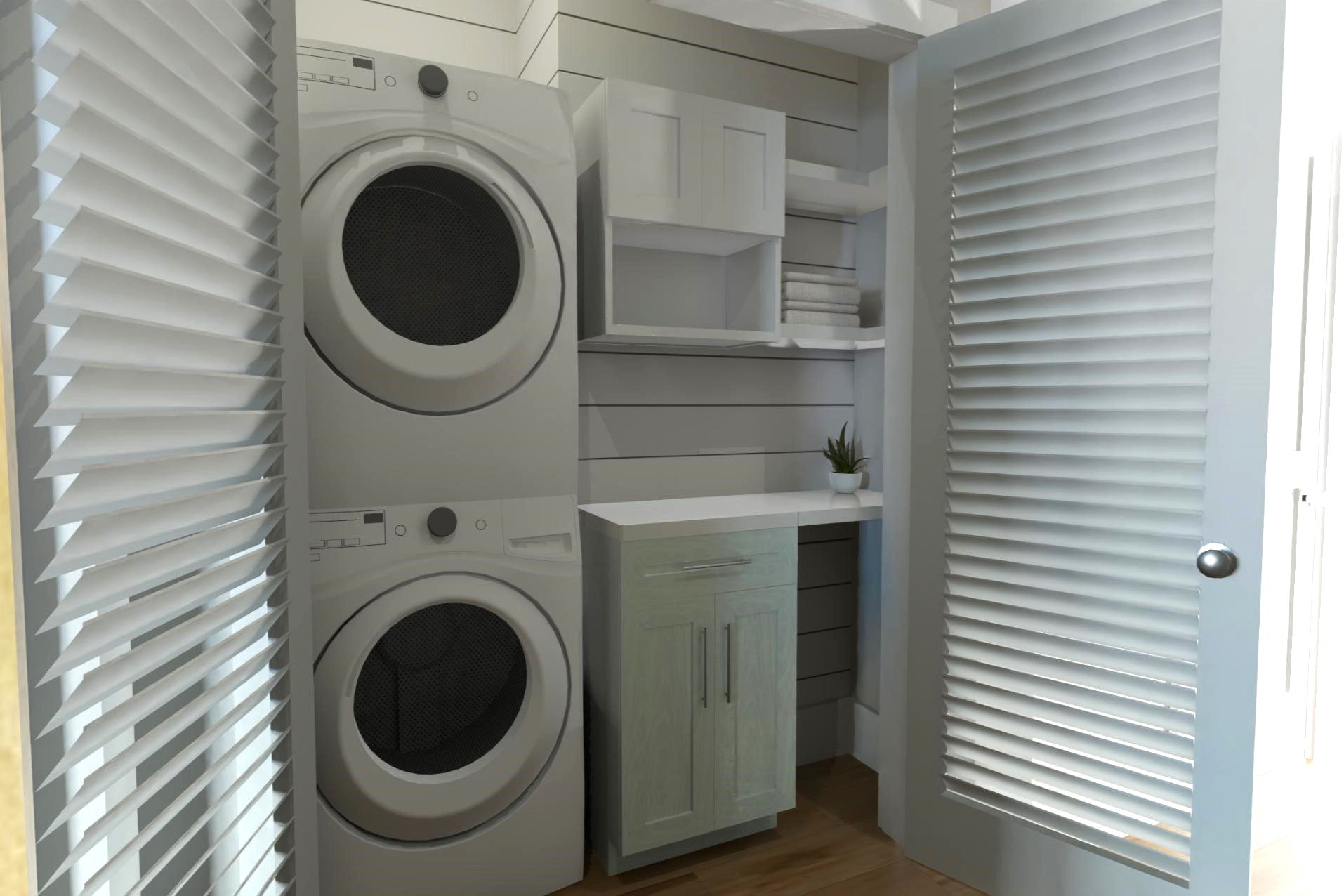

All the living is on one floor: the primary suite with a walk-in closet and its own bath at one end, two more bedrooms and a half bath at the other. Down at ground level there is an open room next to the two-car carport for beach gear, bikes, a game table or the overflow when everyone comes at once.

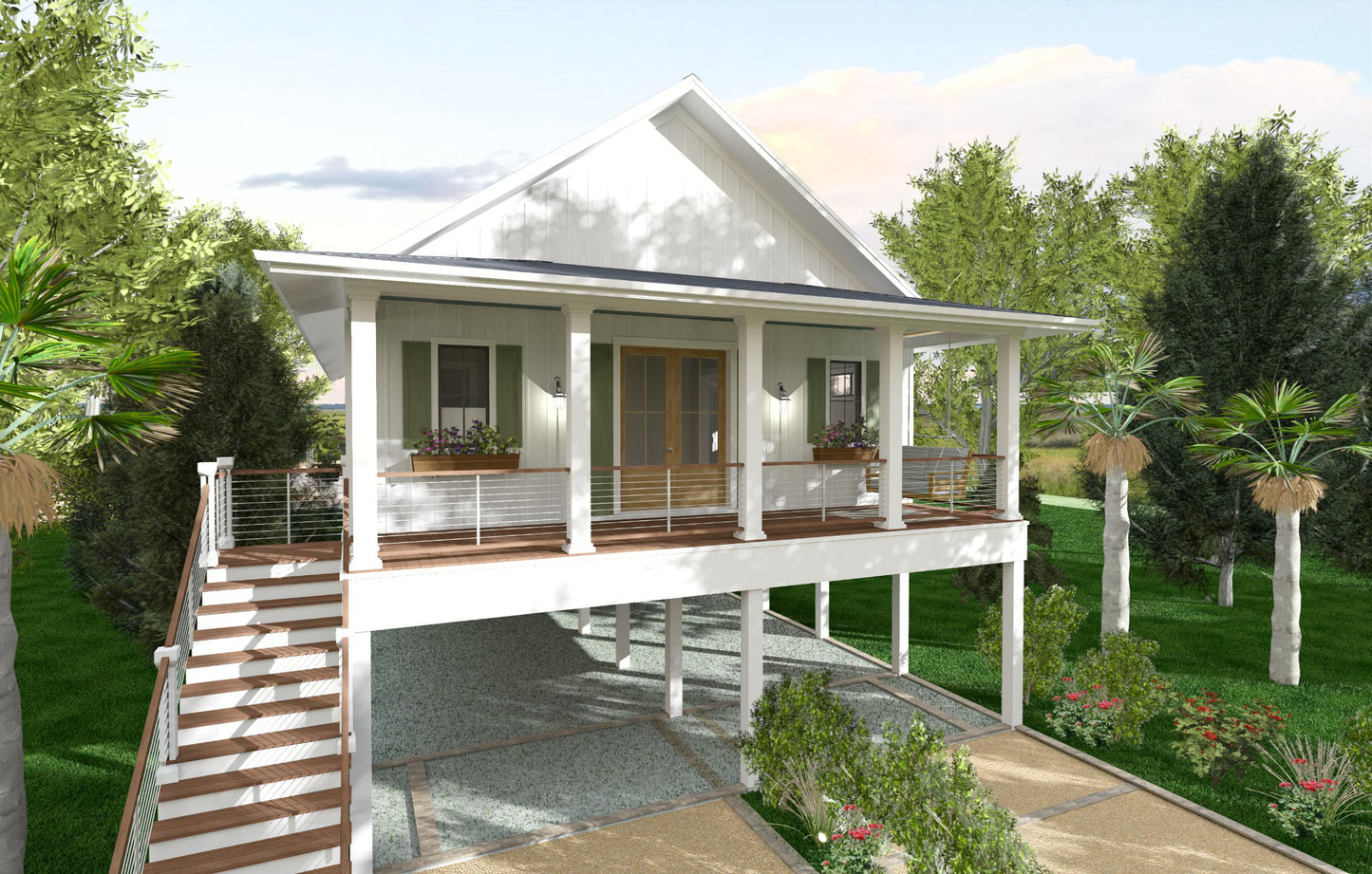

A full-width front porch: 30 feet by 8, room for rocking chairs at one end and a table at the other, and the first thing anyone sees.

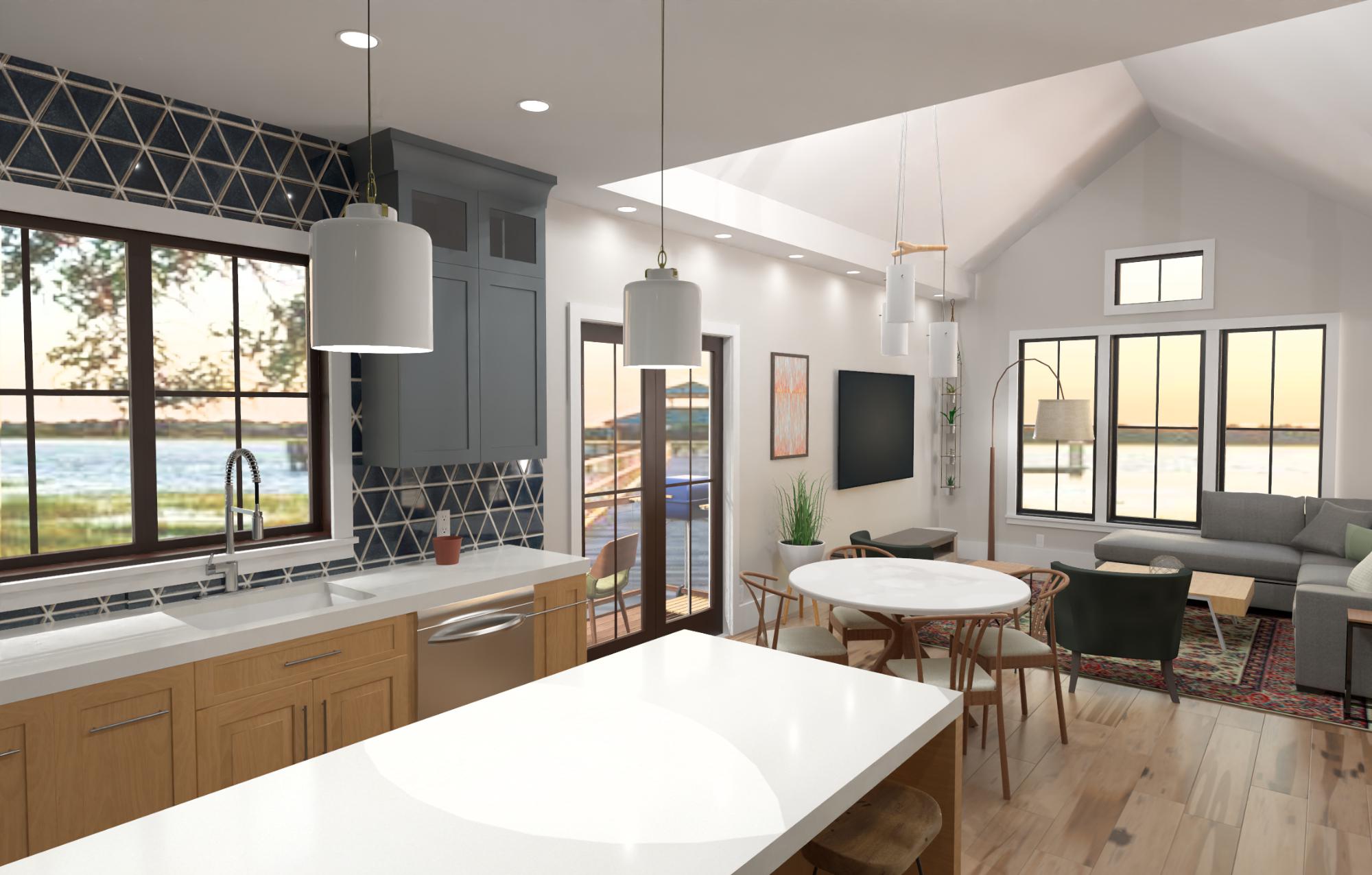

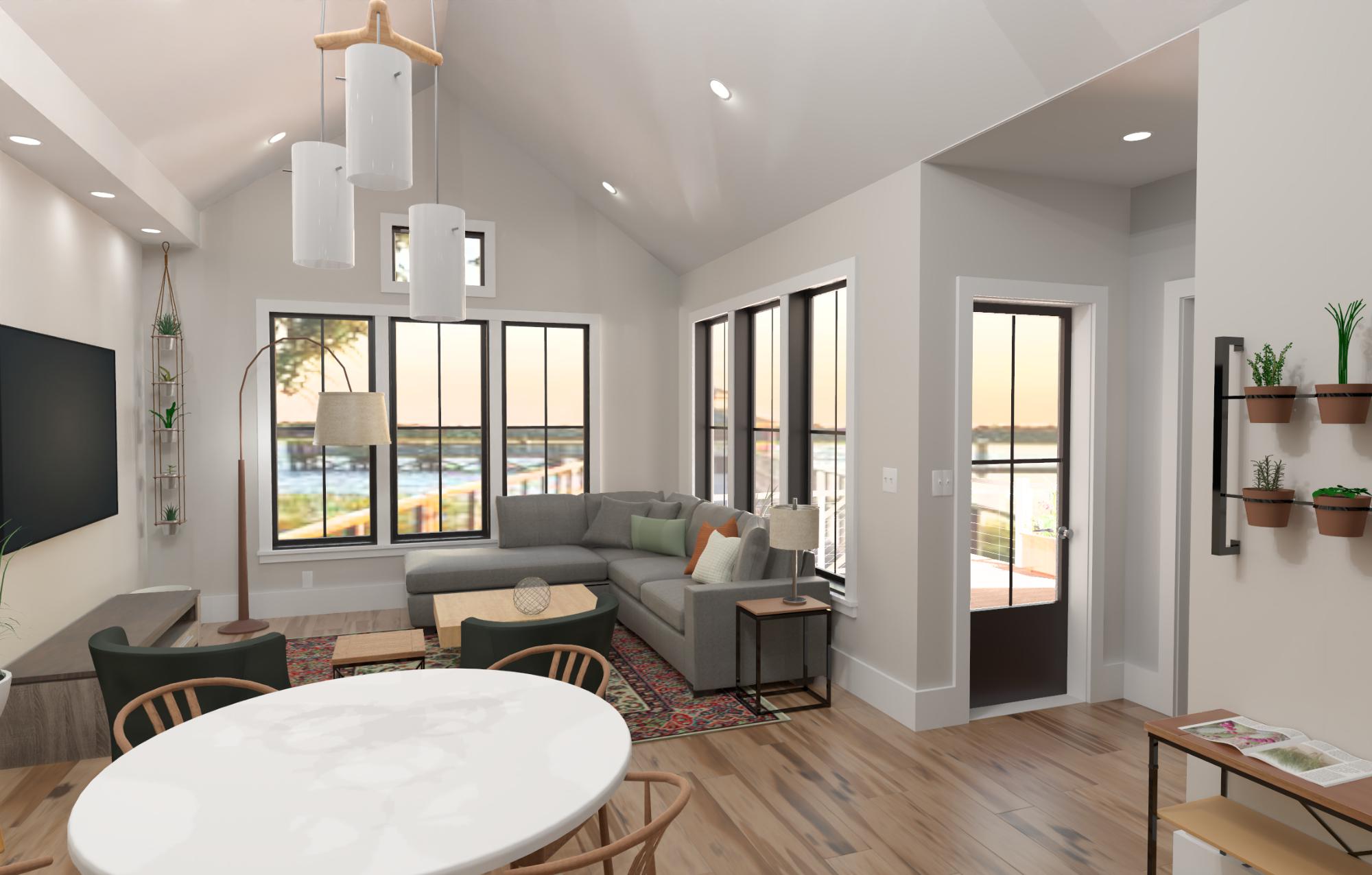

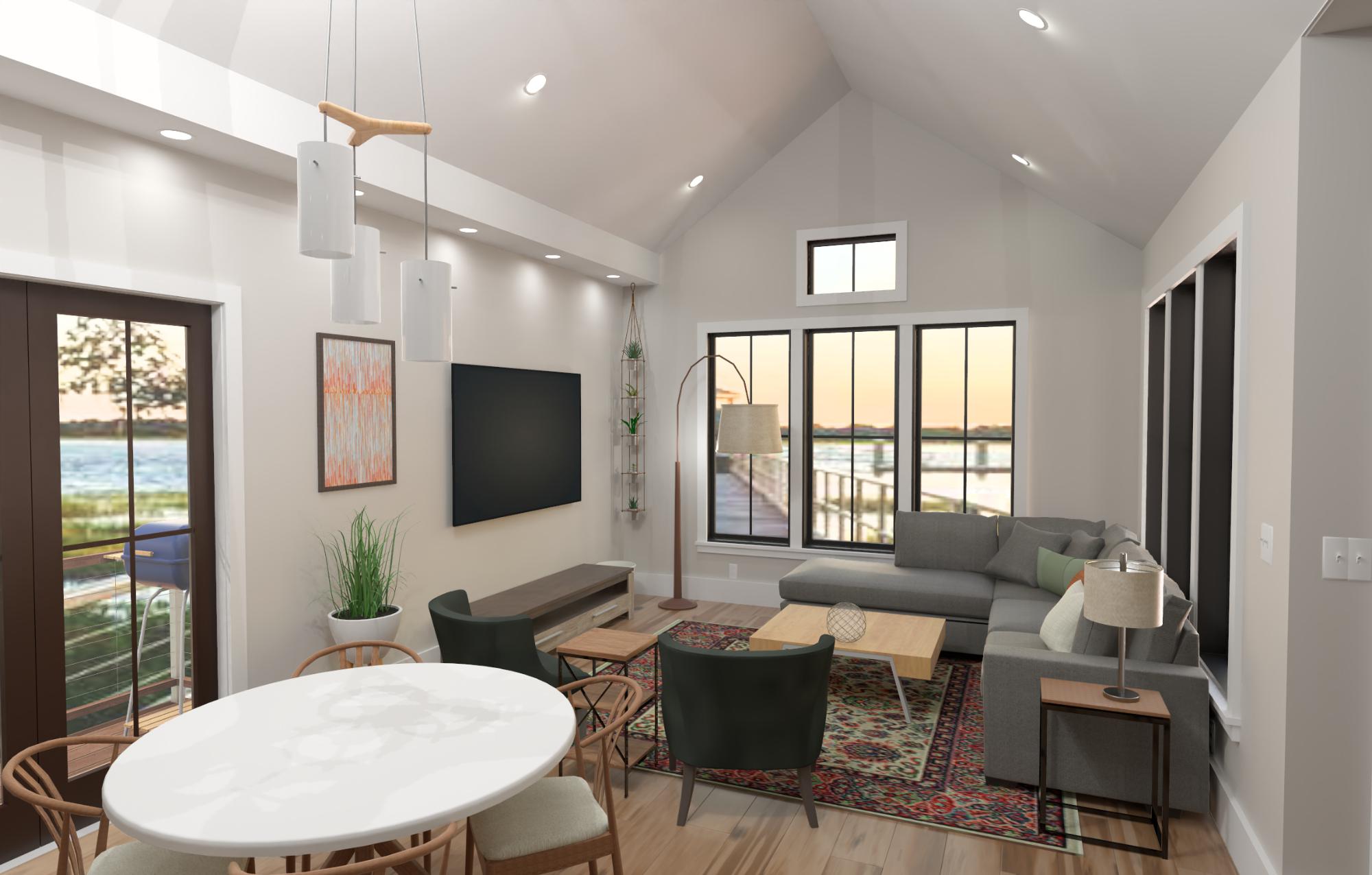

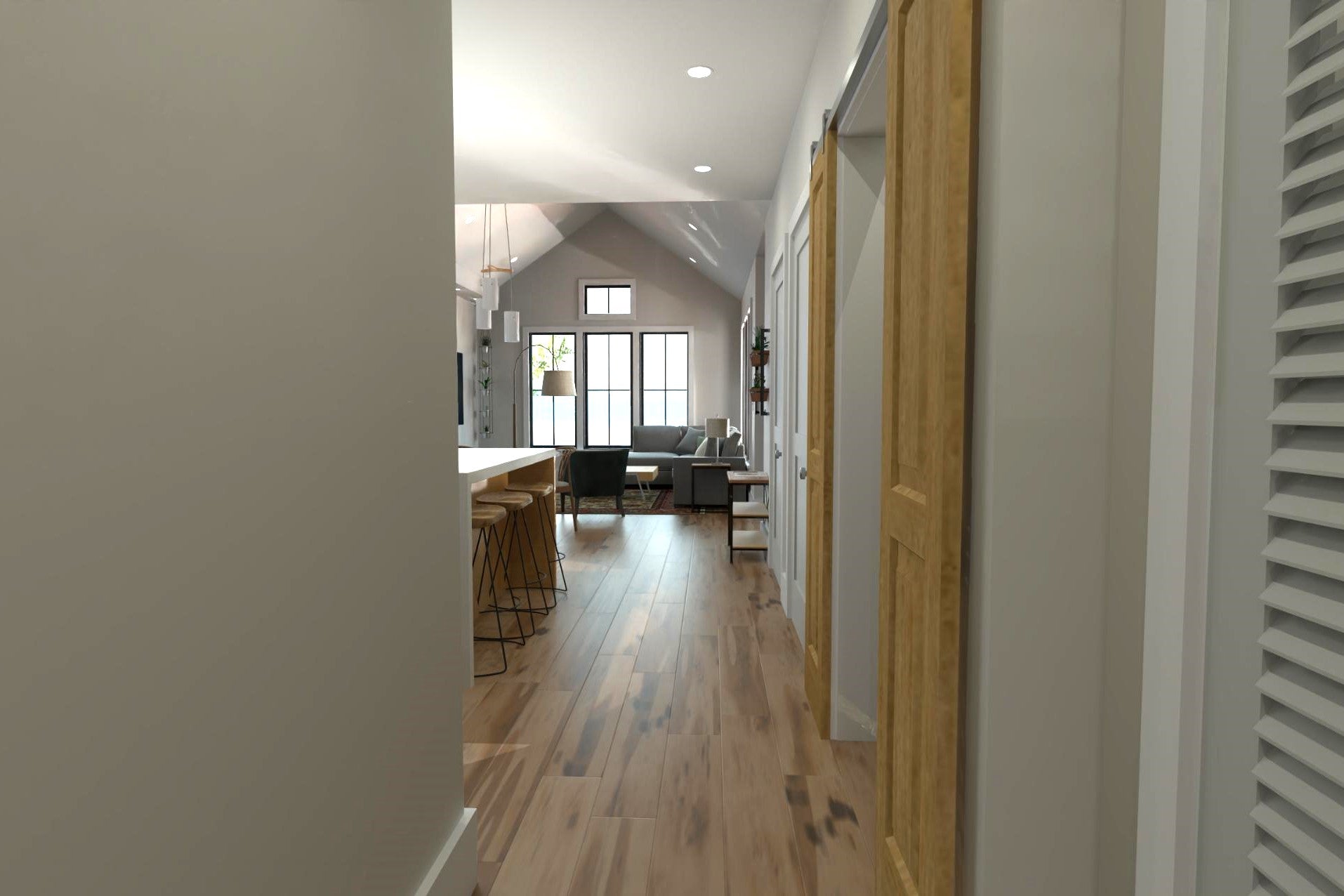

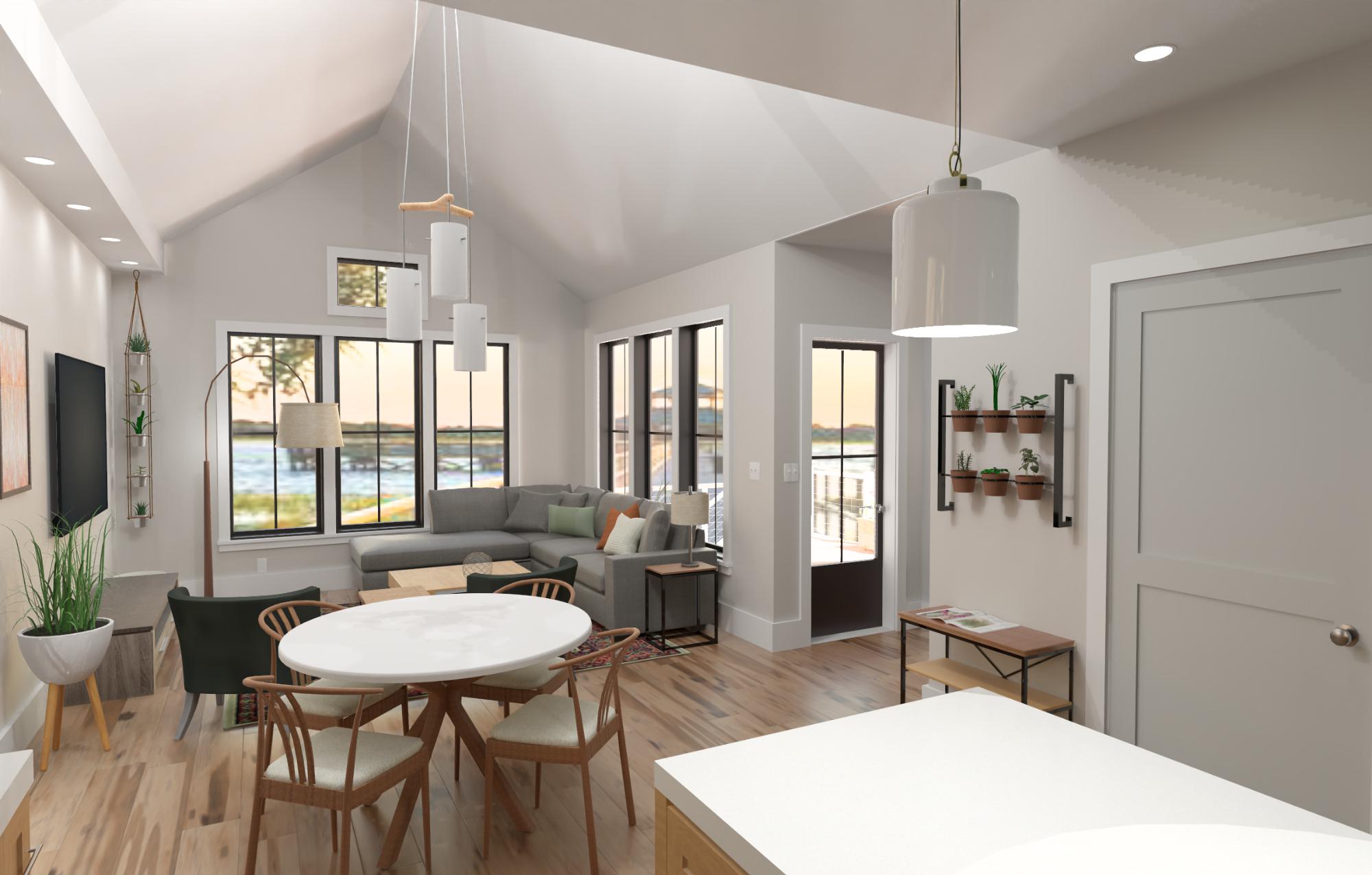

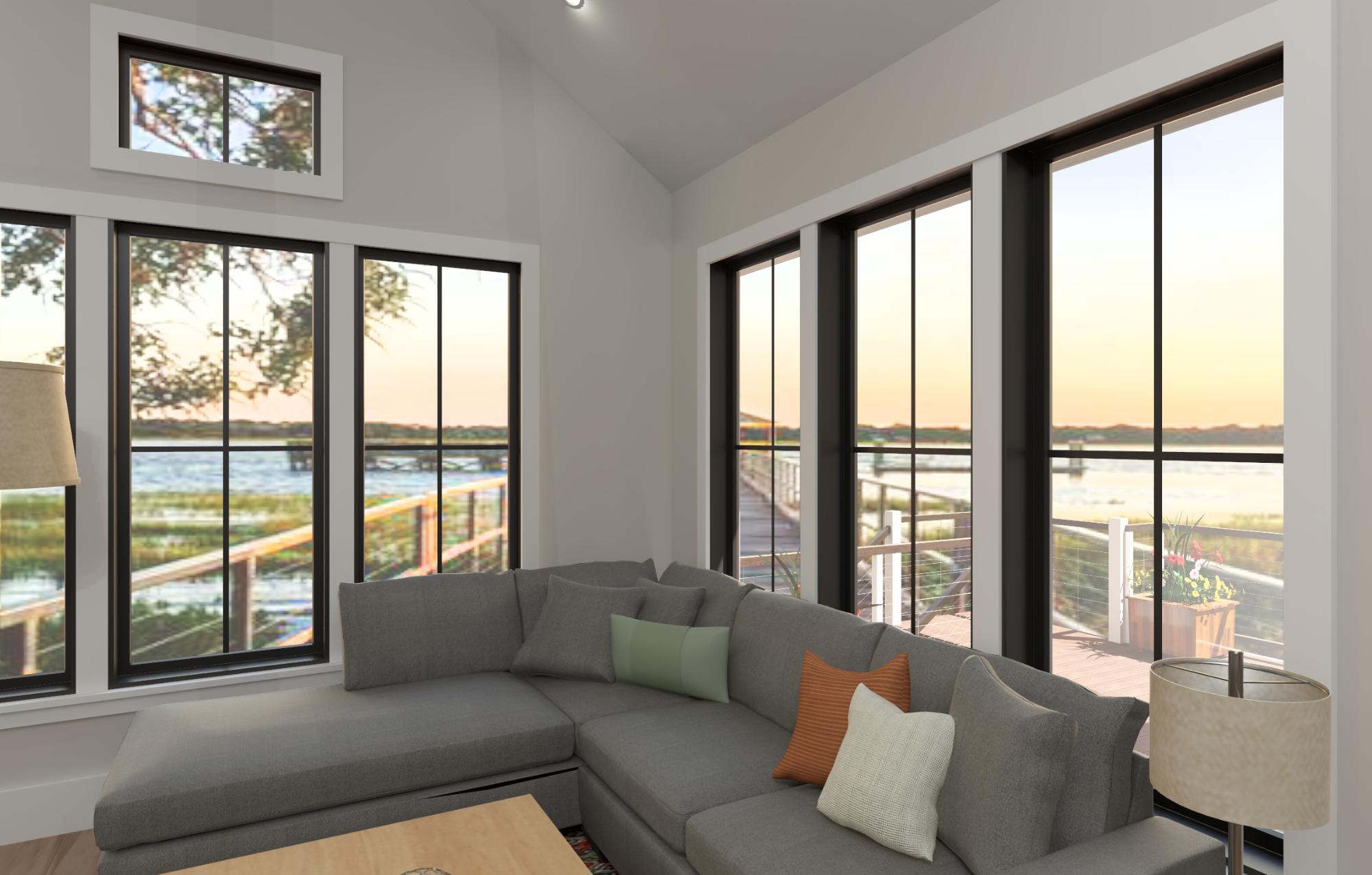

A vaulted living room: the ceiling goes up with the roof, so a 1,430 square foot house does not feel like one.

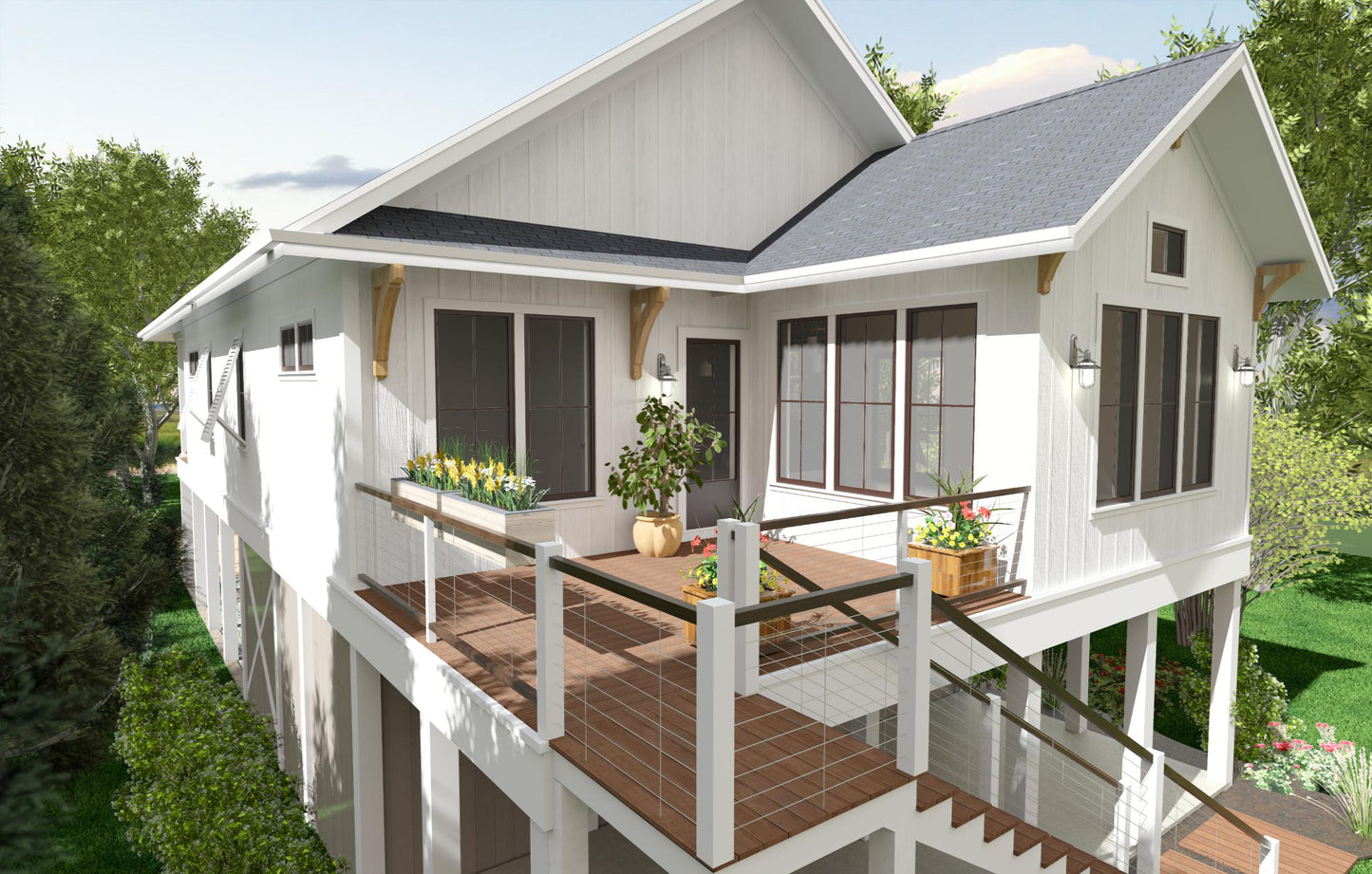

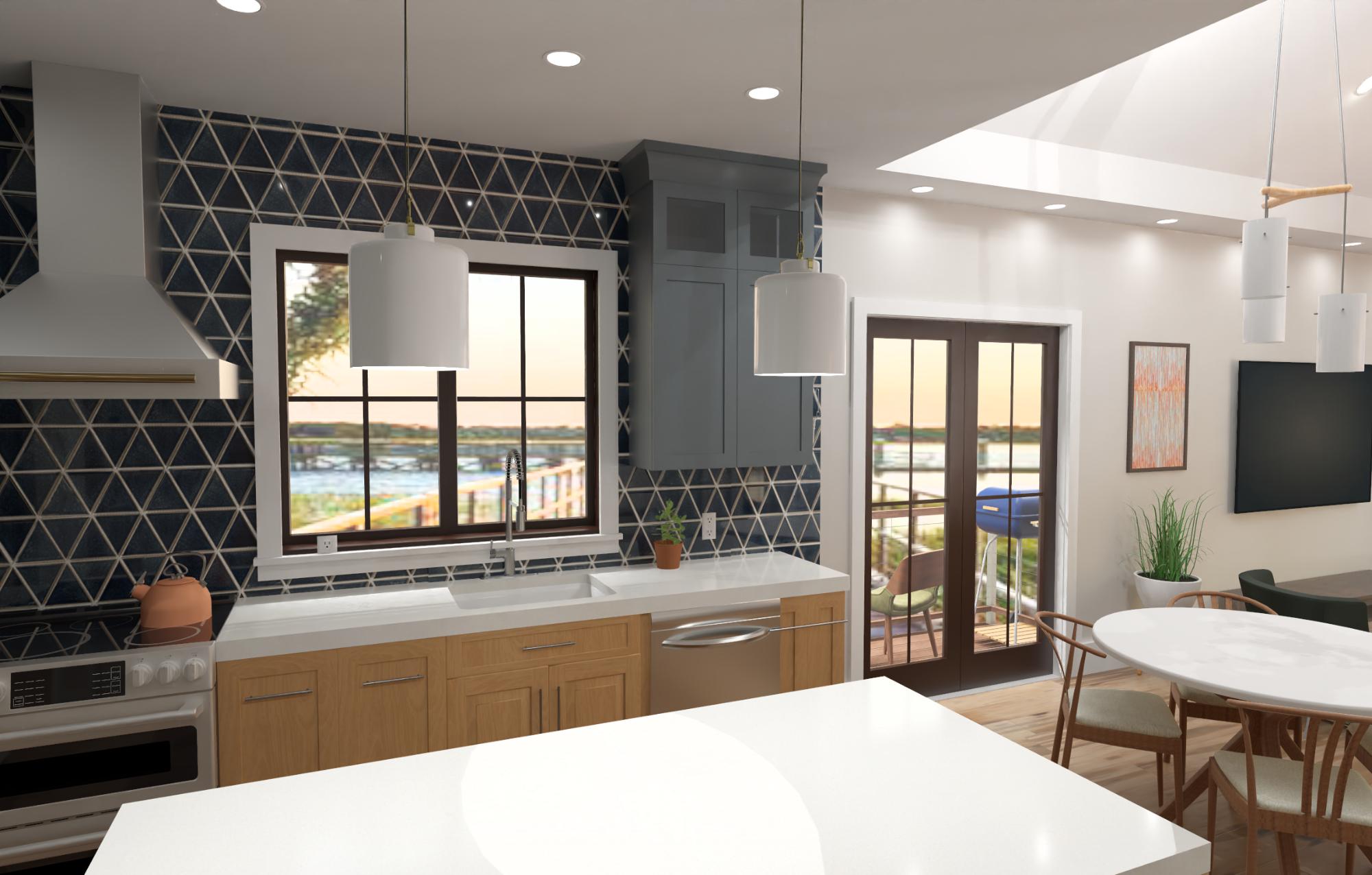

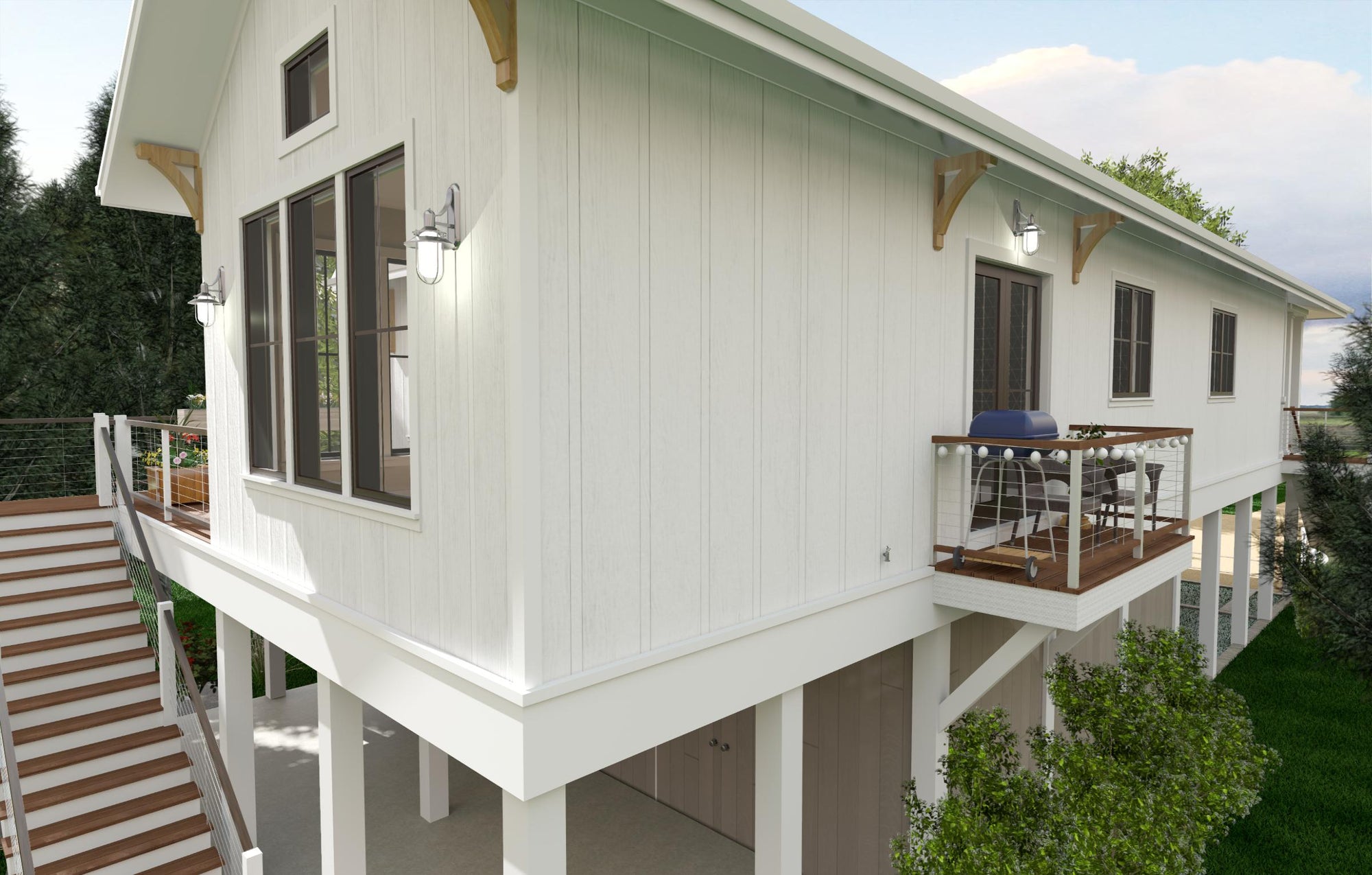

A grilling deck at the back: off the living space, so the cook is still part of the evening.

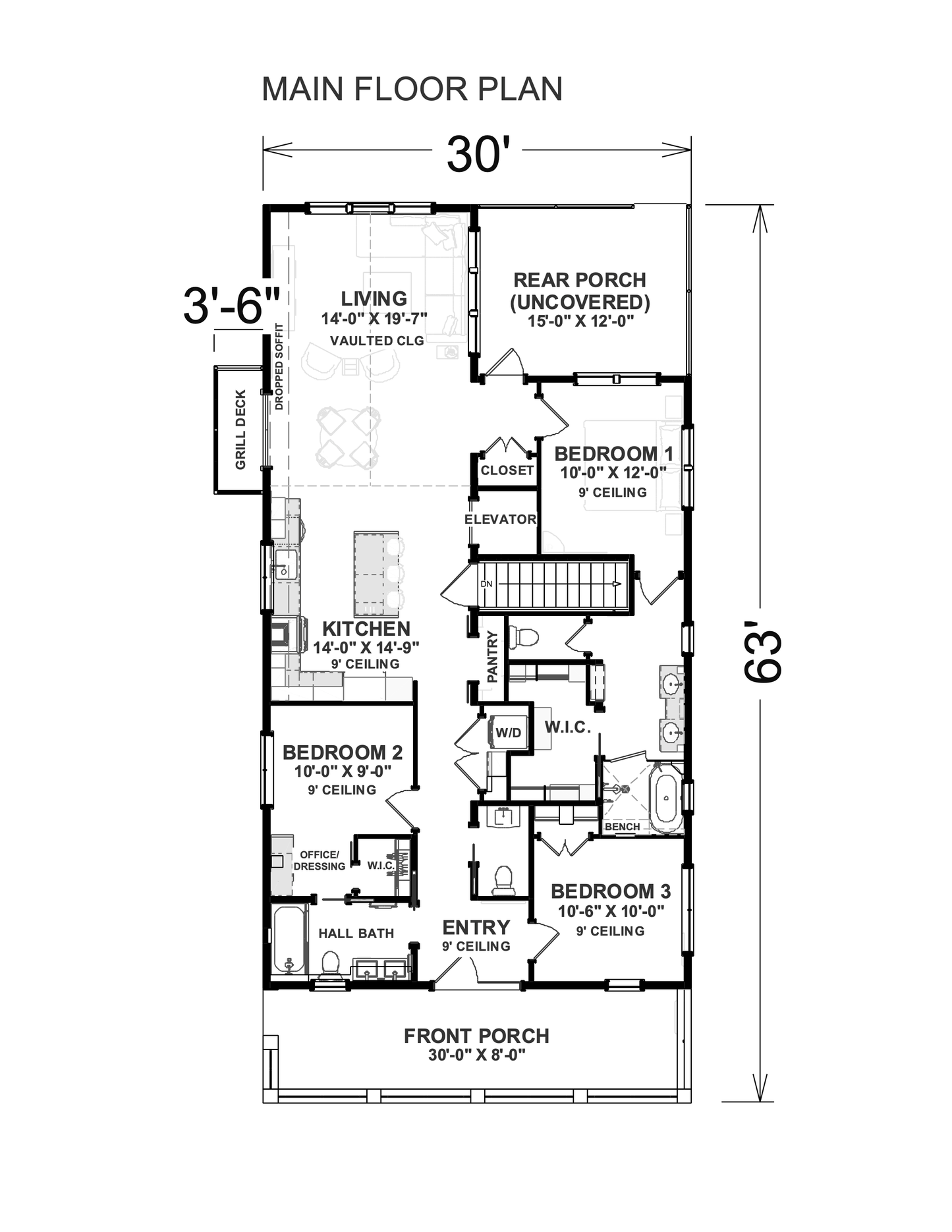

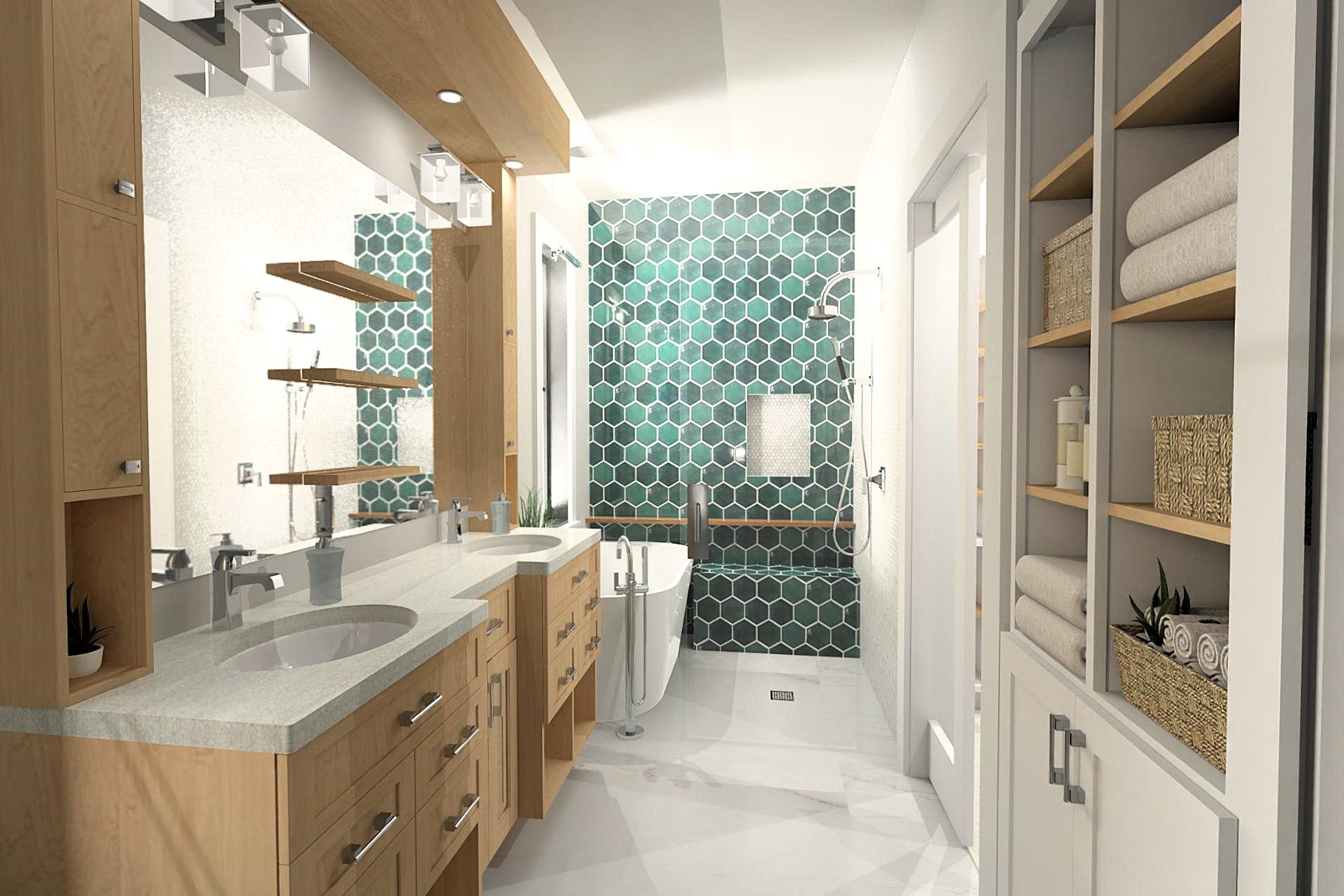

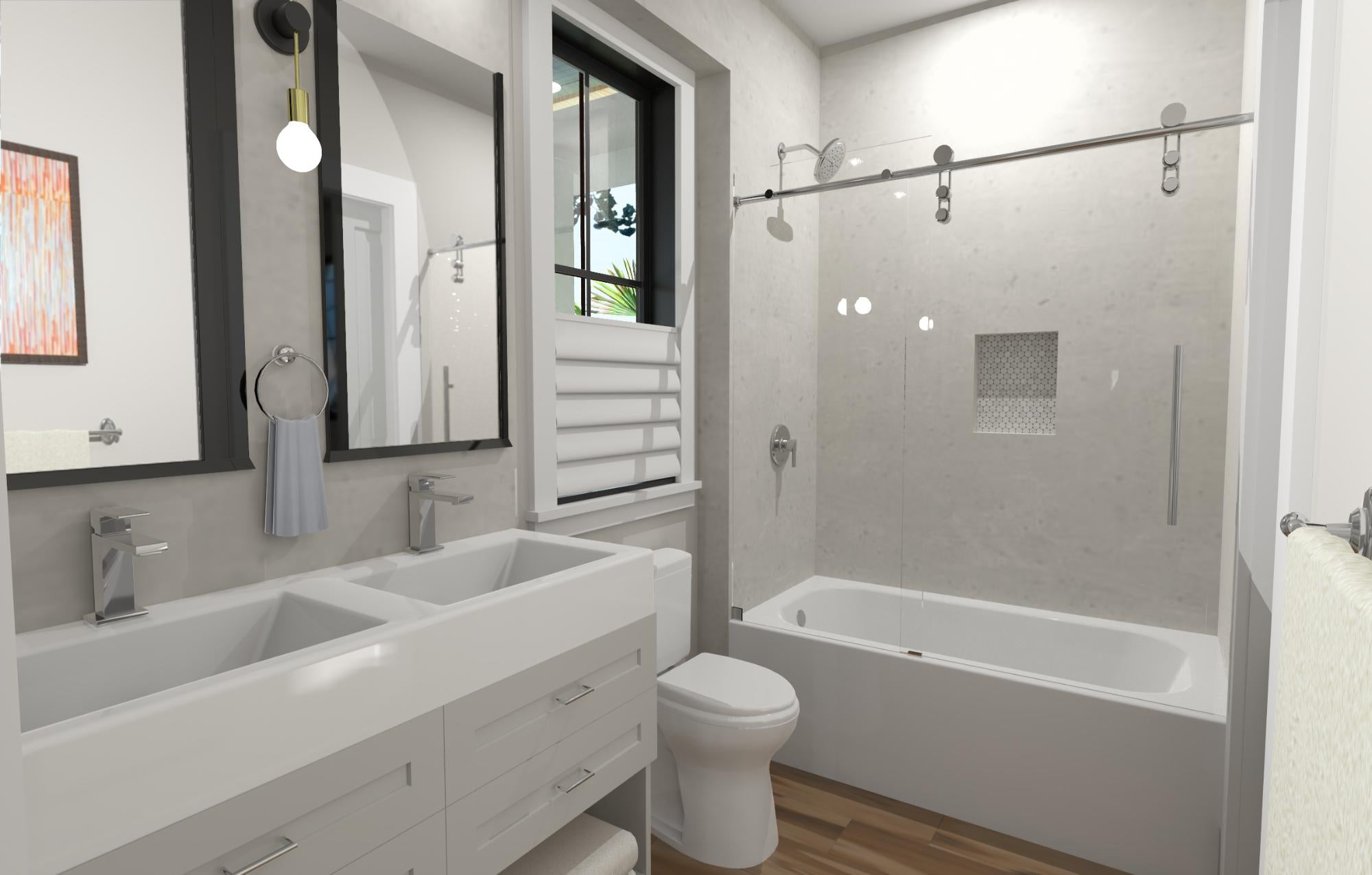

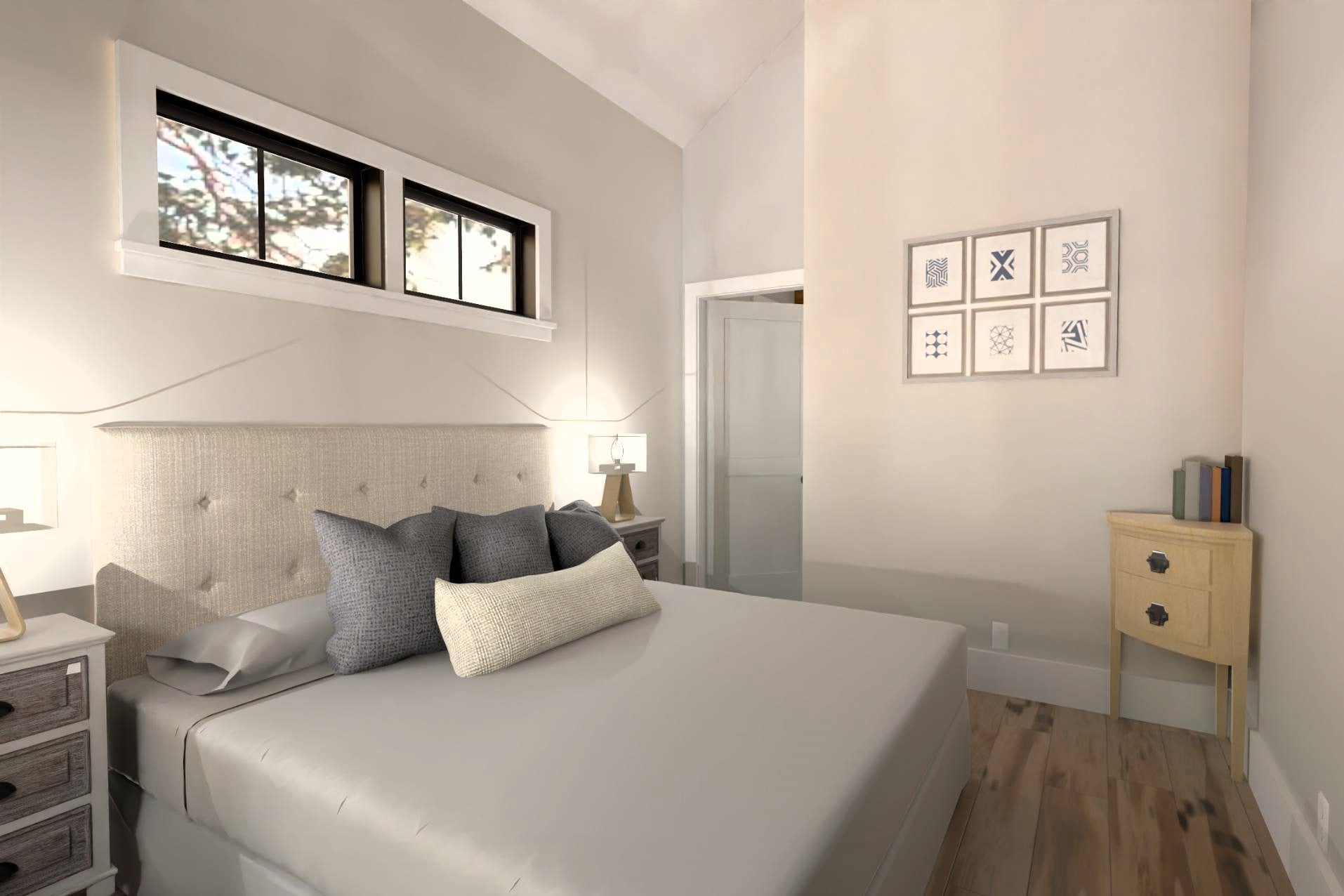

Everything on one level: the primary suite with a walk-in closet and private bath, two more bedrooms and a half bath, and no stairs once you are inside.

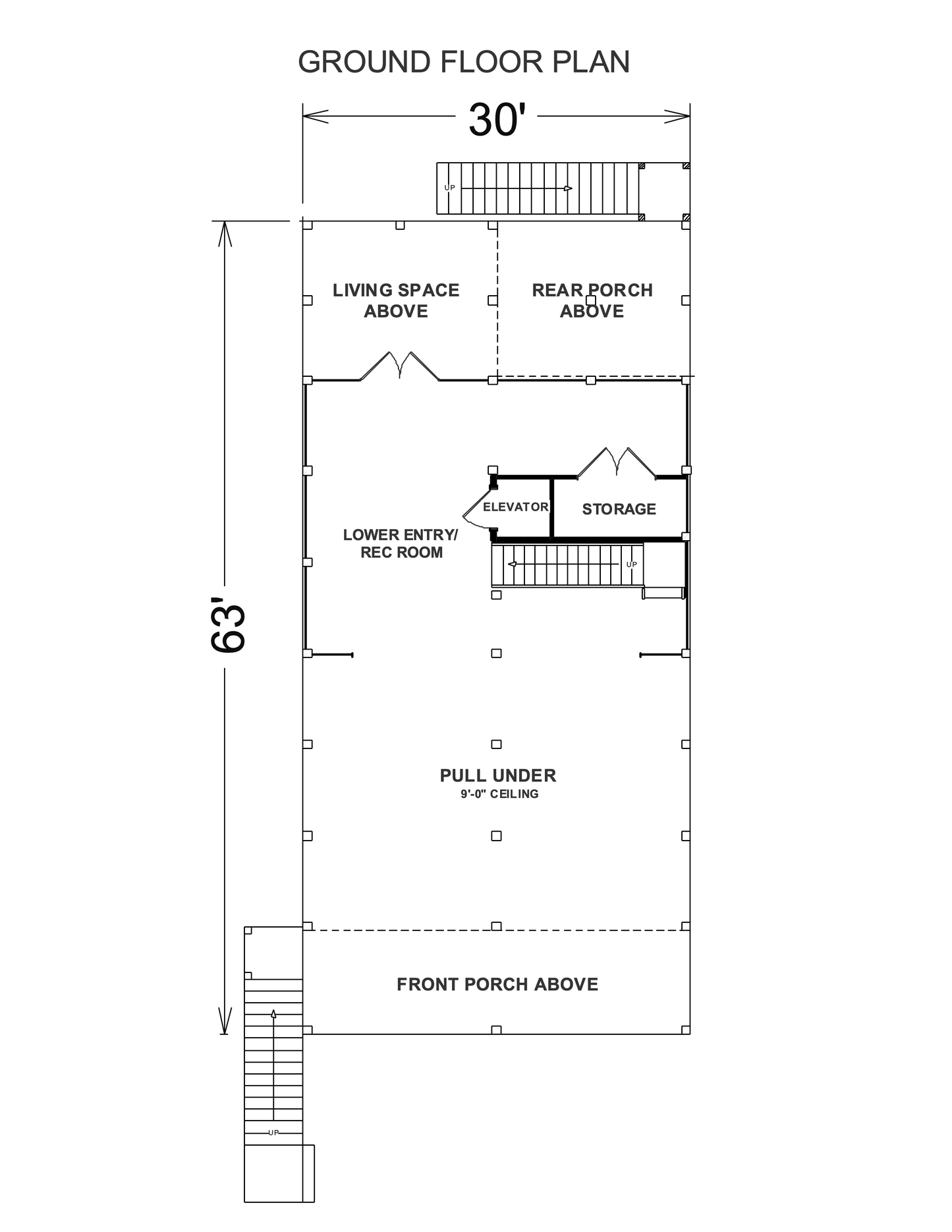

A useful ground floor: an open room beside the two-car carport for gear and games, with the house standing above the flood line on pilings or piers.
- Footprint: 30’ 0” Width x 63’ 0” Depth
- Max Ridge Height: 30’ 6”
- Foundation: Piling / Pier
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 9’ Lower Level | 9’ First Floor
- Garage: Attached Drive-Under, 1,221 sq. ft., 2 Cars, Front Entry
- Roof Details: 8 on 12 Pitch | Truss Framing
The Magnolia Beach Hut keeps to what a beach house needs: a porch for the evening, a vaulted room for everyone to gather, a deck for the grill and a bedroom to sleep well in. Nothing in it is there for show.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions

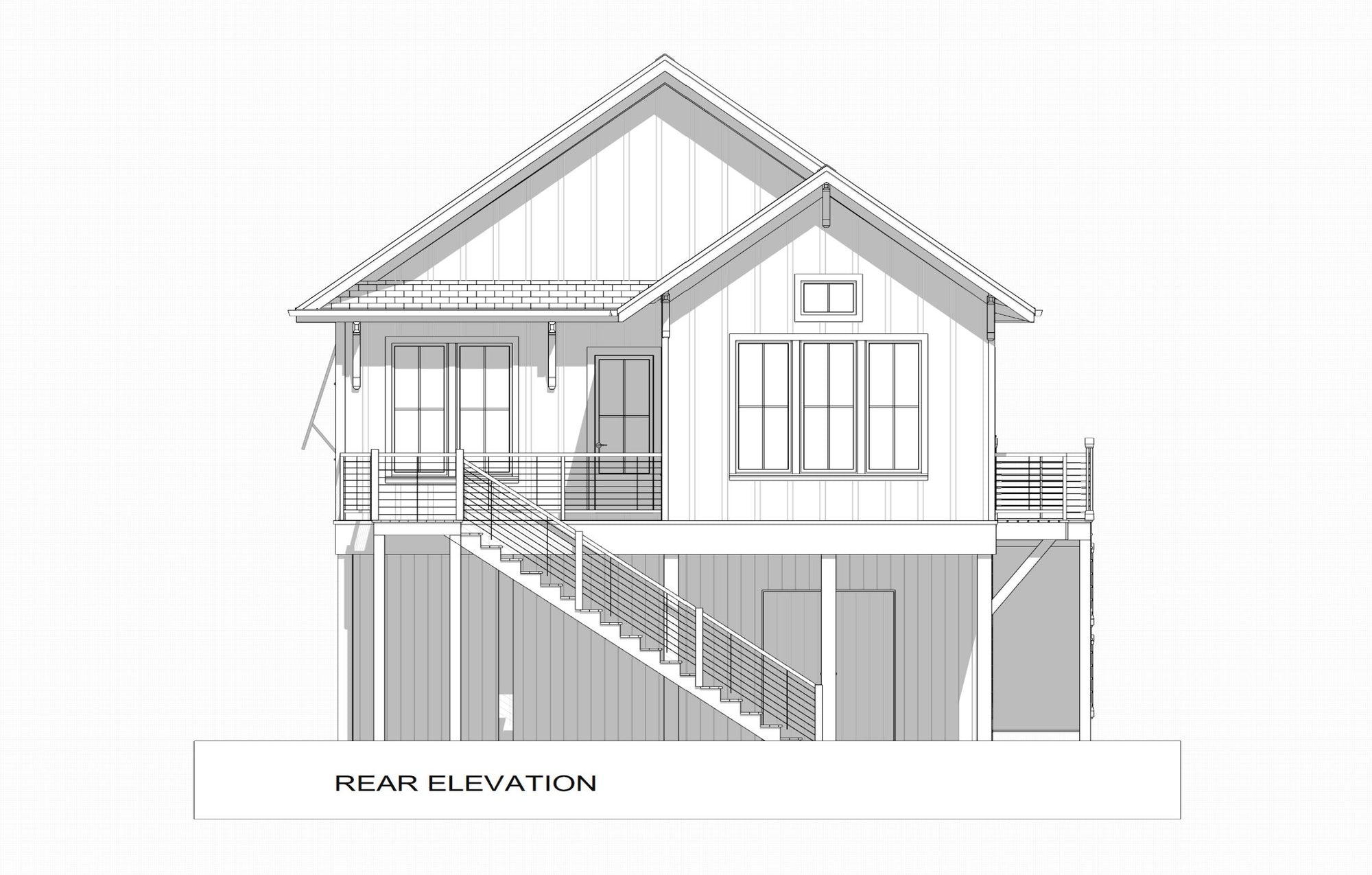

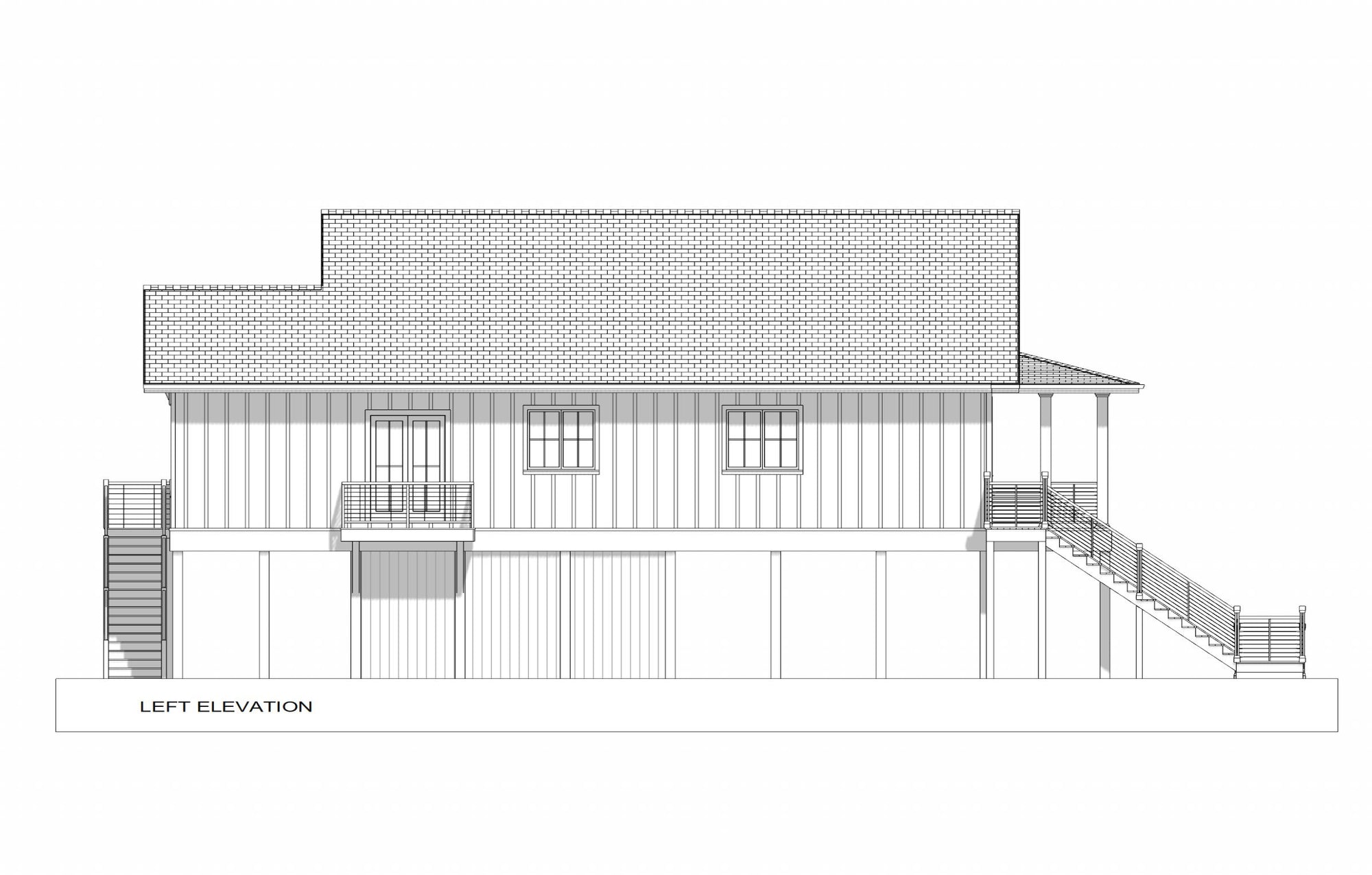

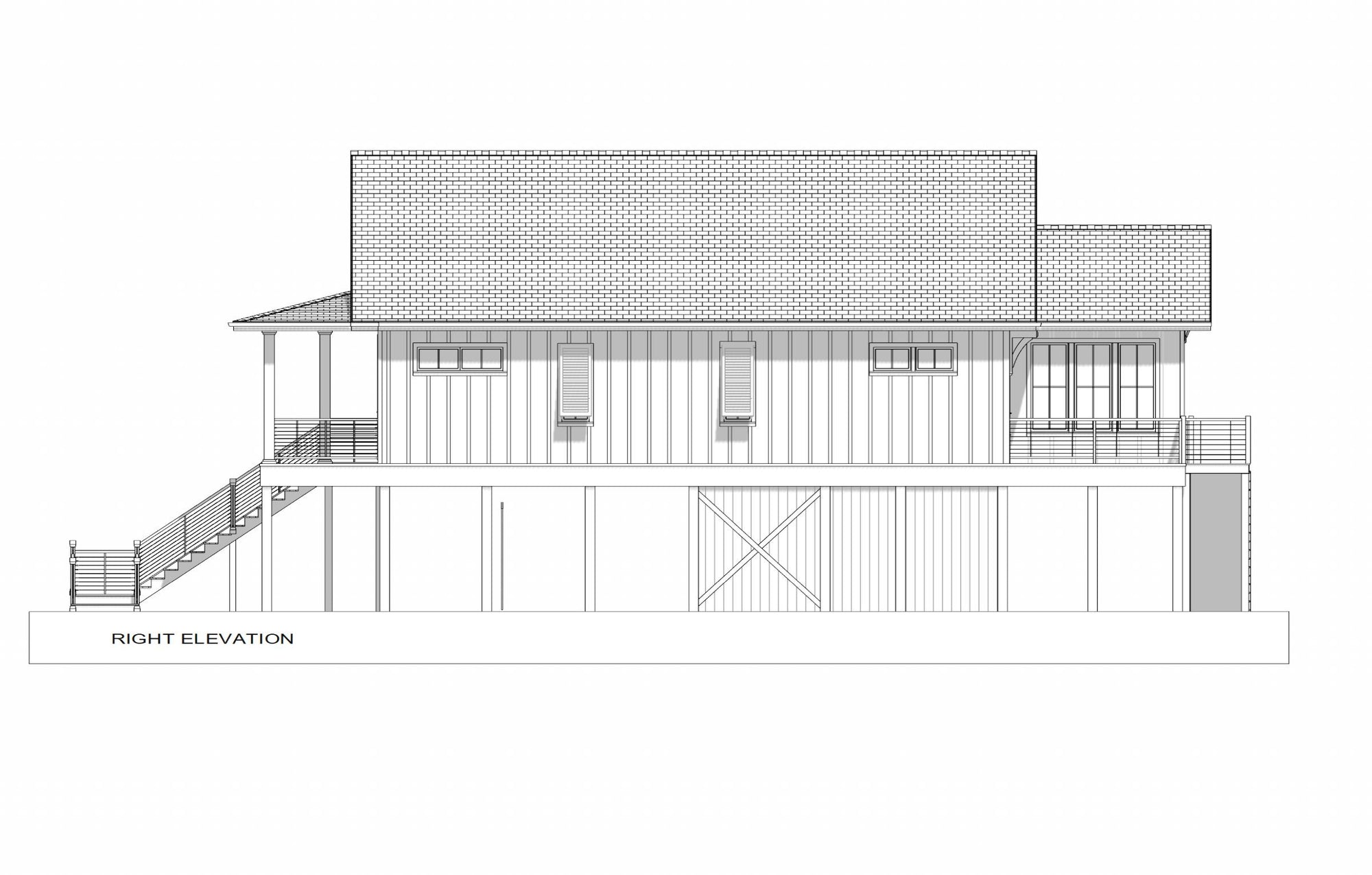

- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does Magnolia Beach Hut come with?
Magnolia Beach Hut is drawn on a pier / piling foundation. It is an elevated plan, with the living space raised above open space or parking, drawn for flood zone and coastal lots. On this page it is offered as piling or pier, chosen before you buy. A local engineer sizes the foundation for your soil and wind zone.
How tall is Magnolia Beach Hut and how much ground does it cover?
The maximum ridge height is 30' 6". The footprint is 30' 0" x 63' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 1,430 square feet on 1 story.
What comes in the plan set for Magnolia Beach Hut, and what do I still need locally?
A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
Can I look at Magnolia Beach Hut in detail before buying the full set?
Yes. A $75 study set of Magnolia Beach Hut includes dimensioned floor plans for every level, all four elevations, door and window schedules and a specification sheet, enough to hand a builder for a budget number and to check the footprint against your lot. It is not licensed for construction. The $75 credits in full toward the Magnolia Beach Hut construction set for twelve months.
