640 Sq. Ft. - Cliffwood Garage/ADU Plan
Buy it with
CAD files are not modifiable and are strictly for use by licensed structural engineers. Issued in .dwg format, they are not native AutoCAD files and are not for purposes of altering the original design.
Would you like to customize this plan? Request a free modification quote.

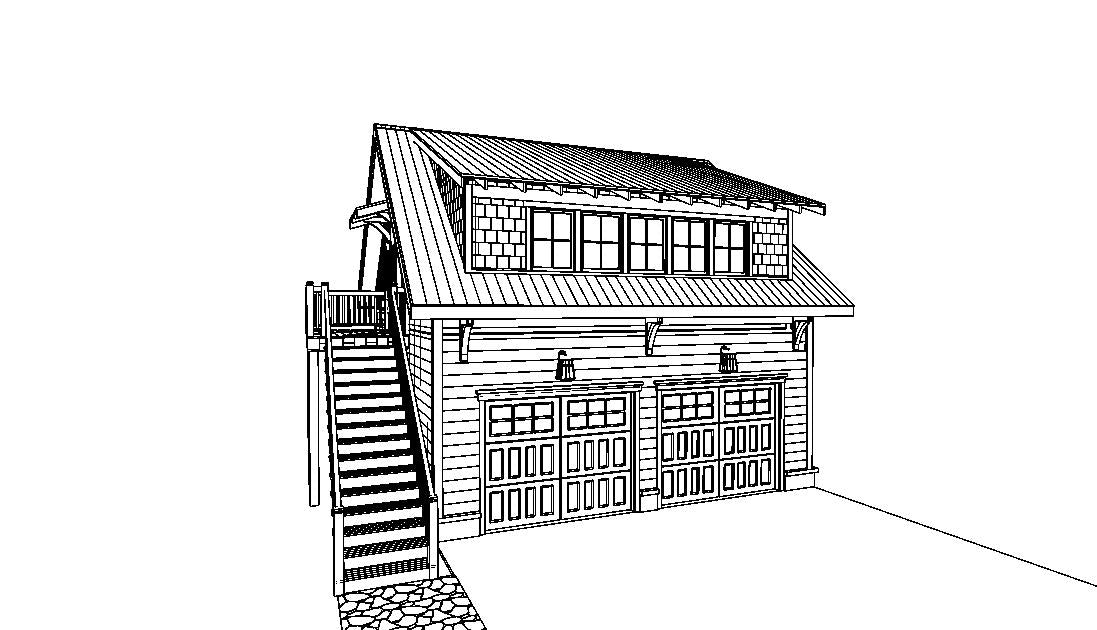

The Cliffwood
1-Bedroom Garage Apartment ADU Plan
640 SQ. FT. | 1 BED | 1 BATH | 2-CAR GARAGE
The Cliffwood is a smartly engineered 640 sq. ft. garage apartment plan that delivers a completely self-sufficient, premium living space situated above a spacious 2-car garage. Whether your goal is generating passive rental income, building a multi-generational family suite, or creating a private guest cottage, this versatile Accessory Dwelling Unit (ADU) packs full-scale luxury into an incredibly efficient footprint.
Designed entirely on a single upper level, the apartment layout features an airy, open-concept living space, a full chef-capable kitchen, an in-unit laundry setup, and a massive walk-in closet with zero wasted space.
Self-Sufficient ADU Living: Features a full kitchen, living room, bedroom, bathroom, and dedicated laundry—everything needed for upscale independent living.
Generous Walk-In Closet: An oversized walk-in closet maximizes clothing and linen storage without imposing on the bedroom’s footprint.
Open-Concept Great Room: The living and kitchen areas flow together seamlessly, maximizing natural light and visual volume.

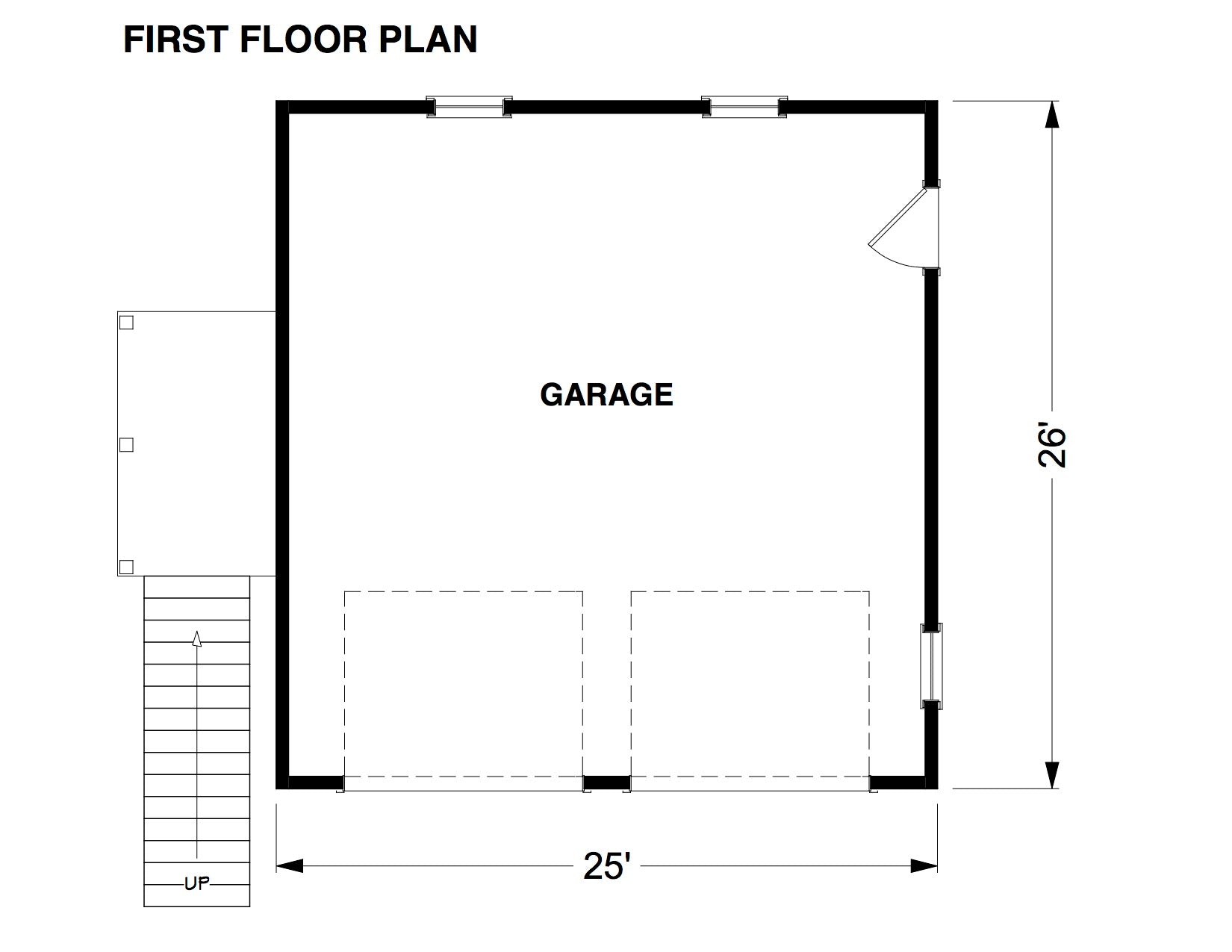

Full Ground-Level 2-Car Garage: Provides secure parking, workshop space, or substantial additional storage for the main property.
Single-Level Apartment Flow: The entire living area is intelligently mapped across one unified upper floor for effortless interior movement.
- Living Area: 640 sq. ft. (Located entirely on the upper level)
- Footprint: Standard 2-car garage dimensions (Highly adaptable for most backyards)
- Stories: 2 Levels (Ground-floor garage, second-floor residence)
- Foundation: Cost-efficient Slab on Grade
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Garage Entry: Front-Entry 2-Car Layout
- Included Amenities: In-unit washer/dryer hookups, full kitchen layout, dedicated storage closets
Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Cliffwood brilliantly maximizes a tight secondary footprint—delivering a highly functional, immensely comfortable living experience that optimizes backyard utility and adds immediate, lasting appraisal value to any property.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design—including a decade in custom construction in Charleston, SC—Angela specializes in resilient coastal style homes engineered for flood and hurricane zones.
Purchase of PDF Set includes:
- Cover sheet with general notes
- Foundation Plan
- Floor Plans with Dimensions
- Exterior Elevations
- Cross Section
- Door & Window Schedules
- Roof plan
- Electrical Plans
- Cabinetry Elevations (most plans- please inquire to confirm)
What's Not Included:
- Architectural or Engineering Stamp - handled locally if required
- Site Plan - handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
- Energy calculations - handled locally when required
Purchase of Chief Architect plan:
- Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
- All materials and textures related to plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse Add-On:
- A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
