Magnolia Cottage House Plan
3-Bedroom Beach Cottage House Plan
1,600 SQ. FT. | 3 BED | 2.5 BATH | 2-STORY | 2–3 CAR DRIVE-UNDER GARAGE

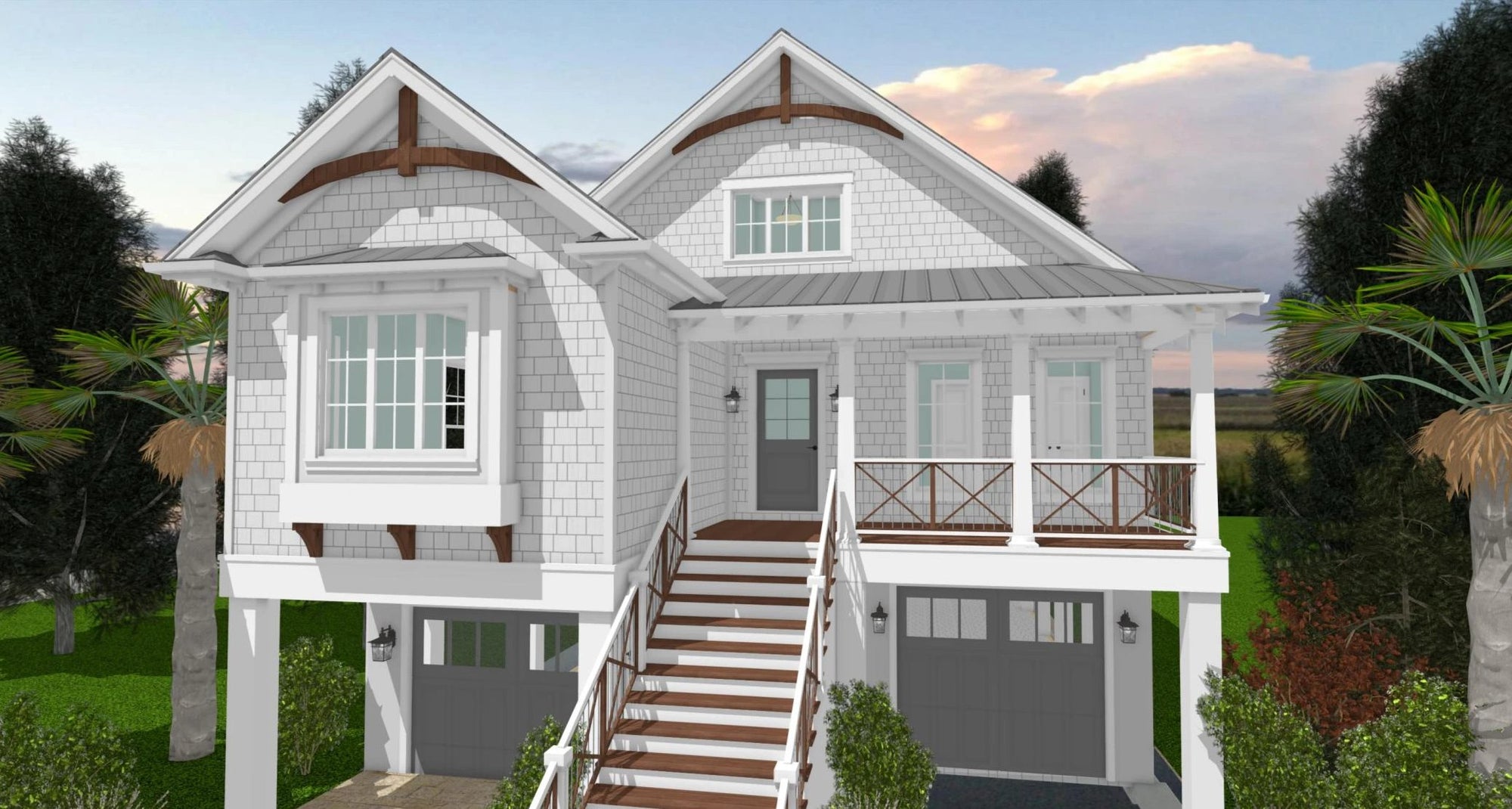

The Magnolia Cottage proves that a smaller footprint doesn't mean compromising on charm or livability. This 1,600 sq. ft. rectangular beach cottage delivers a front porch welcome, vaulted shared living spaces, and a primary suite that rivals plans twice its size—all wrapped in a classic coastal silhouette that looks right at home on any beach lot.
A spacious kitchen island anchors the main living area for easy entertaining, while the drive-under garage—with pull-through or rear entry for a third car—gives you the storage and flexibility that beach life demands.
Charming Front Porch: A welcoming covered front porch sets the tone for relaxed coastal living before you even step inside.
Vaulted Shared Living Spaces: Vaulted ceilings in the living area create an open, airy atmosphere that feels far larger than the square footage suggests.
Primary Suite with 5-Fixture Bath: The primary bedroom features a luxurious 5-fixture bathroom and a walk-in closet—a true retreat in a compact plan.

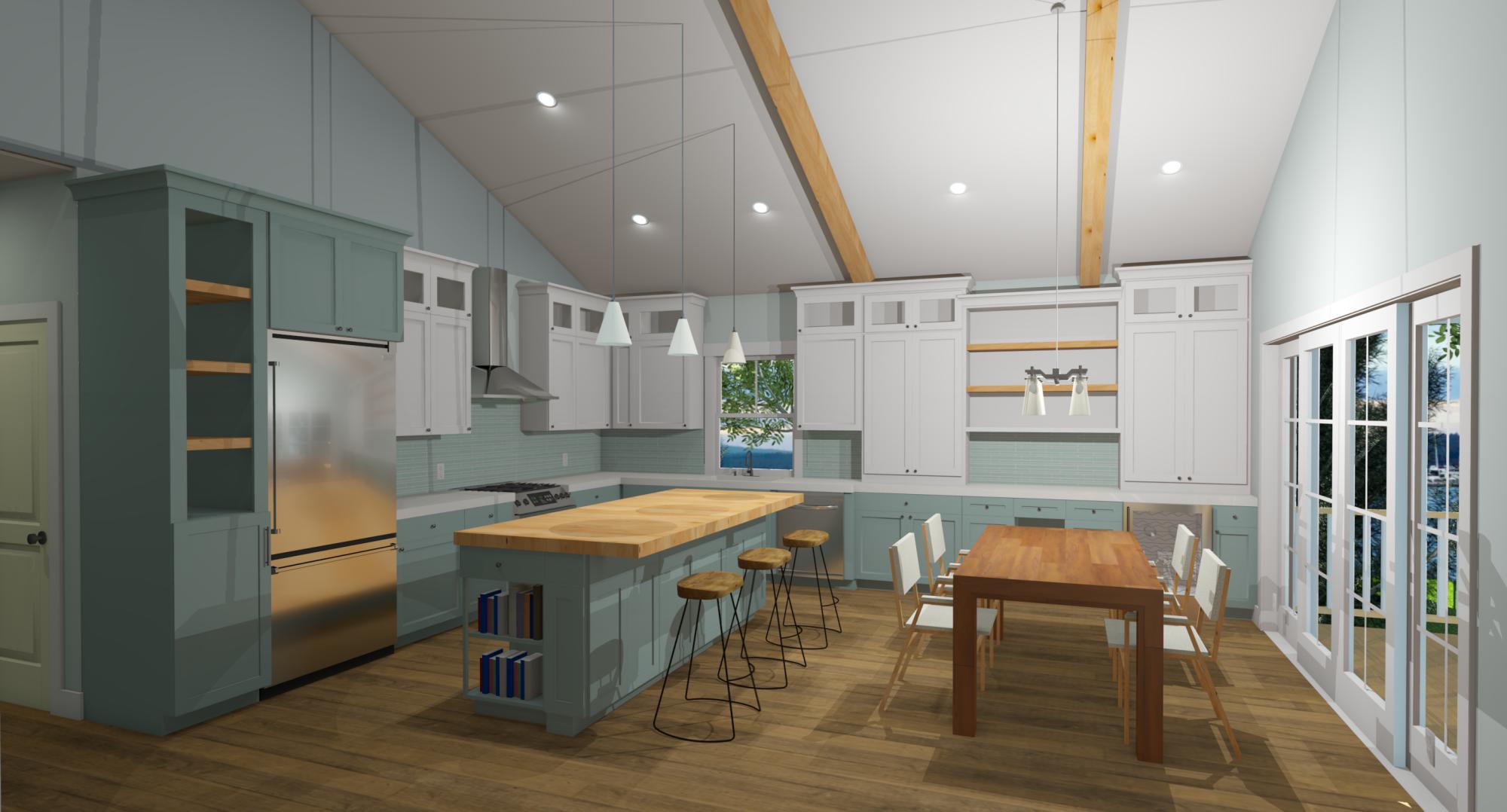

Spacious Kitchen Island: A generous kitchen island provides ample prep space and doubles as a casual dining and entertaining hub.
Drive-Under Garage with Pull-Through Option: A 1,515 sq. ft. drive-under garage accommodates 2–3 cars with a pull-through or rear entry for the third—ideal for beach toys, golf carts, and gear.
Efficient Rectangular Footprint: A clean 32' x 70' rectangular layout maximizes buildable area on narrow coastal or infill lots.
- Footprint: 32' 0" Width x 70' 0" Depth
- Max Ridge Height: 29' 0"
- Foundation: Piling | Pier
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 10' Lower Level | 9' First Floor
- Garage: Attached Drive-Under, 1,515 sq. ft., 2–3 Cars, Front Entry (Pull-Through/Rear Entry Available)
- Roof Details: 9 on 12 Pitch | Truss Framing
Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Magnolia Cottage delivers the full beach cottage experience in a compact, cost-effective footprint—proving that the best coastal homes aren't measured in square footage, but in how well every inch is designed.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue and studies in interior architecture.
With 16+ years of custom home design—including a decade in custom construction in Charleston, SC—Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes:
- Cover sheet with general notes
- Foundation Plan
- Floor Plans with Dimensions
- Exterior Elevations
- Cross Section
- Door & Window Schedules
- Roof plan
- Electrical Plans
- Cabinetry Elevations (most plans- please inquire to confirm)
What's Not Included:
- Architectural or Engineering Stamp - handled locally if required
- Site Plan - handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
- Energy calculations - handled locally when required
Purchase of Chief Architect plan:
- Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
- All materials and textures related to plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse Add-On:
- A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
