2998 Sq. Ft. - Baileys Bay
Buy it with
CAD files not modifiable and are strictly for use by licensed structural engineers. Issued in .dwg format, they are not native AutoCAD files and are not for purposes of altering the original design.
Would you like to customize this plan? Request a free modification quote.
Modify This PlanBaileys Bay House Plan
5-Bedroom Luxury Lake House Plan
2,998 SQ. FT. | 5 BED | 4.5 BATH | 2-STORY | 2-CAR GARAGE
Picture the whole family gathered around the outdoor fireplace at Baileys Bay as the sun sets over the water. This gorgeous 2,998 sq. ft. lake house blueprint is designed for effortless entertaining, offering room for everyone, absolute privacy, and seamless indoor-outdoor flow.
Thoughtfully designed across two levels, this layout offers rare flexibility with dual primary suites and direct bathroom access for every single bedroom. It is the ultimate design for large families, multi-generational living, or a high-yielding vacation rental property.

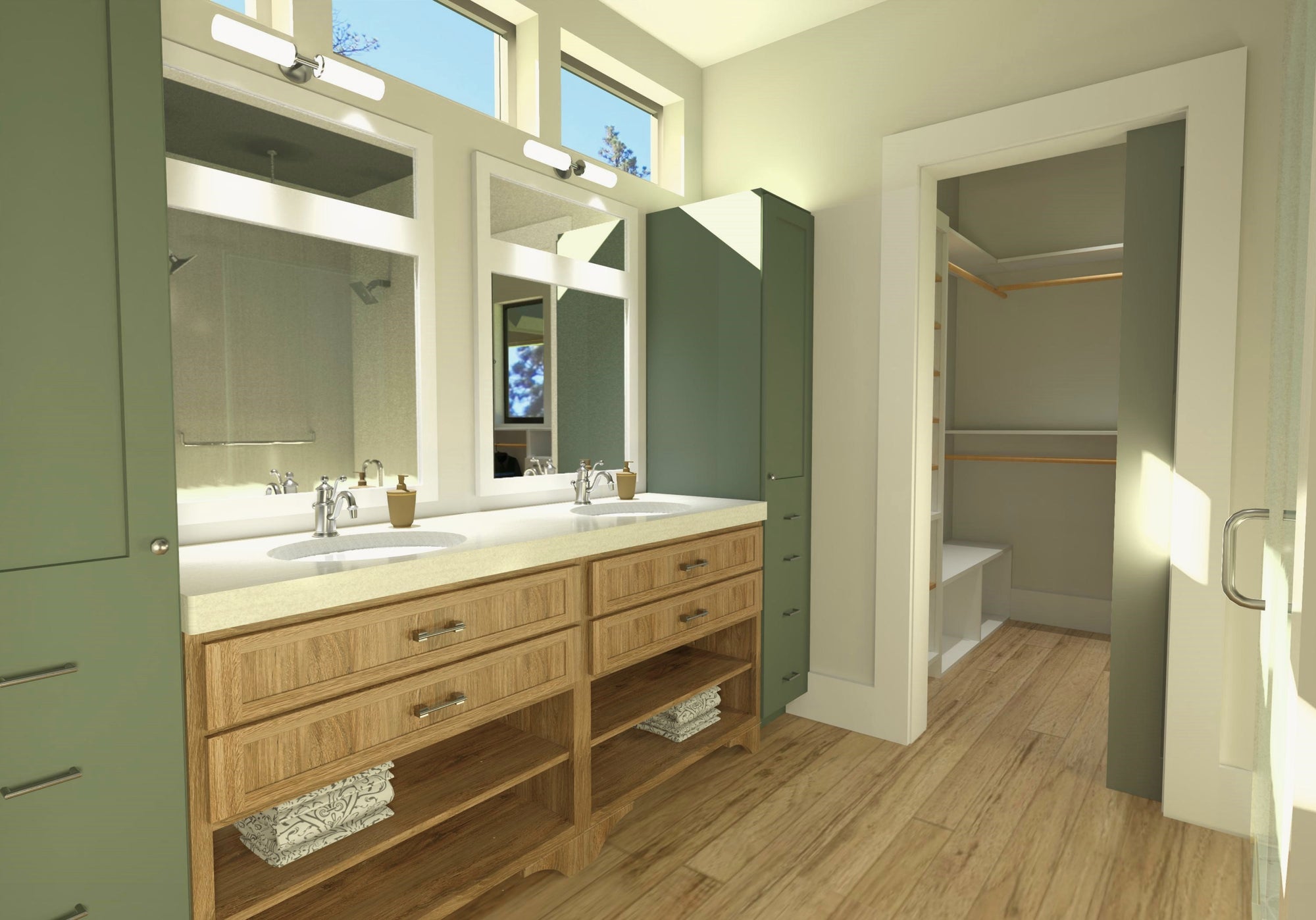

Dual Primary Suite Option: Choose your primary bedroom on either the first or second floor to fit your exact lifestyle.
En-Suite Bathroom Access: Every single bedroom has direct, private bathroom access for family and guests.

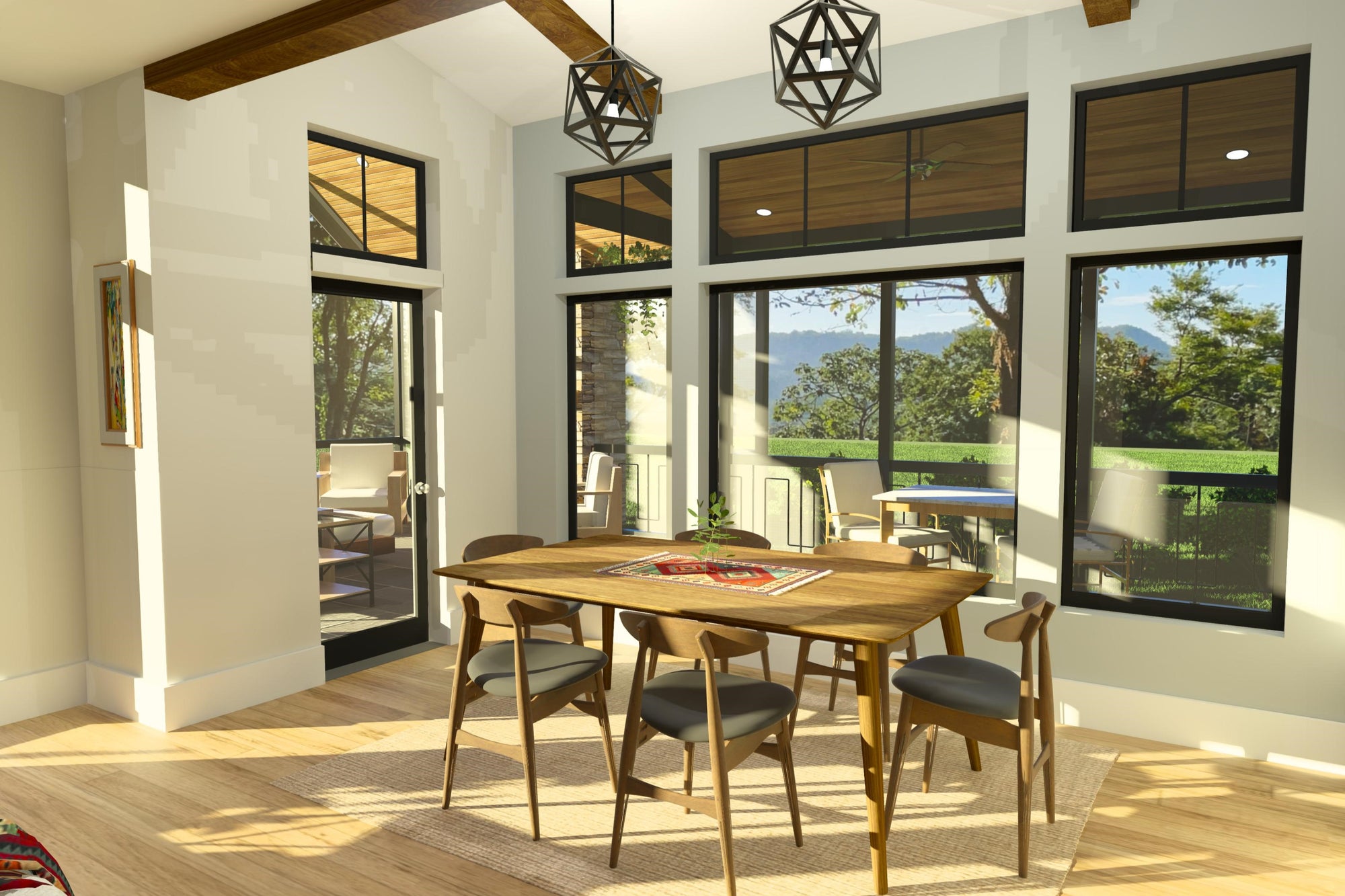

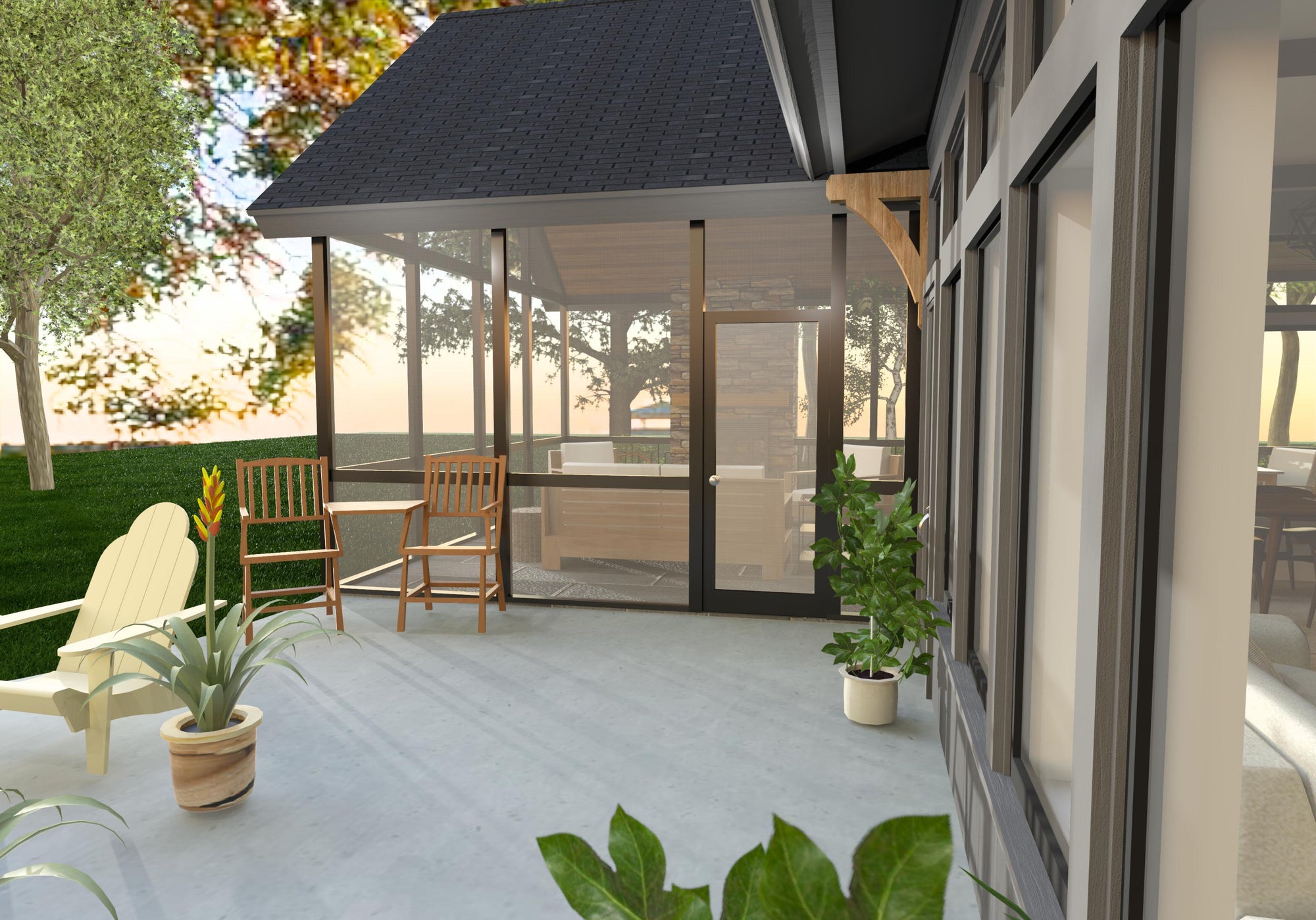

Entertainer’s Dream Layout: Features a formal dining room, screened porches, and a built-in outdoor fireplace for year-round living.
Dual Laundry Rooms: Highly convenient, dedicated laundry spaces located on both the upstairs and downstairs levels.

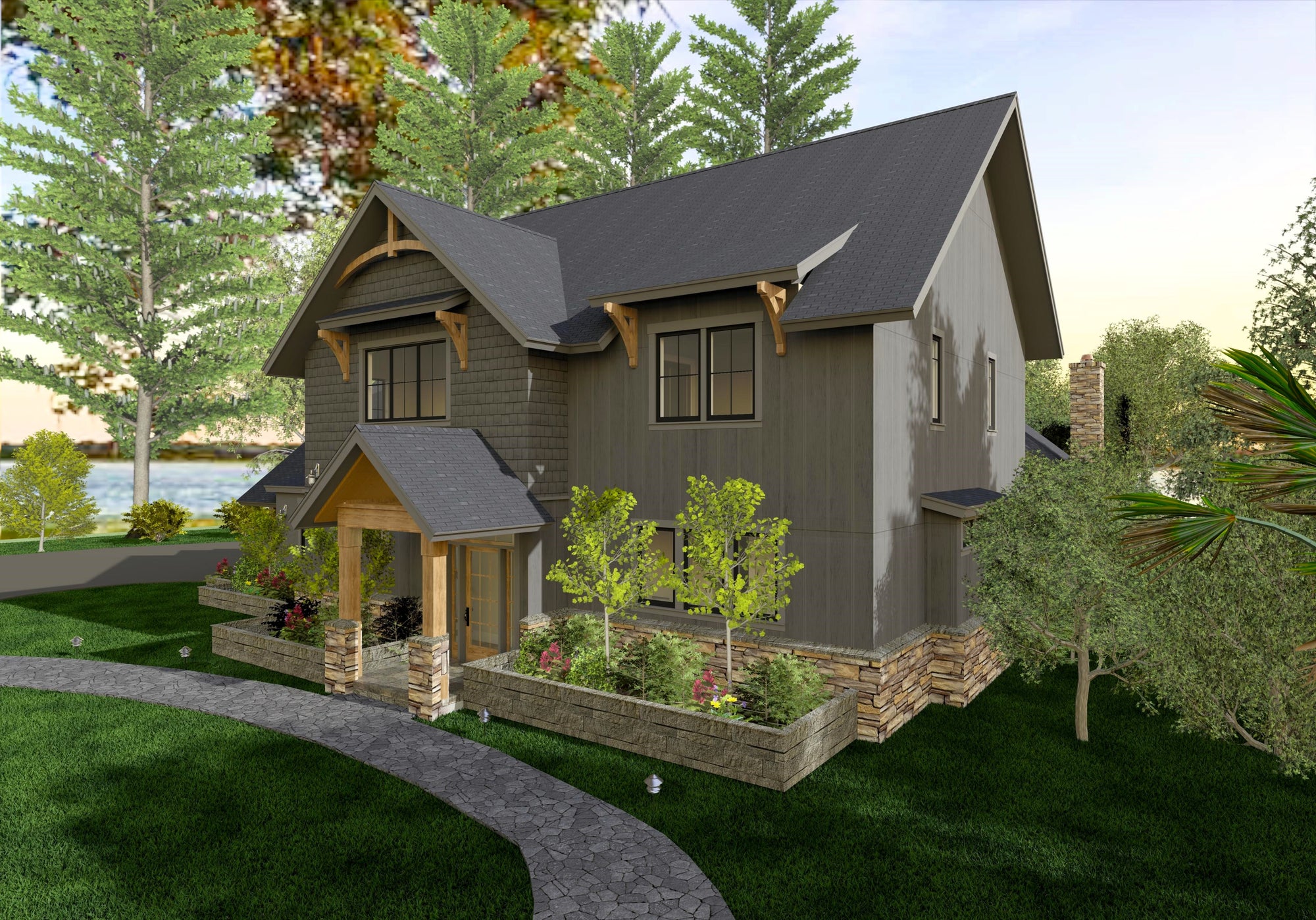

Clean Front Facade: An attached, 616 sq. ft. side-entry garage keeps the front architectural styling unobstructed.
- Footprint: 61’ 8” Width x 69’ 4” Depth
- Max Ridge Height: 32’ 9”
- Foundation: Flexible Slab or Crawlspace
- Framing: 2x6 Exterior Walls (Superior insulation)
- Ceilings: 9’ First Floor | 9’ Second Floor
- Garage: Attached 2-Car Side Entry (616 sq. ft.)
- Roof Details: 10 on 12 Pitch | Truss Framing
Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. Baileys Bay maximizes every square inch of its nearly 3,000 sq. ft., delivering a home that feels both grand and intimately livable—whether it’s your forever home or your favorite coastal escape.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue and studies in interior architecture.
With 16+ years of custom home design—including a decade in custom construction in Charleston, SC—Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes:
- Cover sheet with general notes
- Foundation Plan
- Floor Plans with Dimensions
- Exterior Elevations
- Cross Section
- Door & Window Schedules
- Roof plan
- Electrical Plans
- Cabinetry Elevations (most plans- please inquire to confirm)
What's Not Included:
- Architectural or Engineering Stamp - handled locally if required
- Site Plan - handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
- Energy calculations - handled locally when required
Purchase of Chief Architect plan:
- Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
- All materials and textures related to plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse Add-On:
- A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
