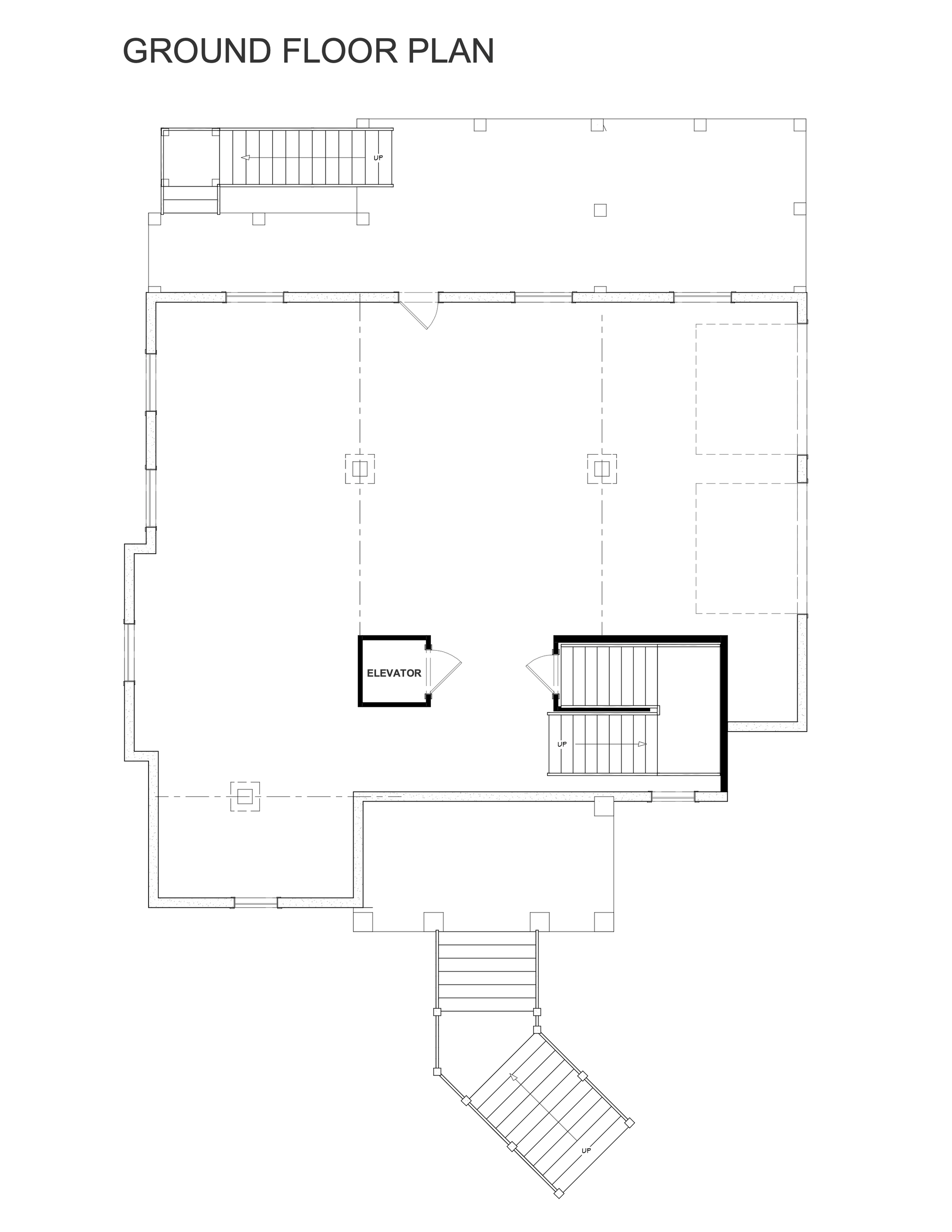

Ground floor plan of The Chestnut, showing the open drive-under garage on piers, the elevator beside the enclosed stair, and the exterior stairs up to the main floor.
Front exterior view of The Chestnut, a 2,855 sq ft elevated Low Country coastal house plan in gray shingle and lap siding, with a curved timber bracket in the front gable, a red front door under a covered entry porch and a stair up from the drive-under level.
First floor plan of The Chestnut, showing the 24-foot living room between the dining room and the master bedroom, the kitchen with its island and pantry, the master walk-in closet and bath, the laundry, the elevator beside the entry, and the open, covered and screened porches across the back.
Second floor plan of The Chestnut, showing Bedroom 2, Bedroom 3 and Bedroom 4 each with a private bath, a walk-in closet off Bedroom 4, a storage closet, a loft at the top of the stair, and the elevator.
Rear exterior view of The Chestnut, showing the covered porch running the width of the house with cable railings, the chimney above, and the open parking at ground level.
Left side view of The Chestnut, showing the gable end with its curved timber bracket, the shingled upper floor over lap siding and the louvered drive-under level.
Right side view of The Chestnut, showing the depth of the house, the porch along the rear and the two garage doors under the main floor.
Kitchen in The Chestnut, with a coffered ceiling of wood beams, gray-blue cabinets, a wood range hood, a white island seating three and the glass doors to the porch beyond.
Living room in The Chestnut, with a beamed ceiling and ceiling fan, a shiplap fireplace wall with built-in shelving beside it, and bi-fold glass doors opening the room to the full width of the screened porch.
Ground floor plan of The Chestnut, showing the open drive-under garage on piers, the elevator beside the enclosed stair, and the exterior stairs up to the main floor.

The Chestnut

Low Country Coastal | Elevated Pier/Piling Foundation

2855 Sq Ft | 4 Bed | 4.5 Bath | 2-Story

$1,752.95 Save $92.05

430+ Plans Sold · Lowest Price Guaranteed.

Plans and support, directly from the designer. Price match policy →

Licensed for one build at your build address.

Plan Set PDF Files
Foundation Options Pier
A right-reading mirror image of this plan: the entire layout flipped, with all text and dimensions still readable. Added to your cart together with the plan set.
Adding to Cart Added to Cart
OR
📋 GET STUDY SET • $75
PDF Study Set of floor plans & elevations for budgeting. $75 credited toward the full plan, valid 12 months. FAQ →
EXPLORE OUR BUILT HOUSE PLANS →
LOOKING FOR A COST-TO-BUILD CALCULATOR? →

Would you like to customize this plan? Request a free modification quote.

Modify This Plan

The Chestnut House Plan

4-Bedroom Elevated Low Country House Plan

2,855 SQ. FT. | 4 BED | 4.5 BATH | 2-STORY | 2-CAR DRIVE-UNDER

The Chestnut is a Low Country house drawn to be lived in year round or kept for the summers. The living space is one open room, and a run of bi-fold glass doors folds back so the room and the porch behind it become one; part of the porch is screened, part is open.

The primary suite is on the main floor, with its own bath and a walk-in closet. Upstairs there are three good-sized bedrooms, for family, guests or an office, and an elevator connects every level. Underneath, a 1,496 square foot side-entry garage keeps the cars and the gear out of sight and the front of the house clean.

Bi-fold doors to the porch: the main living space opens fully onto a porch that is partly screened and partly open, so the room grows on a good evening.

A primary suite on the main floor: its own bath and a walk-in closet, with no stairs between the bedroom and the kitchen.

Three bedrooms upstairs: sizable rooms for family or guests, or one of them as an office with a door.

An elevator to every level: built into the plan, so the house works for grandparents visiting and for you staying.

A garage under the house: 1,496 square feet, side entry, so the driveway and the cars stay off the front of the house.

  • Footprint: 47’ 0” Width x 56’ 0” Depth
  • Max Ridge Height: 38’ 0”
  • Foundation: Pier / Piling
  • Framing: 2x6 Exterior Walls | Truss Roof Framing
  • Ceilings: 10’ First Floor | 9’ Second Floor
  • Garage: Drive-Under 2-Car Side Entry (1,496 sq. ft.)
  • Roof Details: 10 on 12 Pitch | Truss Framing

The Chestnut is drawn to handle a house full of weekend guests and a quiet morning with coffee on the porch with the same rooms, which is what a coastal house is for.

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Computer Graphics Technology from Purdue University and studies in interior architecture.

With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.

Purchase of PDF Set includes

  • Cover sheet with general notes
  • Foundation plan
  • Floor plans with dimensions
  • Exterior elevations
  • Cross section
  • Door & window schedules
  • Roof plan
  • Electrical plans
  • Cabinetry elevations (most plans; please inquire to confirm)

What's not included

  • Architectural or engineering stamp: handled locally if required
  • Site plan: handled locally when required
  • Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
  • Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
  • Energy calculations: handled locally when required

Purchase of Chief Architect plan

  • Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
  • All materials and textures related to the plan for 3D viewing
  • PDF plan set included with purchase

Readable Reverse add-on

  • A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable

What foundation does The Chestnut come with?

The Chestnut is drawn on a pier / piling foundation. It is an elevated plan, with the living space raised above open space or parking, drawn for flood zone and coastal lots. On this page it is offered as pier or piling, chosen before you buy. A local engineer sizes the foundation for your soil and wind zone.

How tall is The Chestnut and how much ground does it cover?

The maximum ridge height is 38' 0". The footprint is 47' 0" x 56' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 2,855 square feet on 2 stories.

What comes in the plan set for The Chestnut, and what do I still need locally?

A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.

Can I look at The Chestnut in detail before buying the full set?

Yes. A $75 study set of The Chestnut includes dimensioned floor plans for every level, all four elevations, door and window schedules and a specification sheet, enough to hand a builder for a budget number and to check the footprint against your lot. It is not licensed for construction. The $75 credits in full toward the The Chestnut construction set for twelve months.
