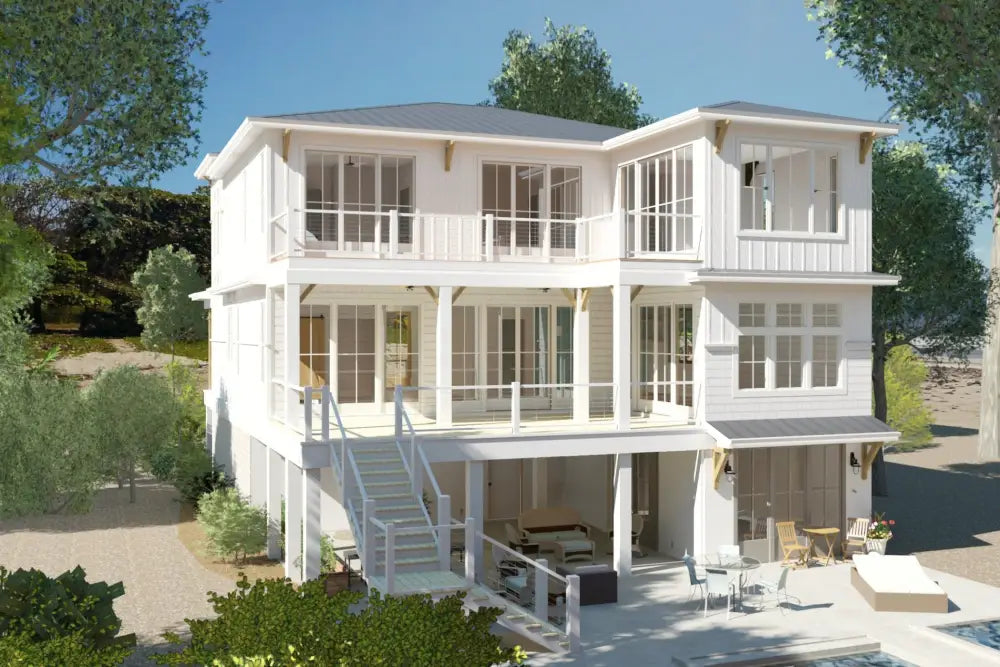

Haddie's Hideaway ASMU
Reverse-Living Low Country Craftsman | Elevated Pier/Piling Foundation
3121 Sq Ft | 4 Bed | 4.5 Bath | 2-Story
430+ Plans Sold · Lowest Price Guaranteed.
Buy direct & save 5% vs. marketplaces. Price match policy →
Licensed for one build at your build address.
Would you like to customize this plan? Request a free modification quote.
Modify This PlanHaddie's Hideaway ASMU House Plan
4-Bedroom All-Suites Coastal Plan, Primary Suite Upstairs
3,121 SQ. FT. | 4 BED | 4.5 BATH | 2-STORY | 2-CAR DRIVE-UNDER GARAGE
Haddie's Hideaway ASMU is the all-suites Haddie's with the primary suite moved upstairs, for the owner who wants the top floor, the view and the quiet to themselves. Every one of the four bedrooms has its own bath, which is what makes the plan work for a big family, a rental or a house with guests who stay a while.
The first floor is the living floor: an open great room that steps out onto a partly covered deck, and an island kitchen with a pantry a few steps away. At ground level an elevator, a two-car garage and a storage room take care of the practical side, and the laundry is upstairs on the bedroom floor, where the clothes are.
The primary suite on the top floor: above the living floor, with the best view in the house and nothing but the other suites for neighbors.
Every bedroom a suite: four bedrooms, four private baths, no sharing.
A great room that opens to the deck: the first-floor living space runs out onto a deck that is part covered and part open, so there is shade and sun in the same evening.
An island kitchen with a pantry: a central island for cooking and company, with a pantry close by to keep the counters clear.
An elevator, storage and an upstairs laundry: the elevator starts at garage level and serves every floor, a storage room beside it takes the beach gear and equipment, and the laundry is upstairs on the bedroom floor so nothing gets carried up and down.
- Footprint: 40' 0" Width x 56' 0" Depth
- Max Ridge Height: 36' 9"
- Foundation: Pier | Optional Piling or Walkout Basement (+$350)
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 9' Lower Level | 9' First Floor | 9' Second Floor
- Garage: Attached Drive-Under, 975 sq. ft., 2 Cars, Front Entry
- Roof Details: 4 on 12 Primary / 3 on 12 Secondary Pitch | Truss Framing
Haddie's Hideaway ASMU takes the all-suites plan one step further and lifts the primary suite to the top floor, where the light, the view and the privacy are, while the living floor below stays open and connected to the outdoors.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions
- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does Haddie's Hideaway ASMU come with?
Haddie's Hideaway ASMU is drawn on a pier / piling foundation. It is an elevated plan, with the living space raised above open space or parking, drawn for flood zone and coastal lots. On this page it is offered as pier, walkout basement (+$350) or piling (+$350), chosen before you buy. A local engineer sizes the foundation for your soil and wind zone.
How tall is Haddie's Hideaway ASMU and how much ground does it cover?
The maximum ridge height is 36' 9". The footprint is 40' 0" x 56' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 3,121 square feet on 2 stories.
What comes in the plan set for Haddie's Hideaway ASMU, and what do I still need locally?
A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
Can I look at Haddie's Hideaway ASMU in detail before buying the full set?
Yes. A $75 study set of Haddie's Hideaway ASMU includes dimensioned floor plans for every level, all four elevations, door and window schedules and a specification sheet, enough to hand a builder for a budget number and to check the footprint against your lot. It is not licensed for construction. The $75 credits in full toward the Haddie's Hideaway ASMU construction set for twelve months.
