The Molly

Coastal Estate | Elevated Pier/Piling Foundation

3492 Sq Ft | 5 Bed | 4.5 Bath | 2-Story

$1,614.35 Sale • Save $330.65
Plan Set PDF Files ($1945)

Buy it with

Adding to Cart Added to Cart

CAD files not modifiable and are strictly for use by licensed structural engineers. Issued in .dwg format, they are not native AutoCAD files and are not for purposes of altering the original design.

Would you like to customize this plan? Request a free modification quote.

Modify This Plan

The Molly House Plan

5-Bedroom Coastal House Plan with Indoor & Outdoor Fireplaces, Elevator & Chef’s Pantry

3,492 SQ. FT. | 5 BED | 4.5–5.5 BATH | 2-STORY | 2–3 CAR DRIVE-UNDER GARAGE

The Molly is a stunning 3,492 sq. ft. coastal house plan that brings together the best of luxury living and effortless entertaining. With indoor and outdoor fireplaces, a chef’s walk-in pantry, a built-in elevator, and soaring 10-foot first-floor ceilings, this is a home designed to impress — and to live in beautifully every single day.

The primary bedroom features direct porch access and a 4-fixture bath, while four additional bedrooms and up to 5.5 baths accommodate large families and guests with ease. A 2-car drive-under garage with an optional third bay and a massive 2,452 sq. ft. garage footprint round out one of the most complete plans in our catalog.

Indoor & Outdoor Fireplaces: Two fireplaces — one inside, one out — create year-round warmth and ambiance for both intimate evenings and large gatherings.

Chef’s Walk-In Pantry: A dedicated walk-in pantry keeps the open kitchen organized and stocked for serious cooking and high-volume entertaining.

Built-In Elevator: A full elevator provides effortless access to all levels — ideal for multi-generational families or long-term aging-in-place living.

Primary Suite with Porch Access & 4-Fixture Bath: The owner’s retreat opens directly to a private porch and features a beautifully appointed 4-fixture bathroom.

Open Floor Plan with 10-Foot Ceilings: Soaring first-floor ceilings and an open layout create a grand, light-filled living experience throughout the main level.

2–3 Car Drive-Under Garage: A massive 2,452 sq. ft. garage with 2 standard bays and an optional third provides exceptional storage for vehicles, boats, and coastal gear.

  • Footprint: 54’ 0” Width x 75’ 0” Depth
  • Max Ridge Height: 39’ 11”
  • Foundation: Pier | Optional Walkout or Piling (inquire)
  • Framing: 2x6 Exterior Walls | Stick Framing
  • Ceilings: 9’ Lower Level | 10’ First Floor | 9’ Second Floor
  • Garage: Drive-Under Detached, 2,452 sq. ft., 2–3 Cars, Side Entry
  • Roof Details: 12 on 12 Primary / 3 on 12 Secondary Pitch | Stick Framing

Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Molly is designed for those who want it all — the grand scale, the luxury finishes, the outdoor living, and the practical details — in a coastal home that performs as beautifully as it looks.

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.

With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.

Purchase of PDF Set includes:
  • Cover sheet with general notes

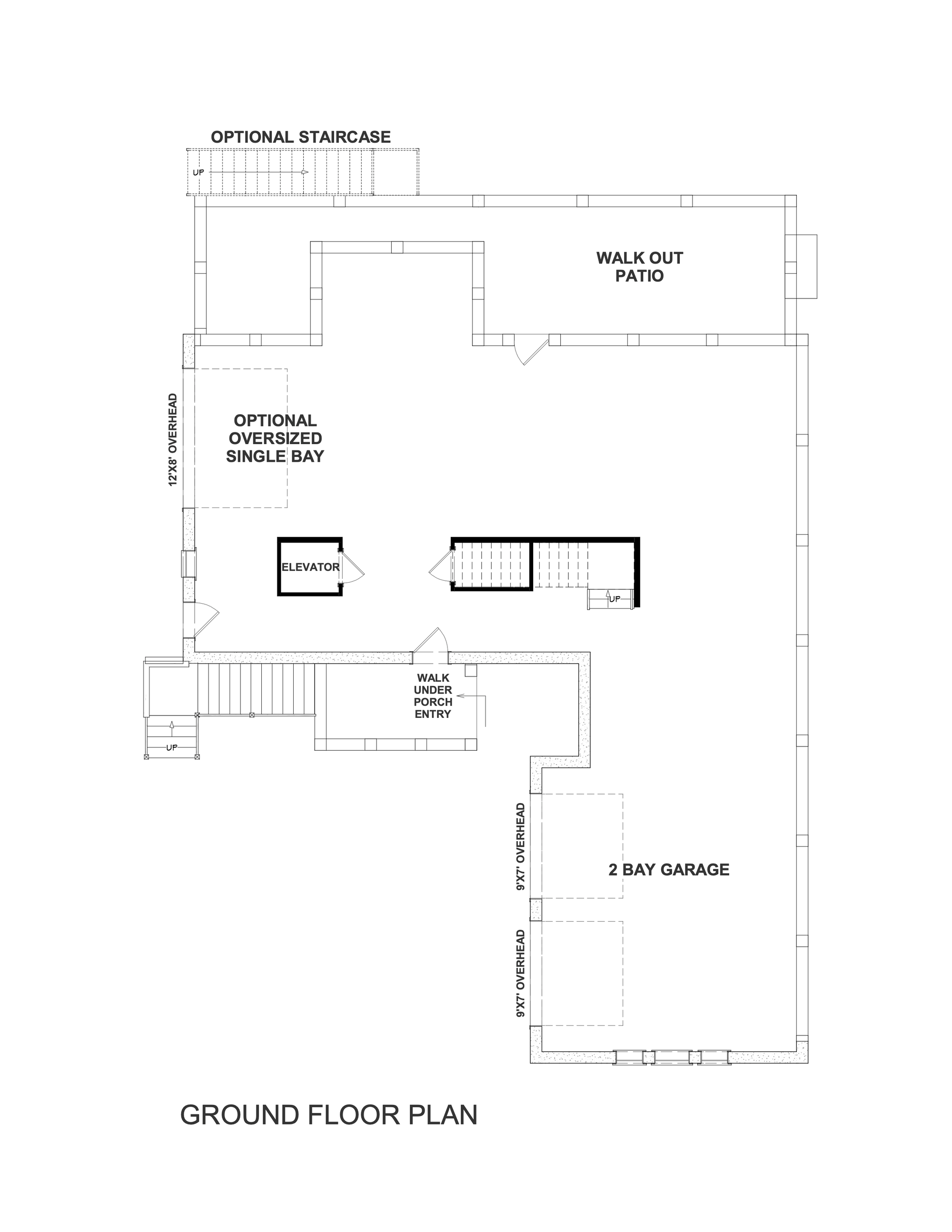

  • Foundation Plan

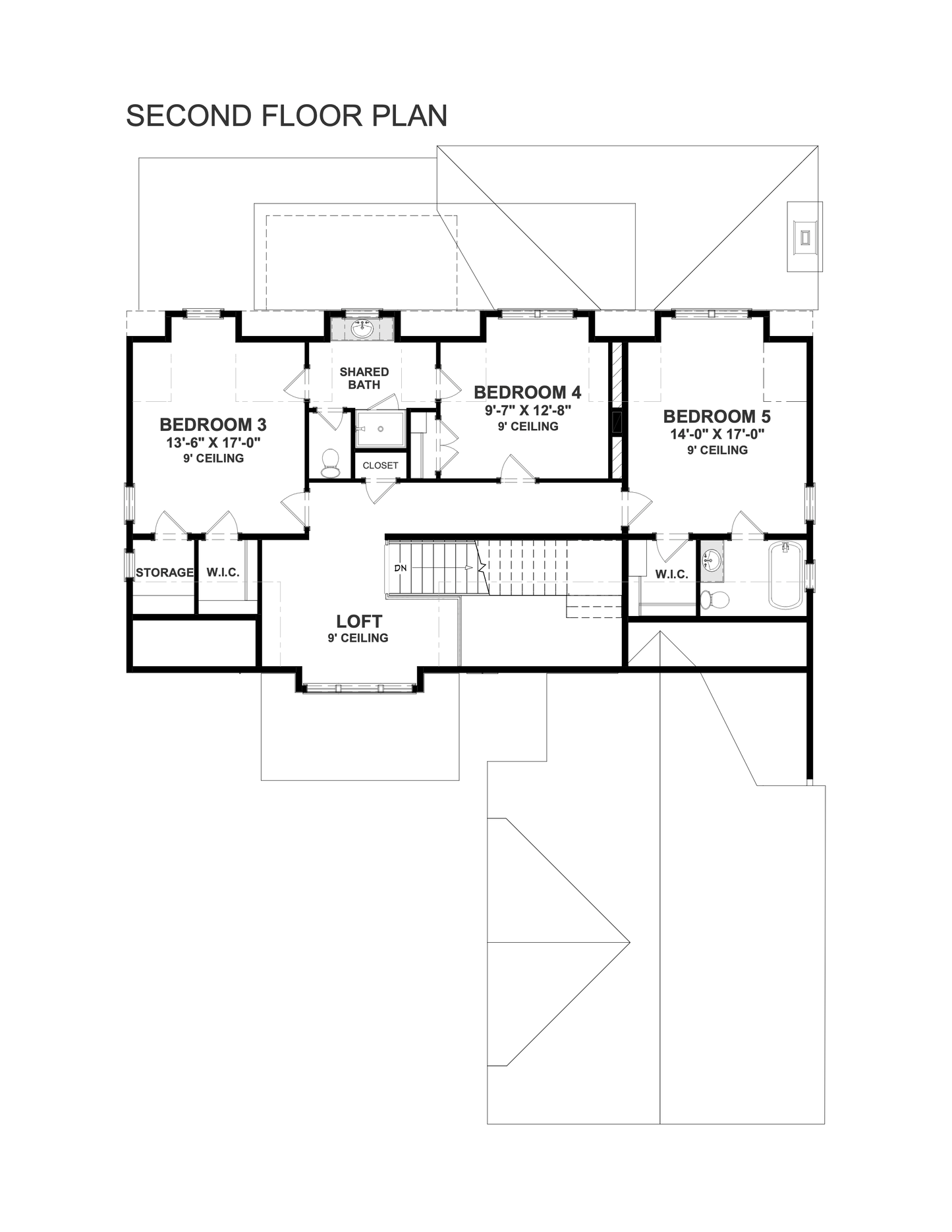

  • Floor Plans with Dimensions

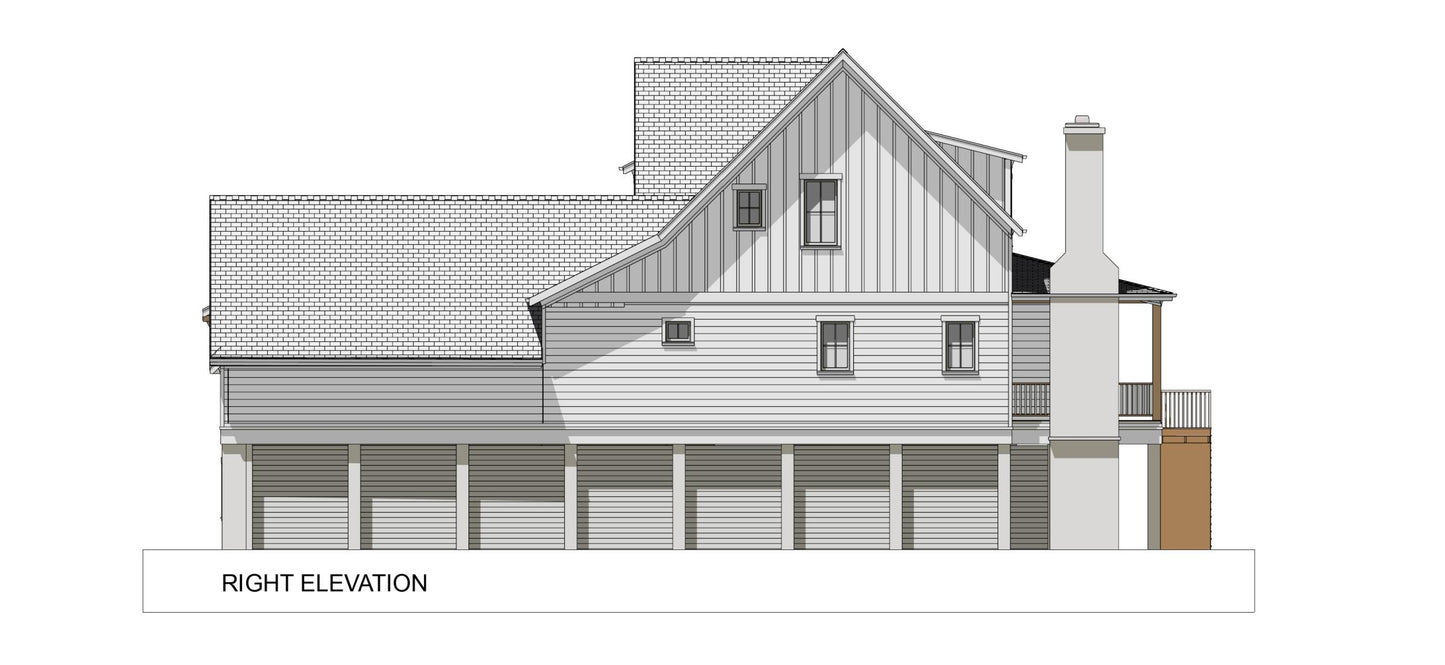

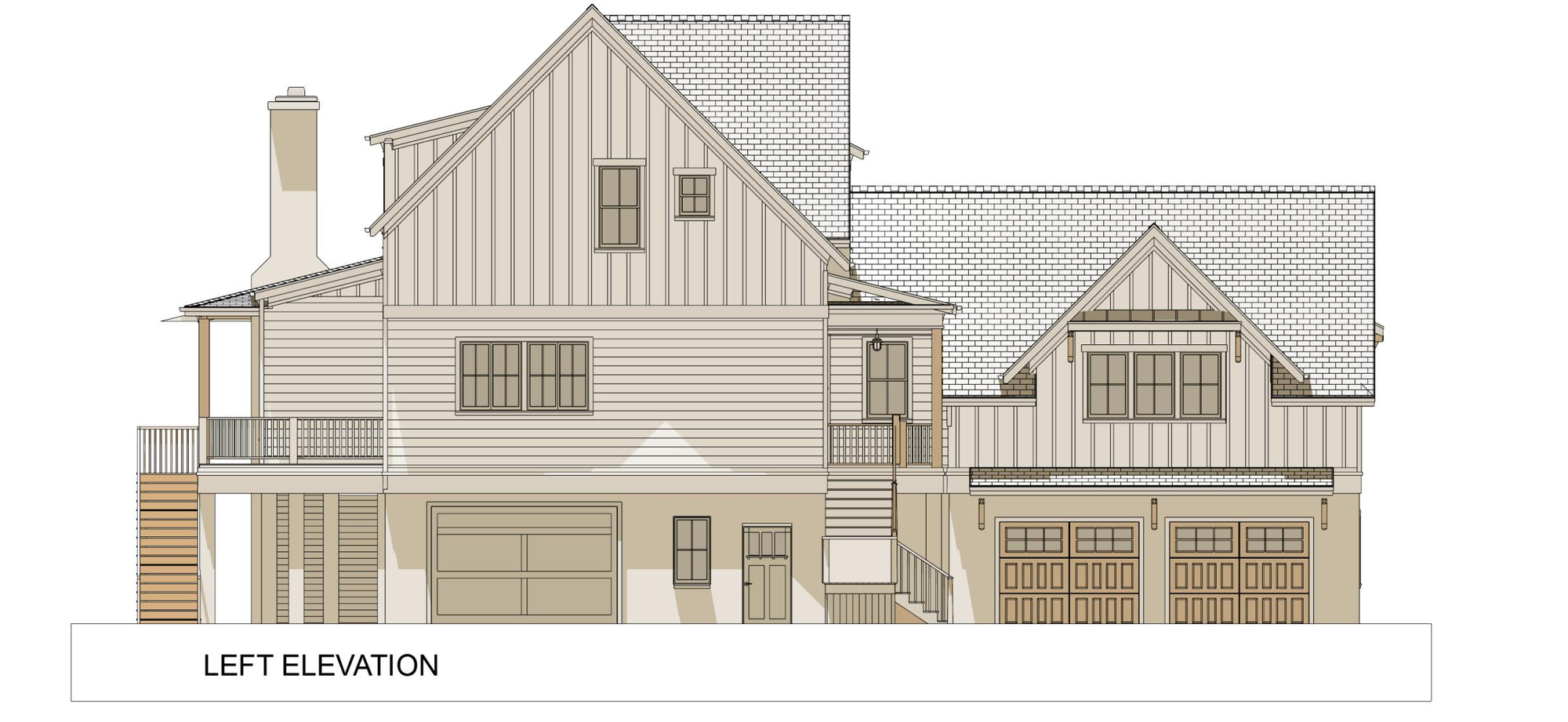

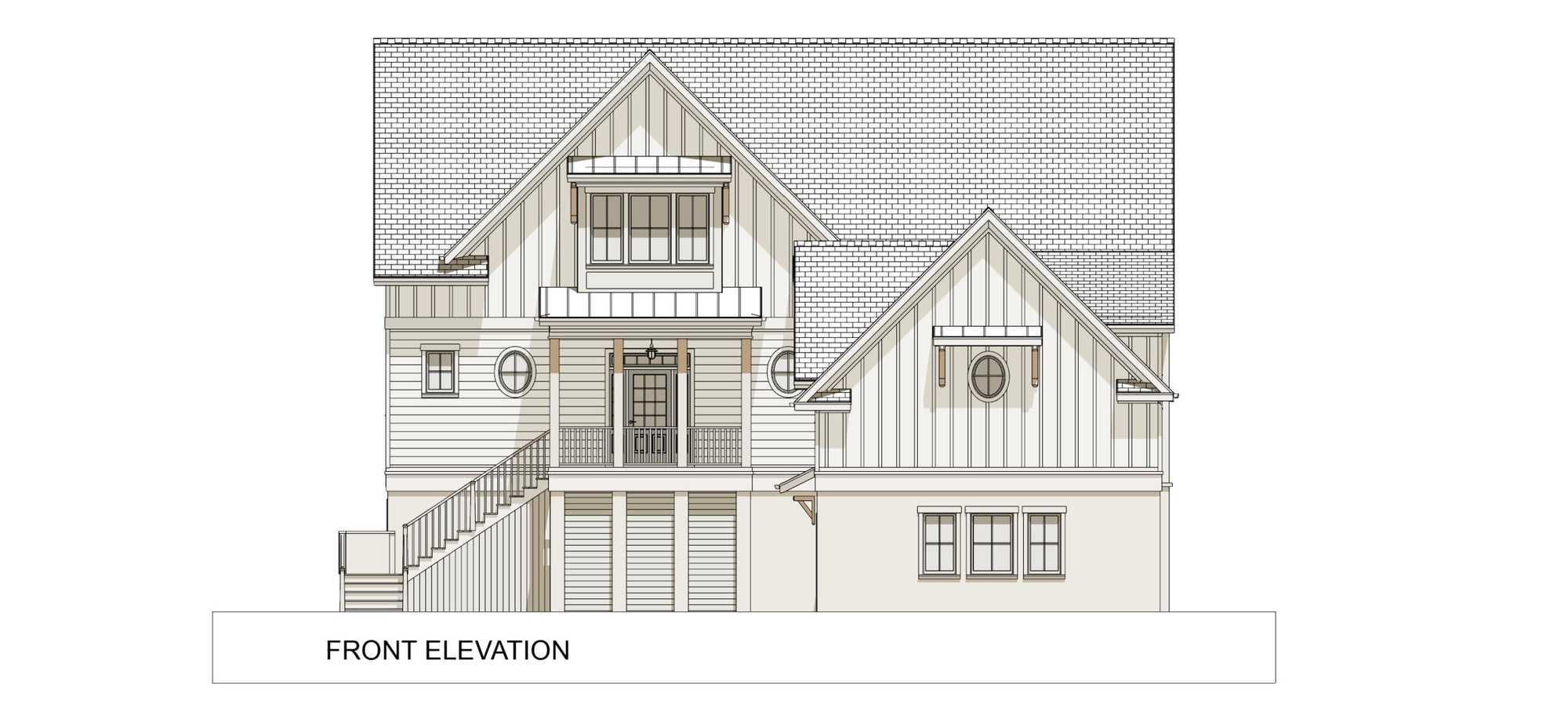

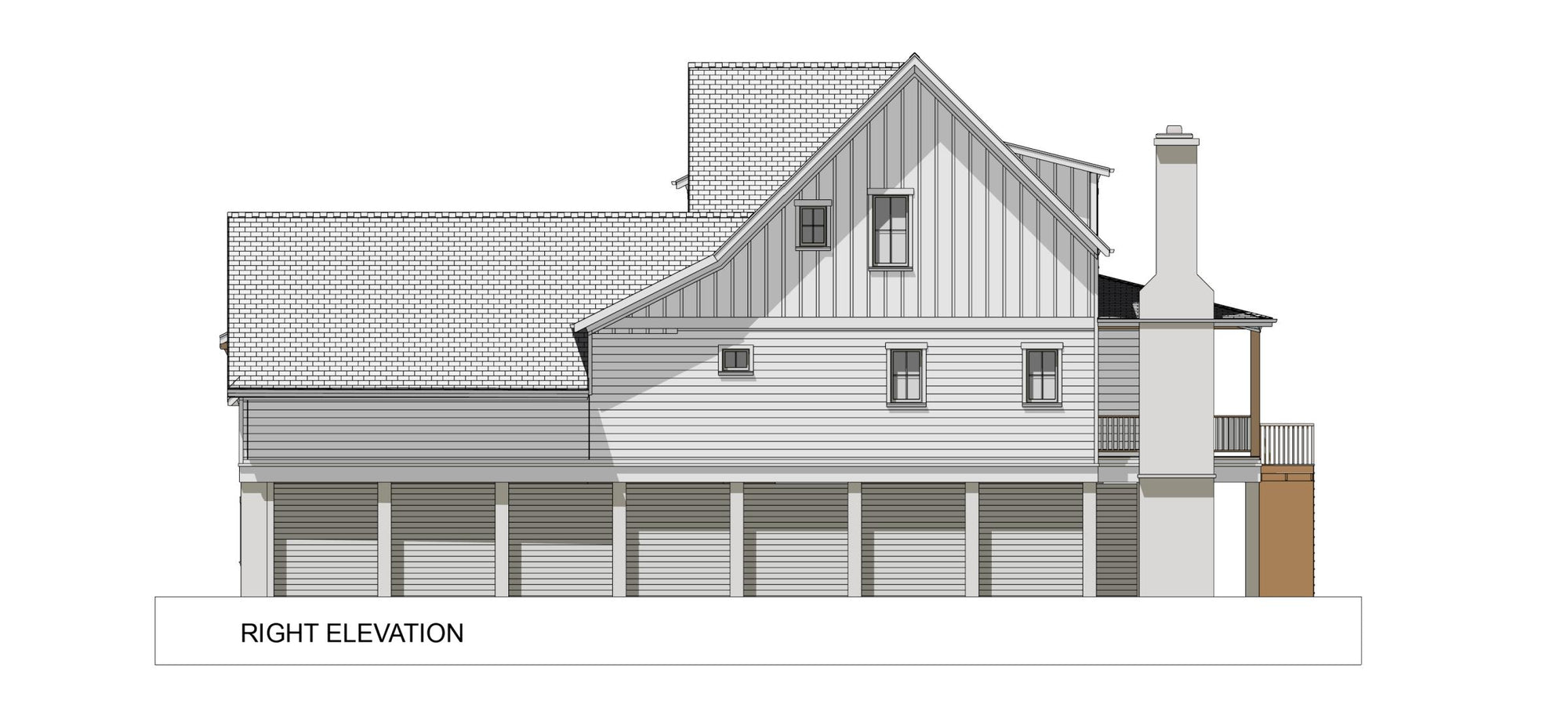

  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations (most plans- please inquire to confirm)
What's Not Included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Purchase of Chief Architect plan:
  • Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
  • All materials and textures related to plan for 3D viewing
  • PDF plan set included with purchase
Readable Reverse Add-On:
  • A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
