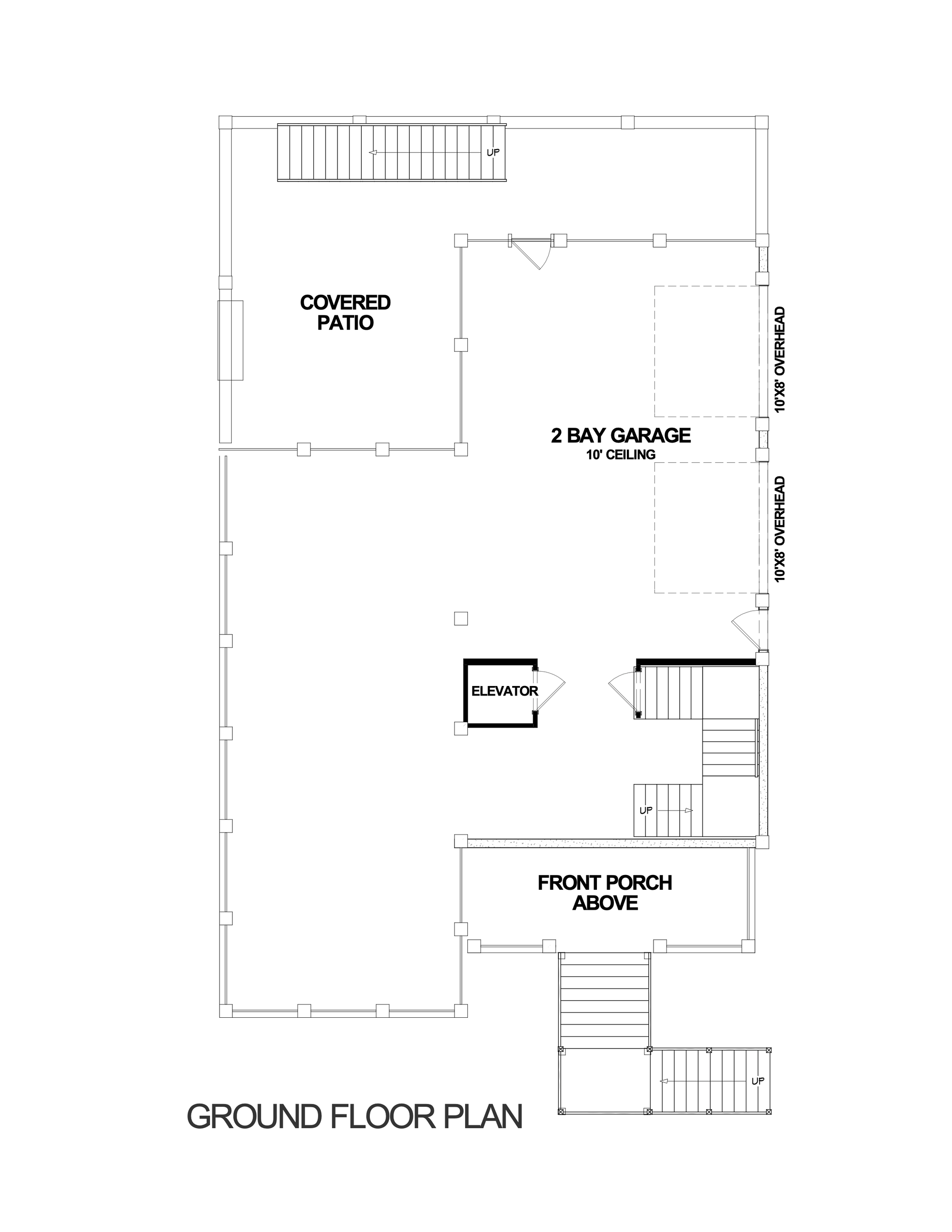

Sandy Dune ground floor plan showing a two bay garage with 10 foot ceiling and two 10 by 8 overhead doors, a covered patio, a labeled elevator, an interior stair, the front porch above, and exterior stairs up to the first floor

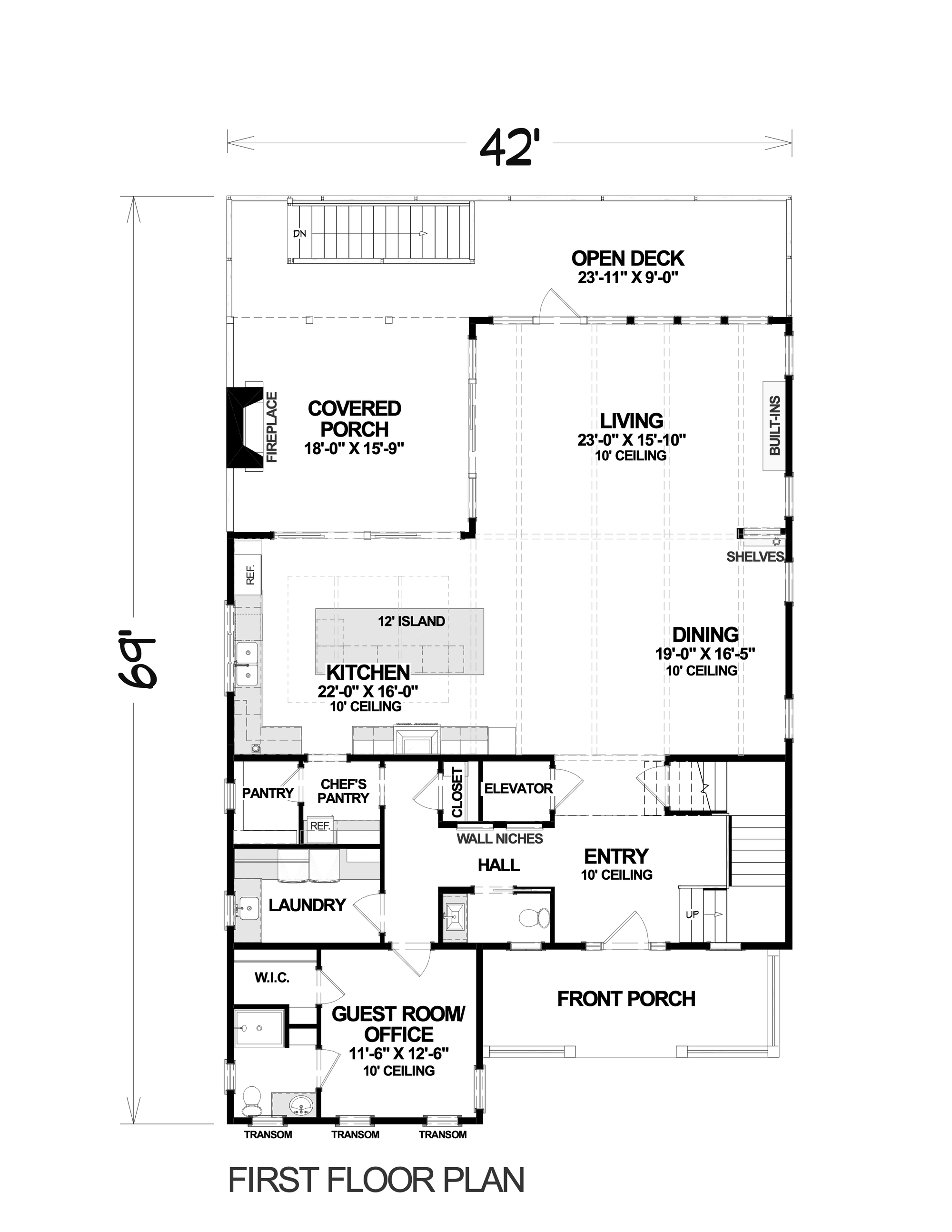

Sandy Dune first floor plan, 42 feet by 69 feet, with a front porch, entry, kitchen 22 feet by 16 feet with a 12 foot island, chef's pantry and second pantry, dining room 19 feet by 16 feet 5 inches, living room 23 feet by 15 feet 10 inches with built-ins, a covered porch with fireplace, open deck, laundry, a guest room or office 11 feet 6 inches by 12 feet 6 inches, and a labeled elevator off the hall

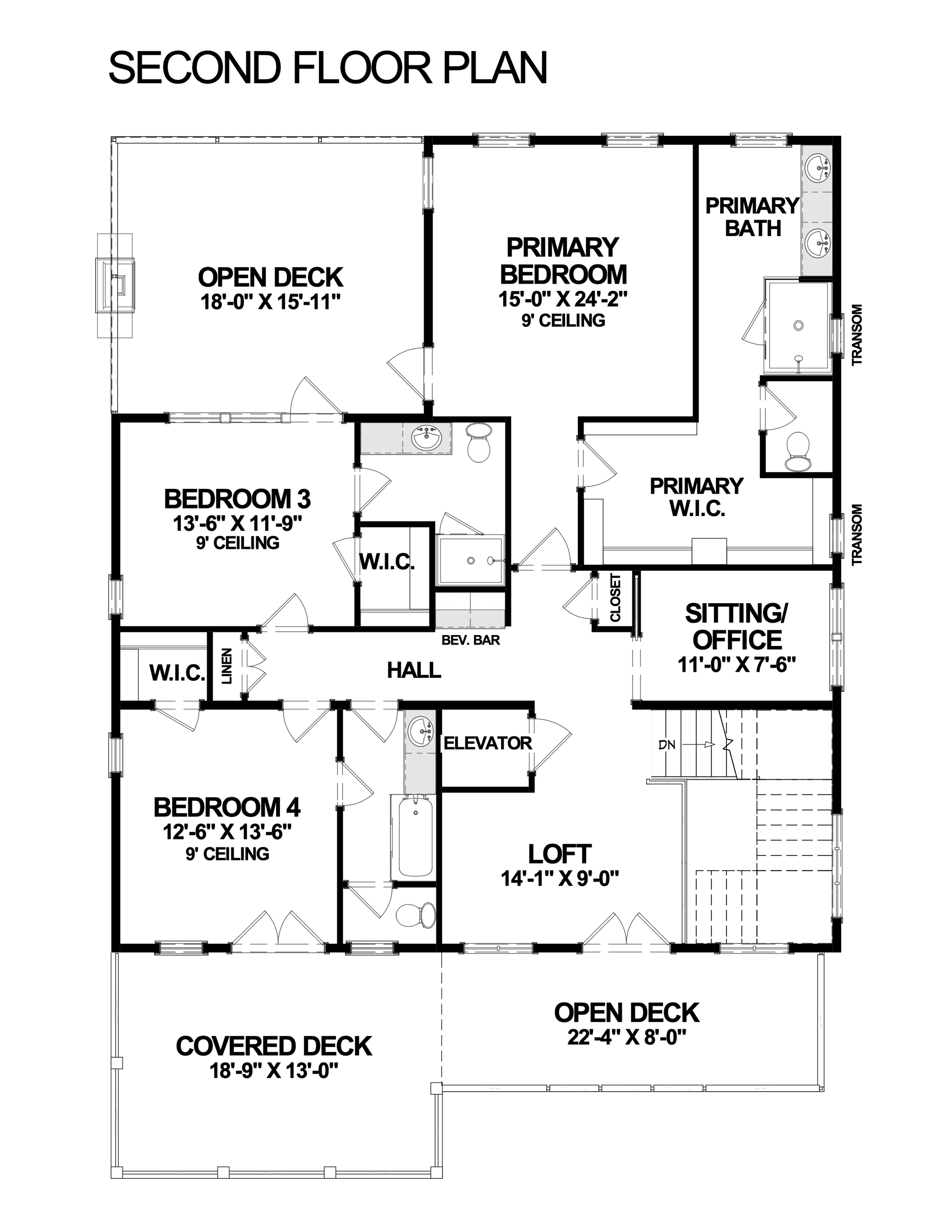

Sandy Dune second floor plan with a primary bedroom 15 feet by 24 feet 2 inches, primary bath and walk-in closet, a sitting room or office, bedroom 3 at 13 feet 6 inches by 11 feet 9 inches, bedroom 4 at 12 feet 6 inches by 13 feet 6 inches, a loft, a beverage bar, two open decks, a covered deck, and the elevator beside the hall
Front view of Sandy Dune in daylight, a cedar shake coastal house raised on piers, with a wide stair up to the covered front porch, two round windows beside the front door, and a covered porch and railed deck on the upper floor
Rear view of Sandy Dune in daylight showing a full width deck with white horizontal rails, a wall of glass doors into the living room, a covered porch with an outdoor fireplace and chimney, an upper deck, and the stair down to the parking level
Left side view of Sandy Dune in daylight showing the cedar shake siding, the white chimney, the columned upper corner porch under a standing seam metal roof, and the enclosed ground level between the piers
Right side view of Sandy Dune in daylight showing two carriage style garage doors and a side door under a metal shed roof with steel brackets, cedar shake siding above, and exterior stairs at each end
Sandy Dune entry with a glazed front door, sidelights and transom, a round porthole window, a tall two story ceiling with a drum chandelier, and the stair rising on the left
Sandy Dune entry stair with wood treads and a cable rail, a round porthole window on the landing wall, and the glazed front door and transom alongside
Sandy Dune stair seen from the hall, with wood treads, cable rail, clerestory windows above, and the beamed living room through the opening on the left
Sandy Dune living room with a coffered wood beam ceiling, a wall of glass doors to the deck, a media wall with cabinets, open bracket shelving, and wide plank floors
Sandy Dune kitchen and open living space with a beamed ceiling, a long island with seating for three, a wood range hood, and glass doors out to the covered porch
Sandy Dune kitchen with a wood range hood, a gas range, pale green cabinets, open shelving, globe pendants, and a long white quartz island with seating
Sandy Dune covered porch seen through tall glass doors from the dining area, with porch seating, a railing, and trees beyond
Sandy Dune living room seen past the dining table, showing the beamed ceiling, the built-in media cabinet and shelves, and windows on two walls
Sandy Dune kitchen seen down the island, with sage green cabinets, a wood hood over the range, glass front cabinets, a beverage refrigerator, open shelves, and seating for five
Sandy Dune upstairs loft with windows on two walls, French doors out to the deck, a wood and cable stair rail at the opening, and pendant lights
Sandy Dune ground floor plan showing a two bay garage with 10 foot ceiling and two 10 by 8 overhead doors, a covered patio, a labeled elevator, an interior stair, the front porch above, and exterior stairs up to the first floor
Sandy Dune first floor plan, 42 feet by 69 feet, with a front porch, entry, kitchen 22 feet by 16 feet with a 12 foot island, chef's pantry and second pantry, dining room 19 feet by 16 feet 5 inches, living room 23 feet by 15 feet 10 inches with built-ins, a covered porch with fireplace, open deck, laundry, a guest room or office 11 feet 6 inches by 12 feet 6 inches, and a labeled elevator off the hall
Sandy Dune second floor plan with a primary bedroom 15 feet by 24 feet 2 inches, primary bath and walk-in closet, a sitting room or office, bedroom 3 at 13 feet 6 inches by 11 feet 9 inches, bedroom 4 at 12 feet 6 inches by 13 feet 6 inches, a loft, a beverage bar, two open decks, a covered deck, and the elevator beside the hall

Sandy Dune

Shingle Style CoastalElevated Pier/Piling Foundation

Heated sq ft
3,464
Bedrooms
3
Baths
4.5
Stories
2
  • Footprint42' × 69'
  • Ground levelParking and storage
  • Lot needed57 × 114 ft Check your lot
$1,847.95 Save $97.05

Birthday sale20% off every plan through Nov 2.

  • 430+ plans sold
  • Sold direct by the designer
Pricing it with a builder? The $75 study set is credited in full toward this plan.
Plan Set PDF Files
Foundation Options Pier
A right-reading mirror image of this plan: the entire layout flipped, with all text and dimensions still readable. Added to your cart together with the plan set.
Adding to Cart Added to Cart
EXPLORE OUR BUILT HOUSE PLANS →
LOOKING FOR A COST-TO-BUILD CALCULATOR? →

Sandy Dune House Plan

Elevated Shingle-Style Coastal House Plan

3,464 SQ. FT. | 3–4 BED | 4.5 BATH | 2-STORY | 2-CAR DRIVE-UNDER GARAGE

Sandy Dune is a shingle-style coastal house on pilings, made for big gatherings and quiet evenings in the same rooms. Decks and covered porches open off the living floor, a fireplace anchors the main level, and the kitchen backs onto a chef's pantry, a walk-in pantry and the laundry room, grouped together so the working end of the house stays in one place.

Upstairs, three bedroom suites and an office give everyone a door to close. The primary suite is up there too, with its own bath and a walk-in closet, well away from the living floor. An elevator connects every level from the two-car garage under the house.

A fireplace on the main level: the open living floor is drawn around it, and it is where everyone ends up on a cool night.

Two pantries: a chef's pantry for prep and a walk-in pantry for stock, side by side with the laundry, so the kitchen itself can stay open and clear.

An elevator between every level: from the garage to the bedroom floor, so the house works for every age in the family.

Decks and covered porches: open deck for the sun and covered porch for the shade, off the rooms you use most.

Three suites and an office upstairs: every bedroom has its own bath, the primary among them, and the office means work does not take a bedroom.

  • Footprint: 42’ 0” Width x 69’ 0” Depth
  • Max Ridge Height: 38’ 10”
  • Foundation: Pier or Piling | Optional Crawlspace, Slab, CMU or Walkout Basement (+$250 each)
  • Framing: 2x6 Exterior Walls | Stick or Truss Roof Framing
  • Ceilings: 10’ Lower Level | 10’ First Floor | 9’ Second Floor
  • Garage: Attached Drive-Under, 1,933 sq. ft., 2 Cars, Side Entry
  • Roof Details: 4 on 12 Pitch | Stick or Truss Framing

Sandy Dune is built around coastal living: a fireplace that pulls you in, porches that pull you out, and the working parts of the house grouped so they never get in the way.

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Computer Graphics Technology from Purdue University and studies in interior architecture.

With 16+ years of custom home design, including a decade in custom construction in Charleston, SC, Angela specializes in resilient coastal style homes designed for flood and hurricane zones.

Purchase of PDF Set includes

  • Cover sheet with general notes
  • Foundation plan
  • Floor plans with dimensions
  • Exterior elevations
  • Cross section
  • Door & window schedules
  • Roof plan
  • Electrical plans
  • Cabinetry elevations (most plans; please inquire to confirm)

What's not included

  • Architectural or engineering stamp: handled locally if required
  • Site plan: handled locally when required
  • Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
  • Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
  • Energy calculations: handled locally when required

Purchase of Chief Architect plan

  • Plan and layout files (.plan and .layout) formatted for the current version of Chief Architect (X18) or Home Designer 2027
  • All materials and textures related to the plan for 3D viewing
  • PDF plan set included with purchase

Readable Reverse add-on

  • A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable

What foundation does Sandy Dune come with?

Sandy Dune is drawn on a pier or piling foundation. It is an elevated plan, with the living space raised above open space or parking, drawn for flood zone and coastal lots. You can choose pier or piling at no extra charge, or crawlspace, slab, CMU or walkout basement for $250 each, under Foundation Options before you buy. A local engineer sizes the foundation for your soil and wind zone.

How tall is Sandy Dune and how much ground does it cover?

The maximum ridge height is 38' 10". The footprint is 42' 0" x 69' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 3,464 square feet on 2 stories. The ground level is drive-under parking and storage, which is not counted as a story or in the heated area.

Check Sandy Dune against your lot and setbacks →

What comes in the plan set for Sandy Dune, and what do I still need locally?

A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.

How to read a floor plan →

Can I look at Sandy Dune in detail before buying the full set?

Yes. A $75 study set of Sandy Dune includes dimensioned floor plans for every level, all four elevations, door and window schedules and a specification sheet, enough to hand a builder for a budget number and to check the footprint against your lot. It is not licensed for construction. The $75 credits in full toward the Sandy Dune construction set for twelve months.
