The Elsey
Open Living Coastal | Slab on Grade
2735 Sq Ft | 4 Bed | 4.0 Bath | 2-Story
430+ Plans Sold · Lowest Price Guaranteed.
Buy direct & save 5% vs. marketplaces. Price match policy →
Licensed for one build at your build address.
Would you like to customize this plan? Request a free modification quote.
The Elsey House Plan
4-Bedroom Coastal House Plan
2,735 SQ. FT. | 4 BED | 4 BATH | 2-STORY
The Elsey solves a common problem: how to put up guests comfortably without giving up the privacy of the family. A guest suite on the main floor, with its own shower room and vanity room, sits well away from the family bedrooms upstairs.
The rest of the main floor is open living, with a separate office and an optional pass-through window from the kitchen for handing plates out to the porch. Every one of the four bedrooms has its own bath, the laundry is upstairs with the bedrooms, and there is a screened porch and a covered one.
A guest suite on its own: a main-floor bedroom with a separate shower room and vanity room, apart from the family.
An office on the main floor: a workspace with a door, without giving up a bedroom.
Four bedrooms, four baths: every bedroom has a private bathroom.

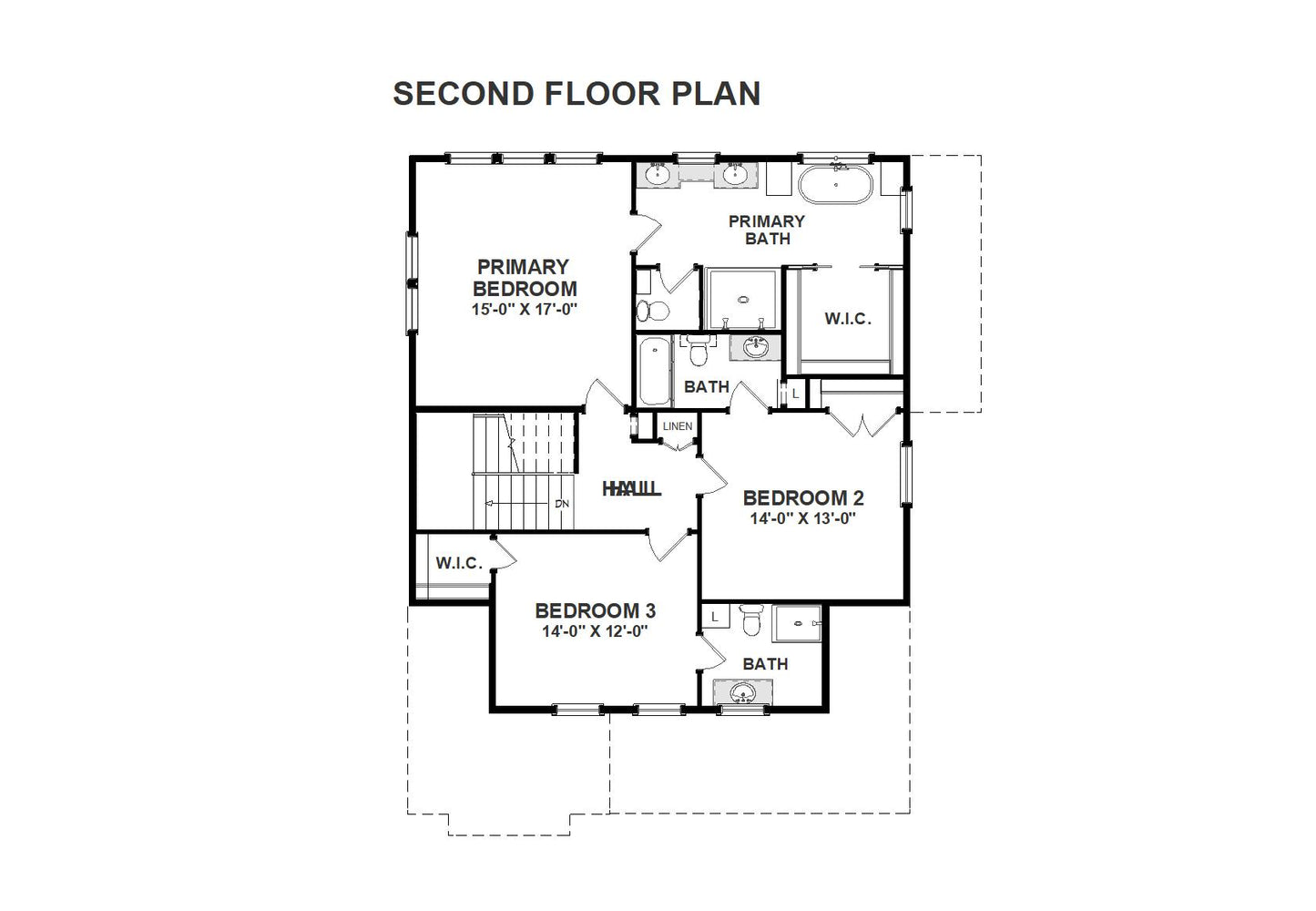

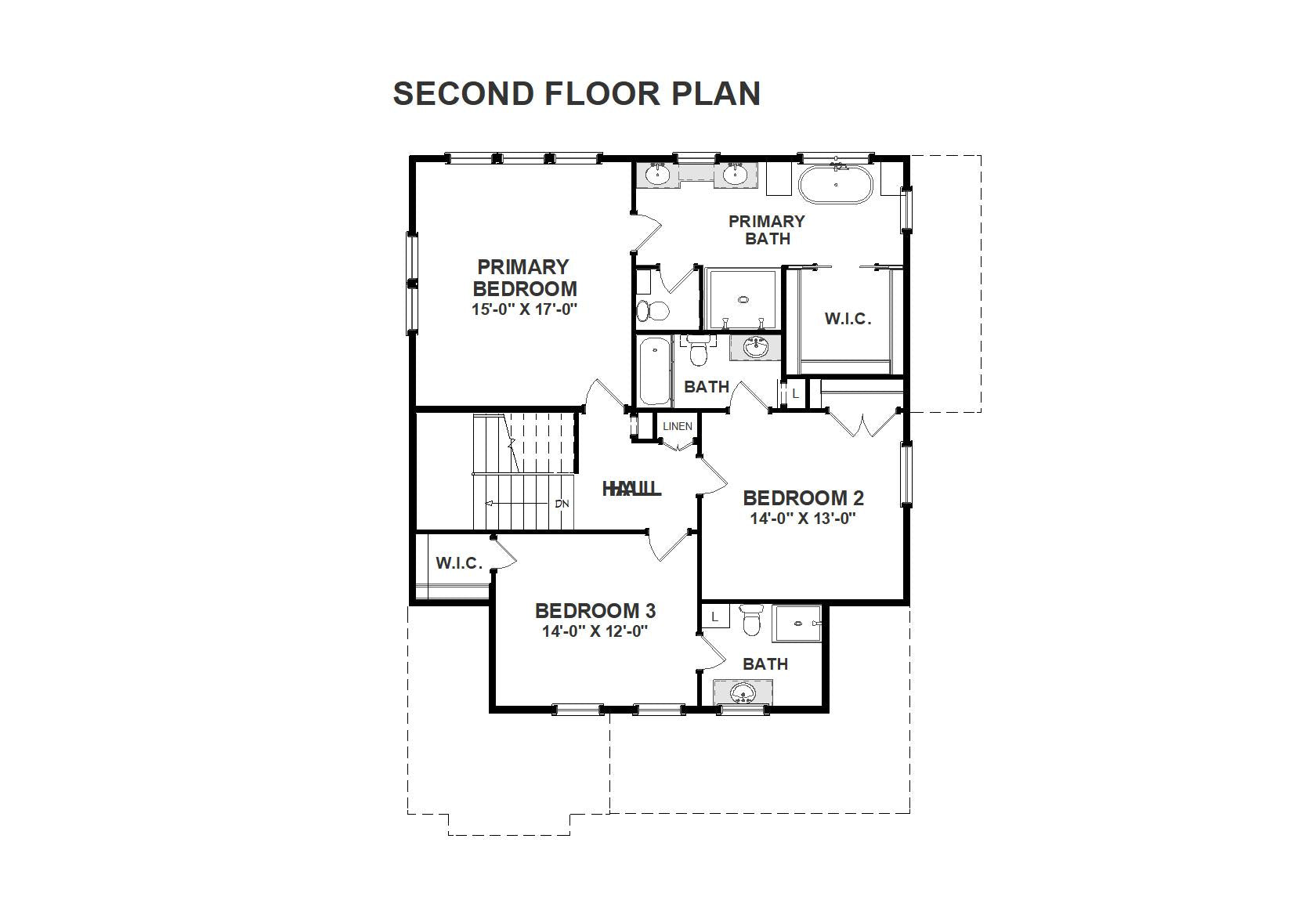

An open primary bath: the upstairs owner's suite has an open bathroom layout and a generous walk-in closet.
Porches and a pass-through: a screened porch, a covered porch, and an optional window over the sink for passing food and drinks outside.
- Footprint: 40’ 0” Width x 49’ 0” Depth
- Max Ridge Height: 32’ 0”
- Ceilings: 9’ First Floor | 9’ Second Floor
- Foundation: Slab
- Framing: 2x6 Exterior Walls | Truss Roof Framing
The Elsey is drawn around the way families actually live: guests comfortable, work contained, and the primary suite left alone.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions
- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does The Elsey come with?
The Elsey is drawn on a slab on grade foundation. A local engineer sizes the foundation for your soil and wind zone.
How tall is The Elsey and how much ground does it cover?
The maximum ridge height is 32' 0". The footprint is 40' 0" x 49' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 2,735 square feet on 2 stories.
What comes in the plan set for The Elsey, and what do I still need locally?
A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
