The Iris

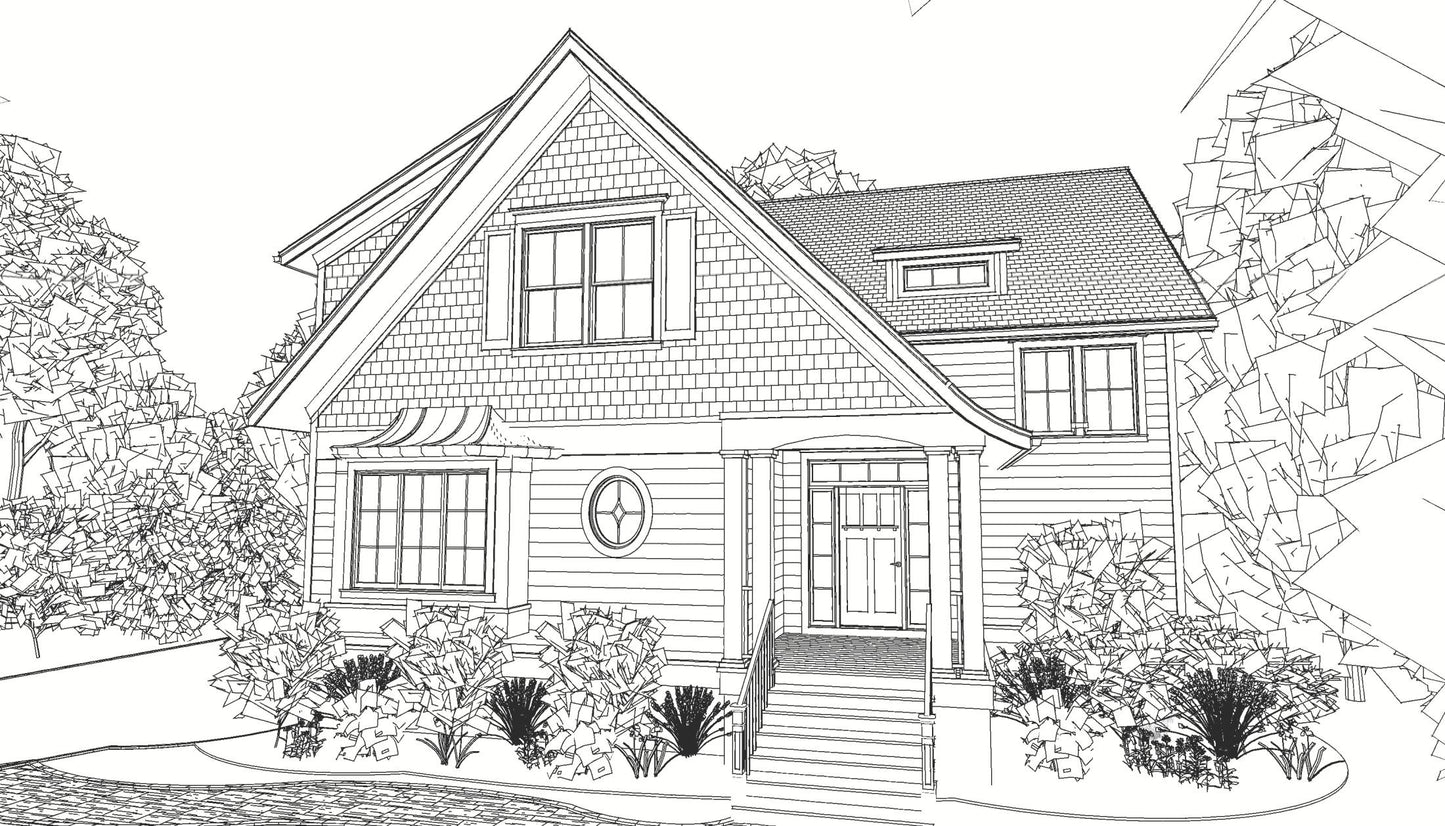

Coastal Craftsman House Plan with Screened Porch
2637 Sq Ft | 3 Bed | 3.5 Bath | 2-Story
CAD files are not modifiable and are strictly for use by licensed structural engineers. Issued in .dwg format, they are not native AutoCAD files and are not for purposes of altering the original design.
Would you like to customize this plan? Request a free modification quote.
The Iris House Plan
Coastal Craftsman
2,637 SQ. FT. | 3–4 BED | 3.5+ BATH | 2-STORY | CRAWL SPACE FOUNDATION

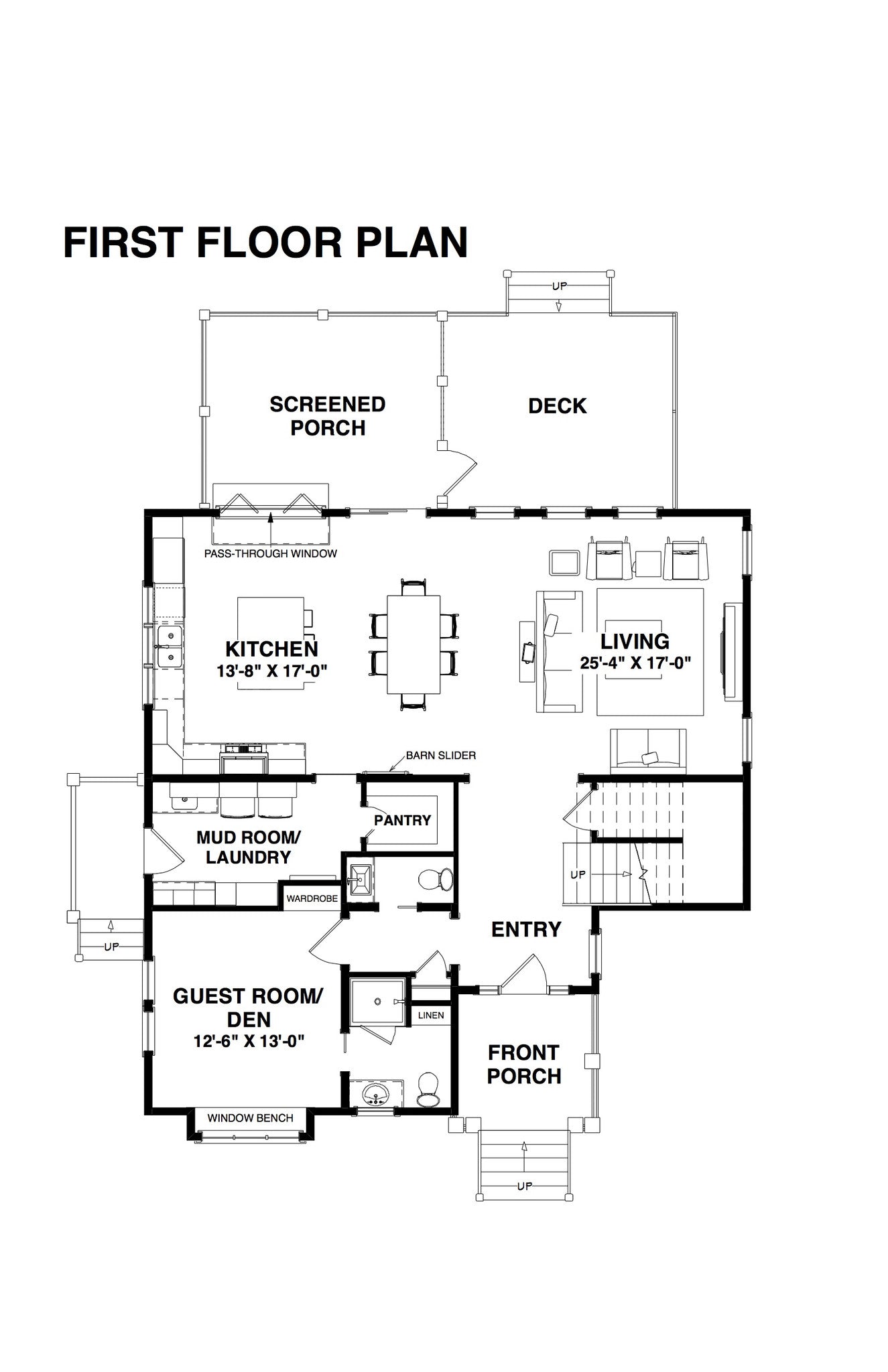

The Iris is an inviting, well-balanced house plan designed for families who love to entertain and need flexible space for everyone. A main-floor guest room with a private full bathroom doubles as a den, office, or playroom — completely adaptable to your needs. The open living and kitchen areas flow naturally, with an optional pass-through bar window between the kitchen and screened porch that’s perfect for entertaining and catching the coastal breeze.

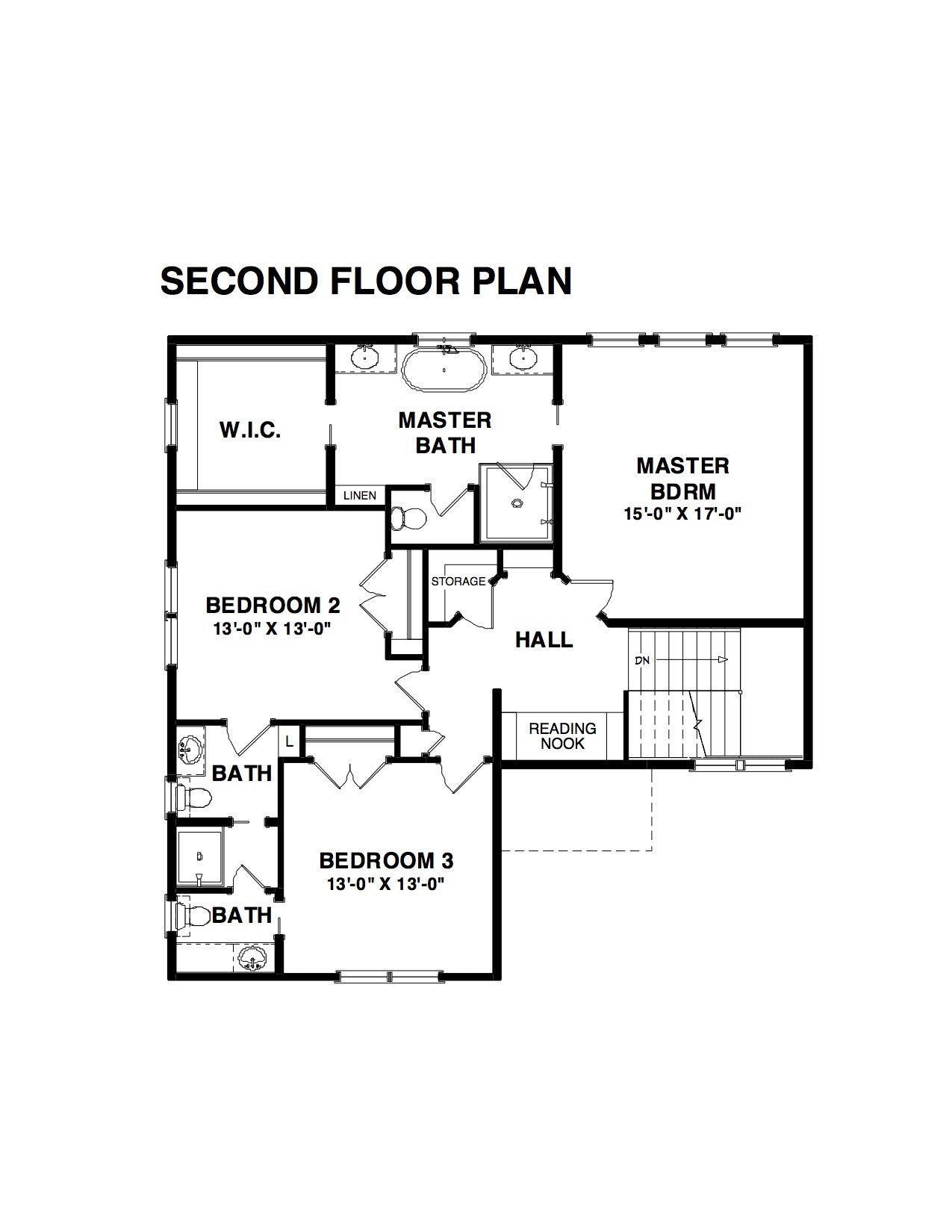

Upstairs, the primary bedroom suite offers a private retreat, while two additional bedrooms share a modified Jack & Jill bathroom — each with their own private commode and vanity for added privacy. A large pantry, ample storage throughout, and a main-floor laundry room keep daily life effortlessly organized.
Optional Kitchen-to-Screened-Porch Bar Window: A pass-through bar window between the kitchen and screened porch creates a seamless entertaining flow — perfect for serving drinks and catching the breeze without leaving the kitchen.
Main-Floor Guest Room with Private Bath: A flexible ground-level room with its own full bathroom serves equally well as a guest suite, home office, den, or playroom.
Modified Jack & Jill Bath with Private Vanities: Two upstairs bedrooms share a Jack & Jill bathroom, each with their own private commode and vanity — more privacy than a standard shared bath.
Second-Floor Primary Suite: The owner’s retreat is privately positioned on the upper level, away from the main-floor living and entertaining spaces.
Large Pantry & Main-Floor Laundry: A generous pantry and conveniently located main-floor laundry keep the home organized and efficient.
- Footprint: 45’ 0” Width x 54’ 0” Depth
- Max Ridge Height: 33’ 4”
- Foundation: Crawl Space
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 10’ First Floor | 9’ Second Floor
- Roof Details: 10 on 12 Pitch | Truss Framing
Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Iris is designed for families who want a home that works for everyone — with flexible main-floor spaces, private upstairs retreats, and entertaining features that make every gathering feel effortless.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes engineered for flood and hurricane zones.
Purchase of PDF Set includes:
- Cover sheet with general notes
- Foundation Plan
- Floor Plans with Dimensions
- Exterior Elevations
- Cross Section
- Door & Window Schedules
- Roof plan
- Electrical Plans
- Cabinetry Elevations (most plans- please inquire to confirm)
What's Not Included:
- Architectural or Engineering Stamp - handled locally if required
- Site Plan - handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
- Energy calculations - handled locally when required
Purchase of Chief Architect plan:
- Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
- All materials and textures related to plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse Add-On:
- A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
