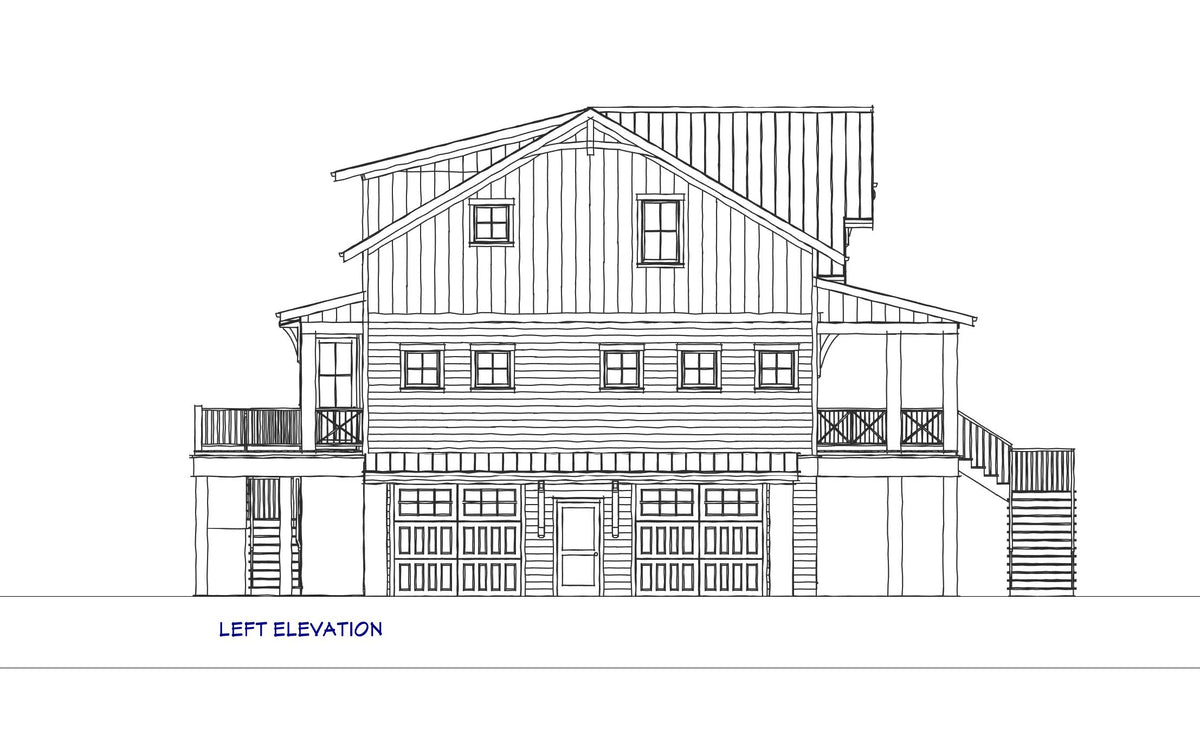

Left elevation drawing of Islabella, showing the two carriage-style garage doors on the side of the ground floor, the main-floor porches and the board-and-batten gables.

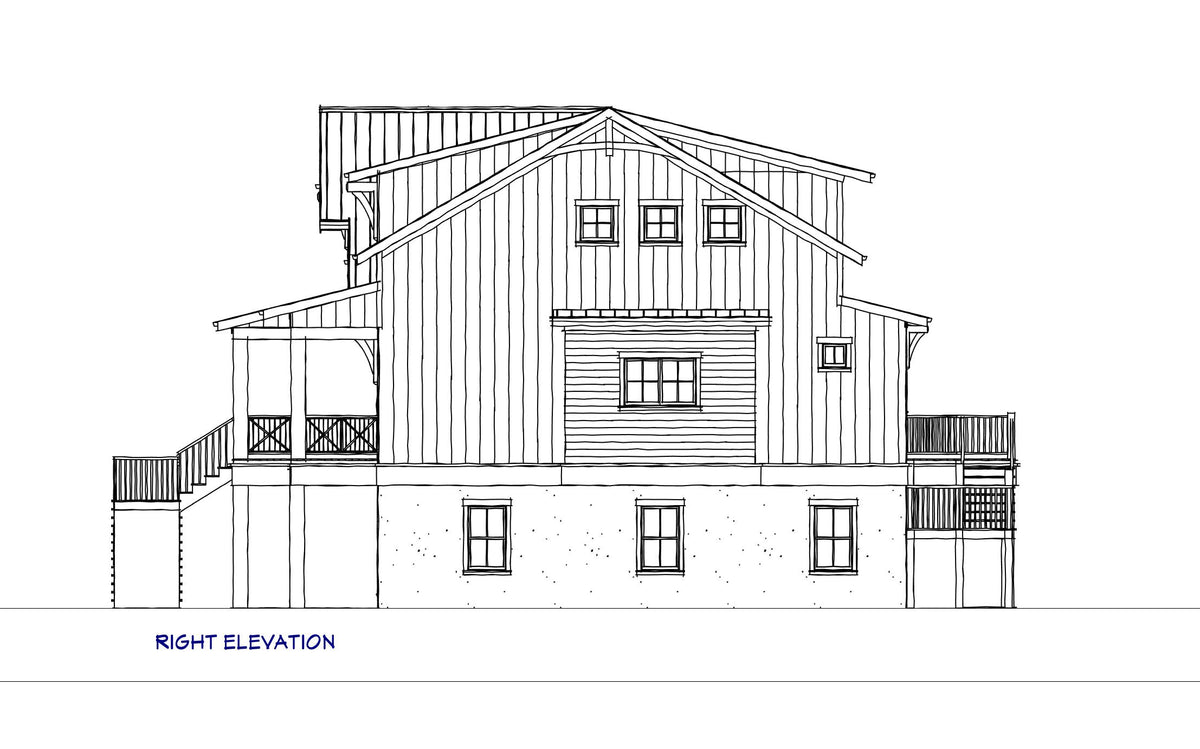

Right elevation drawing of Islabella, showing the CMU ground floor with three windows, the porches and stairs at both ends and the gable windows above.
Front exterior view of Islabella, a 2,805 sq ft elevated coastal house plan with a covered front porch, X-pattern railings, a metal roof, a stair down to the front walk and a driveway along the side to the garage.
Ground floor plan of Islabella, showing the side-entry two-car garage, the heated lower entry with cubbies, the stair and elevator, and the 13' 6" x 35' 6" unfinished storage room.
First floor plan of Islabella, showing the open living, dining and kitchen, the 30-foot covered front porch, the covered rear porch and open deck, the laundry and pantry room, a half bath and Bedroom Suite 1 with its own covered porch.
Second floor plan of Islabella, showing Bedroom Suite 2 with its bath and walk-in closet, Bedroom 4 with its own bath, Bedroom 3, Bedroom 5 or office, the hall bath and the elevator.
Rear exterior view of Islabella, showing the covered rear porch on the main floor, the stair down to the yard, the second-floor dormer with a row of five windows and the two garage doors on the side.
Living and dining area in Islabella, with a gas fireplace between two windows, a beamed ceiling and the dining table by the door to the porch.
Kitchen in Islabella, with a long island seating four under pendant lights, a second island with a sink and wine cooler, and tall cabinets beside the refrigerator.
Covered front porch at Islabella at sunset, with French doors to the living space, a wood ceiling and seating along the railing.
Stair landing in Islabella, with coat hooks and a bench beside the stair and a view through to the kitchen.
Left elevation drawing of Islabella, showing the two carriage-style garage doors on the side of the ground floor, the main-floor porches and the board-and-batten gables.
Right elevation drawing of Islabella, showing the CMU ground floor with three windows, the porches and stairs at both ends and the gable windows above.

Islabella

Elevator to Every Floor | Two Primary Suites | 2-Car Garage

2805 Sq Ft | 5 Bed | 4.5 Bath | 2-Story

$1,705.95 Save $89.05

430+ Plans Sold · Lowest Price Guaranteed.

Buy direct & save 5% vs. marketplaces. Price match policy →

Licensed for one build at your build address.

Plan Set PDF Files
A right-reading mirror image of this plan: the entire layout flipped, with all text and dimensions still readable. Added to your cart together with the plan set.
Adding to Cart Added to Cart
EXPLORE OUR BUILT HOUSE PLANS →
LOOKING FOR A COST-TO-BUILD CALCULATOR? →

Would you like to customize this plan? Request a free modification quote.

Modify This Plan

Islabella House Plan

Elevated Coastal Home with an Elevator and Two Primary Suites

2,805 SQ. FT. | 5 BED | 4.5 BATH | 2-STORY | 2-CAR GARAGE

Islabella is a five-bedroom elevated house with an elevator that stops at every floor and a primary suite on each living level. The owners can keep to the main floor, where the kitchen, the porch and their own suite all sit on one level, and the family and friends who visit most get a full suite of their own upstairs.

The main floor is one open room for living, dining and cooking, with doors front and back: a 30-foot covered porch across the front and, at the rear, a covered porch along the house with an open deck beyond it. Below it, the ground floor holds a two-car garage entered from the side, a heated lower entry with cubbies and an unfinished storage room more than 35 feet long.

An elevator to every floor: it opens at the heated lower entry next to the garage, beside the stair on the main floor and onto the bedroom hall upstairs. Groceries and luggage ride up, and so does anyone who would rather skip the stairs.

A primary suite on each floor: Suite 1 on the main floor is 13' 6" x 12' 8", with its own 14' 10" x 6' covered porch, a walk-in closet and a bath with two sinks, a freestanding tub, a walk-in shower and the toilet behind its own door. Suite 2 upstairs is 13' 6" x 11' 0", with a walk-in closet and a bath with two sinks, a shower and a separate toilet room.

A kitchen in the middle of the house: the 12' 6" x 16' 6" kitchen has a long island with seating for four, a second smaller island with its own sink and a wall of tall cabinets, and the laundry and pantry room is a few steps away. The 17' 6" x 15' 0" living room has a gas fireplace, and the 17' 6" x 10' 0" dining area sits at the doors to the front porch.

Three more bedrooms upstairs: Bedroom 4 (10' 6" x 12' 0") has its own bath and a walk-in closet. Bedroom 3 (11' 0" x 11' 0") has a walk-in closet, and Bedroom 5 (12' 10" x 10' 6") works as an office or a fifth bedroom. Those two share a hall bath with two sinks and a tub, and the hall has a linen closet and a storage closet.

A ground floor that earns its space: the 21' 4" x 31' 0" garage has two 9' x 8' overhead doors on the side of the house. The heated lower entry has cubbies at the foot of the stair and the elevator, and the 13' 6" x 35' 6" unfinished storage room beside it has space for boards, bikes and whatever else a coastal house collects.

  • Footprint: 45’ 0” Width x 54’ 0” Depth
  • Max Ridge Height: 34’ 9”
  • Foundation: CMU / Elevated
  • Framing: 2x6 Exterior Walls | 2x4 Interior Walls
  • Ceilings: 9’ First Floor | 9’ Second Floor | 8’ 8” Ground Floor
  • Garage: 817 sq. ft., 2 Cars, Attached, Side Entry
  • Deck & Porch: 238 sq. ft. Open Deck | 526 sq. ft. Covered Porch
  • Roof Details: 10:12 Main Pitch | 3:12 Secondary

We drew Islabella for a house that holds two people most of the year and a full house in the summer. The elevator and the suite on the main floor let the owners live on one level for as long as they stay, and the second suite gives the people who visit most a room that feels like theirs. The ground floor takes care of the cars and the beach gear, so the floors above stay for living.

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.

With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.

Purchase of PDF Set includes

  • Cover sheet with general notes
  • Foundation plan
  • Floor plans with dimensions
  • Exterior elevations
  • Cross section
  • Door & window schedules
  • Roof plan
  • Electrical plans
  • Cabinetry elevations (most plans; please inquire to confirm)

What's not included

  • Architectural or engineering stamp: handled locally if required
  • Site plan: handled locally when required
  • Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
  • Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
  • Energy calculations: handled locally when required

Purchase of Chief Architect plan

  • Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
  • All materials and textures related to the plan for 3D viewing
  • PDF plan set included with purchase

Readable Reverse add-on

  • A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable

What foundation does Islabella come with?

Islabella is drawn on a cmu / elevated foundation. It is an elevated plan, with the living space raised above open space or parking, drawn for flood zone and coastal lots. A local engineer sizes the foundation for your soil and wind zone.

How tall is Islabella and how much ground does it cover?

The maximum ridge height is 34' 9". The footprint is 45' 0" x 54' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 2,805 square feet on 2 stories.

What comes in the plan set for Islabella, and what do I still need locally?

A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
