The Addie
Low Country Coastal | Elevated Pier/Piling Foundation
2814 Sq Ft | 4 Bed | 3.5 Bath | 2-Story
CAD files are not modifiable and are strictly for use by licensed structural engineers. Issued in .dwg format, they are not native AutoCAD files and are not for purposes of altering the original design.
Would you like to customize this plan? Request a free modification quote.
The Addie House Plan
Low Country Coastal Residence
2,814 SQ. FT. | 4 BED | 3.5 BATH | 2-STORY | 2-CAR DRIVE-UNDER GARAGE
The Addie is a masterful expression of Low Country architecture, blending timeless charm with an open, airy floor plan designed for seamless daily living. The heart of the home integrates the family room, dining area, and a gourmet kitchen defined by elegant exposed beams and a coffered ceiling. A hidden pantry and dedicated office space are tucked behind a discreet pocket door, ensuring the primary living zones remain refined and uncluttered. Designed to capitalize on the coastal lifestyle, the interior flows naturally onto an expansive screened porch and dedicated grill deck, creating the ultimate indoor-outdoor entertaining footprint.
Refined Kitchen Detail: A high-end kitchen anchored by exposed beams and a coffered ceiling, paired with a clever pocket-door pantry and office nook.
Primary Suite Retreat: A private main-level master suite featuring a freestanding soaking tub, dual vanities, and a generous walk-in closet, with immediate access to a nearby laundry suite.
Elevator-Integrated Design: A central staircase that wraps around a built-in elevator, providing full-home accessibility across all levels.

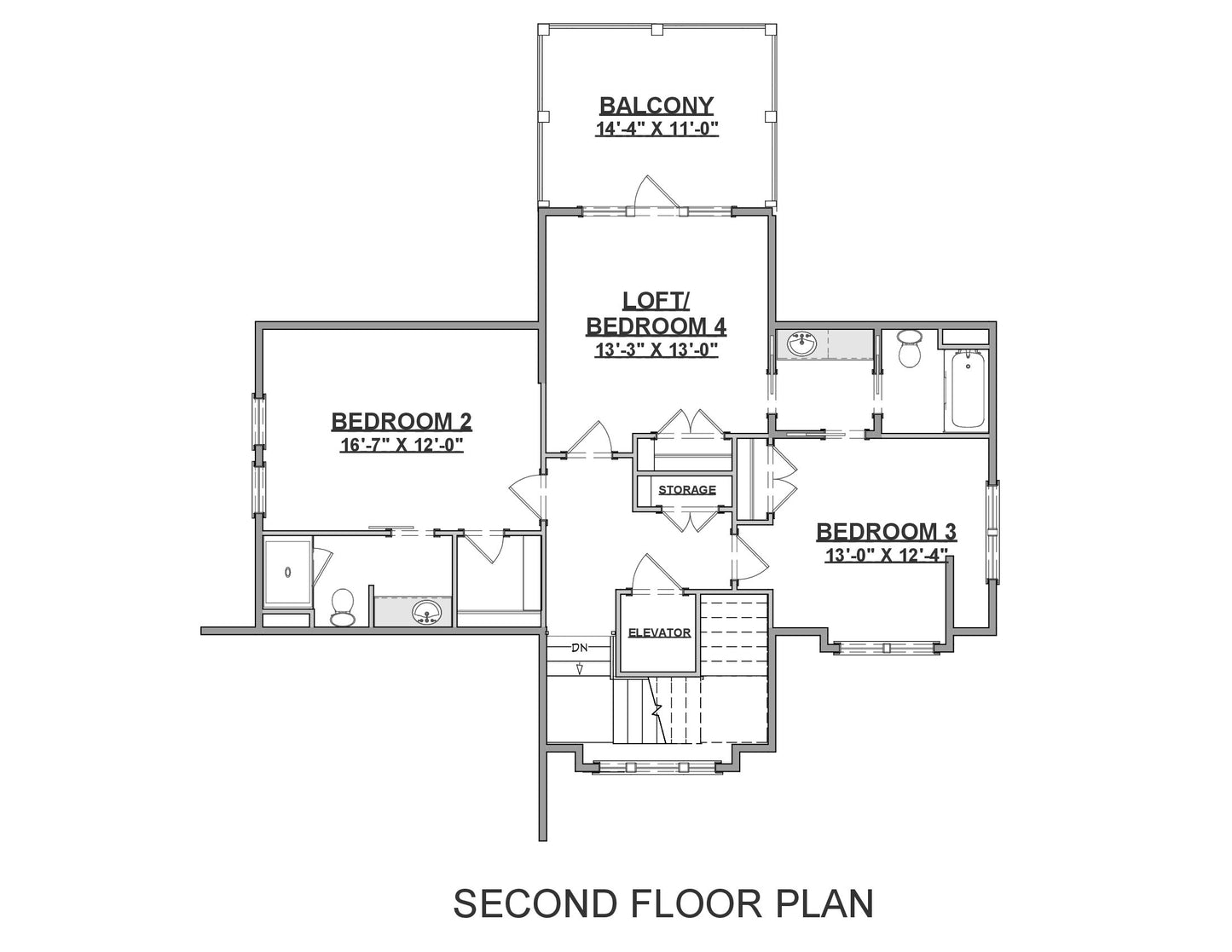

Flexible Upper Living: Three secondary bedrooms on the second level, including a Jack-and-Jill bath configuration and a suite with direct access to a private, rear-facing balcony.

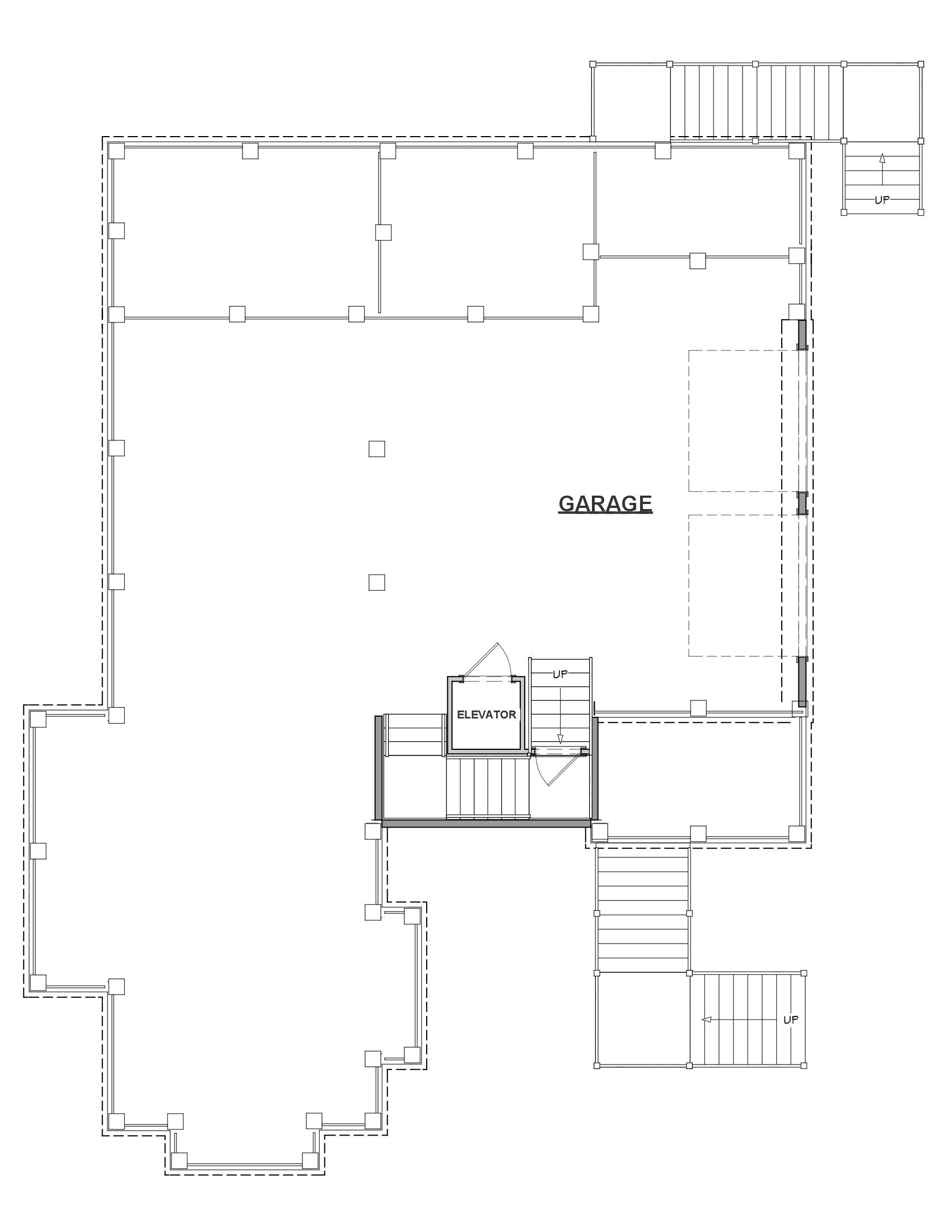

Substantial Utility Space: A 1,996 sq. ft. lower-level drive-under garage offering secure 2-car storage and extensive space for mechanicals and seasonal items.
-
Footprint: 49’ 6” Width x 65’ 0” Depth
-
Max Ridge Height: 37’ 6”
-
Foundation: Pier / Piling
-
Framing: 2x6 Exterior Walls | Truss Roof Framing
-
Ceilings: 8’ Lower Level | 10’ First Floor | 9’ Second Floor
-
Roof Details: 12 on 12 Primary Pitch
Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Addie is engineered for those who seek the character of traditional Low Country aesthetics without sacrificing modern convenience—where high-volume ceilings, purposeful spatial zoning, and resilient coastal engineering create a home that is both grand and intimately livable.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones
Purchase of PDF Set includes:
- Cover sheet with general notes
- Foundation Plan
- Floor Plans with Dimensions
- Exterior Elevations
- Cross Section
- Door & Window Schedules
- Roof plan
- Electrical Plans
- Cabinetry Elevations (most plans- please inquire to confirm)
What's Not Included:
- Architectural or Engineering Stamp - handled locally if required
- Site Plan - handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
- Energy calculations - handled locally when required
Purchase of Chief Architect plan:
- Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
- All materials and textures related to plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse Add-On:
- A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
