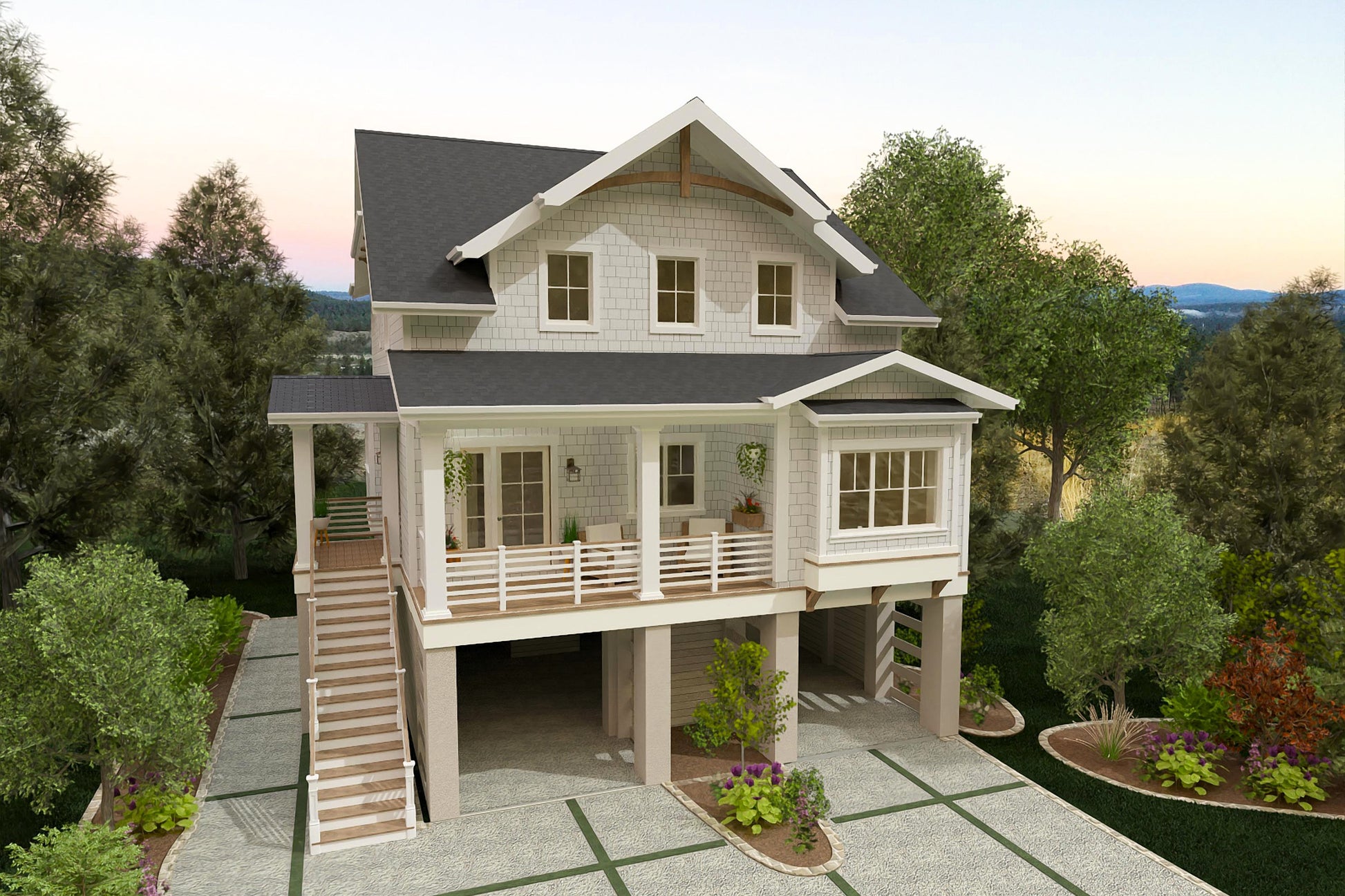

The Macy II Front Exterior 2 | 2,532 Sq Ft Elevated Coastal Contemporary House Plan

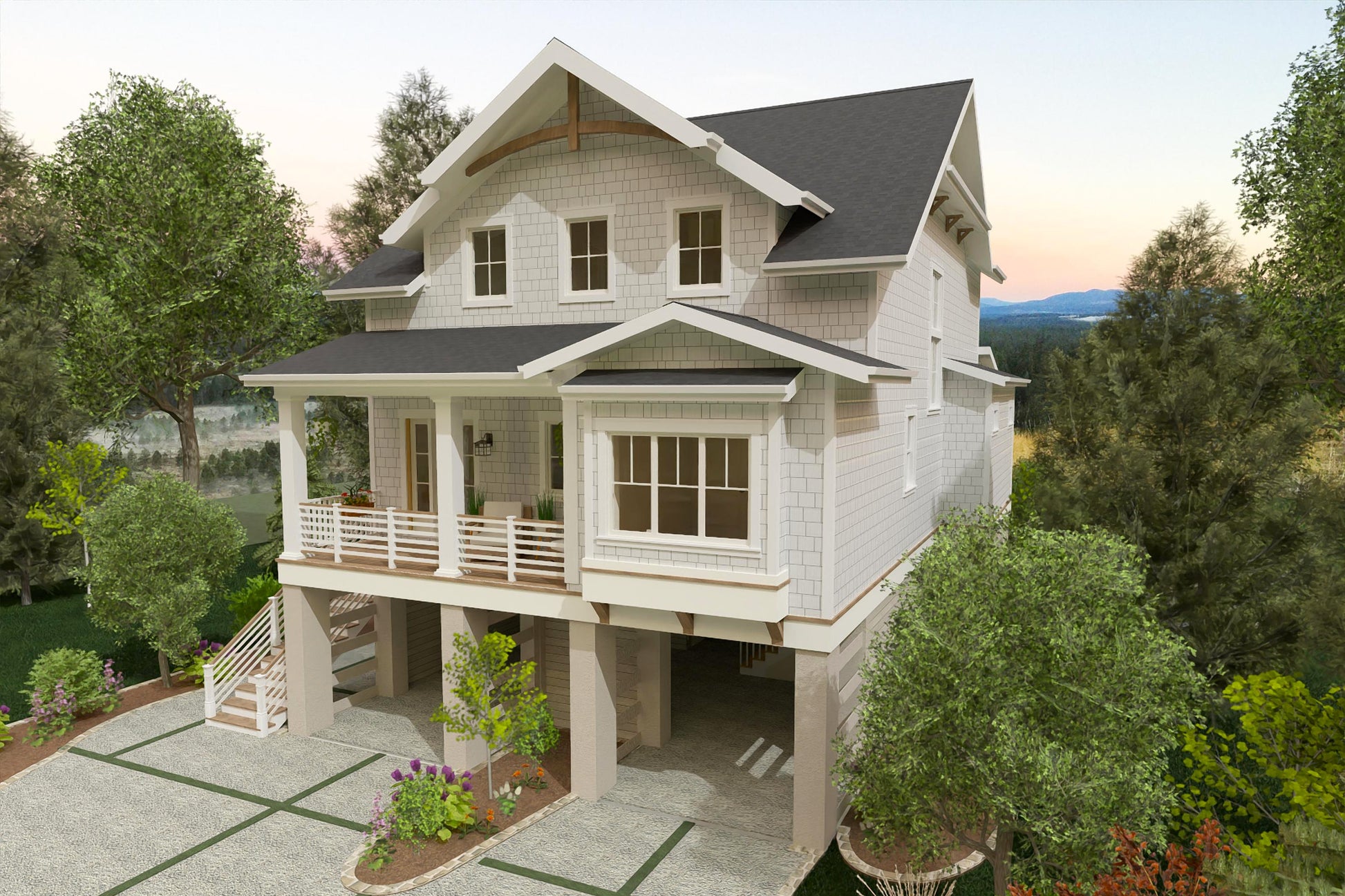

The Macy II Front Exterior 3 | 2,532 Sq Ft Elevated Coastal Contemporary House Plan

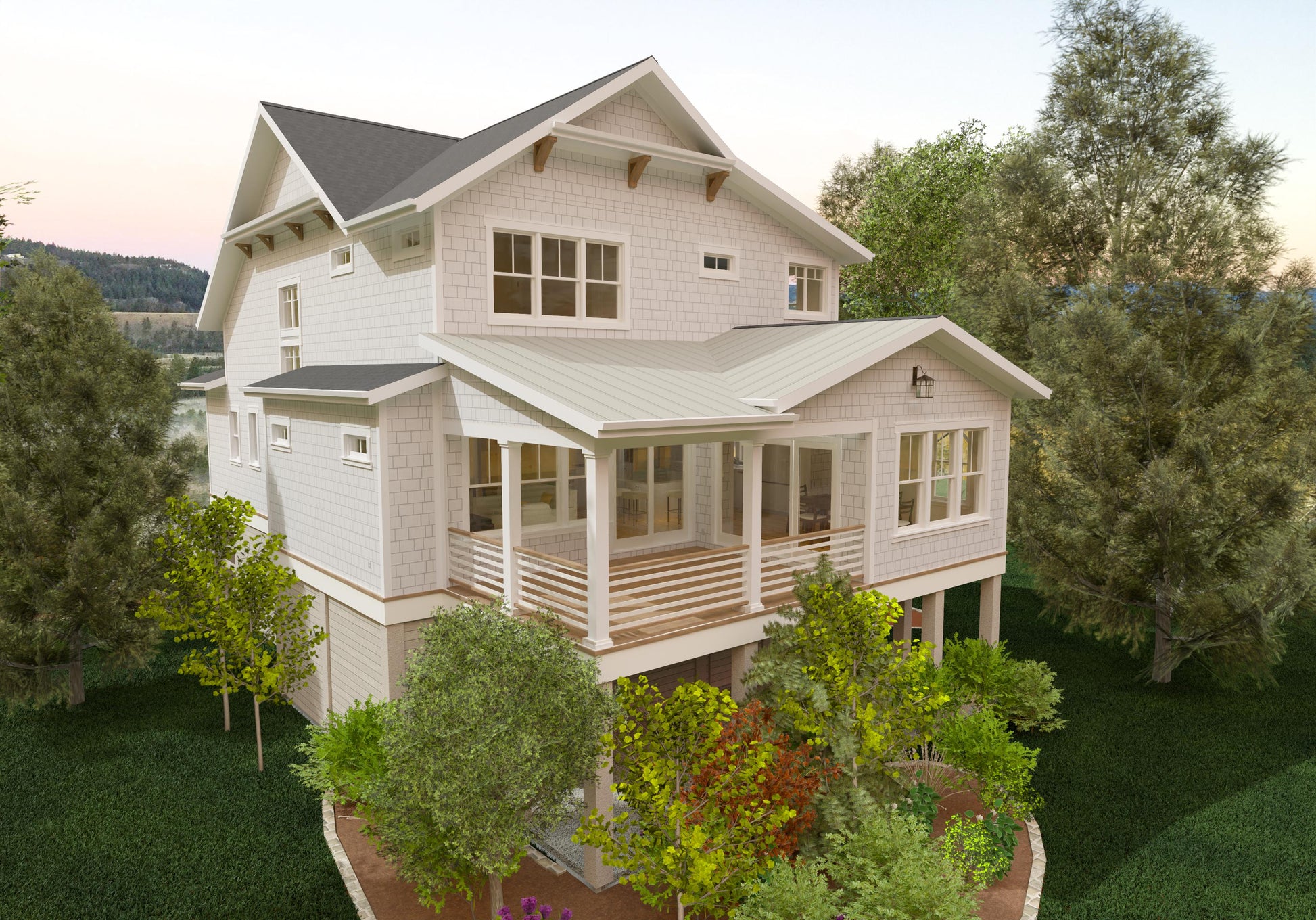

The Macy II Rear Exterior | 2,532 Sq Ft Elevated Coastal Contemporary House Plan

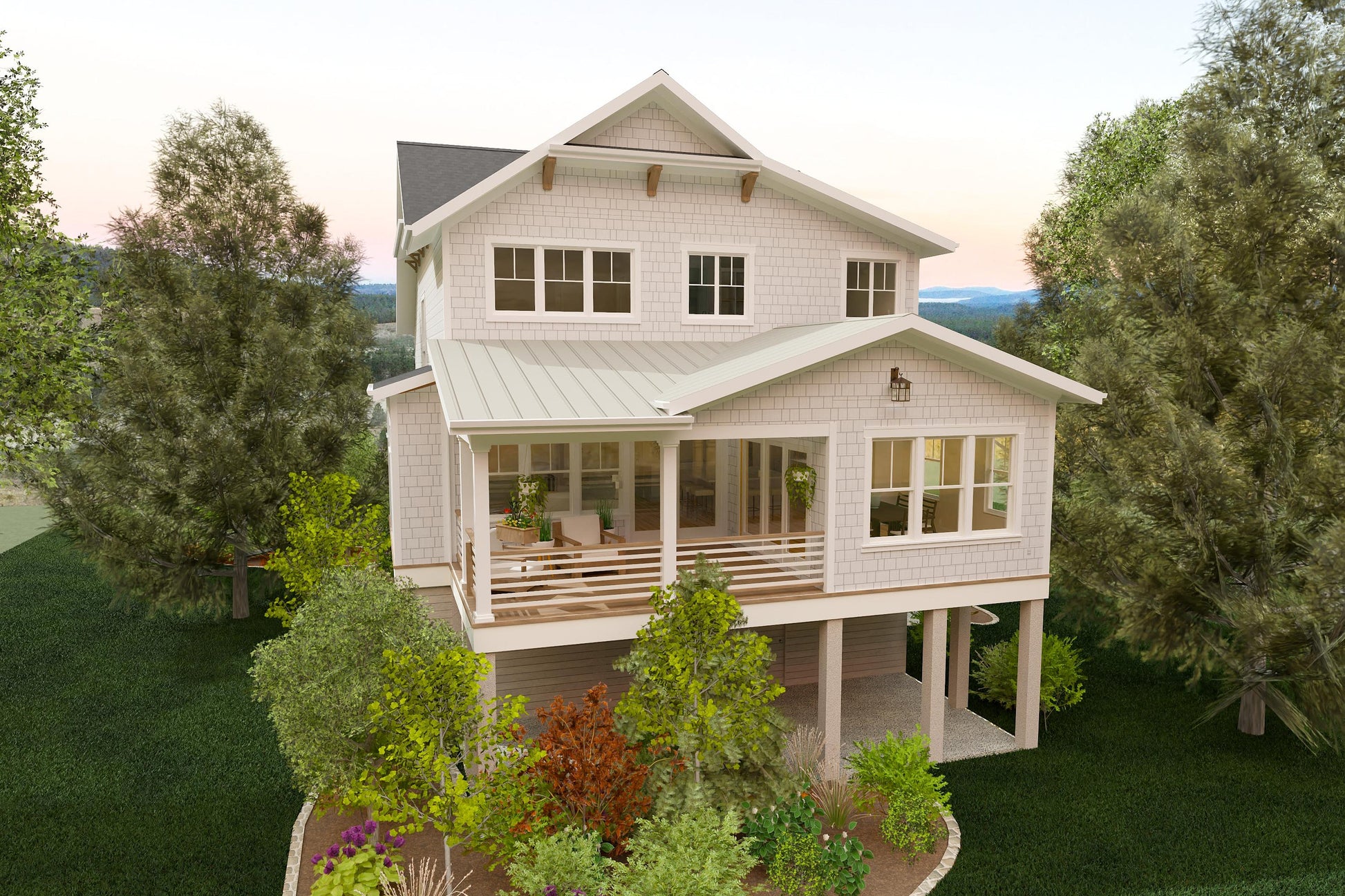

The Macy II Rear Exterior 2 | 2,532 Sq Ft Elevated Coastal Contemporary House Plan
The Macy II - Study Set
The Macy II First Floor Plan | 2,532 Sq Ft Elevated Coastal Contemporary House Plan
The Macy II Second Floor Plan | 2,532 Sq Ft Elevated Coastal Contemporary House Plan
The Macy II Ground Floor Plan | 2,532 Sq Ft Elevated Coastal Contemporary House Plan
The Macy II Front Exterior 2 | 2,532 Sq Ft Elevated Coastal Contemporary House Plan
The Macy II Front Exterior 3 | 2,532 Sq Ft Elevated Coastal Contemporary House Plan
The Macy II Rear Exterior | 2,532 Sq Ft Elevated Coastal Contemporary House Plan
The Macy II Rear Exterior 2 | 2,532 Sq Ft Elevated Coastal Contemporary House Plan

The Macy II

Coastal Contemporary | Elevated Pier/Piling Foundation

2532 Sq Ft | 4 Bed | 4.0 Bath | 2-Story

$1,507.80 Save $287.20

430+ Plans Sold · Lowest Price Guaranteed.

Buy direct & save 16% vs. marketplaces. Price match policy →

Plan Set PDF Files ($1795)
Foundation Options Pier
A right-reading mirror image of this plan — the entire layout flipped, with all text and dimensions still readable. Added to your cart together with the plan set.
Adding to Cart Added to Cart
OR
📋 GET STUDY SET • $75
PDF Study Set of floor plans & elevations for budgeting. $75 credited toward the full plan — valid 12 months. FAQ →
EXPLORE OUR BUILT HOUSE PLANS →
LOOKING FOR A COST-TO-BUILD CALCULATOR? →

Would you like to customize this plan? Request a free modification quote.

Modify This Plan

The Macy II House Plan

Coastal Contemporary Layout

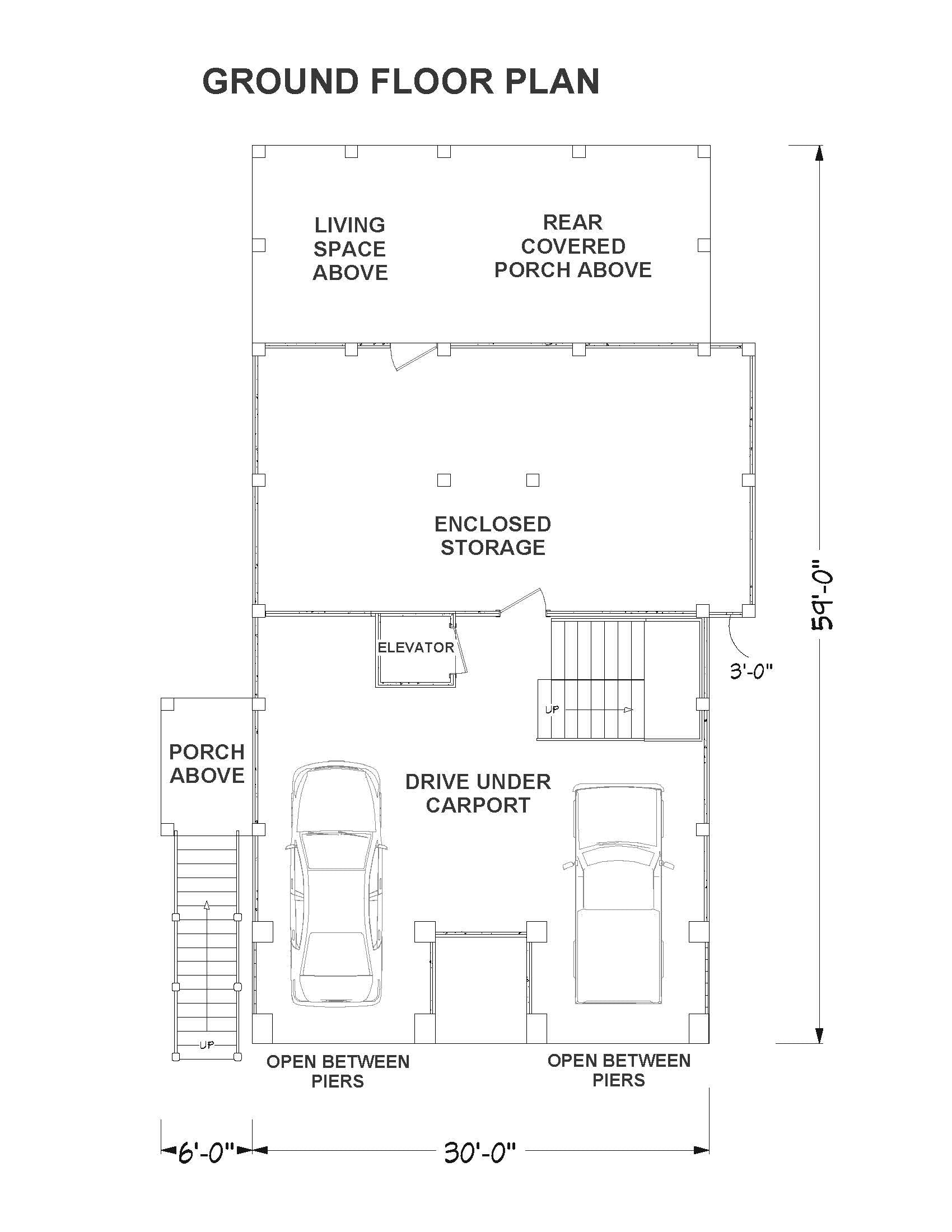

2,532 SQ. FT. | 4 BED | 4 BATH | 2-STORY | 2-CAR DRIVE-UNDER CARPORT

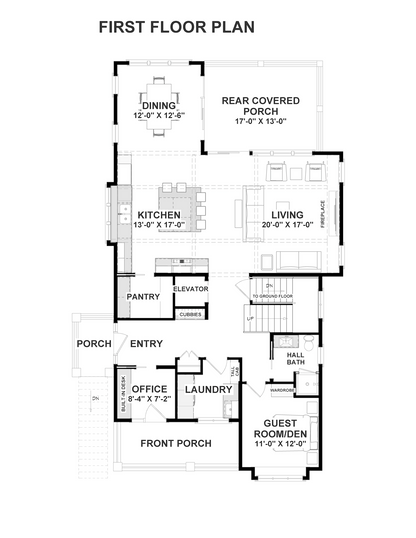

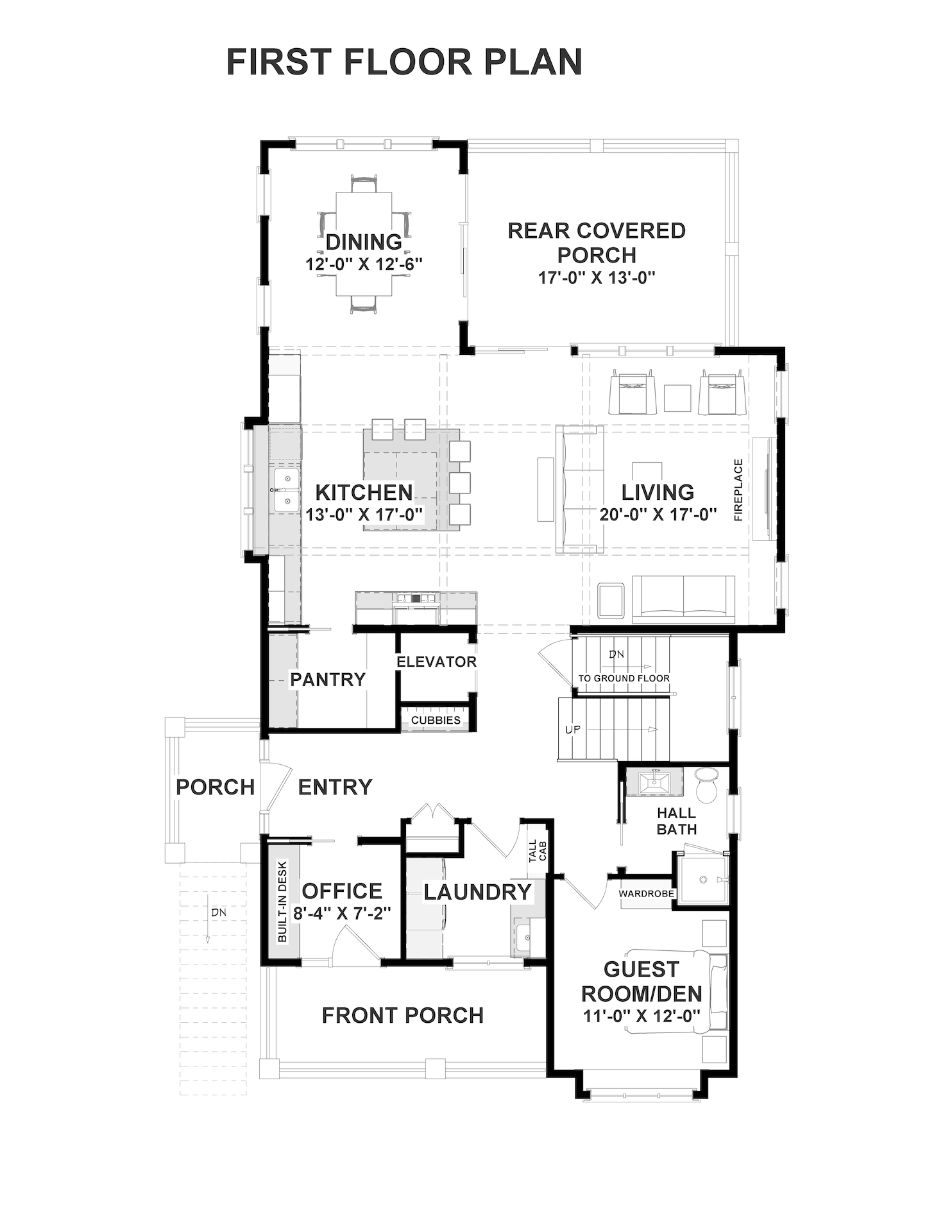

Tailored for the Southern seaboard, The Macy II utilizes an elevated pier foundation perfectly optimized for coastal terrain. The entry level unfolds into a sweeping, light-filled open concept designed for seamless daily operations, balancing a quiet front-of-house executive office with a high-capacity laundry suite.

At the home’s core, a gourmet culinary kitchen commands the space, complete with a massive central island and a discreet, walk-in butler’s pantry that flows effortlessly into the dining and fireplace-anchored living zones.

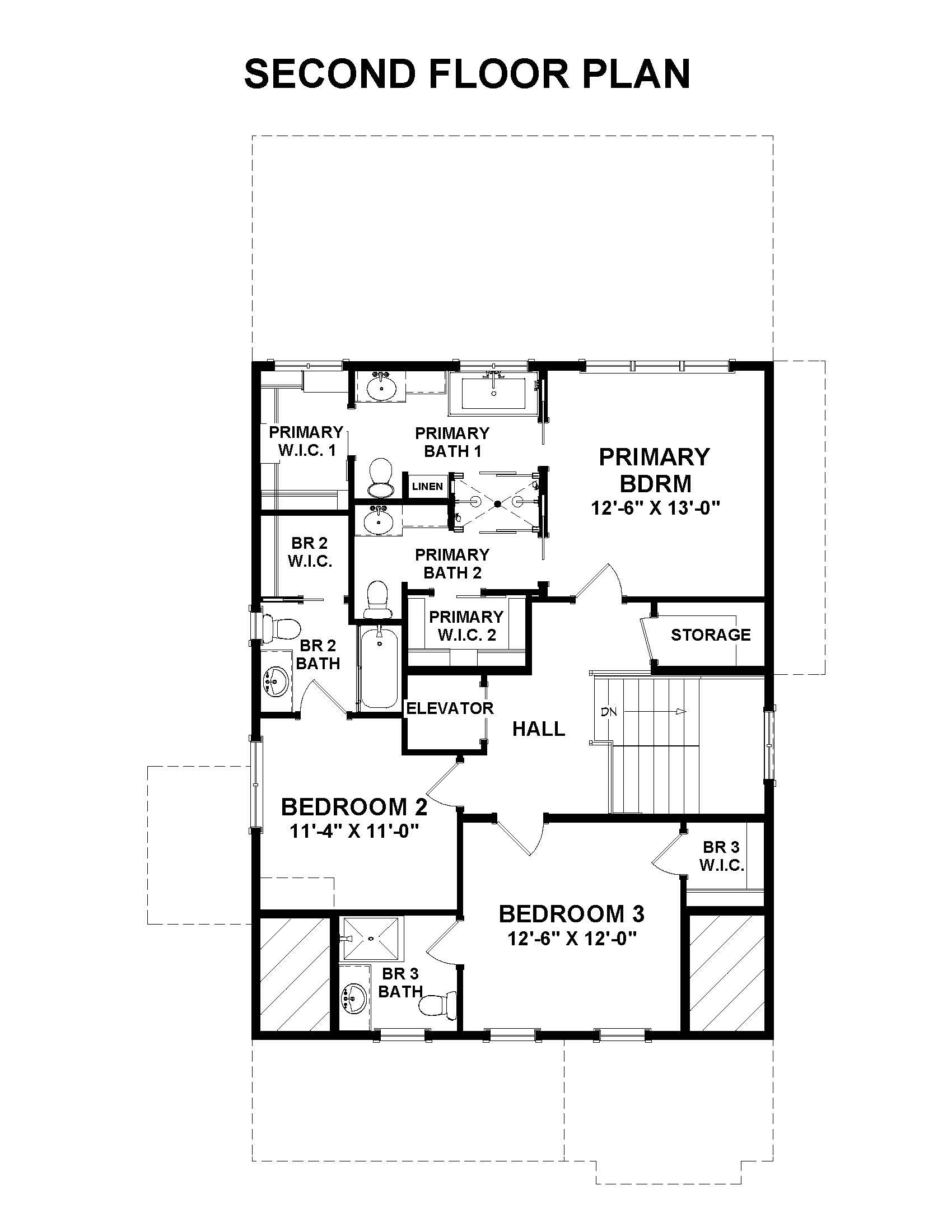

The upper level offers a brilliant view into modern spatial planning. Defying conventional layouts, it replaces the standard shared bath with dual independent primary suites—giving each individual complete private bathrooms and walk-in dressing rooms, linked by a central Jack and Jill style shower. That same uncompromising standard extends to the rest of the floor, where every secondary bedroom functions as a true private en-suite with its own dedicated bath and walk-in closet.

Gourmet Kitchen & Butler’s Pantry: A high-performing kitchen layout anchored by a central island and a hidden walk-in butler’s pantry, optimized for seamless hosting.

Open Living Area with Fireplace: Flawless flow between the kitchen, formal dining, and living spaces, centered around a fireplace for everyday comfort.

Dual Primary Baths: Innovative spatial design delivering two separate, complete primary bathrooms and dressing spaces connected by a shared walk-in shower.

All En-Suite Bedrooms: Every secondary bedroom boasts its own private en-suite bathroom and walk-in closet for independent, conflict-free livability.

Built-In Home Office: A dedicated main-level workspace complete with a built-in desk, keeping professional life organized without sacrificing bedroom count.

Covered Front & Rear Porches: Offers 403 sq. ft. of dedicated outdoor living — featuring a charming 182 sq. ft. front porch and a spacious 221 sq. ft. rear porch built for al fresco dining.

  • Footprint: 33’ 0” Width x 59’ 0” Depth
  • Max Ridge Height: 34’ 9”
  • Foundation: Pier / Piling
  • Framing: 2x6 Exterior Walls | Truss Roof Framing
  • Ceilings: 9’ Lower Level | 9’ First Floor | 9’ Second Floor
  • Roof Details: 8 on 12 Primary / 4 on 12 Secondary Pitch

Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Macy II is designed for those who want the warmth of a fireplace, the efficiency of a butler’s pantry, and the convenience of an elevator — all in a narrow, pier-elevated coastal footprint that lives beautifully and remains highly considerate of everyone in the household.

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue and studies in interior architecture.

With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.

Purchase of PDF Set includes

  • Cover sheet with general notes
  • Foundation plan
  • Floor plans with dimensions
  • Exterior elevations
  • Cross section
  • Door & window schedules
  • Roof plan
  • Electrical plans
  • Cabinetry elevations — most plans, please inquire to confirm

What's not included

  • Architectural or engineering stamp — handled locally if required
  • Site plan — handled locally when required
  • Mechanical drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  • Plumbing drawings (actual pipe sizes and locations) — your subcontractors handle this
  • Energy calculations — handled locally when required

Purchase of Chief Architect plan

  • Plan and layout files (.plan and .layout) formatted for Chief Architect X15 or Home Designer Pro 2024
  • All materials and textures related to the plan for 3D viewing
  • PDF plan set included with purchase

Readable Reverse add-on

  • A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
