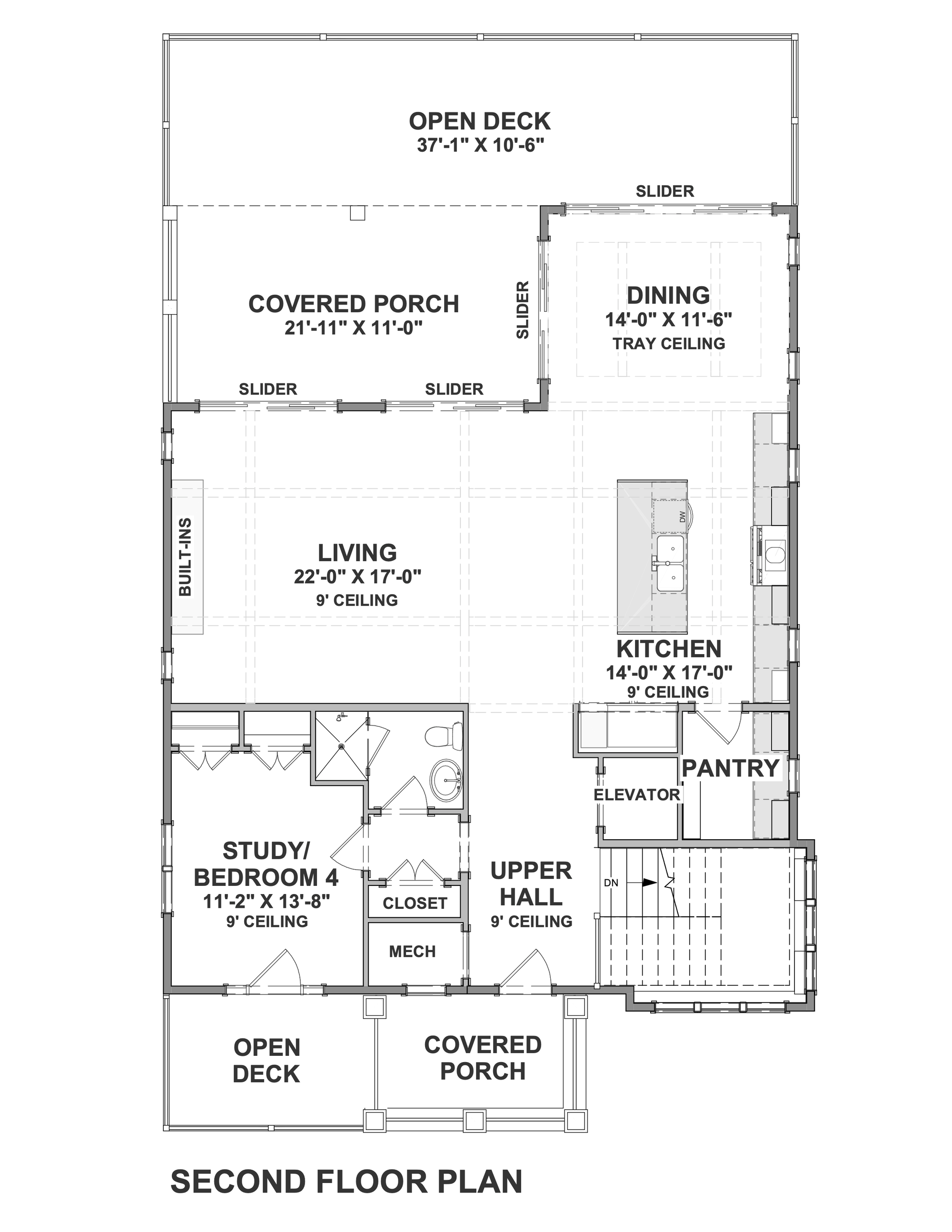

Haddie's Hideaway 2700R FLG second floor plan with a living room 22 feet by 17 feet with built-ins, kitchen 14 feet by 17 feet with an island and pantry, dining room 14 feet by 11 feet 6 inches under a tray ceiling, a study or bedroom 4 at 11 feet 2 inches by 13 feet 8 inches, an upper hall, a 37 foot open deck, two covered porches, and a labeled elevator

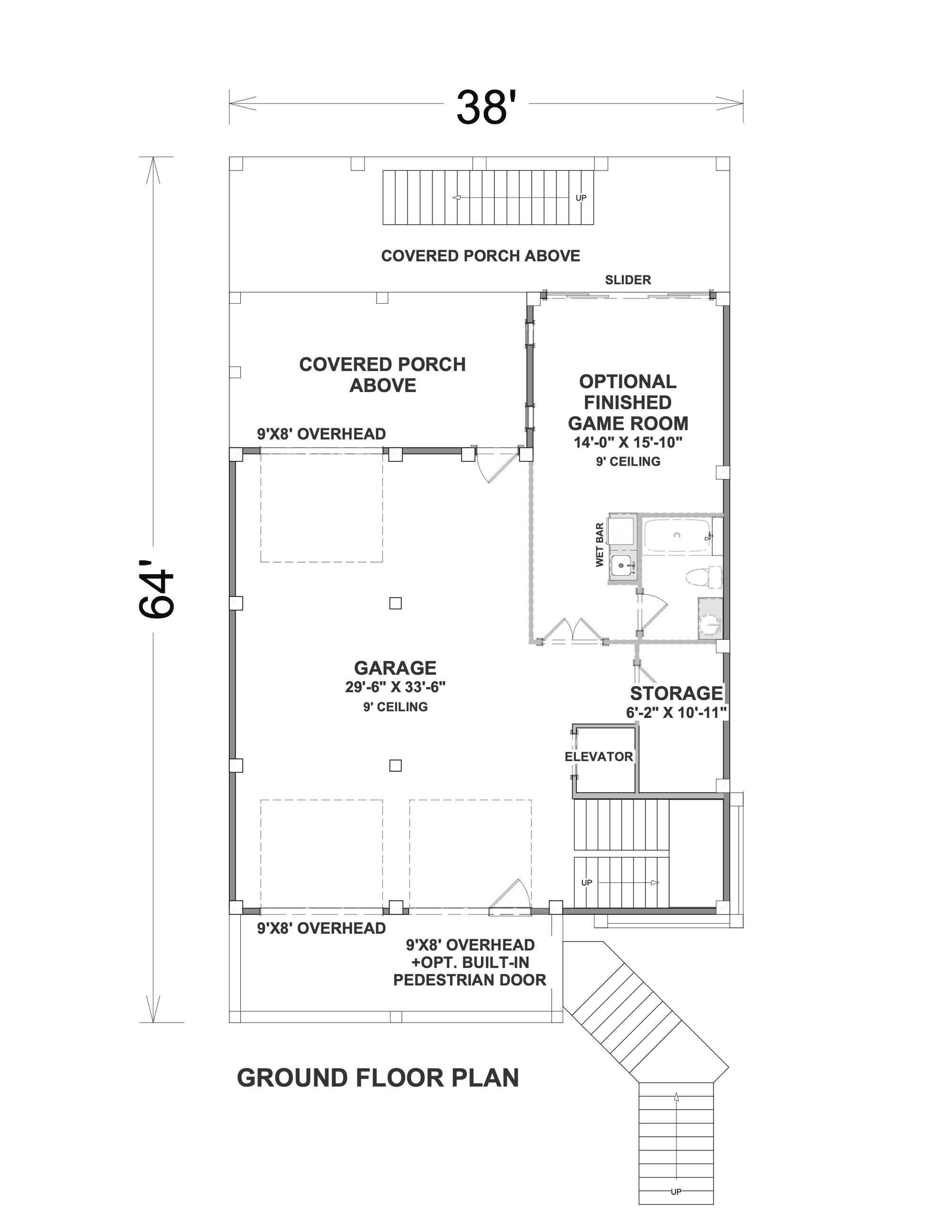

Haddie's Hideaway 2700R FLG ground floor plan, 38 feet by 64 feet, with a garage 29 feet 6 inches by 33 feet 6 inches and three 9 by 8 overhead doors, an optional finished game room 14 feet by 15 feet 10 inches with a wet bar and bath, storage, a labeled elevator beside the stair, and covered porches above

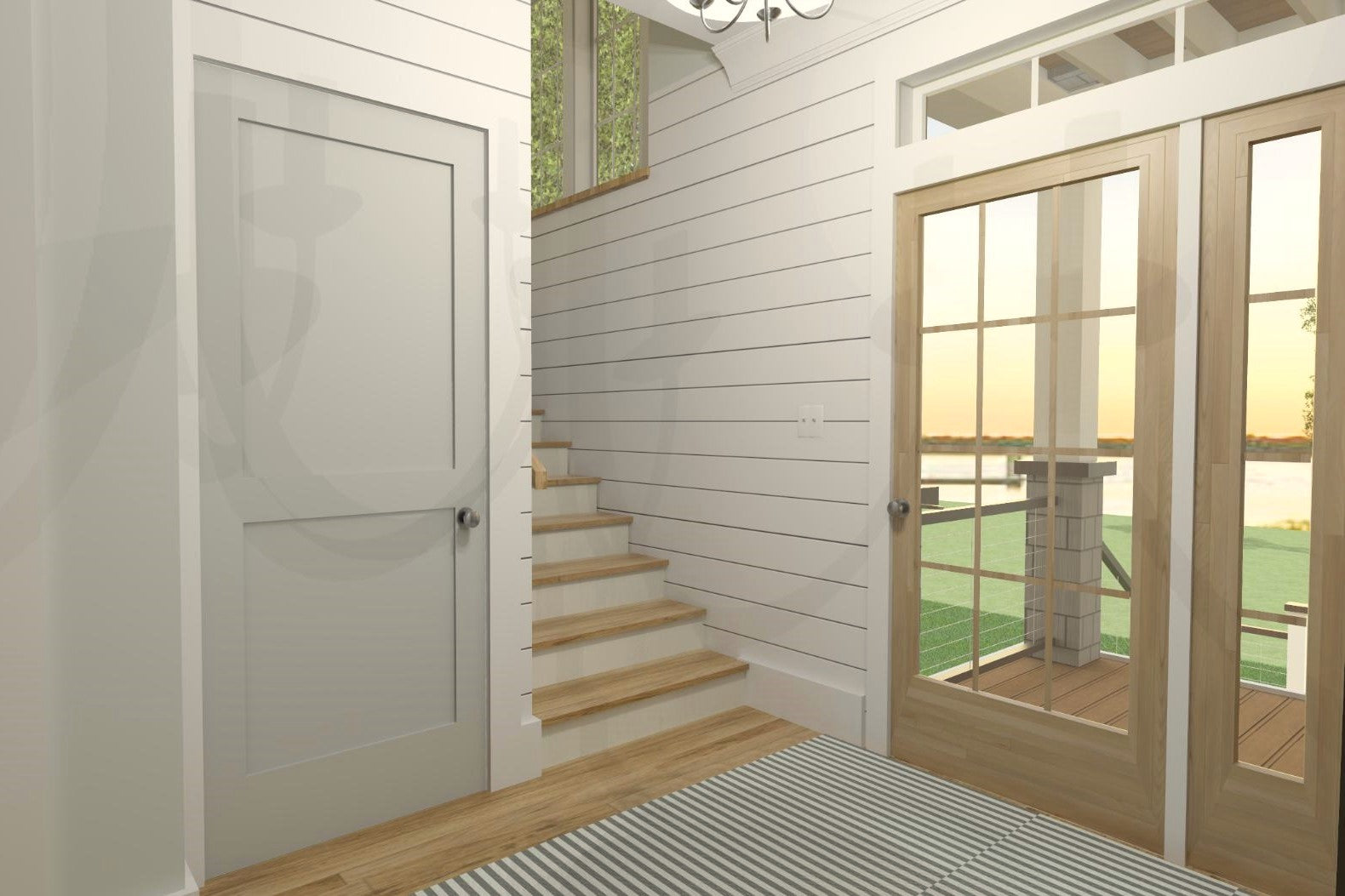

Haddie's Hideaway 2700R FLG entry with shiplap walls, French doors out to the porch and water view, a striped runner, and the stair starting up on the right

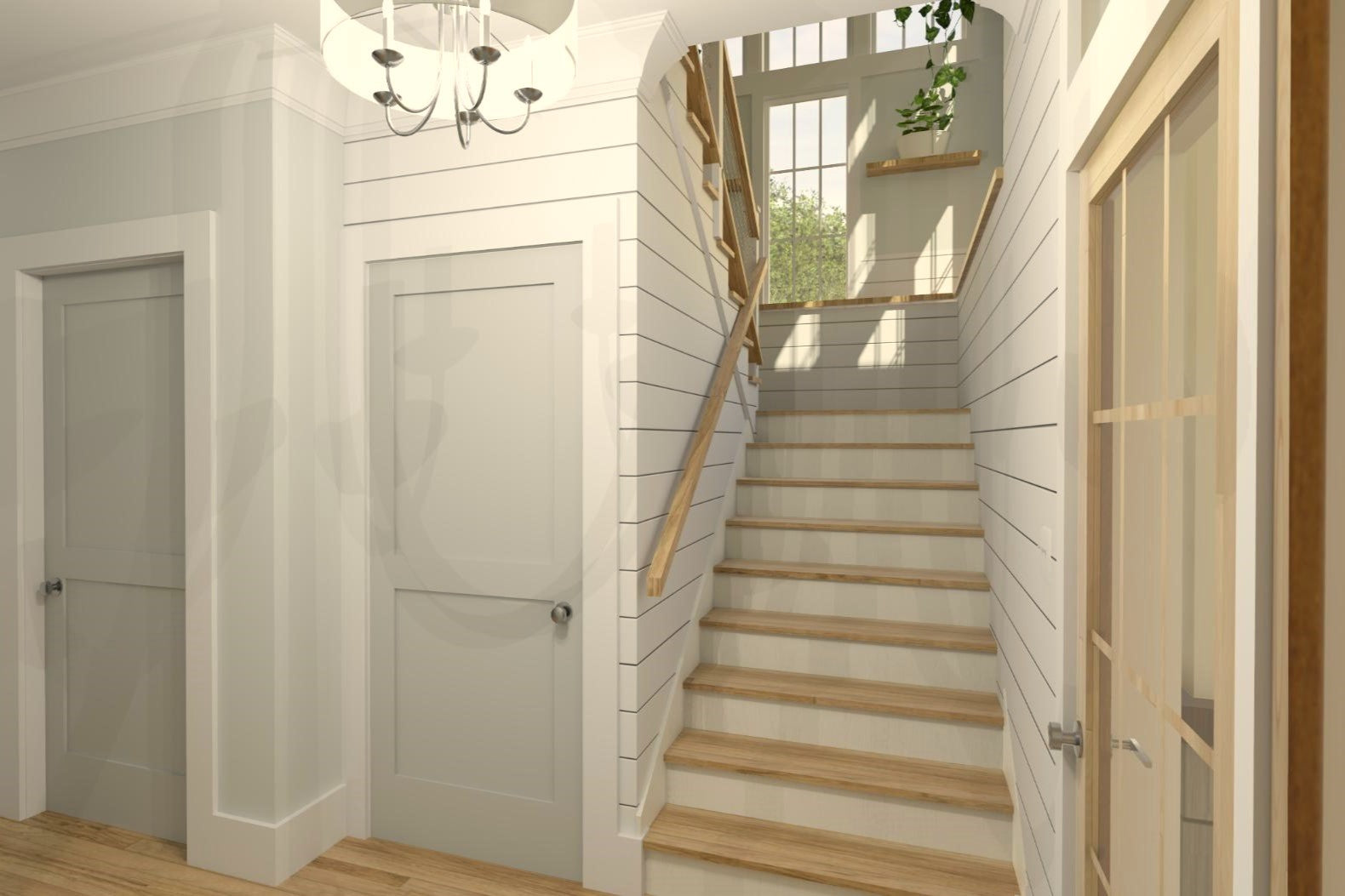

Haddie's Hideaway 2700R FLG stair hall with shiplap walls, paneled doors on both sides, a chandelier, and the stair rising toward a landing window

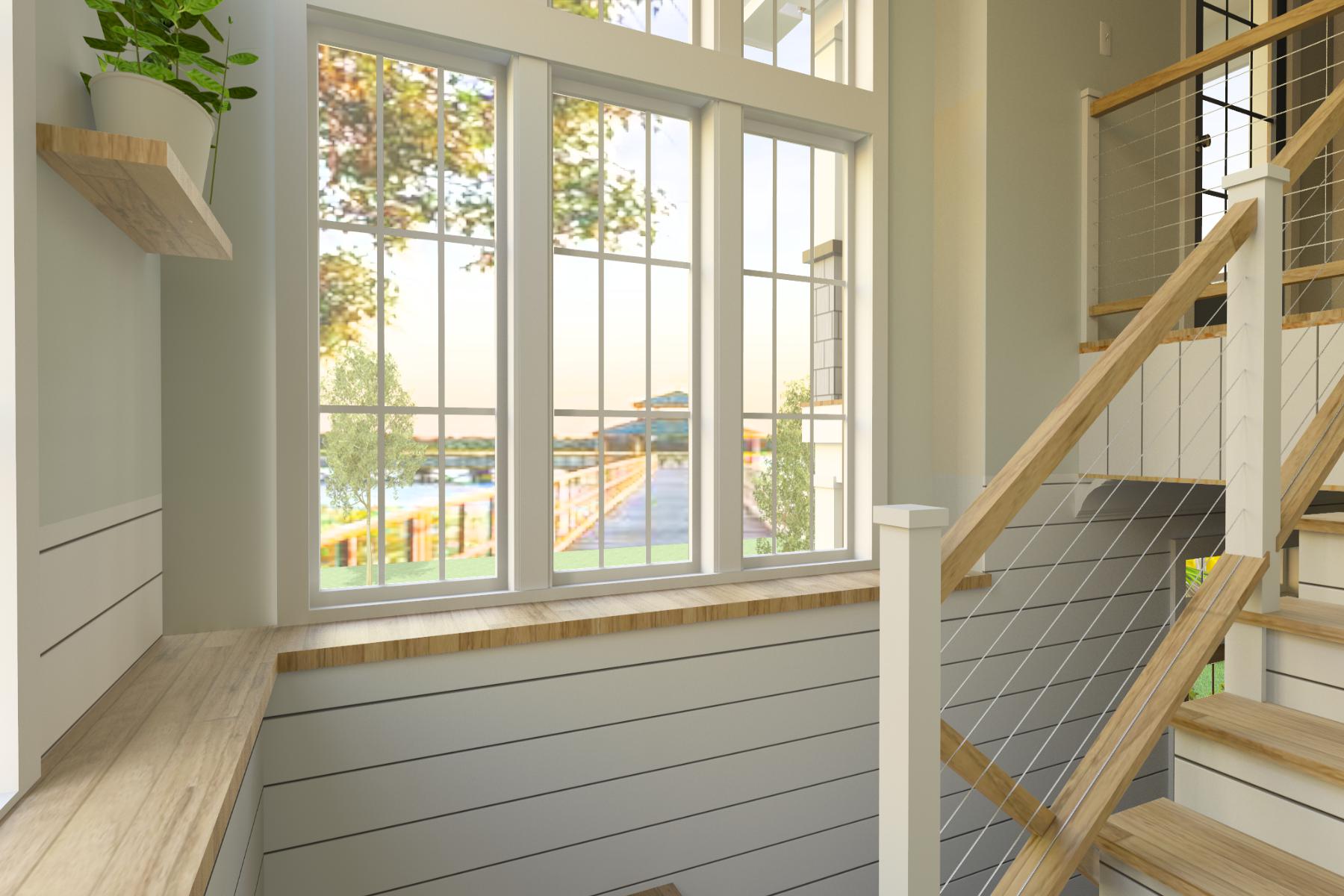

Haddie's Hideaway 2700R FLG stair landing with a built-in bench and window seat, tall windows looking out to the water, a floating shelf, and a cable rail at the stair

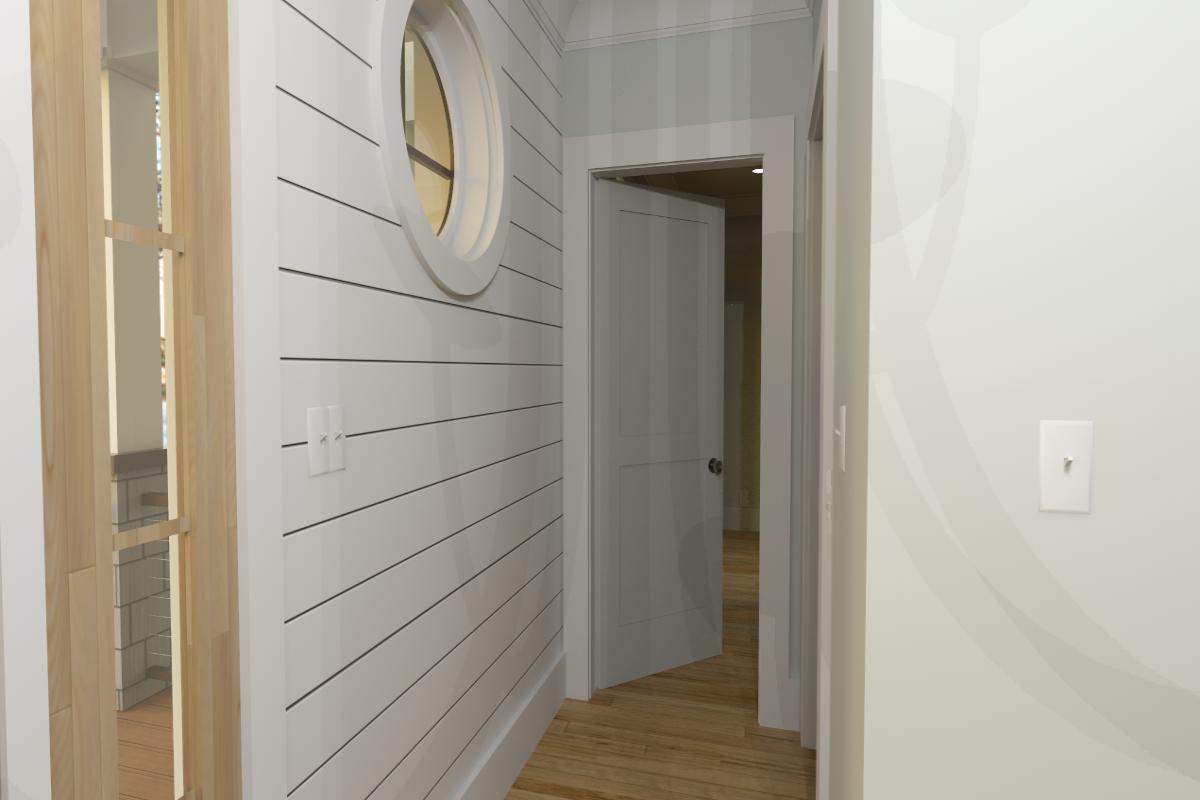

Haddie's Hideaway 2700R FLG hall with shiplap walls, a round mirror, and a doorway through to a bedroom
Haddie's Hideaway 2700R FLG living room under a coffered ceiling, with a sofa and chairs, French doors out to the porch, the kitchen island with stools at the right, and the dining table beyond
Haddie's Hideaway 2700R FLG kitchen with white cabinets, a wall mounted hood over a gas range, wood open shelving, a panel front refrigerator, and a long island with seating

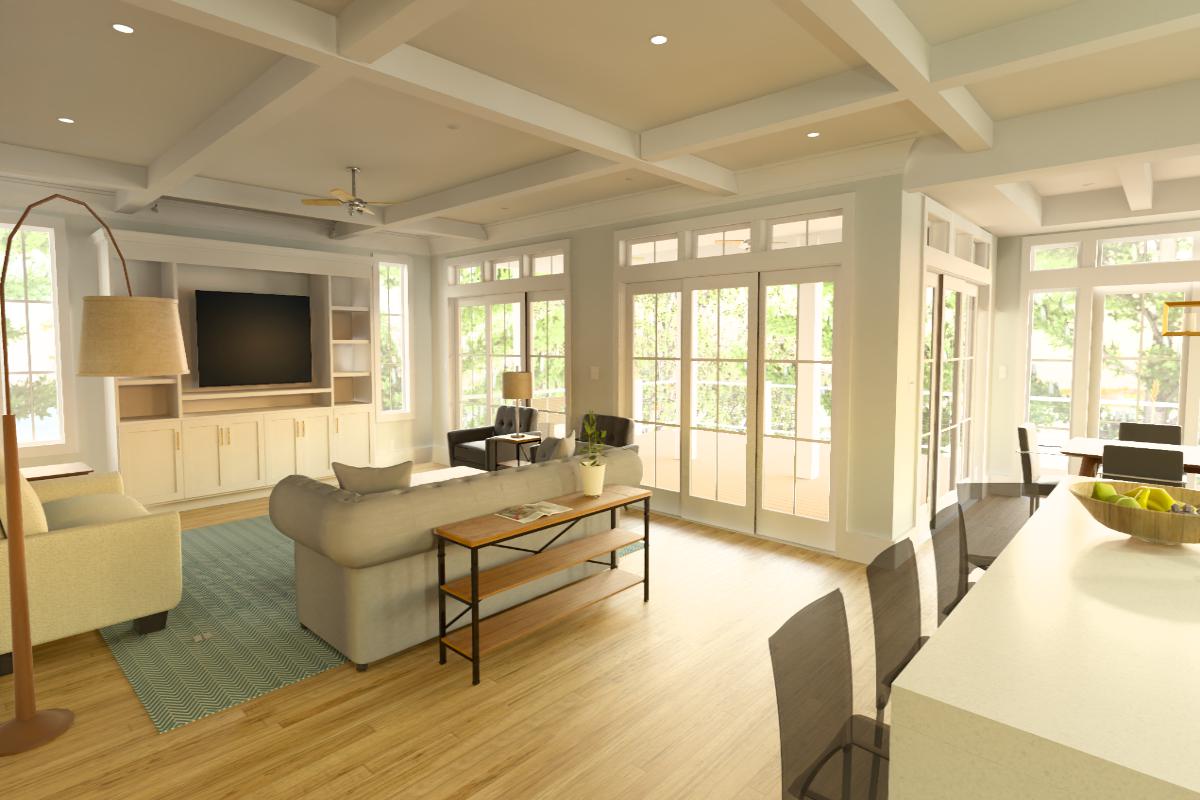

Haddie's Hideaway 2700R FLG living room with a coffered ceiling, a built-in media wall with shelves, windows and French doors along the outside wall, and the kitchen island in the foreground

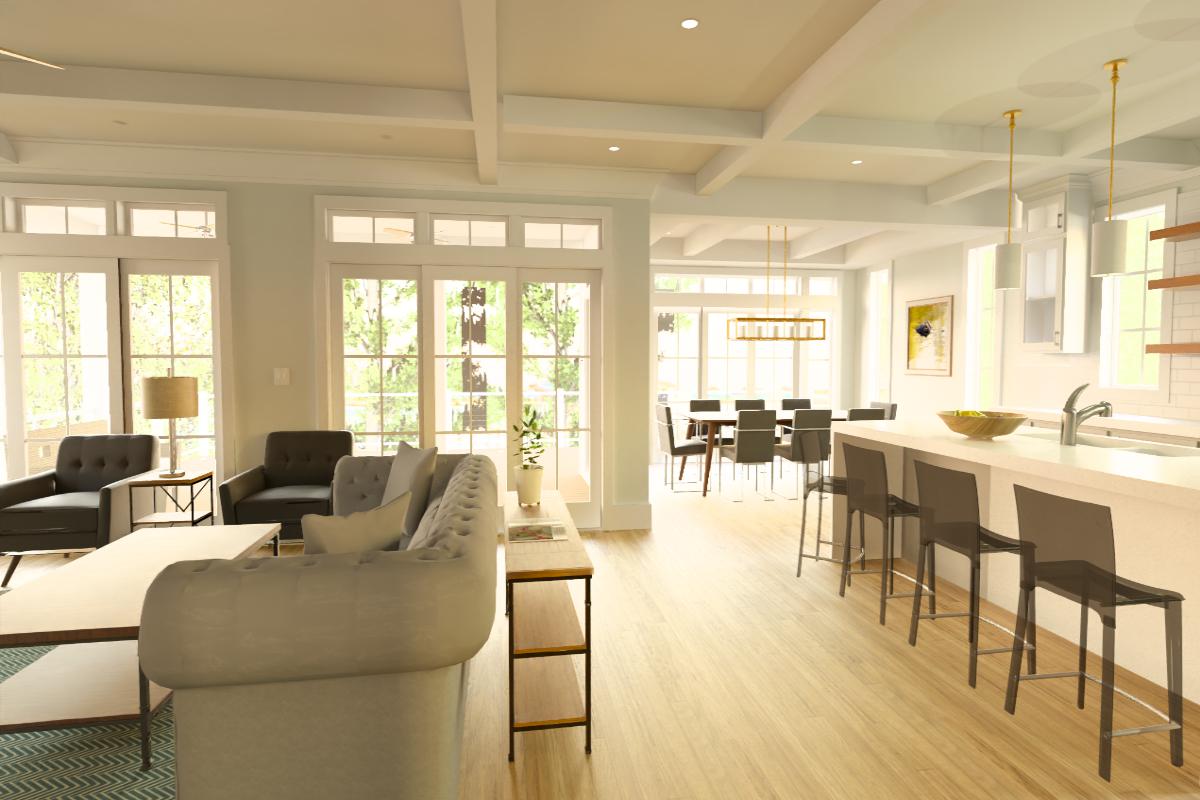

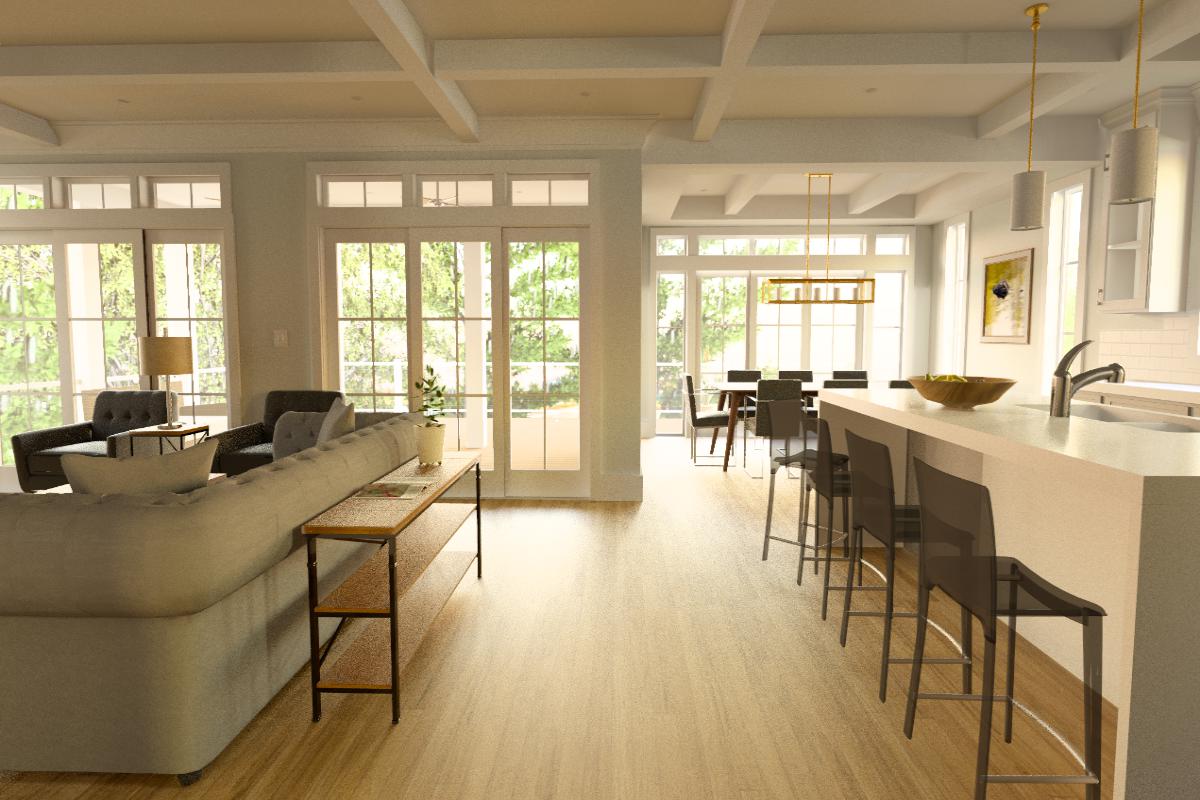

Haddie's Hideaway 2700R FLG living room looking toward the kitchen and dining area, with a coffered ceiling, French doors to the porch, pendant lights, and island seating

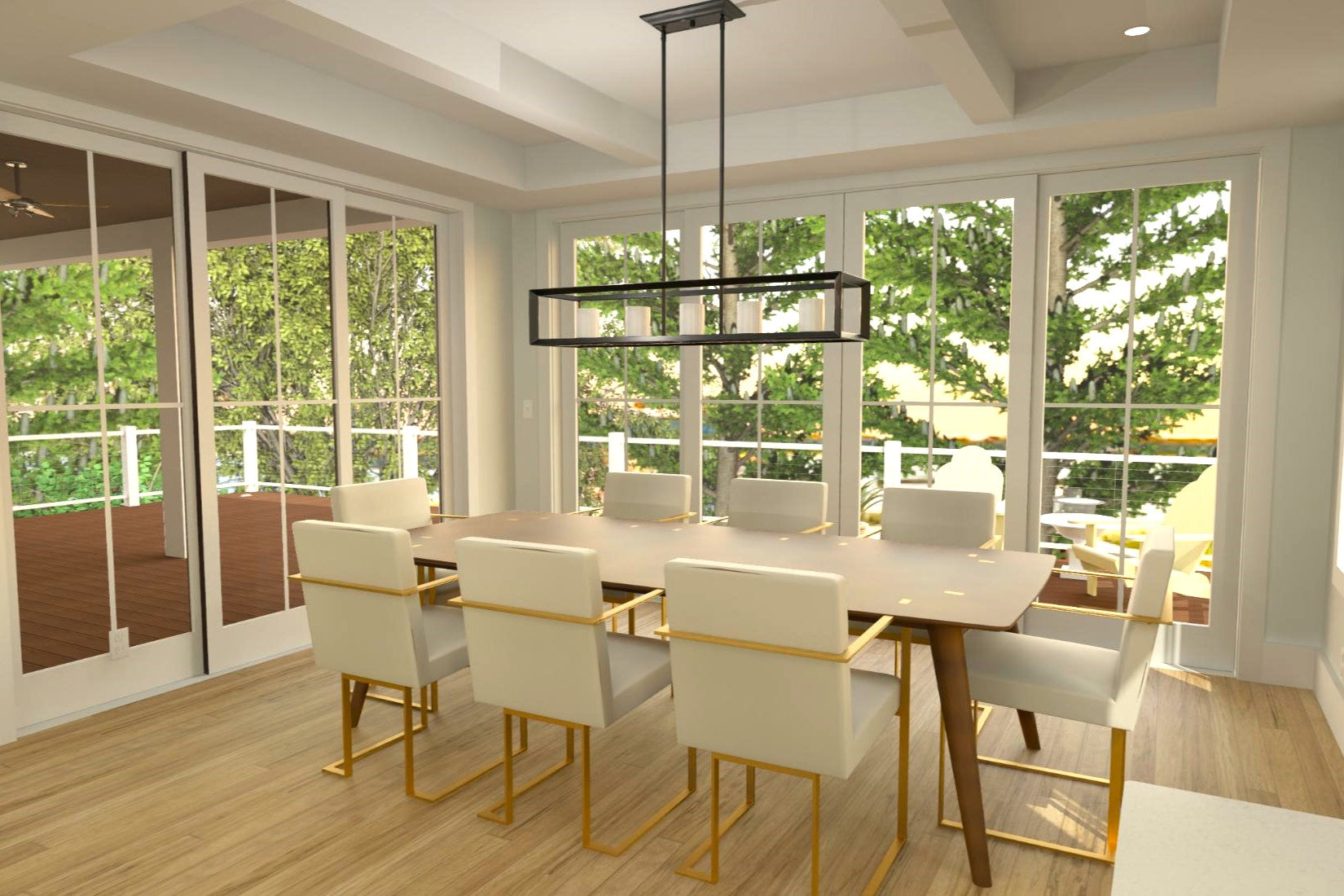

Haddie's Hideaway 2700R FLG dining room under a tray ceiling with a linear light fixture, a wood table with eight chairs, and windows and a glass door out to the covered porch

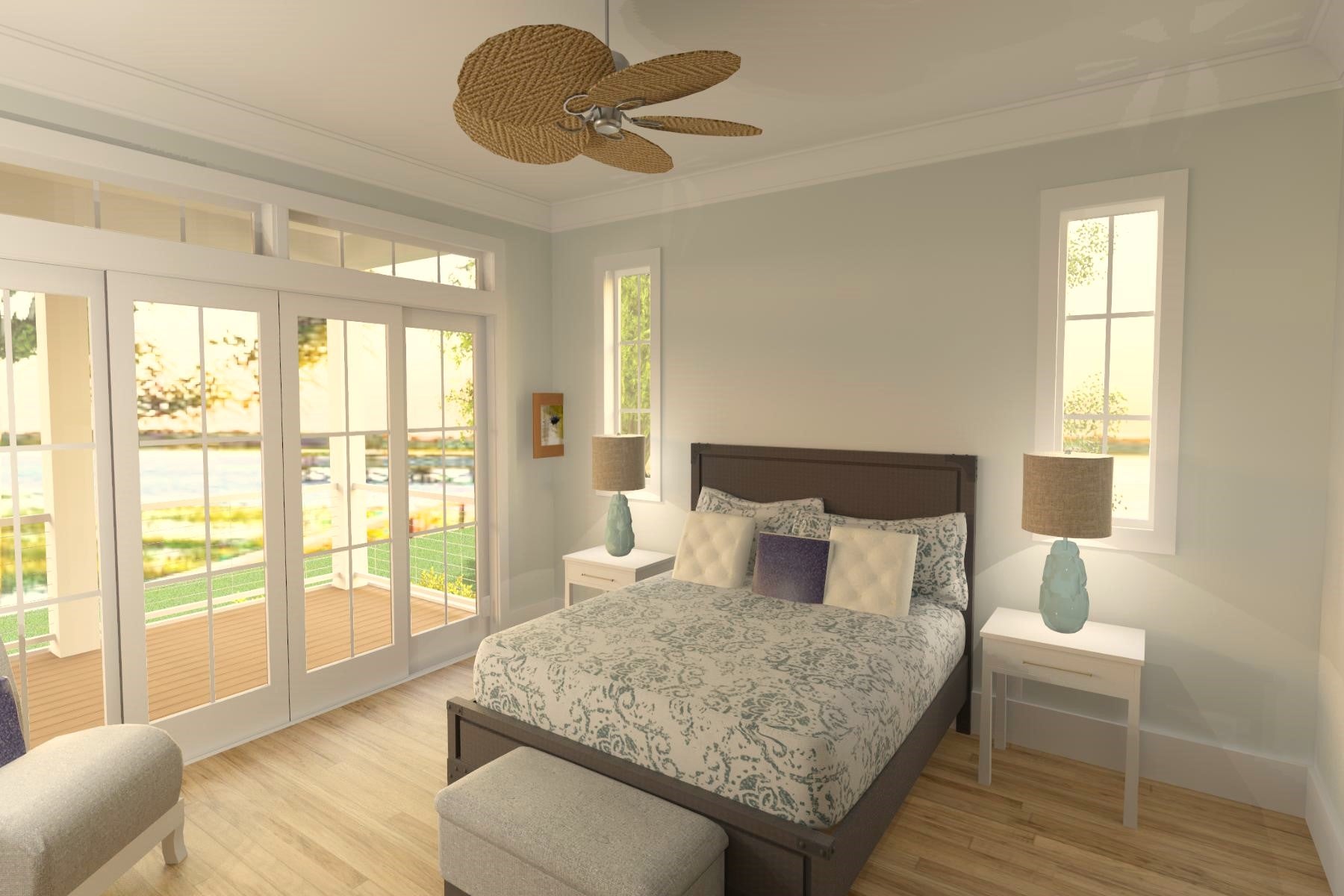

Haddie's Hideaway 2700R FLG primary bedroom with a woven ceiling fan, a queen bed between two nightstands, and French doors out to the porch

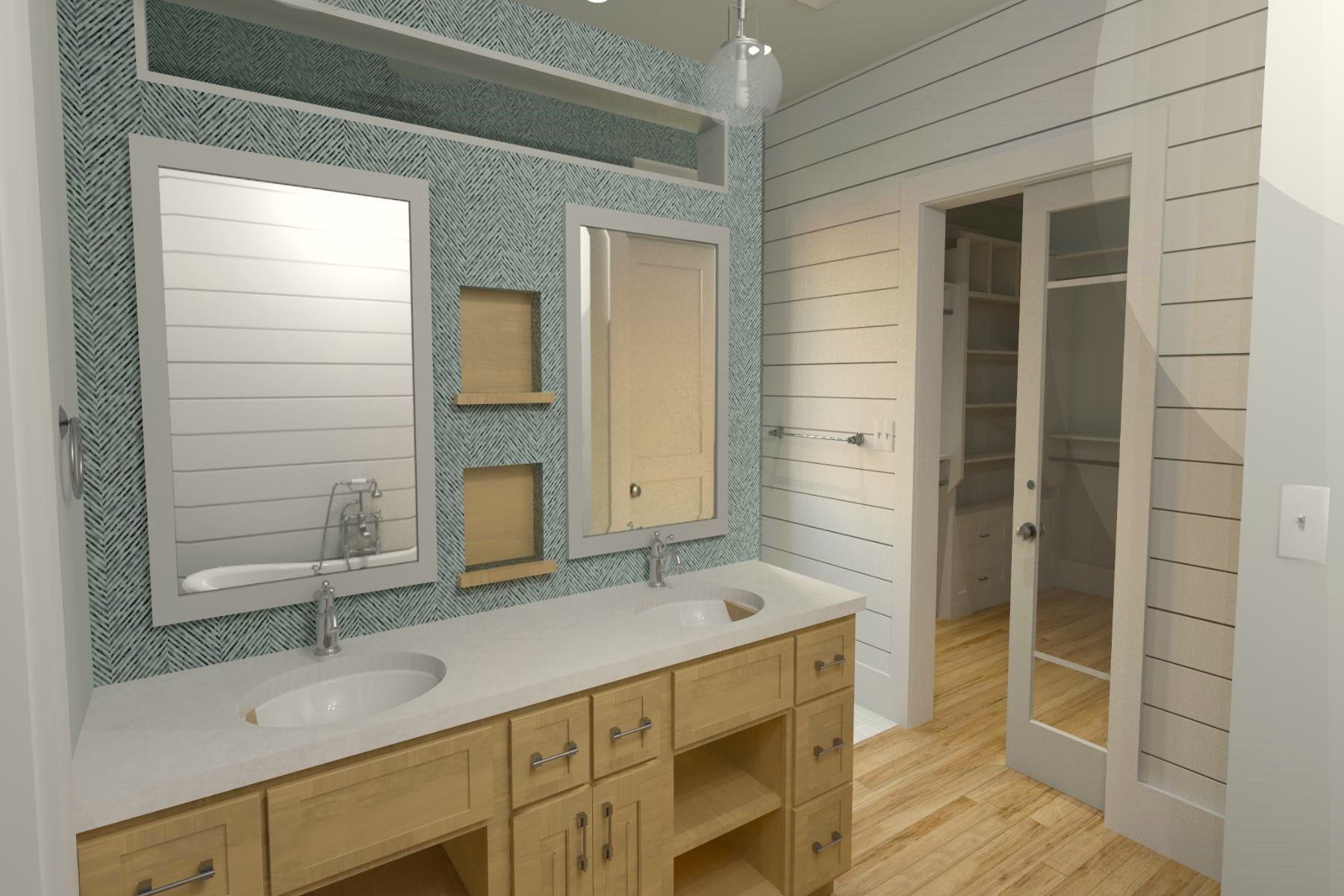

Haddie's Hideaway 2700R FLG primary bath with a double wood vanity, two framed mirrors on a green herringbone tile wall, tiled niches, and a glazed door through to the closet

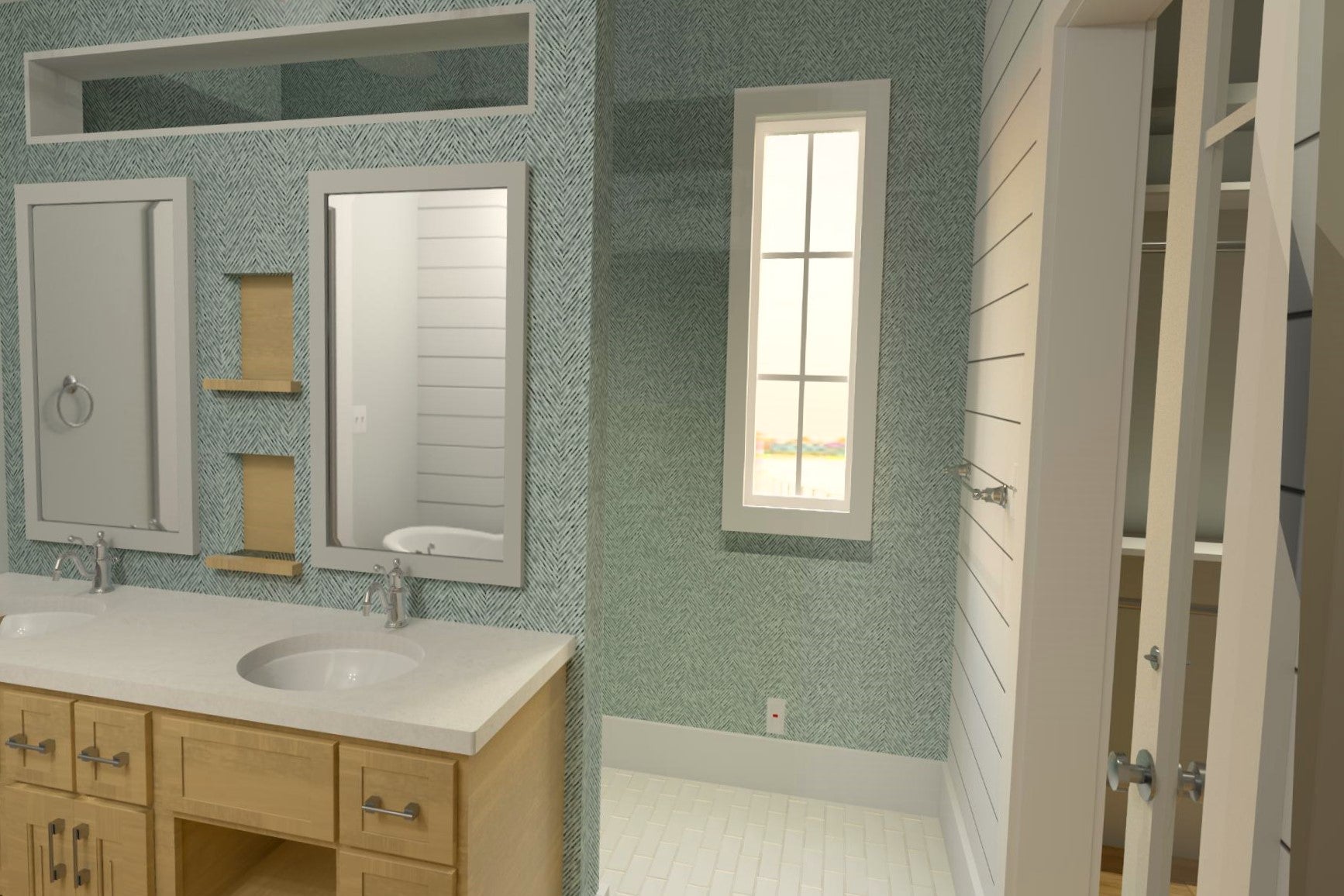

Haddie's Hideaway 2700R FLG primary bath from the opposite corner, showing the double vanity, mirrors and niches, a tall narrow window, and the glazed closet door

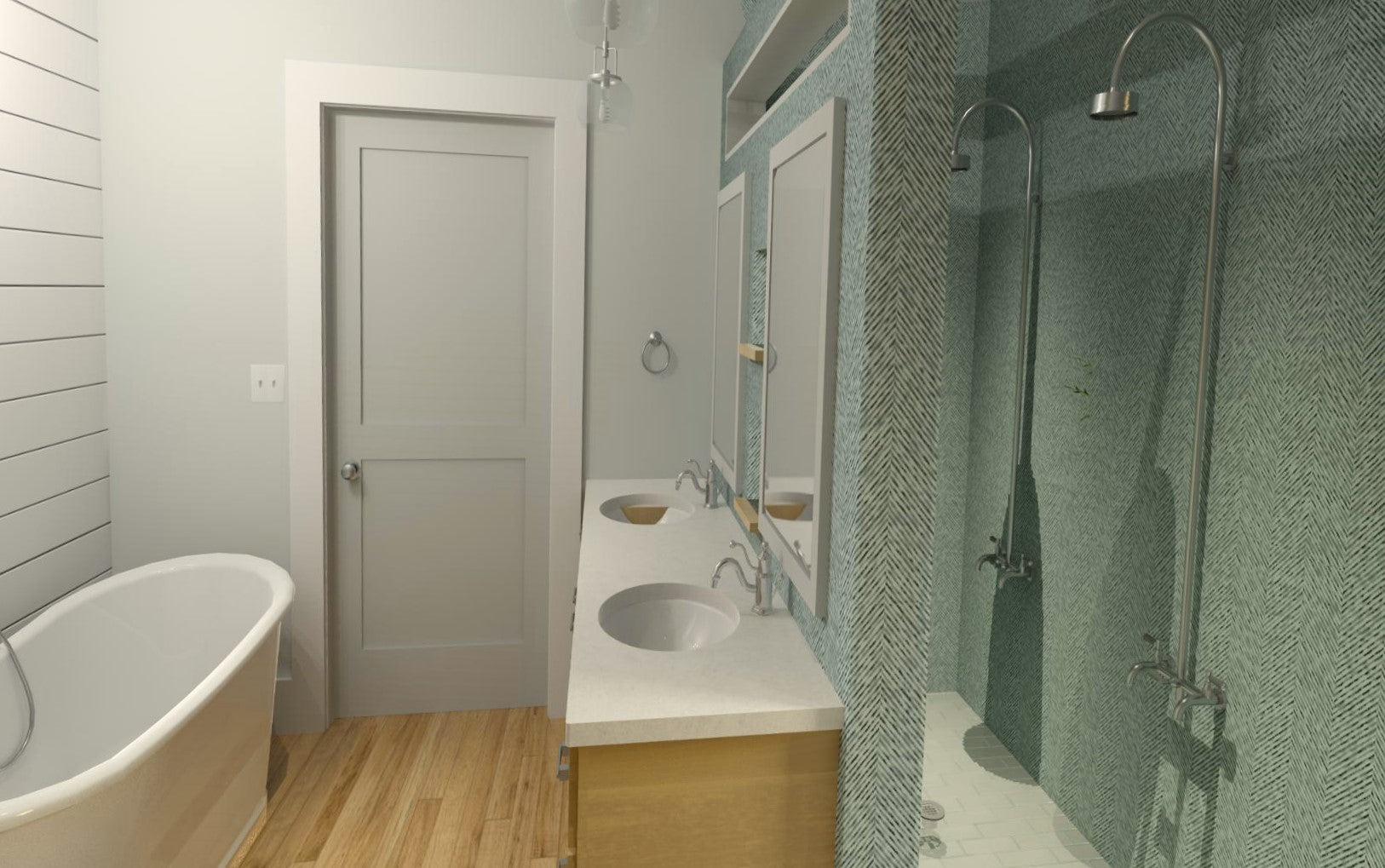

Haddie's Hideaway 2700R FLG primary bath looking down the room, with a freestanding tub at the near end, the double vanity, and a walk-in shower with two rain heads on green tile
Haddie's Hideaway 2700R FLG hall seen from the stair, with a glazed door out to the deck and water, paneled doors, and the corridor running past them

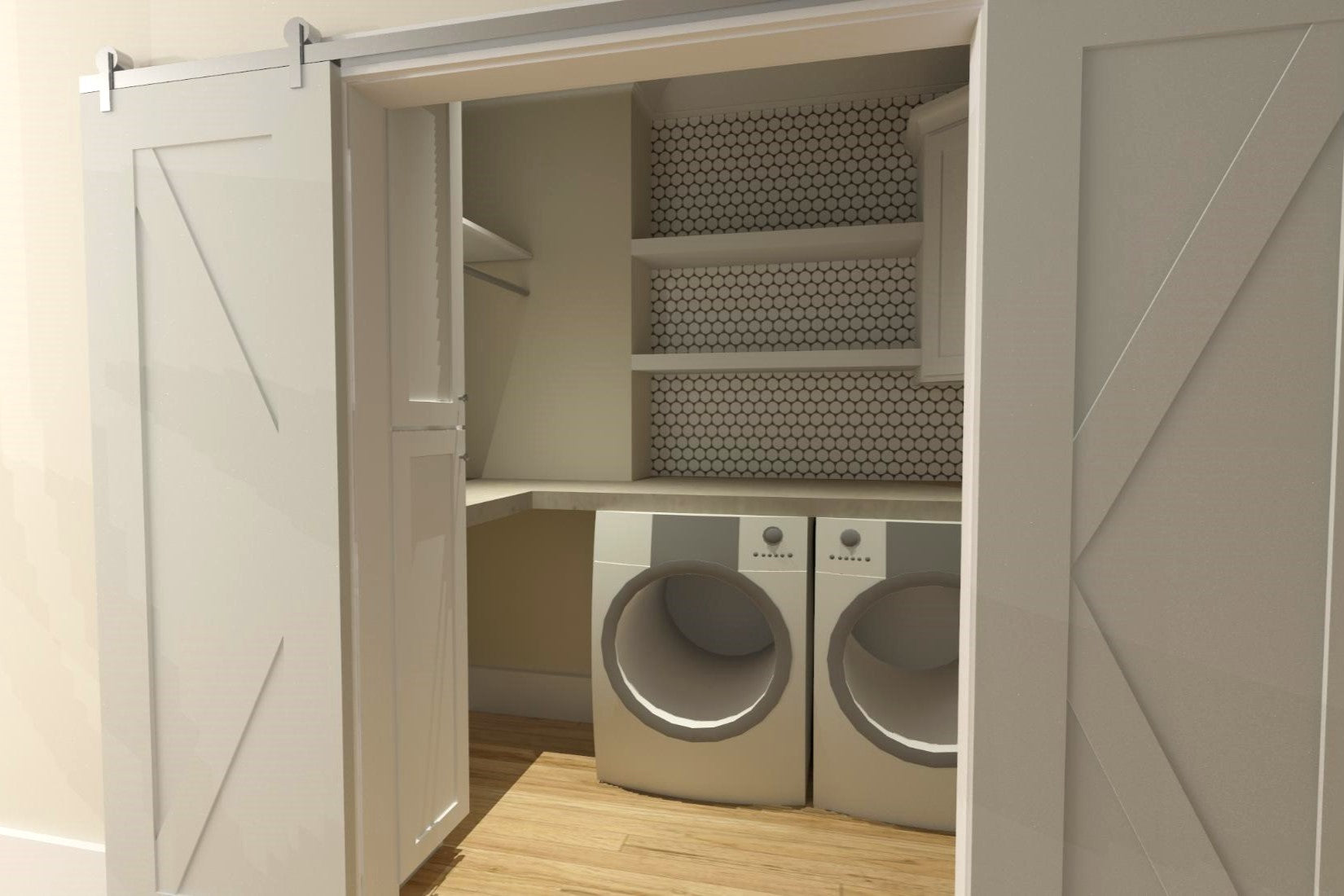

Haddie's Hideaway 2700R FLG laundry closet behind two sliding barn doors, with a side by side washer and dryer, a folding counter, and patterned tile shelving above

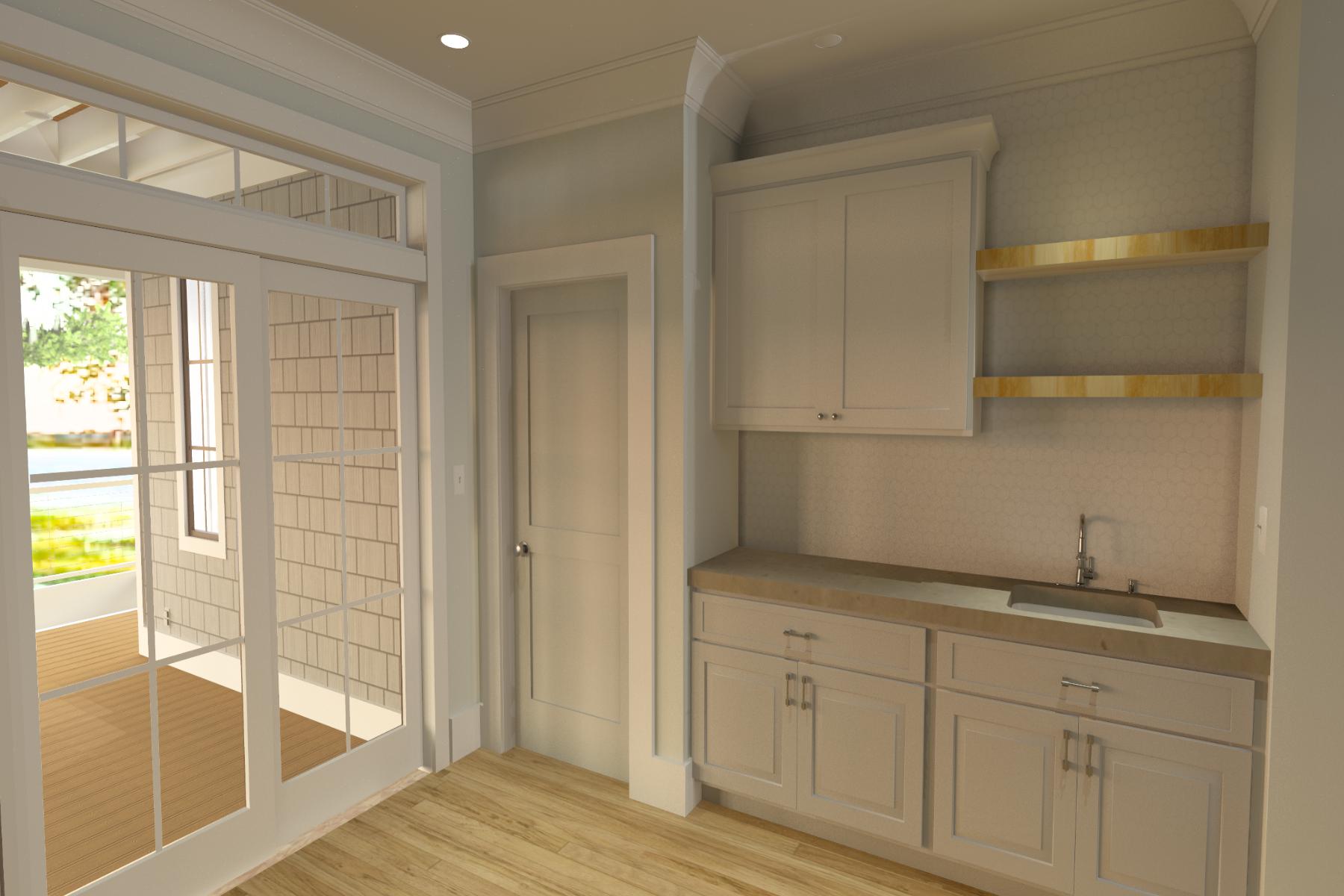

Haddie's Hideaway 2700R FLG wet bar with lower cabinets, a sink, an upper cabinet and two wood shelves, next to a glazed door out to the screened porch
Haddie's Hideaway 2700R FLG stairwell seen from above, with two story corner windows, trailing plants on shelves, and a wood and cable rail
Haddie's Hideaway 2700R FLG hall looking down the corridor to the living room, with a round mirror, a paneled door, and the seating and windows beyond
Haddie's Hideaway 2700R FLG hall with a glazed exterior door, paneled doors, and an opening through to the rooms beyond
Haddie's Hideaway 2700R FLG hall looking toward the living room, with a round mirror on the wall and the coffered ceiling and windows ahead

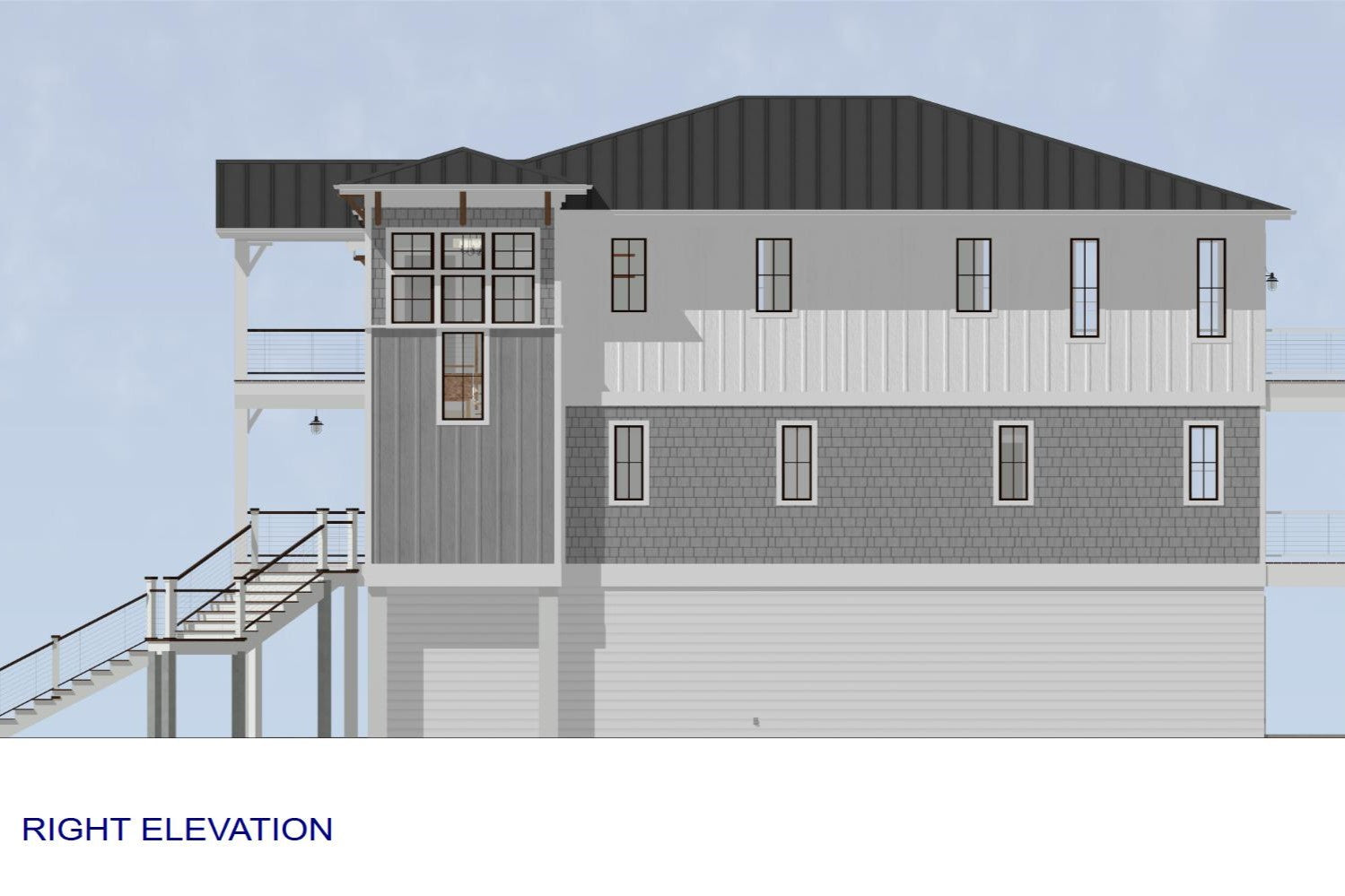

Haddie's Hideaway 2700R FLG right elevation drawing showing the metal roof, the stair tower windows, shingle and board and batten siding, the garage door, and the exterior stair

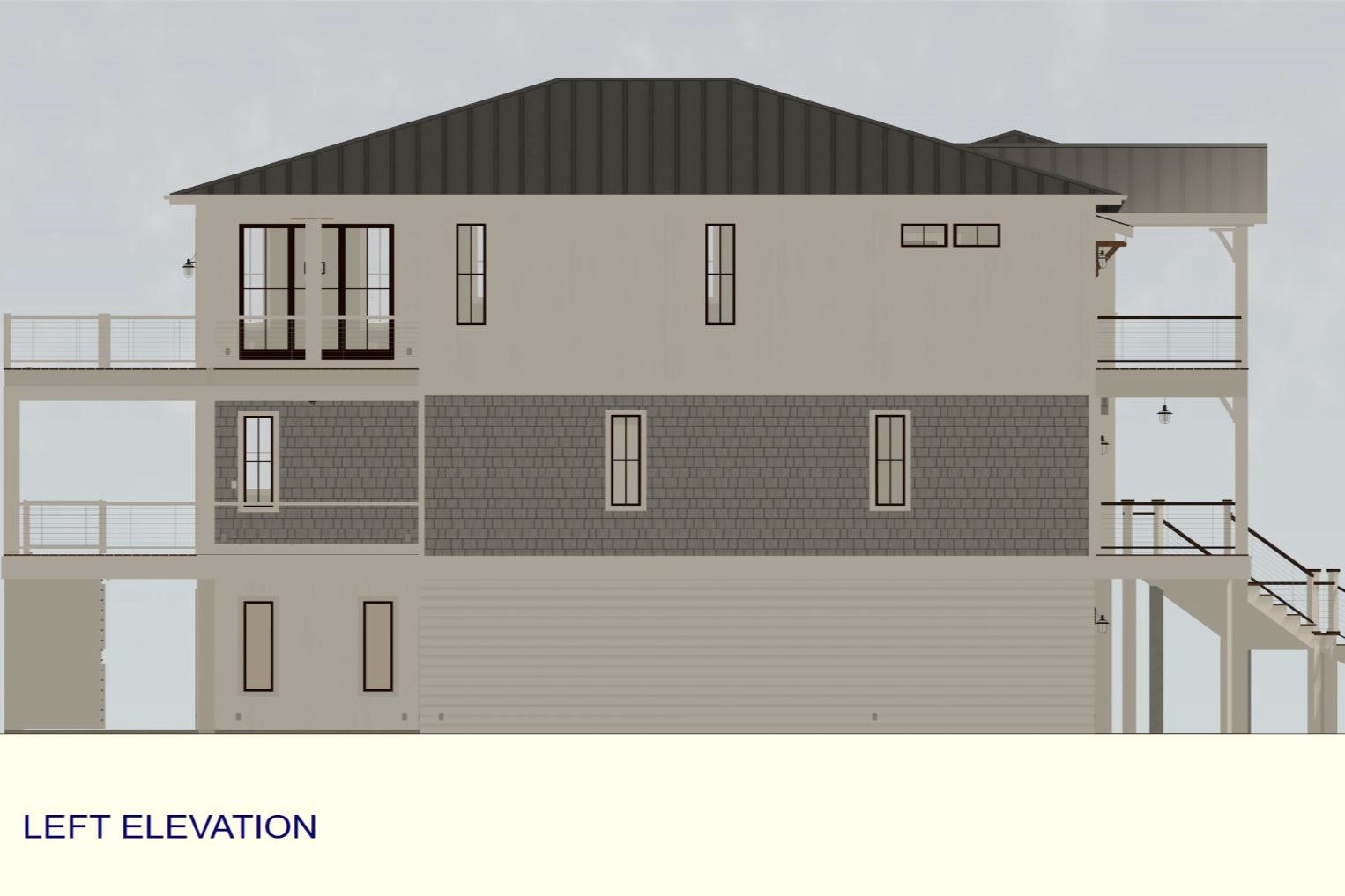

Haddie's Hideaway 2700R FLG left elevation drawing showing the metal roof, the sliding doors to the upper deck, shingled and lap siding, and the piling level below
Front left view of Haddie's Hideaway 2700R FLG at dusk, a three story coastal house on pilings with stacked covered porches, a tall window bay at the corner, and a wood stair up from the drive
Front view of Haddie's Hideaway 2700R FLG showing the gable over the stacked porches, shingled panels under the porch, the garage doors below, and the stair up to the main floor
Front right view of Haddie's Hideaway 2700R FLG showing the long side wall, the corner porches, the drive-under garage, and the water beyond
Rear view of Haddie's Hideaway 2700R FLG with stacked decks across the back, sliding glass doors on both levels, cable railings, and open parking on pilings below
Right side view of Haddie's Hideaway 2700R FLG showing the shingled middle floor, board and batten above, the tall stair window bay, and the rear deck and stair
Haddie's Hideaway 2700R FLG main floor plan with a front porch 24 feet 8 inches by 8 feet, entry, primary bedroom 14 feet by 15 feet 4 inches with bath, coffee bar and walk-in closet, bedroom 2 and bedroom 3 at 11 feet 4 inches by 12 feet each with their own closets, a sitting room 10 feet by 12 feet, laundry, a covered porch 21 feet 11 inches by 11 feet 6 inches, a stair to the ground floor, and a labeled elevator
Haddie's Hideaway 2700R FLG second floor plan with a living room 22 feet by 17 feet with built-ins, kitchen 14 feet by 17 feet with an island and pantry, dining room 14 feet by 11 feet 6 inches under a tray ceiling, a study or bedroom 4 at 11 feet 2 inches by 13 feet 8 inches, an upper hall, a 37 foot open deck, two covered porches, and a labeled elevator
Haddie's Hideaway 2700R FLG ground floor plan, 38 feet by 64 feet, with a garage 29 feet 6 inches by 33 feet 6 inches and three 9 by 8 overhead doors, an optional finished game room 14 feet by 15 feet 10 inches with a wet bar and bath, storage, a labeled elevator beside the stair, and covered porches above
Haddie's Hideaway 2700R FLG entry with shiplap walls, French doors out to the porch and water view, a striped runner, and the stair starting up on the right
Haddie's Hideaway 2700R FLG stair hall with shiplap walls, paneled doors on both sides, a chandelier, and the stair rising toward a landing window
Haddie's Hideaway 2700R FLG stair landing with a built-in bench and window seat, tall windows looking out to the water, a floating shelf, and a cable rail at the stair
Haddie's Hideaway 2700R FLG hall with shiplap walls, a round mirror, and a doorway through to a bedroom
Haddie's Hideaway 2700R FLG living room under a coffered ceiling, with a sofa and chairs, French doors out to the porch, the kitchen island with stools at the right, and the dining table beyond
Haddie's Hideaway 2700R FLG kitchen with white cabinets, a wall mounted hood over a gas range, wood open shelving, a panel front refrigerator, and a long island with seating
Haddie's Hideaway 2700R FLG living room with a coffered ceiling, a built-in media wall with shelves, windows and French doors along the outside wall, and the kitchen island in the foreground
Haddie's Hideaway 2700R FLG living room looking toward the kitchen and dining area, with a coffered ceiling, French doors to the porch, pendant lights, and island seating
Haddie's Hideaway 2700R FLG dining room under a tray ceiling with a linear light fixture, a wood table with eight chairs, and windows and a glass door out to the covered porch
Haddie's Hideaway 2700R FLG primary bedroom with a woven ceiling fan, a queen bed between two nightstands, and French doors out to the porch
Haddie's Hideaway 2700R FLG primary bath with a double wood vanity, two framed mirrors on a green herringbone tile wall, tiled niches, and a glazed door through to the closet
Haddie's Hideaway 2700R FLG primary bath from the opposite corner, showing the double vanity, mirrors and niches, a tall narrow window, and the glazed closet door
Haddie's Hideaway 2700R FLG primary bath looking down the room, with a freestanding tub at the near end, the double vanity, and a walk-in shower with two rain heads on green tile
Haddie's Hideaway 2700R FLG hall seen from the stair, with a glazed door out to the deck and water, paneled doors, and the corridor running past them
Haddie's Hideaway 2700R FLG laundry closet behind two sliding barn doors, with a side by side washer and dryer, a folding counter, and patterned tile shelving above
Haddie's Hideaway 2700R FLG wet bar with lower cabinets, a sink, an upper cabinet and two wood shelves, next to a glazed door out to the screened porch
Haddie's Hideaway 2700R FLG stairwell seen from above, with two story corner windows, trailing plants on shelves, and a wood and cable rail
Haddie's Hideaway 2700R FLG hall looking down the corridor to the living room, with a round mirror, a paneled door, and the seating and windows beyond
Haddie's Hideaway 2700R FLG hall with a glazed exterior door, paneled doors, and an opening through to the rooms beyond
Haddie's Hideaway 2700R FLG hall looking toward the living room, with a round mirror on the wall and the coffered ceiling and windows ahead
Haddie's Hideaway 2700R FLG right elevation drawing showing the metal roof, the stair tower windows, shingle and board and batten siding, the garage door, and the exterior stair
Haddie's Hideaway 2700R FLG left elevation drawing showing the metal roof, the sliding doors to the upper deck, shingled and lap siding, and the piling level below

Haddie's Hideaway 2700R FLG

2797 Sq Ft | 4 Bed | 4.0 Bath | 2-Story

$1,752.95 Save $92.05

430+ Plans Sold · Lowest Price Guaranteed.

Plans and support, directly from the designer. Price match policy →

Licensed for one build at your build address.

Plan Set PDF Files
Foundation Options Pier
A right-reading mirror image of this plan: the entire layout flipped, with all text and dimensions still readable. Added to your cart together with the plan set.
Adding to Cart Added to Cart
OR
📋 GET STUDY SET • $75
PDF Study Set of floor plans & elevations for budgeting. $75 credited toward the full plan, valid 12 months. FAQ →
EXPLORE OUR BUILT HOUSE PLANS →
LOOKING FOR A COST-TO-BUILD CALCULATOR? →

Would you like to customize this plan? Request a free modification quote.

Modify This Plan

Haddie’s Hideaway 2700R FLG

4-Bedroom Reverse-Living Coastal Plan with a Front-Load Garage

2,797 SQ. FT. | 4–5 BED | 4–5 BATH | 2-STORY | 2-CAR FRONT-ENTRY GARAGE

The 2700R FLG is the Haddie's Hideaway reverse-living plan turned to face the street, for a lot where the parking has to come in from the front. Living, dining and an island kitchen sit on the upper floor with a deep, partly covered deck off them, so the rooms you use all day get the light and the view. An elevator runs from the garage to every floor and is part of the plan, not an add-on.

The bedrooms are on the main level, the primary among them, set back from the traffic of the living floor with a two-sink bath, a large shower and a walk-in closet. On the ground floor there is a room you can finish as a game room, a fifth bedroom suite, a media room or an office, plus a deep storage room off the garage for the gear that should never come upstairs.

A front-load garage with the elevator in it: two cars come in from the street, and the elevator shaft rises from the garage to every floor, so groceries, luggage and anyone who would rather skip the stairs all arrive the same way.

Living upstairs, with a deck to match: the upper floor holds the living and dining rooms and opens onto a deep deck, part covered, part open, so there is a dry place to sit and a sunny one.

A main-level primary suite: one floor down from the living rooms, away from the noise, with a two-sink bath, a large shower and a walk-in closet.

An island kitchen with a walk-in pantry: a big island for prep and for company, and a pantry with a door, which is what keeps an open kitchen tidy.

A ground floor that can be anything: an optional finished room downstairs for games, a fifth bedroom suite, a media room or an office, and a separate storage room off the garage for beach gear, tools and equipment.

  • Footprint: 38’ 0” Width x 64’ 0” Depth
  • Max Ridge Height: 37’ 9”
  • Foundation: Pier | Optional Piling or Walkout Basement (+$350)
  • Framing: 2x6 Exterior Walls | Truss Roof Framing
  • Ceilings: 9’ Lower Level | 9’ First Floor | 9’ Second Floor
  • Garage: Attached Drive-Under, 756 sq. ft., 2 Cars, Front Entry
  • Roof Details: 4 on 12 Primary / 6 on 12 Secondary Pitch | Truss Framing

The 2700R FLG keeps the reverse-living idea, the view and the light at the top of the house, and turns it to fit a lot that is entered from the front.

Every blueprint is crafted by Angela, a professional spatial designer with a degree in Computer Graphics Technology from Purdue University and studies in interior architecture.

With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.

Purchase of PDF Set includes

  • Cover sheet with general notes
  • Foundation plan
  • Floor plans with dimensions
  • Exterior elevations
  • Cross section
  • Door & window schedules
  • Roof plan
  • Electrical plans
  • Cabinetry elevations (most plans; please inquire to confirm)

What's not included

  • Architectural or engineering stamp: handled locally if required
  • Site plan: handled locally when required
  • Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
  • Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
  • Energy calculations: handled locally when required

Purchase of Chief Architect plan

  • Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
  • All materials and textures related to the plan for 3D viewing
  • PDF plan set included with purchase

Readable Reverse add-on

  • A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable

What foundation does Haddie's Hideaway 2700R FLG come with?

Haddie's Hideaway 2700R FLG is drawn on a pier / piling foundation. It is an elevated plan, with the living space raised above open space or parking, drawn for flood zone and coastal lots. On this page it is offered as pier, walkout basement (+$350) or piling (+$350), chosen before you buy. A local engineer sizes the foundation for your soil and wind zone.

How tall is Haddie's Hideaway 2700R FLG and how much ground does it cover?

The maximum ridge height is 37' 9". The footprint is 38' 0" x 64' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 2,797 square feet on 2 stories.

What comes in the plan set for Haddie's Hideaway 2700R FLG, and what do I still need locally?

A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.

Can I look at Haddie's Hideaway 2700R FLG in detail before buying the full set?

Yes. A $75 study set of Haddie's Hideaway 2700R FLG includes dimensioned floor plans for every level, all four elevations, door and window schedules and a specification sheet, enough to hand a builder for a budget number and to check the footprint against your lot. It is not licensed for construction. The $75 credits in full toward the Haddie's Hideaway 2700R FLG construction set for twelve months.
