Haddie's Hideaway 2700R
Reverse-Living Low Country Craftsman | Elevated Pier/Piling Foundation
2797 Sq Ft | 3 Bed | 4.0 Bath | 2-Story
430+ Plans Sold · Lowest Price Guaranteed.
Buy direct & save 5% vs. marketplaces. Price match policy →
Licensed for one build at your build address.
Would you like to customize this plan? Request a free modification quote.
Modify This PlanHaddie’s Hideaway 2700R
4-Bedroom Reverse-Living Low Country Craftsman
2,797 SQ. FT. | 3-4 BED | 4 BATH | 2-STORY
Haddie’s Hideaway 2700R is a stunning Low Country Craftsman blueprint meticulously designed to capture the very best of its natural surroundings. By placing the shared family living spaces and sprawling porches on the top level, this premium reverse-living layout places panoramic water or landscape views front and center—right where you spend the majority of your time.
The upper level features a spacious chef’s kitchen anchored by a central island and a rare, sun-drenched walk-in pantry. Combined with an optional multi-flex game room, a private main-floor primary retreat, and a massive 3-car drive-under garage, this design offers the ultimate mix of coastal luxury and rugged structural utility.
Top-Level Reverse-Living Flow: Living, dining, and main porch areas are elevated to the upper level to secure maximum natural light and unobstructed panoramic views.

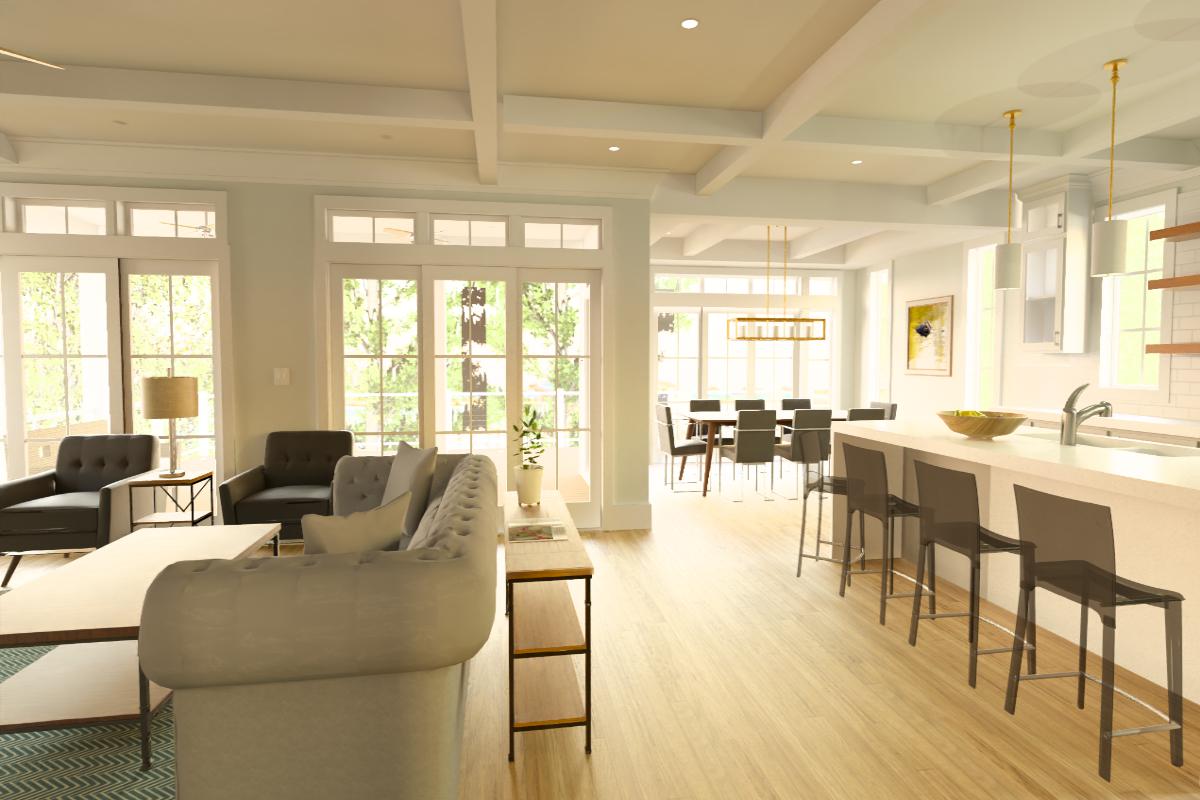

Sun-Drenched Island Kitchen: A beautifully appointed kitchen layout featuring a large prep island and a dedicated pantry flooded with natural light.
Luxury En-Suite Primary Retreat: The main master suite offers complete privacy, a generous spa-style bathroom layout, and ample walk-in closet space.
Optional Lower-Level Game Room: A highly flexible bonus wing that easily configures into an entertainment room, home theater, or secondary guest suite.
Massive 3-Car Drive-Under Garage: A 756 sq. ft. side-entry garage provides extensive storage capacity for multiple vehicles, boats, and coastal gear.
Dedicated Ground-Level Storage: Separate, secure lower-level utility closets keep your primary living zones entirely clean and organized.
- Footprint: 38’ 0” Width x 64’ 0” Depth (Excellently proportioned for deep, narrow waterfront or coastal lots)
- Max Ridge Height: 37’ 9”
- Foundation: Coastal-ready Pier (Optional Piling or Walkout foundations available)
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 9’ 0” Lower Level | 9’ 0” First Floor | 9’ 0” Second Floor
- Garage: Drive-Under 3-Car Side Entry (756 sq. ft. vehicle bay)
- Roof Details: Modern 4 on 12 Pitch | Truss Framing
Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. Haddie’s Hideaway 2700R masterfully flips the traditional residential footprint to position your primary daily living zones at the highest architectural point—where the kitchen, living room, and views belong—while keeping private sleeping quarters calm and grounded below.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design—including a decade in custom construction in Charleston, SC—Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions

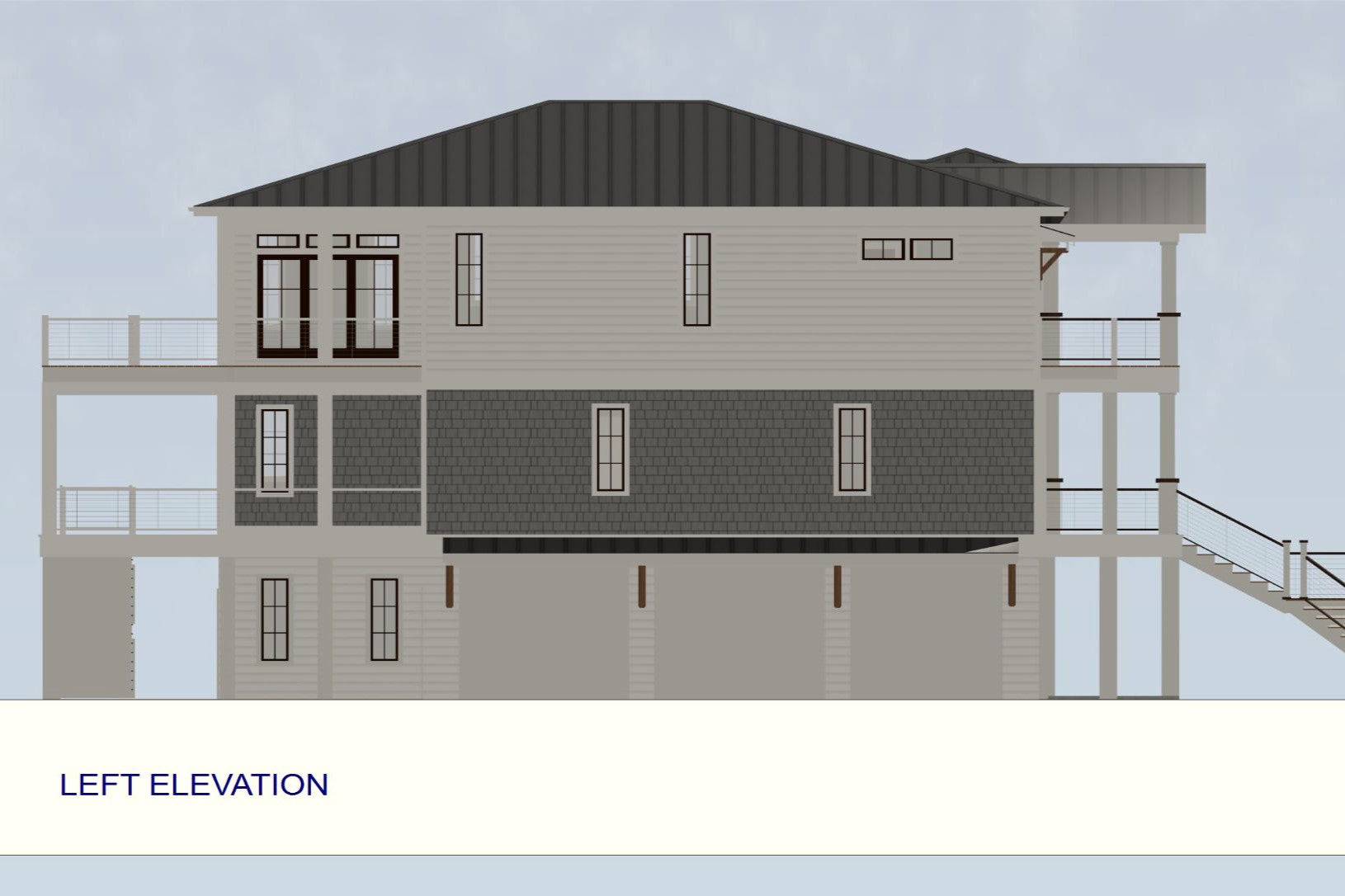

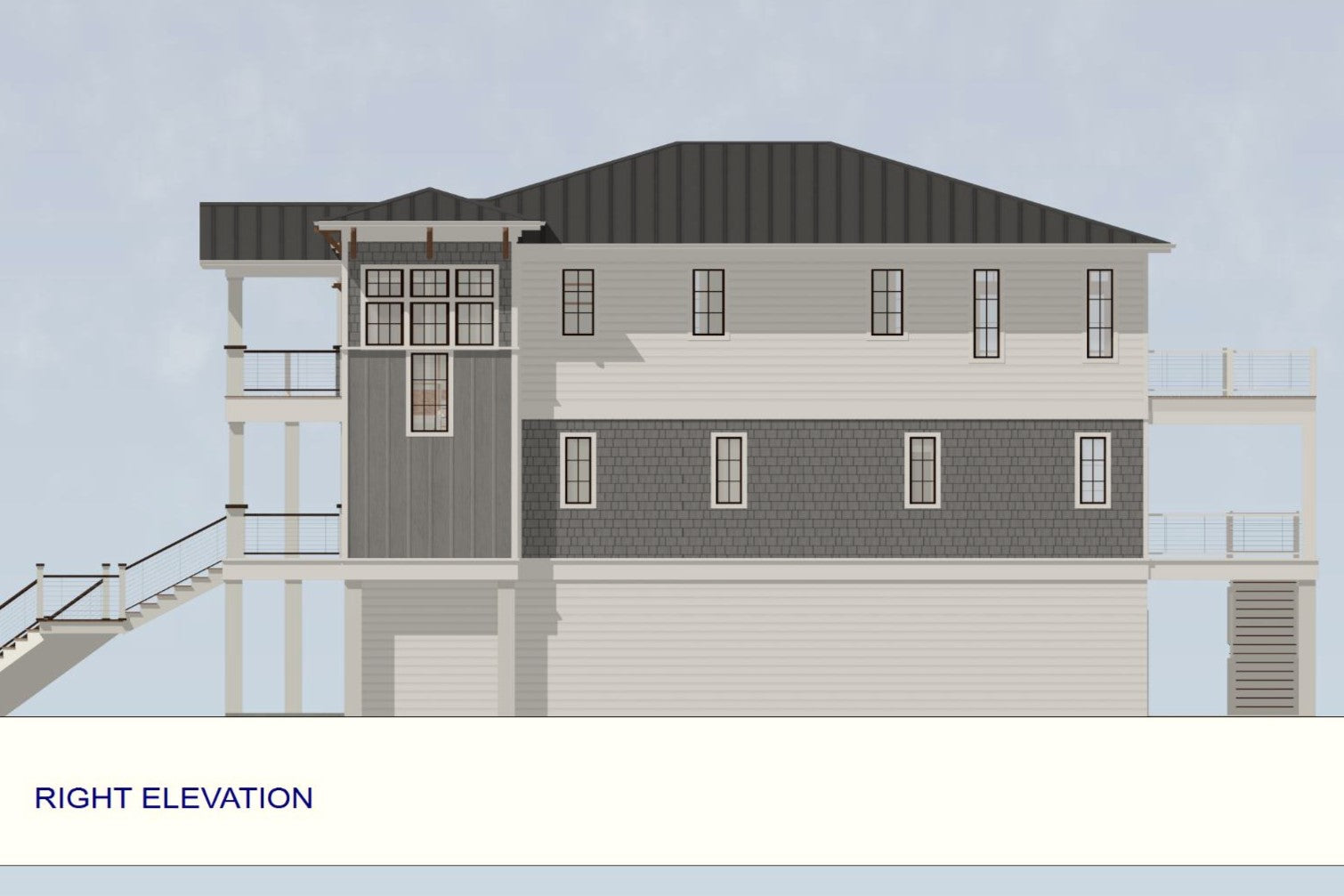

- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations — most plans, please inquire to confirm
What's not included
- Architectural or engineering stamp — handled locally if required
- Site plan — handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work) — your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations) — your subcontractors handle this
- Energy calculations — handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does Haddie's Hideaway 2700R come with?
Haddie's Hideaway 2700R is drawn on a pier / piling foundation. It is an elevated plan, with the living space raised above open space or parking, drawn for flood zone and coastal lots. On this page it is offered as pier, walkout basement (+$350) or piling (+$350), chosen before you buy. A local engineer sizes the foundation for your soil and wind zone.
How tall is Haddie's Hideaway 2700R and how much ground does it cover?
The maximum ridge height is 37' 9". The footprint is 38' 0" x 64' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 2,797 square feet on 2 stories.
What comes in the plan set for Haddie's Hideaway 2700R, and what do I still need locally?
A licensed construction set: cover sheet with general notes, foundation plan, dimensioned floor plans for every level, all four exterior elevations, a cross section, roof plan, electrical plans, and door and window schedules, sold as PDF, PDF plus CAD, or Chief Architect files. Every set is licensed for one build at your build address. An engineer's review and stamp where required, a site plan, engineered floor and roof framing, mechanical and plumbing drawings and energy compliance are produced locally, as they are for any stock plan.
Can I look at Haddie's Hideaway 2700R in detail before buying the full set?
Yes. A $75 study set of Haddie's Hideaway 2700R includes dimensioned floor plans for every level, all four elevations, door and window schedules and a specification sheet, enough to hand a builder for a budget number and to check the footprint against your lot. It is not licensed for construction. The $75 credits in full toward the Haddie's Hideaway 2700R construction set for twelve months.
