The Quinn
Elevated Coastal Country Cottage | Elevated Pier/Piling Foundation
2343 Sq Ft | 3 Bed | 3.5 Bath | 2-Story
CAD files are not modifiable and are strictly for use by licensed structural engineers. Issued in .dwg format, they are not native AutoCAD files and are not for purposes of altering the original design.
Would you like to customize this plan? Request a free modification quote.
The Quinn House Plan
Elevated Coastal Country House Plan

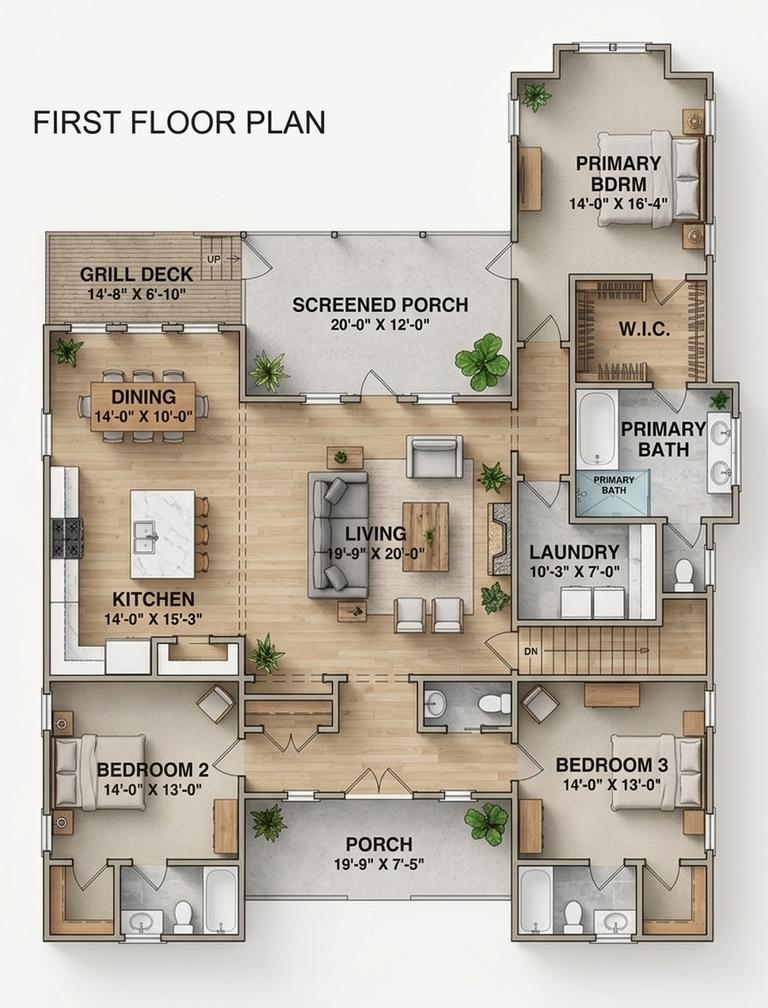

2,343 SQ. FT. | 3 BED | 3.5 BATH | 2-STORY | 2-CAR DRIVE-UNDER GARAGE
The Quinn is a country-inspired coastal house plan defined by traditional charm and modern structural logic, featuring a crisp clapboard exterior and a dramatic metal roof. The home is designed for comfort and connection, centering on a spacious living room anchored by a fireplace, transitioning seamlessly into a well-appointed kitchen equipped with an oversized island and optimized natural light. The primary suite is a true private sanctuary, positioned for maximum privacy and featuring a generous walk-in closet and a five-piece bathroom suite with an oversized walk-in shower.
Large Screened Porch: Seamlessly extends your living space, providing a sheltered environment to enjoy the outdoors year-round.
Drive-Under Garage: A side-entry, drive-under garage design that maintains a clean, compact footprint while maximizing site utility.
Primary Suite Retreat: A thoughtfully positioned suite featuring a 5-piece bath and walk-in shower for a high-end, functional daily experience.
Oversized Kitchen Island: Designed for both meal prep and casual gathering, keeping the open-concept living area functional and organized.
Dramatic Metal Roof: Adds a timeless country aesthetic while providing superior durability and weather resistance.
Footprint: 52’ 2” Width x 65’ 10” Depth
Max Ridge Height: 37’ 5”
Foundation: Piling / Pier
Framing: 2x6 Exterior Walls | Truss Roof Framing
Ceilings: 10’ Lower Level | 10’ First Floor
Roof Details: 8 on 12 Primary Pitch
Every blueprint in our collection is crafted with a strict focus on structural flow and spatial efficiency. The Quinn takes the warmth of a classic Coastal Country house plan and grounds it in practical, modern utility — where traditional exterior character meets a high-performance interior layout designed for daily ease and lasting comfort.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes:
- Cover sheet with general notes
- Foundation Plan
- Floor Plans with Dimensions

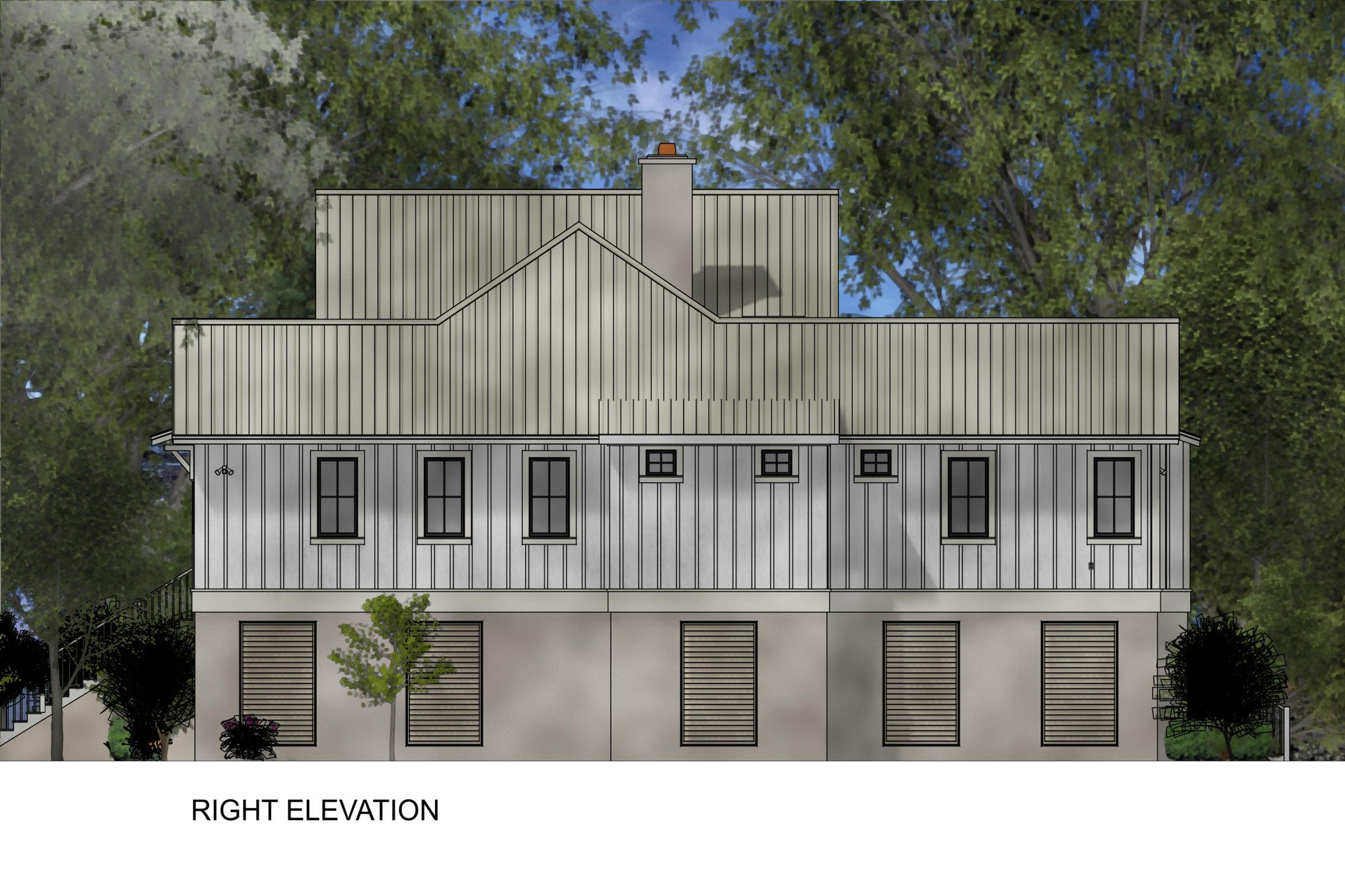

- Exterior Elevations
- Cross Section
- Door & Window Schedules
- Roof plan
- Electrical Plans
- Cabinetry Elevations (most plans- please inquire to confirm)
What's Not Included:
- Architectural or Engineering Stamp - handled locally if required
- Site Plan - handled locally when required
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
- Energy calculations - handled locally when required
Purchase of Chief Architect plan:
- Plan and Layout files (.plan and .layout) files formatted to be used in design software Chief Architect X15 or Home Designer Pro 2024
- All materials and textures related to plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse Add-On:
- A right reading mirror image of the plan (flipped vertically from right to left) with all dimensions and text formatted to be read correctly
