The Palm House
Coastal Elevated Residence with Screened Porch & Drive-Under Garage
3445 Sq Ft | 4 Bed | 3.5 Bath | 2-Story
430+ Plans Sold · Lowest Price Guaranteed.
Buy direct & save 5% vs. marketplaces. Price match policy →
Licensed for one build at your build address.
Would you like to customize this plan? Request a free modification quote.
The Palm House Plan
Elevated Coastal House Plan
3,445 SQ. FT. | 4 BED | 3.5 BATH | 2-STORY | 2-CAR DRIVE-UNDER GARAGE
The Palm House is built around its kitchen. There is a separate prep area, a big pantry, a breakfast nook and a snack bar where everyone leans while dinner happens, and it opens to a great room with exposed beams overhead. The entry stair is the first thing you see from the front door, and it is drawn to be looked at.

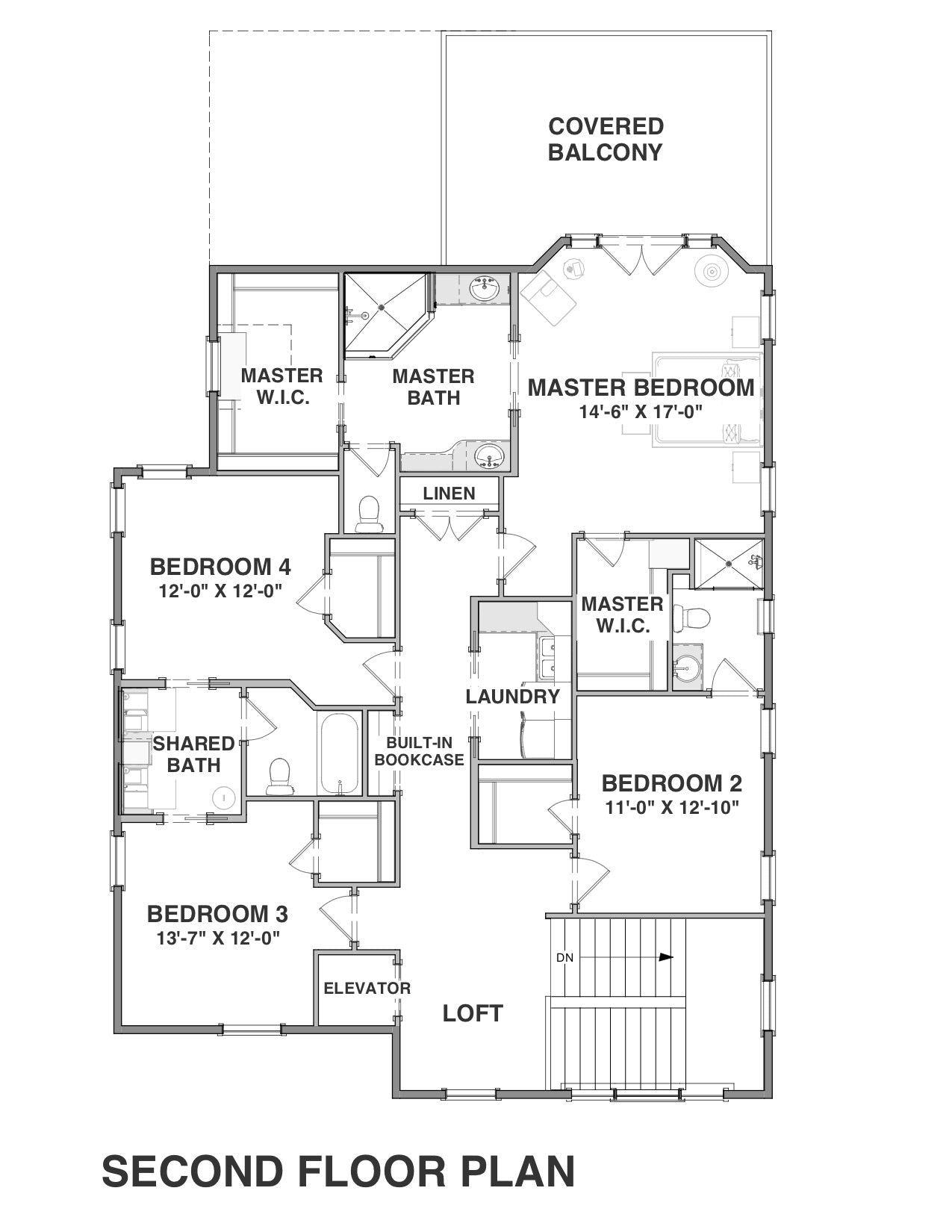

Out the back, a screened porch with its own fireplace runs into an open deck. The primary bedroom has a private covered balcony and plenty of closet space. Upstairs, two bedrooms share a Jack-and-Jill bath and the third has a bath of its own, which settles the question of who gets the guest room.

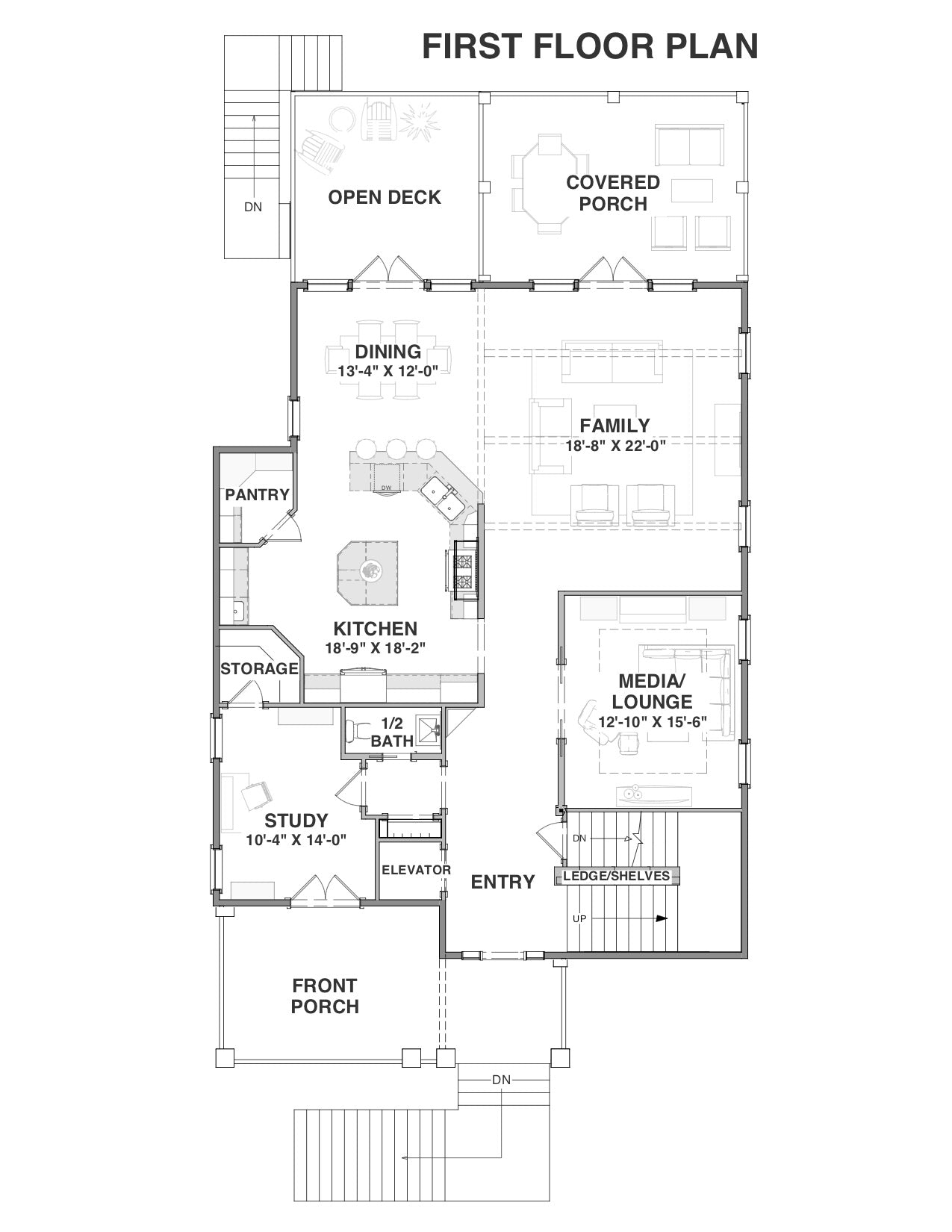

A kitchen for a crowd: a prep area, a large pantry, a breakfast nook and a snack bar, laid out so several people can cook and talk at once.
A primary suite with a balcony: a private covered balcony off the bedroom, and closet space to match.
Baths worked out upstairs: two bedrooms share a Jack-and-Jill bath and the third has its own, so guests and kids each have a door to close.
A screened porch with a fireplace: the porch has an outdoor fireplace and runs straight into an open deck, one room outdoors that works in most weather.
A staircase and beams to look at: the entry stair and the exposed beams in the great room are the two details that make the house feel custom-built.
- Footprint: 39’ 0” Width x 72’ 0” Depth
- Max Ridge Height: 39’ 0”
- Foundation: Post/Pier, Piling
- Framing: 2x6 Exterior Walls | Truss Roof Framing
- Ceilings: 8’ Lower Level | 10’ First Floor | 9’ Second Floor

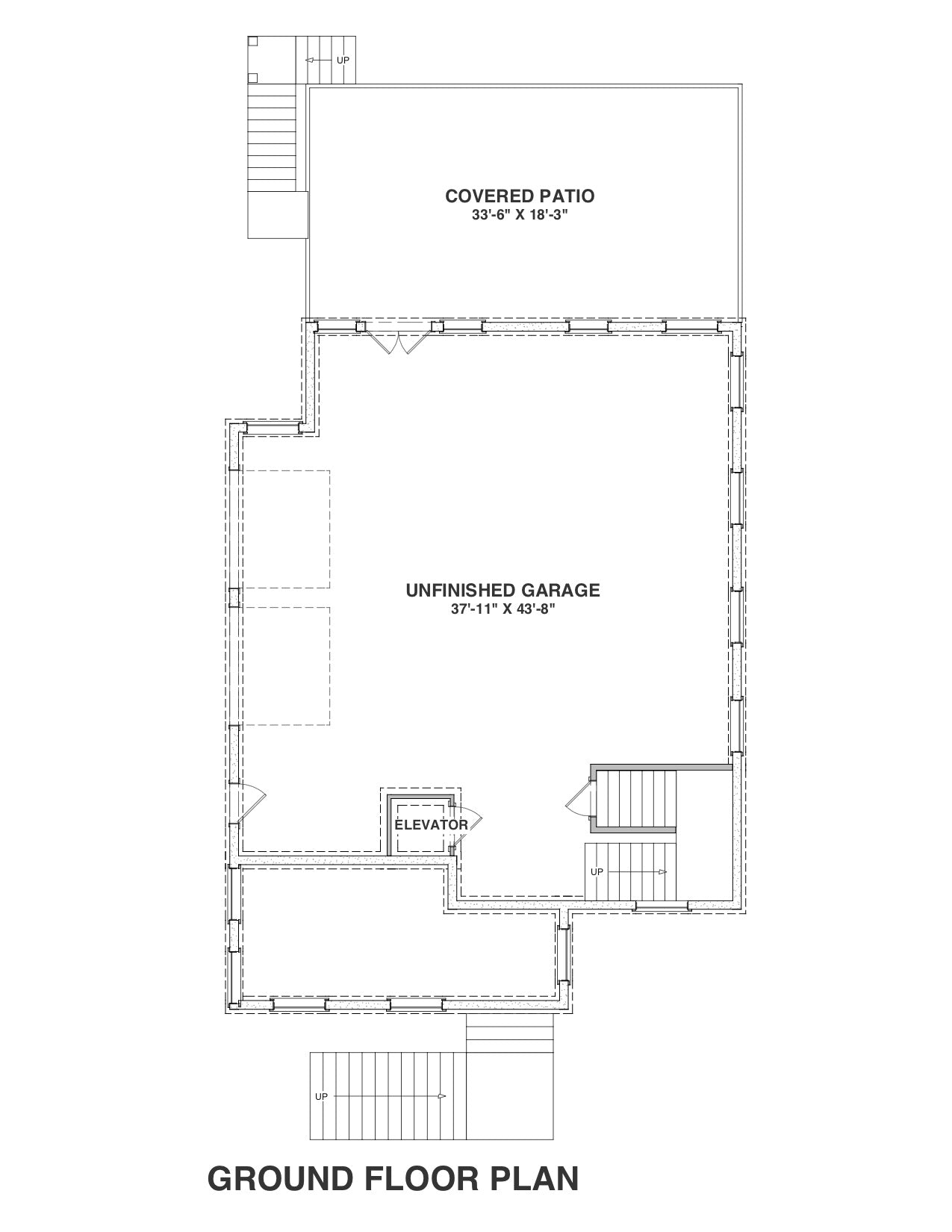

- Garage: Attached Drive-Under | 1,793 sq. ft. | 2 Cars | Side Entry
- Roof Details: 6 on 12 Primary Pitch
The Palm House is drawn as a family house for the coast: the kitchen is the hub, the porches are part of the living room, and every bedroom has its own arrangement for baths and privacy.
Every blueprint is crafted by Angela, a professional spatial designer with a degree in Construction Graphics Technology from Purdue University and studies in interior architecture.
With 16+ years of custom home design — including a decade in custom construction in Charleston, SC — Angela specializes in resilient coastal style homes designed for flood and hurricane zones.
Purchase of PDF Set includes
- Cover sheet with general notes
- Foundation plan
- Floor plans with dimensions
- Exterior elevations
- Cross section
- Door & window schedules
- Roof plan
- Electrical plans
- Cabinetry elevations (most plans; please inquire to confirm)
What's not included
- Architectural or engineering stamp: handled locally if required
- Site plan: handled locally when required
- Mechanical drawings (location of heating and air equipment and duct work): your subcontractors handle this
- Plumbing drawings (actual pipe sizes and locations): your subcontractors handle this
- Energy calculations: handled locally when required
Purchase of Chief Architect plan
- Plan and layout files (.plan and .layout) formatted for Chief Architect X17 or Home Designer Pro 2023 or newer
- All materials and textures related to the plan for 3D viewing
- PDF plan set included with purchase
Readable Reverse add-on
- A right-reading mirror image of the plan, flipped from right to left, with all dimensions and text still readable
What foundation does The Palm House come with?
The Palm House is drawn on a pier / piling foundation. It is an elevated plan, with the living space raised above open space or parking, drawn for flood zone and coastal lots. On this page it is offered as pier or piling, chosen before you buy. A local engineer sizes the foundation for your soil and wind zone.
How tall is The Palm House and how much ground does it cover?
The maximum ridge height is 39' 0". The footprint is 39' 0" x 72' 0", which is the number to check against your setbacks; porches and the garage count toward it even though they are not in the heated area. Heated living area is 3,445 square feet on 2 stories.
